What are the key features of the AIB-3588MD?

The AIB-3588MD is an ARM media/AI system on the Rockchip RK3588 (quad Cortex-A76 + quad Cortex-A55, Mali-G610 MP4 GPU), with 4GB LPDDR4, 32GB eMMC, four HDMI outputs plus one HDMI input, USB 3.0/2.0/Type-C, dual GbE, Wi-Fi 6 + BT5.2, RS-232/RS-485/CAN/GPIO, and Android 14, in a 203 x 114.7 x 50.1 mm chassis.

What processor does the AIB-3588MD use?

It uses the Rockchip RK3588, a high-performance octa-core SoC combining four Cortex-A76 and four Cortex-A55 cores with a Mali-G610 MP4 GPU and an NPU — strong for media decode/encode and edge AI.

How many displays can the AIB-3588MD drive?

It provides four HDMI outputs, making it well suited to multi-screen digital signage and video walls, plus one HDMI input for video capture or pass-through.

Does the AIB-3588MD support video capture?

Yes. It has one HDMI input enabling video capture or ingest alongside its four HDMI outputs — useful for media processing and broadcast/signage applications.

How much memory and storage does the AIB-3588MD have?

It comes with 4GB LPDDR4 memory and 32GB onboard eMMC storage.

What networking does the AIB-3588MD include?

It has dual 1000M Ethernet plus integrated 2x2 MIMO Wi-Fi (2.4/5GHz, 802.11 a/b/g/n/ac/ax) and Bluetooth 5.2 or above.

What I/O does the AIB-3588MD provide?

It offers USB 3.0, USB 2.0 and Type-C, two RS-232 and one RS-485, one CAN bus, and four GPIO — suitable for control and integration in signage and kiosk systems.

Which operating system does the AIB-3588MD run?

It runs Android 14, ideal for signage, kiosk, and media-player deployments with modern app and codec support.

What power input does the AIB-3588MD require?

It uses a simple 12V/2A DC power input.

What applications is the AIB-3588MD best suited for?

With RK3588 media performance, four HDMI outputs, HDMI capture, dual GbE and Wi-Fi 6, the AIB-3588MD targets digital signage and video walls, media players, edge video processing, and AI-assisted display applications.

Does the AIB-3588MD support AI workloads?

Yes. The Rockchip RK3588 integrates a neural processing unit (NPU) alongside its CPU and Mali-G610 GPU, enabling on-device AI inference for video analytics, object detection, and smart-signage use cases at the edge.

Can the AIB-3588MD drive a video wall?

Yes. With four independent HDMI outputs it can directly feed a multi-screen video wall or several separate displays from a single compact unit, simplifying signage deployments.

What wireless connectivity does the AIB-3588MD have?

It integrates 2x2 MIMO dual-band Wi-Fi (2.4/5GHz, 802.11 a/b/g/n/ac/ax — Wi-Fi 6) with Bluetooth 5.2 or above, in addition to its dual Gigabit Ethernet ports.

Is the AIB-3588MD suitable for industrial control integration?

Yes. Beyond media I/O it provides two RS-232 ports, one RS-485, a CAN bus interface, and four GPIO, allowing it to integrate with industrial equipment, sensors, and control logic in signage or automation deployments.

What are the benefits of using an ARM-based industrial system?

ARM-based systems offer low power consumption, compact design, long lifecycle support, and stable performance for industrial applications.

Avalue · Computing System

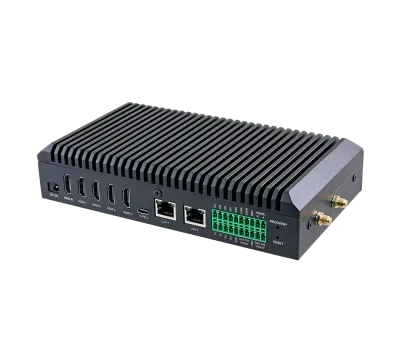

AIB-3588MD

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Rockchip RK3588 (Quad Cortex-A76 + Quad Cortex-A55), Mali-G610 MP4 GPU
4GB LPDDR4 memory, 32GB eMMC storage
4 x HDMI output + 1 x HDMI input (video capture)
USB 3.0 / USB 2.0 / Type-C
2 x RS-232, 1 x RS-485, 1 x CAN, 4 x GPIO
2 x Gigabit Ethernet
2x2 MIMO Wi-Fi 6 (2.4/5GHz 802.11ax) + Bluetooth 5.2
12V/2A power input
Android 14, 203 x 114.7 x 50.1 mm

Product Description

The Avalue AIB-3588MD is an ARM-based media/AI system built on the Rockchip RK3588 — a high-performance octa-core SoC (quad Cortex-A76 + quad Cortex-A55) with a Mali-G610 MP4 GPU — paired with 4GB LPDDR4 and 32GB eMMC storage.

With multi-stream HDMI output and HDMI capture, it is purpose-built for digital signage walls, video processing, and edge media applications running Android 14.

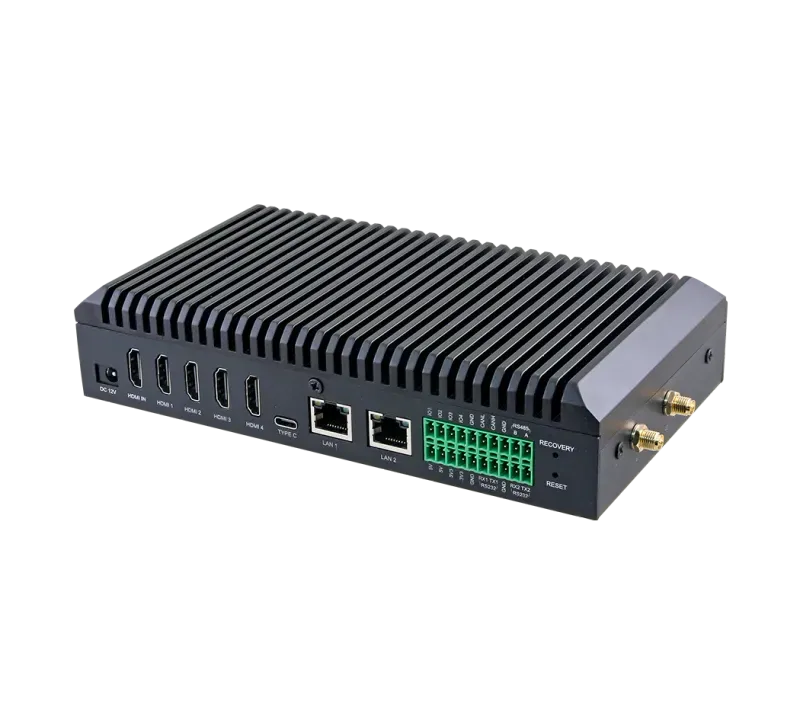

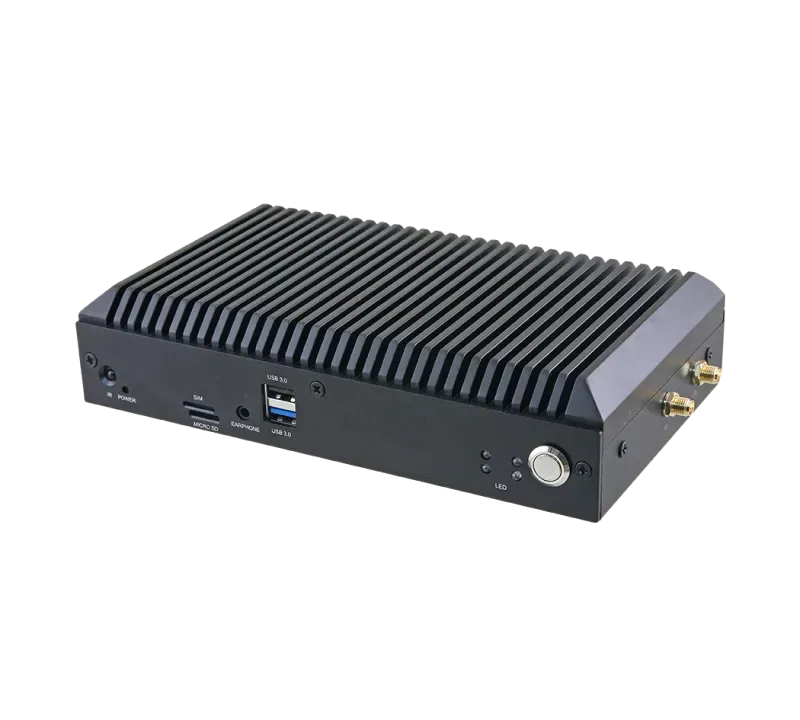

The AIB-3588MD provides strong media and connectivity I/O: four HDMI outputs plus one HDMI input, USB 3.0/2.0/Type-C, dual RS-232 and one RS-485, CAN bus and four GPIO, dual Gigabit Ethernet, and integrated 2x2 MIMO Wi-Fi (2.4/5GHz 802.11ax) with Bluetooth 5.2.

A 12V/2A input and a compact 203 x 114.7 x 50.1 mm chassis make it a tidy, capable edge media node.

Technical Specifications

Processor

Rockchip RK3588, Quad-core Cortex-A76 and Quad-core Cortex-A55

System Memory

4GB LPDDR4

GPU

Mali-G610 MP4 (4x256KB L2 Cache)

eMMC

32GB eMMC

USB Port

USB3.0 x 1/USB2.0 x 1/Type-C

RS232

× 2

RS485

× 1

CAN

× 1

GPIO

× 4

Ethernet

2x1000M Ethernet / 2x2 MIMO 2.4GHz/5GHz 802.11 a/b/g/n/ac/ax / BT5.2

or above

HDMI® Output

4 x HDMI

HDMI® Input

1 x HDMI

Power Requirement

12V/2A

OS

Android14

Operating Temp.

0~50°C

Storage Temp.

-20°C ~ +70℃

Operating Humidity

10%~90%

Dimension (W x L x H)

203 mm *114.7 mm *50.1mm

What is AIB-3588MD?

The AIB-3588MD is a computing system manufactured by Avalue, designed specifically for arm-based-system applications. The Avalue AIB-3588MD is an ARM-based media/AI system built on the Rockchip RK3588 — a high-performance octa-core SoC (quad Cortex-A76 + quad Cortex-A55) with a Mali-G610 MP4 GPU — paired with 4GB LPDDR4 and 32GB eMMC storage. With multi-stream HDMI output and HDMI capture, it is purpose-built for digital signage walls, video processing, and edge media applications running Android 14. The AIB-3588MD provides strong media and connectivity I/O: four HDMI outputs plus one HDMI input, USB 3.0/2.0/Type-C, dual RS-232 and one RS-485, CAN bus and four GPIO, dual Gigabit Ethernet, and integrated 2x2 MIMO Wi-Fi (2.4/5GHz 802.11ax) with Bluetooth 5.2. A 12V/2A input and a compact 203 x 114.7 x 50.1 mm chassis make it a tidy, capable edge media node.

Key Features & Benefits

Rockchip RK3588 (Quad Cortex-A76 + Quad Cortex-A55), Mali-G610 MP4 GPU
4GB LPDDR4 memory, 32GB eMMC storage
4 x HDMI output + 1 x HDMI input (video capture)
USB 3.0 / USB 2.0 / Type-C
2 x RS-232, 1 x RS-485, 1 x CAN, 4 x GPIO
2 x Gigabit Ethernet
2x2 MIMO Wi-Fi 6 (2.4/5GHz 802.11ax) + Bluetooth 5.2
12V/2A power input
Android 14, 203 x 114.7 x 50.1 mm

Applications & Use Cases

The AIB-3588MD is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
Wireless connectivity and remote monitoring applications
Legacy equipment integration and serial communication
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Data logging and storage-intensive operations
Industrial computing and data processing
