Computing System · ARM-based-System

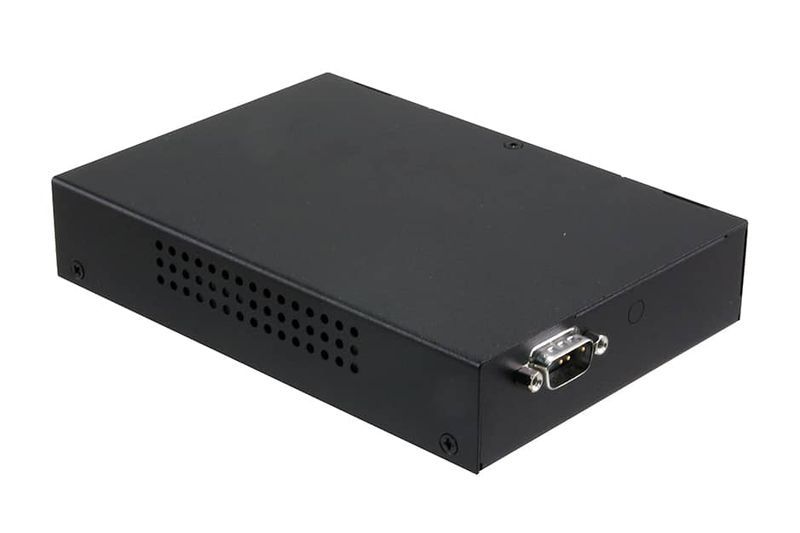

AIB-IMX6
Series: AIB
The Avalue AIB-IMX6 is an industrial ARM-based embedded computing system powered by the NXP i.MX6 processor, designed for reliable performance in embedded, IoT, and industrial automation applications. It includes versatile I/O such as Gigabit Ethernet, USB, serial (RS-232/422/485), and optional expansion slots for flexible connectivity. With wide DC 12–24 V power input, rugged construction, and support for Linux and Android operating systems, the AIB-IMX6 delivers dependable operation in demanding environments. Its compact form factor and industrial-grade design make it ideal for control systems, kiosks, digital signage, and smart embedded solutions.
Key Features
- NXP i.MX6 Cortex-A9 Dual Lite/Quad 1GHz CPU
- 1GB DDR3
- 4GB eMMC
- -20°C ~ 70°C (-4°F ~ 158°F)
- CE, FCC Class B
Technical Specifications
System Information
| Processor | NXP i.MX6 Cortex-A9 Dual Lite/ Quad 1GHz CPU |
|---|---|
| Platform Controller Hub | i.MX6 |
| System Memory | 1GB DDR3 |
| SBC | RSC-IMX61 |
Storage
| eMMC | 4GB eMMC |
|---|
External I/O Connector
| External I/O Connector | 1 x 10/100/1000 RJ45 Powered LAN, 1 x USB 2.0 Type A, 1 x Jack for I/R extender cable, co-design (Optional), with on board I/R sensor (Optional) |
|---|
Power Requirement
| Power Requirement | DC 12~26V |
|---|
Software Support
| OS | Android 4.4 or 6.0, Yocto 2.1 |
|---|
Certification
| Certification Information | CE, FCC Class B |
|---|
Mechanical & Environmental
| Operating Temp | -20°C ~ 70°C (-4°F ~ 158°F) |
|---|---|
| Storage Temp. | -40°C ~ 70°C (-40°F ~ 158°F) |
| Dimension (W x L x H) | 153 mm x 107.8 mm x 30 mm |
| Weight | 1.5 kg |
Ordering Information
| Ordering Information | AIB-IMX6LB-A1R-00 : AIB-IMX6LB-A1R-00 |
|---|
