Computing System · ARM-based-System

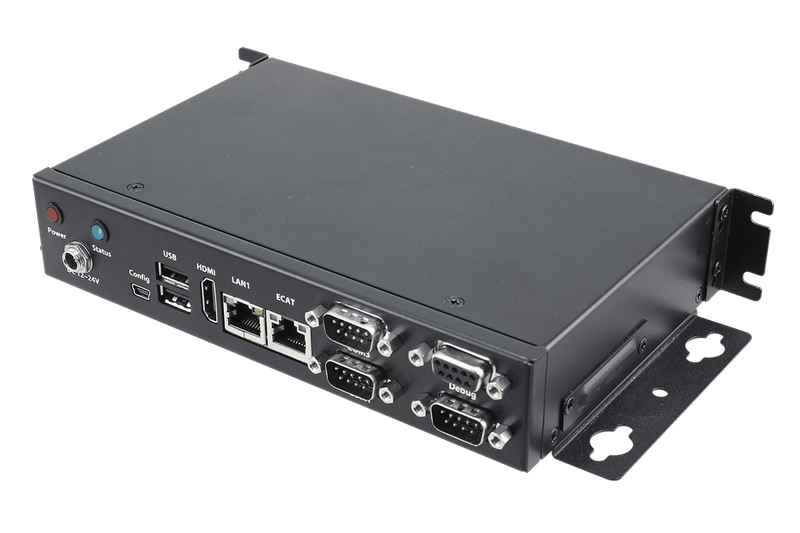

AIB-IMX6A
Series: AIB
The Avalue AIB-IMX6A is an industrial ARM-based embedded computing system powered by an NXP i.MX6 Cortex-A9 quad-core processor running at up to 1 GHz, offering reliable performance for embedded applications. It includes 1 GB DDR3 memory, 8 GB eMMC storage, and a variety of interfaces such as dual Gigabit LAN, USB 2.0 ports, mini USB, and optional I/R extender support. With wide DC 12–24 V power input and compliance with CE and FCC Class B standards, the AIB-IMX6A is suitable for automation, smart IoT, digital signage, kiosk systems, and industrial control applications where dependable operation in –20 °C to 50 °C environments is required.
Key Features
- NXP i.MX6 Cortex-A9 Quad 1GHz CPU
- 2GB DDR
- 8GB eMMC
- -20°C ~ 70°C (-4°F ~ 158°F)
- CE, FCC Class B
Technical Specifications
System Information
| Processor | NXP i.MX6 Cortex-A9 Quad 1GHz CPU |
|---|---|
| Platform Controller Hub | i.MX6 |
| System Memory | 1GB DDR3 |
| SBC | ACP-IMX6POS-B1 |
Storage
| eMMC | 8GB eMMC |
|---|
External I/O Connector
| External I/O Connector | 2 x 10/100/1000 RJ45 Powered LAN, 1 x Mini USB, 2 x USB 2.0 Type A, 1 x Jack for I/R extender cable, co-design (Optional), with on board I/R sensor (Optional) |
|---|
Power Requirement
| Power Requirement | DC 12~24V |
|---|
Software Support
| OS | Yocto 1.7 / 2.5 |
|---|
Certification
| Certification Information | CE, FCC Class B |
|---|
Mechanical & Environmental
| Operating Temp | -20°C ~ 50°C (-4°F ~ 122°F) |
|---|---|
| Storage Temp. | -20°C ~ 70°C (-4°F ~ 158°F) |
| Dimension (W x L x H)" | 186 mm x 121.35 mm x 37 mm |
| Weight | 1.0 kg |
Ordering Information
| Ordering Information | AIB-IMX6AQ-A1R : AIB-IMX6AQ-A1R |
|---|
