Avalue · Computing System

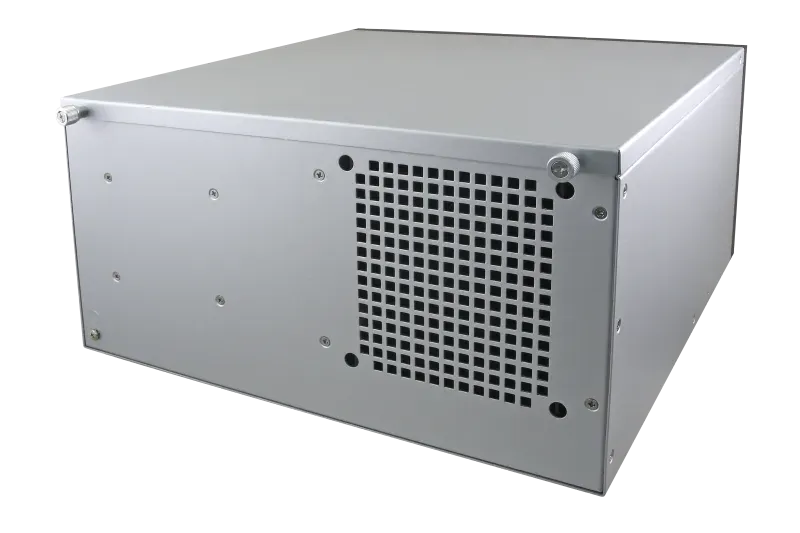

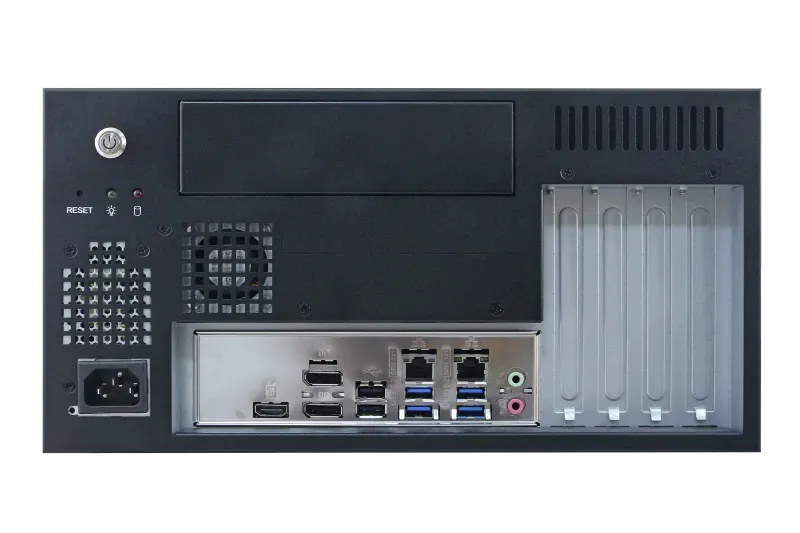

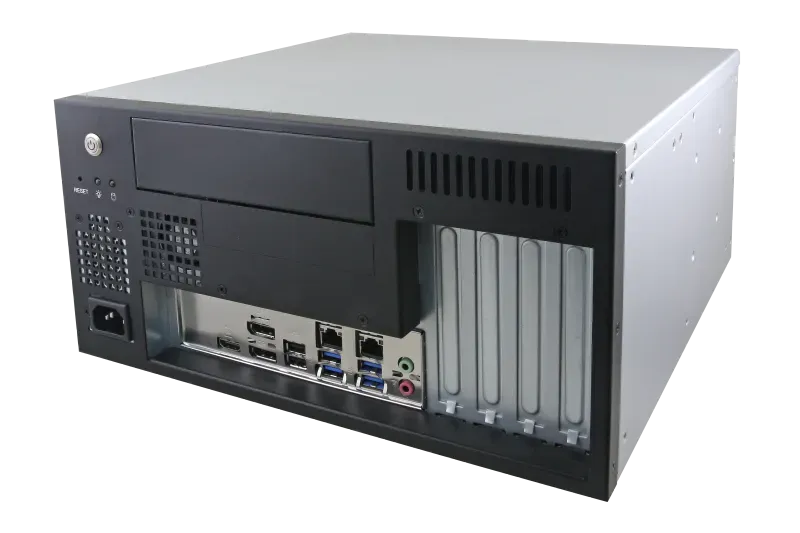

BMX-P820A

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

14th Gen Intel Core i7-14700T (35W default, 65W project)
Intel H610E chipset, Micro-ATX RX610H board
2 x DDR5 4800 U-DIMM dual-channel, up to 64GB
Onboard Infineon SLB9670 TPM 2.0
4 x full-height expansion slots (PCIe x16 + PCIe Gen3); opt. RTX A2000 Ada
M.2 M-Key 2242/2280/22110 NVMe + 2.5" + 2x 3.5" bays + 5.25" CD-ROM
HDMI 2.0 4K + 2 x DP++ 1.4a up to 7680x4320
Dual LAN (Intel I219 GbE + Intel i225/i226 2.5GbE)
ATX power, Windows / Linux

Product Description

The Avalue BMX-P820A is a Micro-ATX barebone workstation built on the RX610H board for 14th Generation Intel Core i7-14700T (35W default, 65W project) with the Intel H610E chipset.

Dual-channel DDR5 4800 U-DIMM supports up to 64GB, with onboard Infineon TPM 2.0 and four full-height expansion slots (PCIe x16 plus PCIe Gen3 lanes) including optional NVIDIA RTX A2000 Ada support — a true expandable workstation foundation.

Storage and I/O are workstation-grade: M.2 M-Key NVMe (PCIe x4 + SATA III), one 2.5" and two 3.5" internal bays, a 5.25" CD-ROM bay, eight USB ports front/rear, HDMI 2.0 (4K) and dual DP++ 1.4a (up to 7680x4320), and dual Ethernet (Intel I219 GbE + Intel i225/i226 2.5GbE).

ATX power and active cooling make the BMX-P820A ideal for GPU-accelerated edge AI, vision, and industrial workstation builds on Windows or Linux.

Technical Specifications

Processor

Intel® Core™ i7-14700T Processor (35W, Default)

Intel® Core™ i7-14700 Processor (65W, Project Base)

Platform Controller Hub

Intel® H610E Chipset

System Memory

2 x 288-Pin DDR5 4800MHz Dual Channel U-DIMM Socket Supports Up to 64GB

SBC

Micro ATX 244mm x 244mm (RX610H)

H/W Status Monitor

CPU Temperature Monitoring

Voltages Monitoring

CPU Fan Speed Control

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

TPM

Onboard infineon SLB 9670VQ2.0 support TPM2.0

I/O Chipset

nuvoton NCT6126D

BIOS Information

AMI 256Mb UEFI BIOS

Expansion Card

A2000 Ada for opt.

M.2

1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 Share with Slot4 + USB 2.0)

PCIe

1 x Gen PCIe x16 (x16 Physical Black) (Slot 1)

1 x Gen 3 PCIe x1 (x4 Physical Open Ended) (Slot 2)

2 x Gen 3 PCIe x1 (x16 Physical Yellow) (Slot 3 & 4)

Expansion

4 x Full-Height Expansion Slots

CD ROM

1 x 5.25” CD ROM

M.2

1 x M.2 M-Key 2242/2280/22110 NVMe (PCIe x4 + SATA III)

Drive Bay

1 x Internal 2.5” Drive Bay

2 x Internal 3.5” Drive Bay

HDMI

1 x HDMI 2.0 4Kx2K@60Hz

LAN Port

1 x Intel® I219V Gigabit Ethernet PHY

1 x Intel® i225LM 2.5 Gigabit Ethernet

DP

2 x DP (DP1.4a): Max: 7680 x 4320@60Hz

(2 x DP++: 1920 x 1080@60Hz)

Power Button

1 x PWR

Audio

Mic-in, Line-out

LED Indicator

1 x PWR LED

1 x HDD Data Access LED

USB

4 x USB 3.2 Gen1x1

2 x USB 2.0

USB

4 x USB 3.2 Gen1x1

2 x USB 2.0

HDMI

1 x HDMI 1.4b 4K@30Hz

LAN Port

1 x Intel® I219LM Gigabit Ethernet PHY

1 x Intel® i226V 2.5 Gigabit Ethernet

Audio

Mic-in, Line-out

DP

2 x Dual Mode DisplayPort (DP++) 1.4a 4K@60Hz

CPU/System FAN

CPU FAN: 1 x 4P CPU FAN

System FAN: 2 x SYS FAN

Graphic Chipset

Intel® UHD Graphics 770 (Depends on CPU)

Resolution

HDMI 2.0 4Kx2K@60Hz

Dual Mode DisplayPort (DP++) Max: 7680 x 4320@60Hz

Audio Codec

RealTek ALC888S

LAN Chipset

1 x Intel® I219V Gigabit Ethernet PHY

1 x Intel® i226V 2.5 Gigabit Ethernet

ACPI

Single power ATX support S0, S3, S4, S5

Power Mode

AT/ATX (ATX is default setting)

Power Supply Unit

AC to ATX PSU

Voltage Input Spec.

+12V/+5V/5VSB/+3.3V/-12V (ATX power)

Voltage Input Connector

4P ATX connector

DC Output Spec.

ATX power, 300W PSU

OS

Win10, Win11, Linux

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F) with 0.5m/s air flow

Storage Temp.

-30~70C° (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

320 x 371.2 x 164mm

Vibration Test

With SSD : 1 Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis

Drop Test

Package drop test

Reference ISTA 1G

Items

1 x BMX-P820A

1 x AC 300W PSU

1 x Screws kit (For M.2, SATA 2.5” cables)

What is BMX-P820A?

The BMX-P820A is a computing system manufactured by Avalue, designed specifically for barebone-system applications. The Avalue BMX-P820A is a Micro-ATX barebone workstation built on the RX610H board for 14th Generation Intel Core i7-14700T (35W default, 65W project) with the Intel H610E chipset. Dual-channel DDR5 4800 U-DIMM supports up to 64GB, with onboard Infineon TPM 2.0 and four full-height expansion slots (PCIe x16 plus PCIe Gen3 lanes) including optional NVIDIA RTX A2000 Ada support — a true expandable workstation foundation. Storage and I/O are workstation-grade: M.2 M-Key NVMe (PCIe x4 + SATA III), one 2.5" and two 3.5" internal bays, a 5.25" CD-ROM bay, eight USB ports front/rear, HDMI 2.0 (4K) and dual DP++ 1.4a (up to 7680x4320), and dual Ethernet (Intel I219 GbE + Intel i225/i226 2.5GbE). ATX power and active cooling make the BMX-P820A ideal for GPU-accelerated edge AI, vision, and industrial workstation builds on Windows or Linux.

Key Features & Benefits

14th Gen Intel Core i7-14700T (35W default, 65W project)
Intel H610E chipset, Micro-ATX RX610H board
2 x DDR5 4800 U-DIMM dual-channel, up to 64GB
Onboard Infineon SLB9670 TPM 2.0
4 x full-height expansion slots (PCIe x16 + PCIe Gen3); opt. RTX A2000 Ada
M.2 M-Key 2242/2280/22110 NVMe + 2.5" + 2x 3.5" bays + 5.25" CD-ROM
HDMI 2.0 4K + 2 x DP++ 1.4a up to 7680x4320
Dual LAN (Intel I219 GbE + Intel i225/i226 2.5GbE)
ATX power, Windows / Linux

Applications & Use Cases

The BMX-P820A is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Memory-intensive applications and multitasking
Industrial computing and data processing
Edge computing and IoT applications
Real-time monitoring and control
Industrial automation systems

Frequently Asked Questions

Trusted Platform Module (TPM) 2.0 is a security chip that provides hardware-based cryptographic functions. In industrial computing, it enhances security by enabling secure boot, protecting encryption keys, ensuring platform integrity, and preventing unauthorized access to sensitive data. This is particularly important for industrial systems that may handle confidential manufacturing data or control critical infrastructure.

If the system doesn't power on: check power connections and ensure the power source is functioning, verify the power button connection, confirm the power supply is working (if applicable), check for any visible damage, ensure components like CPU and memory are properly seated, reset CMOS if possible, and if available, check status LEDs for diagnostic information. If these steps don't resolve the issue, contact technical support.

To diagnose memory issues: check if memory modules are properly seated, try using just one memory module at a time to identify a potentially faulty module, verify you're using compatible memory specifications (speed, type), check for POST codes or beep patterns indicating memory failures, and run memory diagnostic tests through the BIOS or a bootable diagnostic tool. Many memory issues can be resolved by reseating or replacing modules.

If display output isn't working: verify cable connections, check that the monitor is powered on and set to the correct input source, try alternative display outputs if available, ensure the system is fully booting (check power LEDs and listen for fan operation), confirm the CPU and graphics hardware is properly functioning, update graphics drivers if possible, and reset BIOS settings to default if necessary.

To resolve Ethernet connectivity issues: check physical cable connections, verify network configuration settings (IP address, subnet mask, gateway), ensure Ethernet ports are enabled in BIOS, test with different network cables, check for link LEDs indicating physical connection status, update network adapter drivers, reset network hardware (switches, routers), and disable/enable network interfaces in the operating system to reset connections.
