Product Datasheet
20 May 2026
Computing System · Compact-Computing-System
ACS-ALUC
Series: ACS

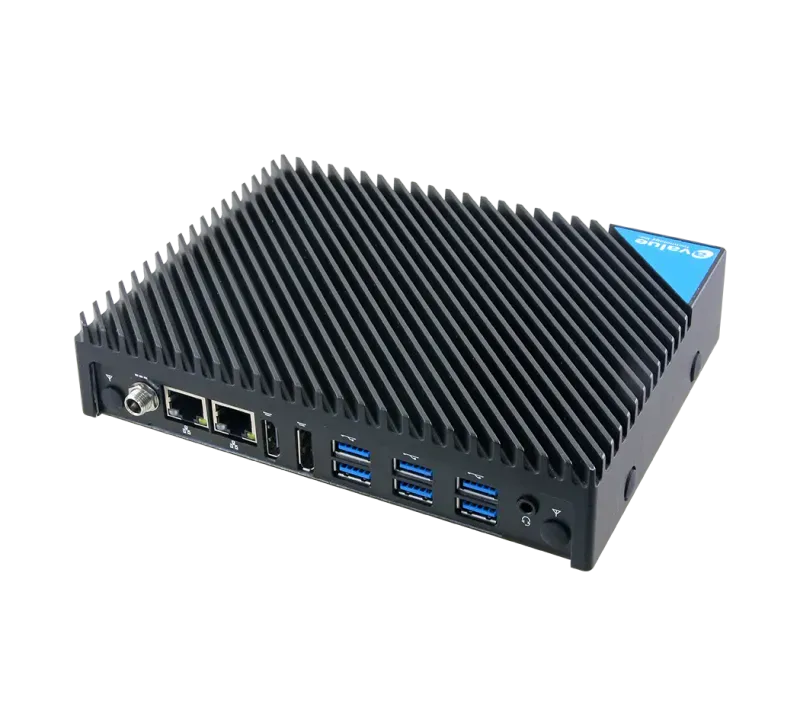

The Avalue ACS-ALUC is a compact fanless industrial computing system powered by 12th/13th Generation Intel Core i3/i5 (15W) processors, delivering notably higher performance than Atom-class mini systems while retaining a quiet, rugged 180 x 136 x 40 mm chassis. It supports DDR4 3200MHz memory up to 32GB and triple M.2 expansion (Key-E, Key-B, Key-M) with an M.2 Key-M 2280 slot for SSD storage. For industrial integration the ACS-ALUC offers four front RS-232 (DB9) COM ports, six rear USB 3.2 Gen1 ports, DP++ and HDMI display, and dual Ethernet via Intel I226-V 2.5GbE and Intel I219-V Gigabit controllers. A 12V DC input and validated vibration, shock and drop testing make it a dependable mid-performance node for machine control, vision, and edge workloads on Windows 10/11 or Linux.
Key Features
- 12th/13th Gen Intel Core i3/i5 (15W) processor, fanless
- 1 x DDR4 3200MHz SO-DIMM, up to 32GB
- Triple M.2 expansion: Key-E 2230, Key-B 2242/3052, Key-M 2280
- 4 x front RS-232 (DB9), 6 x rear USB 3.2 Gen1
- DP++ and HDMI display output
- Intel I226-V 2.5GbE + Intel I219-V Gigabit Ethernet
- 12V DC input
- Vibration / shock / drop tested
- 180 x 136 x 40 mm, Windows 10/11 / Linux
Technical Specifications
System Information
| Processor | 12th/13th Gen. Intel® Core™ i3/i5 (15W) processor |
|---|---|
| System Memory | 1 x 260-pin DDR4 3200 SO-DIMM up to 32GB |
Expansion
| M.2 | 1 x M.2 Key-E 2230 (PCIE), 1 x M.2 Key-B 2242/3052 (PCIE+USB2.0+USB3.0), 1 x M.2 Key-M 2280 (PCIE) |
|---|
Storage
| M.2 | 1 x M.2 Key-M 2280 |
|---|
Front I/O
| COM Port | 4 x RS232(Front) |
|---|
Rear I/O
| USB | 6 x USB 3.2 Gen1(Rear) |
|---|---|
| Audio | 1 x Line-Out+Mic |
| DP | 1 x DP++ |
| HDMI | 1 x HDMI |
| AC/DC Input | DC 12V |
Ethernet
| LAN Chipset | 1 x I226V 1GbE, 1 x I219V 1GbE |
|---|
Software Support
| OS | Win10, Win11, Linux |
|---|
Mechanical & Environmental
| Operating Temp. | -10°C ~50°C (14°F ~ 122°F) with 0.5m/s air flow |
|---|---|
| Dimension (W x L x H) | 180mm x 136mm x 40mm |
| Vibration Test | with SSD: 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis |
| Shock Test | IEC 60068-2-27, Half Sine, 11ms |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces |
Ordering Information
| Ordering Information | ACS-ALUC-A1-1R:, ACS-ALUC Compact System w/i3-1215U w/ECM-ALUC,Barebone with 120W Power Adapter, ACS-ALUC-A1-2R:, ACS-ALUC Compact System w/i3-1215U,DDR4 8GB,M.2 2280 128GB, 120W Power Adapter, ACS-ALUC-A1-3R:, ACS-ALUC Compact System w/i5-1235U w/ECM-ALUC,Barebone with 120W Power Adapter, ACS-ALUC-A1-4R:, ACS-ALUC Compact System w/i5-1235U,DDR4 8GB,M.2 2280 128GB, 120W Power Adapter |
|---|
