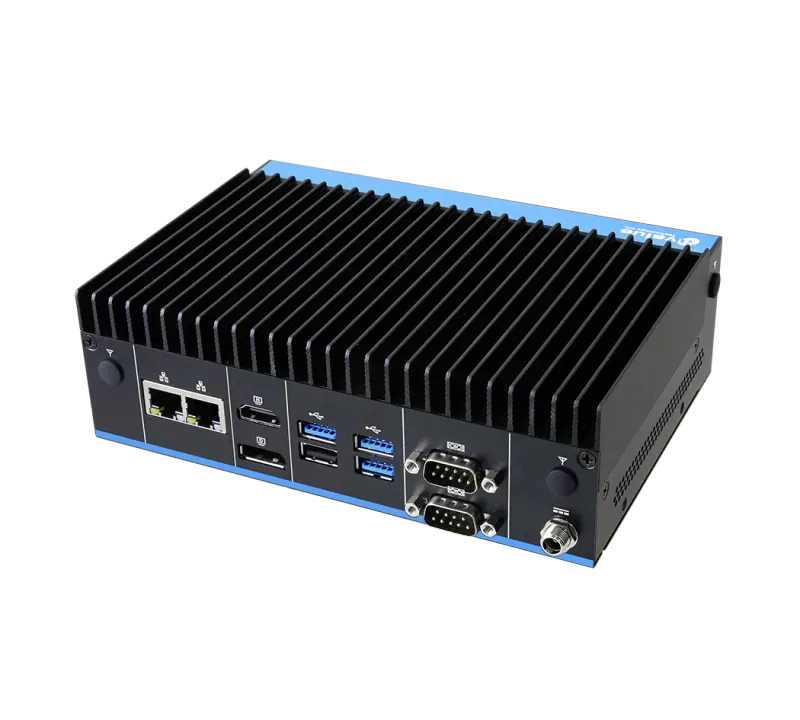

EPC-ASL

Series: EPC

Manufactured byAvalue

The Avalue EPC-ASL is a compact fanless box computer powered by the Intel Processor N97 (6M cache, up to 3.60 GHz), pairing efficient x86 performance with onboard TPM 2.0 security. Based on the ECM-ASL SBC, it accepts DDR5 4800MHz memory up to 16GB and provides an M.2 Key-B 2242 slot plus an internal 2.5" SATA III drive bay for flexible storage in a rugged 177 x 127 x 57 mm chassis. The EPC-ASL offers dependable industrial connectivity: dual 2.5GbE RJ-45 (Intel I226-V), two RS-232 COM ports, front and rear USB (USB 3.2 Gen2 and USB 2.0), and DisplayPort 1.4a plus HDMI 2.0b each up to 4096x2160 @ 60Hz. A wide 12/24V input with selectable 60W/120W adapters, CE/FCC/UKCA certification, and 0–50°C operation make it a robust, compliant edge node for Windows 10/11 or Linux.

Key Features

Intel Processor N97 (6M cache, up to 3.60 GHz), fanless
1 x DDR5 4800MHz SO-DIMM, up to 16GB
Onboard TPM 2.0 (based on ECM-ASL SBC)
M.2 Key-B 2242 + internal 2.5" SATA III drive bay
Dual 2.5GbE RJ-45 (Intel I226-V)
DP 1.4a + HDMI 2.0b, 4096x2160 @ 60Hz
Front/rear USB 3.2 Gen2 + USB 2.0, 2 x RS-232
Wide 12/24V input, 60W/120W adapter options
CE / FCC Class B / UKCA certified, 177 x 127 x 57 mm

Technical Specifications

System Information

Processor	Intel® Processor N97 (6M Cache, up to 3.60 GHz)
System Memory	1 x 262-pin DDR5 4800MHz SO-DIMM socket, Max. up to 16GB
BIOS Information	AMI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer	H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor	Monitoring System Temperature and Voltage with Auto Throttling Control
TPM	On Board TPM 2.0
SBC	ECM-ASL

Expansion

M.2	1 x M.2 Key-B, (3042/3052/2242 (PCIe x1, USB 3.2 GEN1,USB 2.0), 1 x M.2 Key-E, (2230, 1 x PCI-e x1, USB 2.0 Signal)

Storage

M.2	1 x M.2 (Key-B, 2242, PCIe x 1)
2.5 Drive Bay	1 x 2.5 Drive Bay (SATA3, 7mm)

Front I/O

USB	2 x USB2.0
Power Button	1 x Power Button
Reset Button	1 x Reset Button
LED Indicator	1 x Power on/off LED, 1 x Storage Access LED
Audio	1 x Mic-in, 1 x Line-out

Rear I/O

USB	3 x USB 3.2 Gen2, 1 x USB 2.0
COM Port	2 x RS232
LAN Port	2 x RJ-45 (2.5GbE)
DP	1 x DP 1.4a
HDMI	1 x HDMI 2.0b
Antenna	2 x Antenna Mounting with Dust Protection Cover
AC/DC Input	1 x Lockable DC Jack

Display

Graphic Chipset	Intel® UHD Graphics
Resolution	HDMI 2.0b Max resolution 4096 x 2160@60Hz, DP 1.4a Max resolution 4096 x 2160@60Hz

Audio

Audio Codec	Realtek ALC888S HD Audio Decoding Controller

Ethernet

LAN Chipset	2 x Intel Ethernet Controller I226V
Data Rate Per Port	10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

Voltage Input Spec.	Typical +12V/24V
Power Mode	AT/ATX (ATX is Default Setting)
Adapter	60W AC to DC Adapter (Default)/ 120W AC to DC Adapter (Option), Note1: 60W for general mode (storage, communication, display, USB port, room temp.), Note2: 120W for full load mode (general mode pluses max. workload and operating temp.)

Software Support

OS	Win10, Win11, Linux

Certification

Certification Information	CE, FCC Class B, UKCA

Mechanical & Environmental

Operating Temp.	With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow
Storage Temp.	-30~70C° (-22°F ~ 158°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)	177 x 127 x 57mm(6.97" x 4.96 x 2.24”)
Vibration Test	With SSD: 1.5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Test	With SSD: 10G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
Drop Test	ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Mounting Kit	Wall Mount Kit (Default)

Ordering Information

Ordering Information	EPC-ASL-N97-A1-1R \| Intel® Processor N97 Fanless Compact System
