EPC-RPU

Series: EPC

Manufactured byAvalue

The Avalue EPC-RPU is a compact fanless box computer powered by 15W Intel Core i5-1335UE / i3-1315UE processors, pairing efficient Raptor Lake-U performance with DDR5 4800MHz memory up to 32GB and onboard TPM 2.0. Built on the ECM-RPL SBC with SATA RAID 0/1 support, it is a secure, reliable compute node for industrial control, edge, and data-collection roles. Storage and connectivity are strong for the class: an M.2 Key-M 2280 NVMe (PCIe Gen4 x4), an M.2 Key-B 2242 (SATA, with SIM slot), an M.2 Key-E 2230 for wireless, and an internal 2.5" drive bay. The EPC-RPU drives DisplayPort 2.1, HDMI 2.0b and a USB Type-C DisplayPort (with PD), backed by dual Intel I226-LM 2.5GbE, USB 3.2 Gen2, and RS-232/422/485 COM ports — in a rugged chassis running Windows or Linux.

Key Features

Intel Core i5-1335UE / i3-1315UE (15W) processor, fanless
1 x DDR5 4800MHz SO-DIMM, up to 32GB
Onboard TPM 2.0; SATA RAID 0/1 (ECM-RPL SBC)
M.2 Key-M 2280 NVMe (PCIe Gen4 x4) + M.2 Key-B 2242 (SATA) + M.2 Key-E 2230
Internal 2.5" drive bay
DP 2.1 + HDMI 2.0b + USB Type-C DP/PD
Dual Intel I226-LM 2.5GbE
USB 3.2 Gen2, 2 x RS-232/422/485
Rugged compact chassis, Windows / Linux

Technical Specifications

System Information

Processor	Intel® Core™ i5-1335UE Processor (15W), Intel® Core™ i3-1315UE Processor (15W)
System Memory	1 x 262-pin SO-DIMM socket Max. up to 32GB DDR5 4800MHz
I/O Chipset	EC iTE IT5782VG
BIOS Information	AMI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer	H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor	System temperature monitoring and Voltages monitoring
RAID	RAID 0/1 (SATA)
TPM	Onboard TPM 2.0 IC
SBC	ECM-RPL

Expansion

M.2	1 x M.2 Key-B 3042/3052/2242 (SATA3, USB3.0, w/SIM Card Slot), 1 x M.2 Key-M 2280(PCIe,Gen4x4), 1 x M.2 Key-E 2230(PCIe, USB2.0)

Storage

M.2	1 x M.2 Key-B 2242 (SATA3), 1 x M.2 Key-M 2280 (NVMe, PCIe Gen4 x 4)
2.5 Drive Bay	1 x Internal 2.5 Drive Bay (7mm)

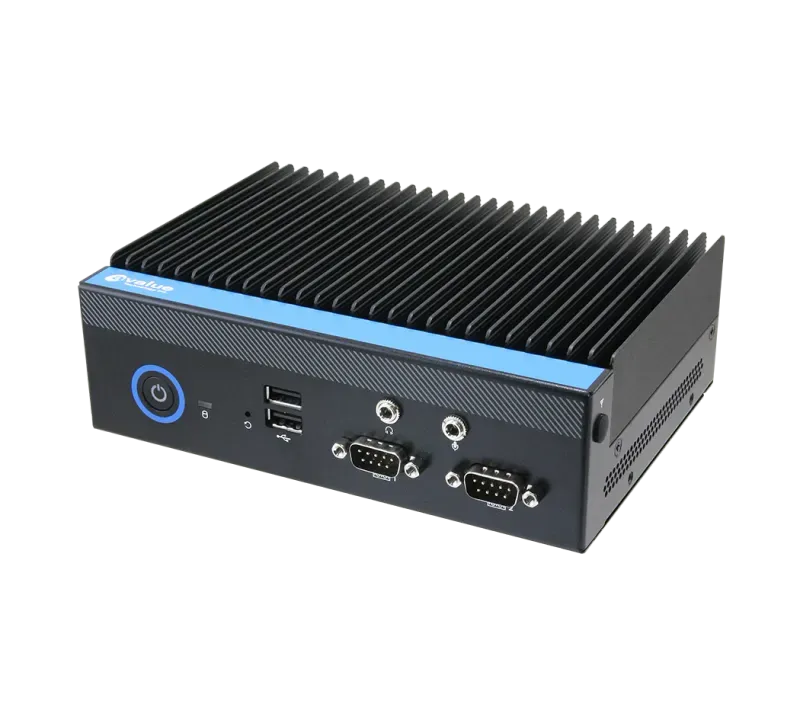

Front I/O

USB	2 x USB 2.0
Power Button	1 x Power Button
Reset Button	1 x Reset button
COM Port	2 x RS232/422/485
LED Indicator	1 x Power on/off LED, 1 x Storage Access LED
Audio	1 x Mic-in, 1 x Line-out

Rear I/O

USB	3 x USB 3.2 Gen2, 1 x USB 2.0, 1 x USB Type C support DP/USB 3.2 Gen 1/PD 5V x 3A
LAN Port	2 x RJ45
DP	1 x DP 2.1
HDMI	1 x HDMI 2.0b
Antenna	2 x Antenna Mounting with Dust Protection Cover
AC/DC Input	1 x Lockable DC Jack

Right I/O

Antenna	1 x Antenna Mounting with Dust Protection Cover

Left I/O

Antenna	1 x Antenna Mounting with Dust Protection Cover

Display

Graphic Chipset	Intel® Iris®Xe/UHD Graphics for 13th Gen Intel® Processors
Resolution	1 x DP 1.4 : Max. 7680 x 4320@60Hz, 1 x HDMI 2.0b : Max. 4096 x 2160@60Hz, 1 x DP 1.4 (from USB Type C): Max. 4096 x 2304@60Hz

Audio

Audio Codec	Realtek ALC888S

Ethernet

LAN Chipset	2 x Intel® I226LM
Specification	2 x 10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

Voltage Input Spec.	Typical 12V/24V Power Input
Voltage Input Connector	Lockable DC Jack
ACPI	Single power ATX Support S0, S3, S4, S5, ACPI 5.0 Compliant
Power Mode	AT/ATX (ATX is default setting)
Adapter	Input: 100 ~ 240Vdc/ 50 ~ 60Hz, Output: 12V/10A AC-DC 120W Adapter

Software Support

OS	Win10, Win11, Linux

Certification

Certification Information	CE, FCC, Class B, UKCA

Mechanical & Environmental

Operating Temp.	With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow, With 2.5” hard drive: 0°C ~ 40°C (32°F ~ 113°F) with 0.5m/s air flow
Storage Temp.	-30~70C° (-22°F ~ 158°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)	177x 126 x 57mm (6.97” x 4.94” x 2.24")
Vibration Test	With SSD : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Test	With SSD : 10 Grms, IEC 60068-2-27, Half Sine, 11ms
Drop Test	ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Mounting Kit	Wall Mount Kit

Ordering Information

Ordering Information	13th Gen Intel® Raptor Lake-P Core™ i5/i3 Fanless Compact System, EPC-RPU-I5E-A1-1R (i5-1335UE), EPC-RPU-I3E-A1-1R (i3-1315UE)
