EPC-TWL

Series: EPC

Manufactured byAvalue

The Avalue EPC-TWL is a compact fanless box computer built on Intel Twin Lake processors (N150 default, N250 or Core 3 N355 optional), pairing modern low-power efficiency with onboard TPM 2.0 security. Based on the ECM-TWL SBC, it accepts DDR5 4800MHz memory up to 16GB and offers an M.2 Key-B 2242 SSD plus an internal 2.5" drive bay for flexible, high-capacity storage in a rugged 177 x 127 x 57 mm chassis. The EPC-TWL provides dependable industrial connectivity: dual 2.5GbE RJ-45 (Intel I226-V), two RS-232 COM ports, front and rear USB (USB 3.2 Gen2 and USB 2.0), DisplayPort 1.4a and HDMI 2.0b each up to 4096x2160 @ 60Hz, and dust-protected antenna mounts for wireless. A wide 12/24V input with ATX power management, 0–60°C operation, and vibration/shock/drop validation make it a robust edge node for Windows 11 or Linux.

Key Features

Intel Twin Lake: N150 (default), N250 / Core 3 N355 (optional), fanless
1 x DDR5 4800MHz SO-DIMM, up to 16GB
Onboard TPM 2.0 (based on ECM-TWL SBC)
M.2 Key-B 2242 SSD + internal 2.5" drive bay
Dual 2.5GbE RJ-45 (Intel I226-V)
DP 1.4a + HDMI 2.0b, 4096x2160 @ 60Hz
Front/rear USB 3.2 Gen2 + USB 2.0, 2 x RS-232
Wide 12/24V input, ATX power management
Rugged 177 x 127 x 57 mm, vibration/shock/drop tested

Technical Specifications

System Information

Processor	Intel® Twin Lake Processors, Intel® Processors N150 (Default), Intel® Processors N250 (Optional), Intel® Core™ 3 N355 (Optional)
System Memory	1 x 262-pin DDR5 4800MHz SO-DIMM socket, Max. up to 16GB
I/O Chipset	EC ITE: IT5782VG
Watchdog Timer	H/W Reset, 1sec. ~ 65535min. and 1sec. or 1min./step
TPM	On Board TPM 2.0
SBC	ECM-TWL

Expansion

M.2	1 x M.2 Key-B, (3042/3052/2242 (PCIe x1, USB 3.2 GEN1,USB 2.0), 1 x M.2 Key-E, (2230, 1 x PCI-e x1, USB 2.0 Signal)

Storage

M.2	1 x M.2 Key-B 2242 SSD (PCIe x 1)
2.5 Drive Bay	1 x Internal 2.5” Drive Bay (7mm)

Front I/O

USB	2 x USB2.0
Power Button	1 x Power Button w/LED
Reset Button	1 x Reset Button
LED Indicator	1 x Power on/off LED
Audio	1 x Mic-in, 1 x Line-out

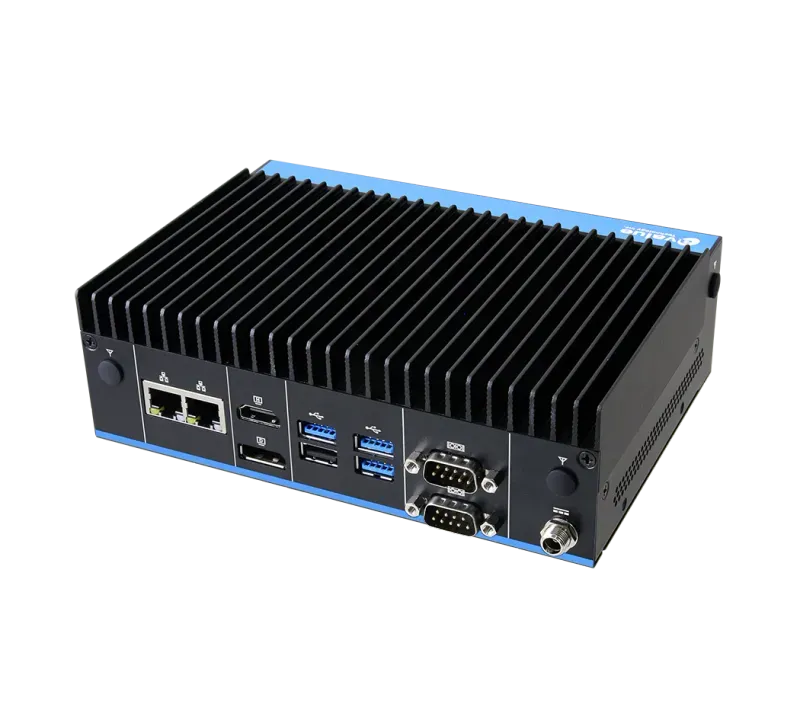

Rear I/O

USB	3 x USB 3.2 Gen2, 1 x USB 2.0
COM Port	2 x RS232
LAN Port	2 x RJ-45 (2.5GbE)
DP	1 x DP 1.4a
HDMI	1 x HDMI 2.0b
Antenna	2 x Antenna Mounting with Dust Protection Cover
AC/DC Input	1 x Lockable DC Jack

Right I/O

Antenna	1 x Antenna w/cover

Left I/O

Antenna	1 x Antenna w/cover

Display

Graphic Chipset	Intel® UHD Graphics
Resolution	1 x HDMI 2.0b Max resolution 4096 x 2160@60Hz, 1 x DP 1.4a Max resolution 4096 x 2160@60Hz

Audio

Audio Codec	RealTek ALC888S-VD2-GR

Ethernet

LAN Chipset	2 x LAN: Intel® I226V 2.5 Gigabit Ethernet Controller
Data Rate Per Port	10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

Voltage Input Spec.	Typical +12V/24V
Voltage Input Connector	Lockable DC Jack
ACPI	Single power ATX Support S0, S3, S4, S5, ACPI 5.0 compliant
Power Mode	AT/ATX (ATX is Default Setting)
Adapter	AC to DC Adapter, 12V/10A 120W

Software Support

OS	Win11, Linux

Mechanical & Environmental

Operating Temp.	0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow
Storage Temp.	-30~70C° (-22°F ~ 158°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)	177 x 127 x 57mm(6.97" x 4.96 x 2.24”)
Weight	1.3 kg
Vibration Test	With SSD: 1.5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Test	With SSD: 10G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
Drop Test	ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Mounting Kit	Stand/Wall mount (default), VESA/Din Rail (Optional)
