What is the Nexcom NISE 104?

A compact, cable-free fanless industrial controller built on the Intel Atom Dual Core D2550 1.86 GHz processor and Intel NM10 Express chipset. It packs dual Gigabit Ethernet, dual-independent display (DVI-I + HDMI), 6 x USB 2.0, 4 COM ports and mini-PCIe expansion into a 185 x 131 x 54 mm aluminium chassis.

Which processor and chipset does it use?

Intel Atom Dual Core D2550 at 1.86 GHz on the Intel NM10 Express chipset, in a fully fanless thermal design.

What storage does it support?

A 2.5" SATA HDD or SSD bay plus a CFast socket for industrial flash storage.

What display outputs does the NISE 104 provide?

1 x DVI-I and 1 x HDMI with dual-independent display support. VGA is available through an optional converter cable on the DVI-I.

What I/O does it offer?

Two Intel 82574L Gigabit Ethernet ports with LAN-teaming support, 6 x USB 2.0, two RS-232 and two RS-232/422/485 COM ports (4 COM total), plus a mini-PCIe socket for optional Wi-Fi, GSM or 3.5G modules with auto-recognition.

What is the power input range?

Wide-range 9–36 V DC. An optional 12 V / 60 W AC-DC adapter (P/N 7400060013X00) is available for use from mains.

Where is the NISE 104 typically used?

Industrial automation deployments such as drilling, drilling rigs and CNC machines, kiosk applications and smart-policing systems — anywhere a small-footprint, vibration-tolerant fanless box with broad I/O matters more than peak CPU performance.

Why does cable-free internal construction matter?

Eliminating internal cabling reduces mechanical failure points under vibration, simplifies field service and improves long-term reliability in industrial / mobile installations.

What is the ordering code?

NISE 104 (P/N 10J00010400X2). An optional 12 V / 60 W AC-DC power adapter is P/N 7400060013X00.

Where do I buy the Nexcom NISE 104?

TSL Automation supplies the Nexcom NISE 104 worldwide. Contact our team via the contact form with your target storage configuration and wireless module needs and we will follow up with a quotation and lead time.

Nexcom · Computing System

NISE 104

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Nexcom

Highlights

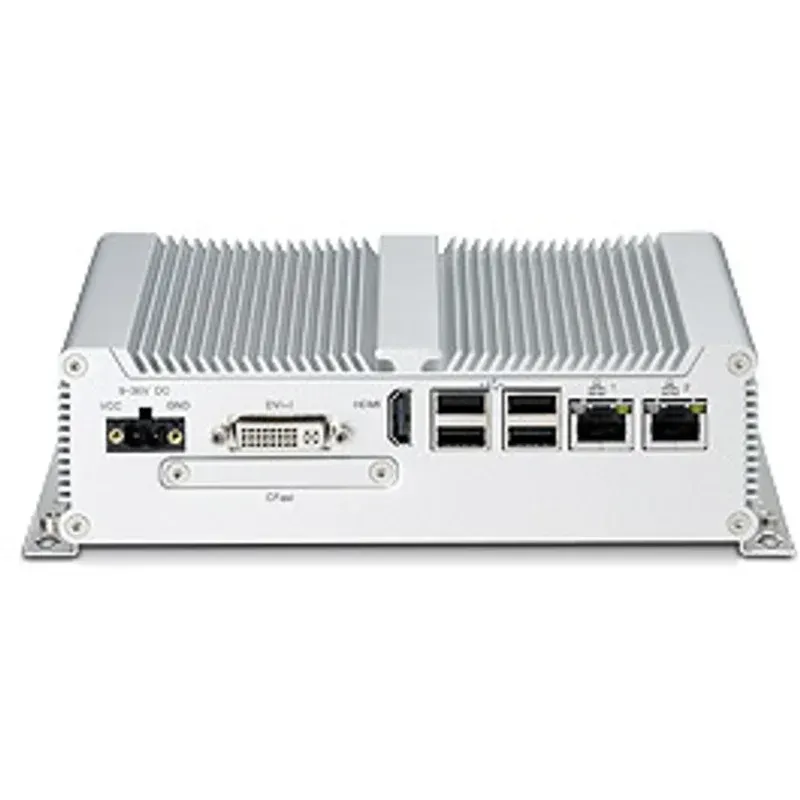

Compact, cable-free fanless industrial controller — 185 x 131 x 54 mm aluminium chassis
Intel Atom Dual Core D2550 1.86 GHz on Intel NM10 Express chipset
Dual Intel 82574L Gigabit Ethernet with LAN-teaming support
Dual independent display: 1 x DVI-I + 1 x HDMI (VGA via optional converter)

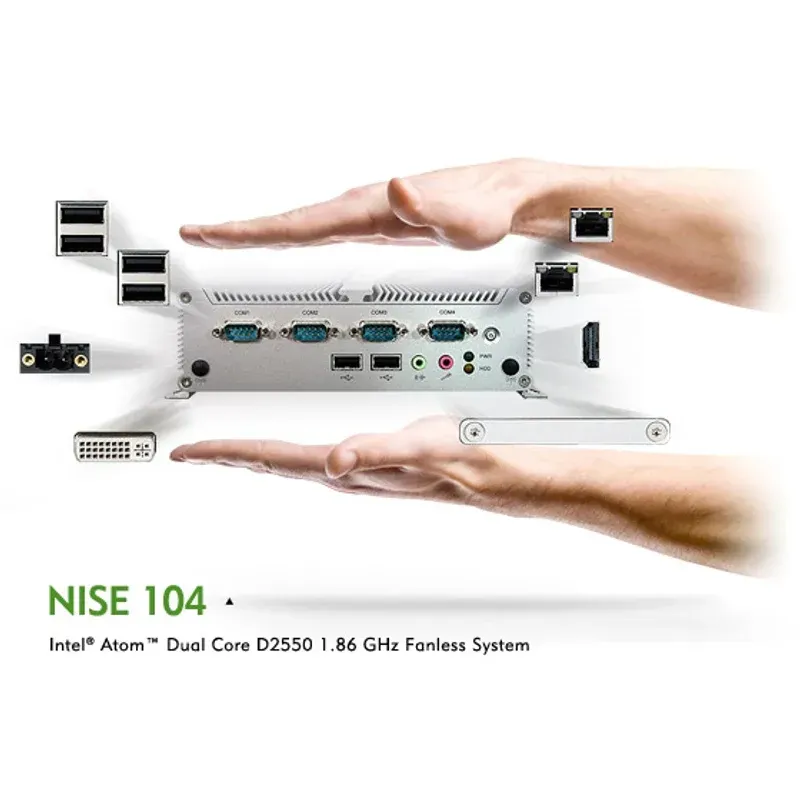

6 x USB 2.0 + 2 x RS-232 + 2 x RS-232/422/485 (4 COM total)
2.5" SATA HDD or SSD bay + CFast socket for industrial storage
Mini-PCIe socket for optional Wi-Fi, GSM or 3.5G module with auto-recognition
Wide 9–36 V DC power input; optional 12 V / 60 W AC-DC adapter (P/N 7400060013X00)
Cable-free internal construction for vibration tolerance and easy maintenance
Sized for industrial automation — drilling, drilling rigs, CNC machines, kiosks and smart-policing
Ordering code: NISE 104 (P/N 10J00010400X2)

Product Description

The Nexcom NISE 104 is a compact, cable-free fanless industrial controller that packs a substantial I/O set into a 185 x 131 x 54 mm chassis.

It runs the Intel Atom Dual Core D2550 1.86 GHz processor on the Intel NM10 Express chipset, with dual Intel 82574L Gigabit Ethernet (LAN-teaming capable), 6 x USB 2.0, two RS-232 and two RS-232/422/485 COM ports, dual-independent display via 1 x DVI-I and 1 x HDMI (with VGA available through an optional converter cable), a 2.5" SATA HDD/SSD bay, a CFast socket and a mini-PCIe socket for an optional Wi-Fi / GSM / 3.5G module (with auto-recognition).

Power is wide-range 9–36 V DC, with an optional 12 V / 60 W AC-DC adapter (P/N 7400060013X00).

The cable-free internal construction and fanless aluminium chassis are sized for drilling rigs, CNC machines, kiosks and smart-policing deployments where reliability, vibration tolerance and small footprint matter more than peak CPU performance. Ordering code: NISE 104 (P/N 10J00010400X2).

TSL Automation supplies the Nexcom NISE 104 worldwide.

Technical Specifications

Processor

Intel Atom Dual Core D2550 at 1.86 GHz

Chipset

Intel NM10 Express

CPU Cooler

Passive (Fanless)

Construction Detail

Cable-free internal construction

HDD/SSD Bay

1 x 2.5" SATA HDD or SSD

CFast

1 x CFast socket

Display Outputs

1 x DVI-I

1 x HDMI

VGA via optional converter cable

Independent Display

Dual independent (DVI-I + HDMI)

Ethernet

2 x Intel 82574L Gigabit LAN (supports LAN teaming)

USB

6 x USB 2.0

Serial

2 x RS-232

2 x RS-232/422/485

Mini-PCIe

1 x mini-PCIe socket — optional Wi-Fi / GSM / 3.5G module with auto-recognition

DC Input

9–36 V DC

Power Adapter (Optional)

12 V / 60 W AC-DC adapter (P/N 7400060013X00)

Dimensions (W x D x H)

185 x 131 x 54 mm

Construction

Aluminium fanless chassis, cable-free internal layout

System

NISE 104 (P/N: 10J00010400X2)

Options

12 V / 60 W AC-DC power adapter w/o power cord (P/N 7400060013X00)

What is NISE 104?

The NISE 104 is a computing system manufactured by Nexcom, designed specifically for compact-computing-system applications. It features processor of Intel Atom Dual Core D2550 at 1.86 GHz, display of 1 x DVI-I, 1 x HDMI, VGA via optional converter cable and network of 2 x Intel 82574L Gigabit LAN (supports LAN teaming). The Nexcom NISE 104 is a compact, cable-free fanless industrial controller that packs a substantial I/O set into a 185 x 131 x 54 mm chassis. It runs the Intel Atom Dual Core D2550 1.86 GHz processor on the Intel NM10 Express chipset, with dual Intel 82574L Gigabit Ethernet (LAN-teaming capable), 6 x USB 2.0, two RS-232 and two RS-232/422/485 COM ports, dual-independent display via 1 x DVI-I and 1 x HDMI (with VGA available through an optional converter cable), a 2.5" SATA HDD/SSD bay, a CFast socket and a mini-PCIe socket for an optional Wi-Fi / GSM / 3.5G module (with auto-recognition). Power is wide-range 9–36 V DC, with an optional 12 V / 60 W AC-DC adapter (P/N 7400060013X00). The cable-free internal construction and fanless aluminium chassis are sized for drilling rigs, CNC machines, kiosks and smart-policing deployments where reliability, vibration tolerance and small footprint matter more than peak CPU performance. Ordering code: NISE 104 (P/N 10J00010400X2). TSL Automation supplies the Nexcom NISE 104 worldwide.

Key Features & Benefits

Compact, cable-free fanless industrial controller — 185 x 131 x 54 mm aluminium chassis
Intel Atom Dual Core D2550 1.86 GHz on Intel NM10 Express chipset
Dual Intel 82574L Gigabit Ethernet with LAN-teaming support
Dual independent display: 1 x DVI-I + 1 x HDMI (VGA via optional converter)
6 x USB 2.0 + 2 x RS-232 + 2 x RS-232/422/485 (4 COM total)
2.5" SATA HDD or SSD bay + CFast socket for industrial storage
Mini-PCIe socket for optional Wi-Fi, GSM or 3.5G module with auto-recognition
Wide 9–36 V DC power input; optional 12 V / 60 W AC-DC adapter (P/N 7400060013X00)
Cable-free internal construction for vibration tolerance and easy maintenance
Sized for industrial automation — drilling, drilling rigs, CNC machines, kiosks and smart-policing
Ordering code: NISE 104 (P/N 10J00010400X2)

Applications & Use Cases

The NISE 104 is ideal for various industrial automation applications:

Rugged industrial applications with high durability requirements
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Wireless connectivity and remote monitoring applications
Legacy equipment integration and serial communication
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
