NISE 3600P2

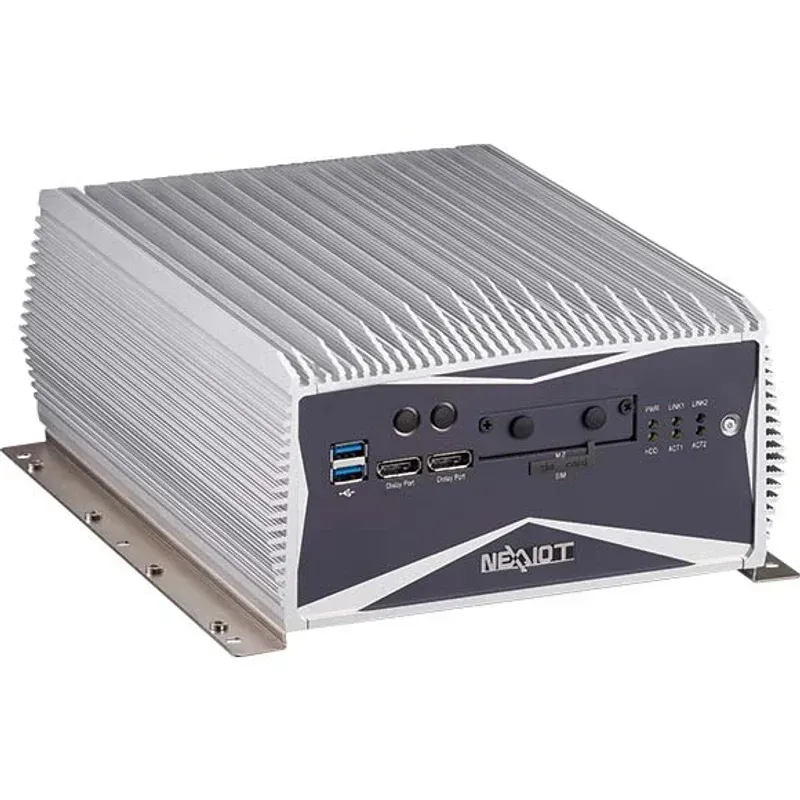

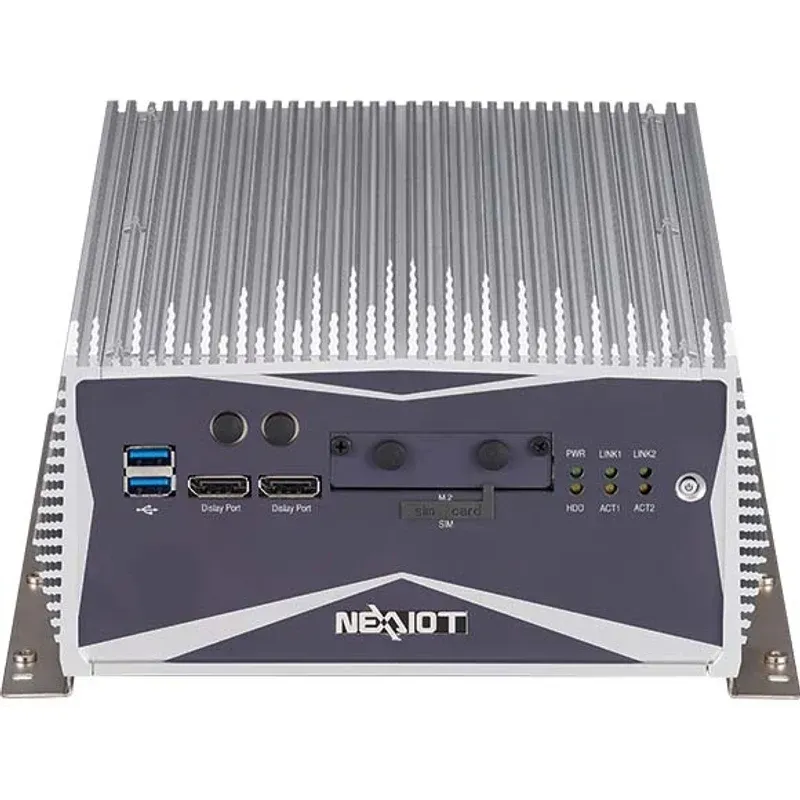

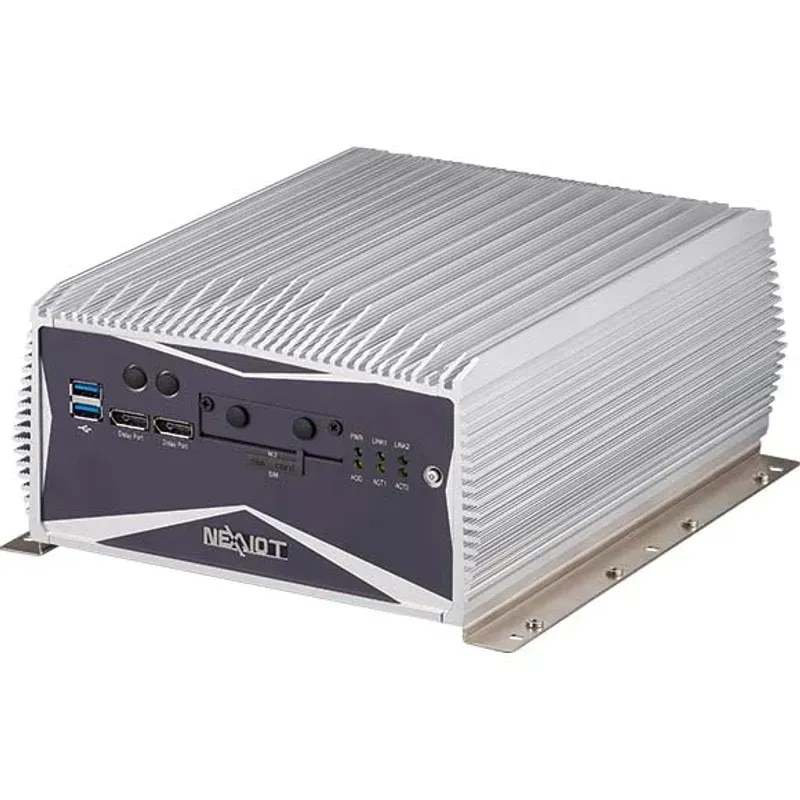

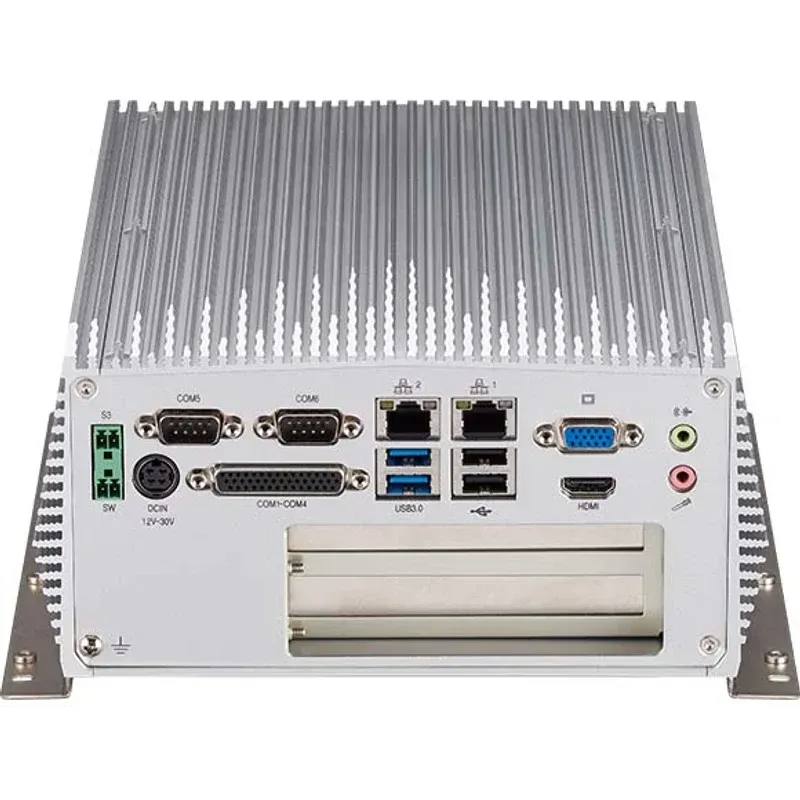

Nexcom NISE 3600P2 Fanless Industrial PC — Front I/ONexcom NISE 3600P2 Fanless Industrial PC — Front I/ONexcom NISE 3600P2 Fanless Industrial PC — Front I/ONexcom NISE 3600P2 Fanless Industrial PC — Front I/O
NISE 3600P2, Image 1NISE 3600P2, Image 2NISE 3600P2, Image 3NISE 3600P2, Image 4
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Nexcom

Highlights

  • Fanless industrial box PC, aluminium + metal chassis, -5°C to 60°C operating
  • 6/7/8/9th Gen Intel Core i7 / i5 / i3 socket-type processors (LGA1151) on Intel H310C PCH
  • 2 x DDR4 2133/2400/2666 SO-DIMM, supports up to 32 GB
  • 1 x 2.5" SATA HDD/SSD bay + 1 x M.2 3042 Key B + 2 x mSATA (one supports mPCIe NVRAM module)
  • 2 x internal mini-PCIe (optional Wi-Fi / 4G LTE) + 1 x SIM card socket
  • 2 expansion slots: NISE 3600CE2 (2 x PCIe x4, x1 signal), NISE 3600CP2 (2 x PCI), NISE 3600CP2E (1 PCI + 1 PCIe x4)
  • Dual independent display: VGA + HDMI + 2 x DisplayPort (DP can be converted to DVI-D / HDMI via active cables)
  • 4 x USB 3.2 (2 front, 2 rear) + 2 x USB 2.0 (rear)
  • 6 x COM: 5 x RS-232 + 1 x RS-232/422/485 (1 x DB44 + 2 x DB9 rear)
  • Dual Intel I210-AT Gigabit LAN with WoL, teaming and PXE
  • MIC-in + Line-out, 4-pin remote power on/off, ATX power mode default
  • Wide +12 to +30 V DC input (3-pin terminal block); optional 19 V / 120 W AC adapter
  • Windows 11 IoT Enterprise / Windows 10 64-bit / Windows 7; CE, FCC Class A, UKCA
  • 215 x 272 x 114 mm (W x D x H) without wall mount; net weight 5 kg

Product Description

The Nexcom NISE 3600P2 is a fanless industrial box PC for graphics- and compute-intensive applications such as automatic optical inspection (AOI), machine vision, ePolice infotainment, surveillance NVR and healthcare imaging.

It supports 6th, 7th, 8th and 9th Generation Intel Core i7 / i5 / i3 socket-type (LGA1151) processors on the Intel H310C PCH with two DDR4 2133/2400/2666 SO-DIMM sockets accepting up to 32 GB of memory.

Storage includes one front-accessible 2.5" SATA HDD/SSD bay, one external M.2 3042 Key B socket and two mSATA sockets (one supporting an mPCIe NVRAM module). Two internal mini-PCIe sockets accept optional Wi-Fi or 4G LTE modules, paired with a SIM card slot.

The aluminium-and-metal fanless chassis delivers an ATX-mode dual independent display via a flexible mix of VGA, HDMI and two DisplayPort outputs (which can be active-cable converted to DVI-D or HDMI), 4 x USB 3.2 and 2 x USB 2.0, six COM ports (five RS-232 and one RS-232/422/485 on a DB44 + two DB9), dual Intel I210-AT Gigabit Ethernet with WoL / teaming / PXE, MIC-in and Line-out audio, and a 4-pin remote power switch.

Power is wide-range +12 to +30 V DC through a 3-pin terminal block with AT/ATX selection (default ATX) and an optional 19 V / 120 W AC adapter.

Three variants ship from a single barebone: NISE 3600CE2 with two PCIe x4 expansion slots (PCIe x1 signal), NISE 3600CP2 with two PCI expansion slots, and NISE 3600CP2E with one PCI plus one PCIe x4 expansion slot.

The chassis is rated -5°C to 60°C ambient with airflow (industrial-grade memory / storage / peripherals required above 60°C), 10–95% RH non-condensing, and certified CE (EN 61000-6-2 / -6-4), FCC Class A and UKCA. TSL Automation supplies the Nexcom NISE 3600P2 series worldwide.

Technical Specifications

CPU Support

6/7/8/9th Gen Intel Core i7 / i5 / i3 socket-type (LGA1151)

Chipset

Intel H310C PCH

System Memory

2 x DDR4 2133/2400/2666 SO-DIMM, up to 32 GB

CPU Cooler

Passive (Fanless)

HDD/SSD Bay

1 x 2.5" SATA HDD/SSD

M.2

1 x M.2 3042 Key B (PCIe x1, USB 2.0) — front accessible

mSATA

2 x mSATA (supports mPCIe NVRAM module)

Display Outputs

1 x VGA

1 x HDMI

2 x DisplayPort (front, convertible to DVI-D / HDMI via active cables)

Dual Independent Display Options

VGA + HDMI

DP + VGA

DP + HDMI

DP + DP

ATX Switch

ATX power on/off switch

LEDs

HDD access / power status LEDs

USB Port

2 x USB 3.2

Display

2 x DisplayPort (DP)

Antenna

4 x antenna hole

M.2

1 x M.2 3042 Key B (PCIe x1, USB 2.0)

SIM

1 x SIM card socket (for mini card 2)

Serial

1 x DB44 for COM1/3/4 RS-232 + COM2 RS-232/422/485

2 x DB9 for COM5 + COM6 (RS-232)

USB Port

2 x USB 3.2 (900 mA per port)

2 x USB 2.0 (500 mA per port)

VGA

1 x VGA port

HDMI

1 x HDMI port

LAN

2 x Intel I210-AT GbE LAN ports — WoL, teaming, PXE

Audio

1 x MIC-in

1 x Line-out

Remote Power

1 x 4-pin remote power on/off switch

DC Input

+12 to +30 V DC input

Mini-PCIe

2 x internal mini-PCIe (optional Wi-Fi / 4G LTE)

PCI/PCIe Slots — NISE 3600CE2

2 x PCIe x4 (only PCIe x1 signal); add-on length 169 mm max, one slot 240 mm max; 10 W/slot max

PCI/PCIe Slots — NISE 3600CP2

2 x PCI; add-on length 169 mm max, one slot 240 mm max; 10 W/slot max

PCI/PCIe Slots — NISE 3600CP2E

1 x PCI + 1 x PCIe x4 (x1 signal)

Power Mode

AT / ATX power mode (default: ATX)

DC Input

+12 to +30 V DC

Power Adapter (Optional)

24 V / 120 W or 19 V / 120 W AC-DC adapter (P/N 7400120027X00)

OS

Windows 11 IoT Enterprise

Windows 10 64-bit

Windows 7

Certification Information

CE — EN 61000-6-2

CE — EN 61000-6-4

FCC Class A

UKCA

Dimensions (W x D x H)

215 x 272 x 114 mm (8.5" x 10.7" x 4.5") without wall mount bracket

Gross Weight

6.54 kg

Net Weight

5 kg

Construction

Aluminium + metal chassis, fanless

Operating Temp.

-5°C to 60°C ambient with airflow (IEC 60068-2-1/-2-2/-2-14). Industrial-grade memory, storage and peripherals required above 60°C.

Storage Temp.

-20°C to 70°C

Humidity

10–95% relative humidity, non-condensing

Shock — HDD

20 G, half sine, 11 ms, IEC 60068-2-27

Shock — M.2

50 G, half sine, 11 ms, IEC 60068-2-27

Vibration with HDD

Random 0.5 Grms @ 5–500 Hz, IEC 60068-2-64

Sinusoidal 0.5 Grms @ 5–500 Hz, IEC 60068-2-6

Vibration with SSD & M.2

Random 2 Grms @ 5–500 Hz, IEC 60068-2-64

Sinusoidal 2 Grms @ 5–500 Hz, IEC 60068-2-6

Barebone

NISE 3600CE2 (P/N: 10J03600C03XE) — fanless system, 2 x PCIe x4 (PCIe x1 signal) expansion

NISE 3600CP2 (P/N: 10J03600C02XE) — fanless system, 2 x PCI expansion

NISE 3600CP2E (P/N: 10J03600C04XE) — fanless system, 1 x PCI + 1 x PCIe x4 (PCIe x1 signal) expansion

Options

19 V / 120 W AC to DC power adapter w/o power cord (P/N: 7400120027X00)

What is NISE 3600P2?

The NISE 3600P2 is a computing system manufactured by Nexcom, designed specifically for compact-computing-system applications. It features processor of 6/7/8/9th Gen Intel Core i7 / i5 / i3 socket-type (LGA1151), display of 1 x VGA, 1 x HDMI, 2 x DisplayPort (front, convertible to DVI-D / HDMI via active cables) and memory of 2 x DDR4 2133/2400/2666 SO-DIMM, up to 32 GB. The Nexcom NISE 3600P2 is a fanless industrial box PC for graphics- and compute-intensive applications such as automatic optical inspection (AOI), machine vision, ePolice infotainment, surveillance NVR and healthcare imaging. It supports 6th, 7th, 8th and 9th Generation Intel Core i7 / i5 / i3 socket-type (LGA1151) processors on the Intel H310C PCH with two DDR4 2133/2400/2666 SO-DIMM sockets accepting up to 32 GB of memory. Storage includes one front-accessible 2.5" SATA HDD/SSD bay, one external M.2 3042 Key B socket and two mSATA sockets (one supporting an mPCIe NVRAM module). Two internal mini-PCIe sockets accept optional Wi-Fi or 4G LTE modules, paired with a SIM card slot. The aluminium-and-metal fanless chassis delivers an ATX-mode dual independent display via a flexible mix of VGA, HDMI and two DisplayPort outputs (which can be active-cable converted to DVI-D or HDMI), 4 x USB 3.2 and 2 x USB 2.0, six COM ports (five RS-232 and one RS-232/422/485 on a DB44 + two DB9), dual Intel I210-AT Gigabit Ethernet with WoL / teaming / PXE, MIC-in and Line-out audio, and a 4-pin remote power switch. Power is wide-range +12 to +30 V DC through a 3-pin terminal block with AT/ATX selection (default ATX) and an optional 19 V / 120 W AC adapter. Three variants ship from a single barebone: NISE 3600CE2 with two PCIe x4 expansion slots (PCIe x1 signal), NISE 3600CP2 with two PCI expansion slots, and NISE 3600CP2E with one PCI plus one PCIe x4 expansion slot. The chassis is rated -5°C to 60°C ambient with airflow (industrial-grade memory / storage / peripherals required above 60°C), 10–95% RH non-condensing, and certified CE (EN 61000-6-2 / -6-4), FCC Class A and UKCA. TSL Automation supplies the Nexcom NISE 3600P2 series worldwide.

Key Features & Benefits

  • Fanless industrial box PC, aluminium + metal chassis, -5°C to 60°C operating
  • 6/7/8/9th Gen Intel Core i7 / i5 / i3 socket-type processors (LGA1151) on Intel H310C PCH
  • 2 x DDR4 2133/2400/2666 SO-DIMM, supports up to 32 GB
  • 1 x 2.5" SATA HDD/SSD bay + 1 x M.2 3042 Key B + 2 x mSATA (one supports mPCIe NVRAM module)
  • 2 x internal mini-PCIe (optional Wi-Fi / 4G LTE) + 1 x SIM card socket
  • 2 expansion slots: NISE 3600CE2 (2 x PCIe x4, x1 signal), NISE 3600CP2 (2 x PCI), NISE 3600CP2E (1 PCI + 1 PCIe x4)
  • Dual independent display: VGA + HDMI + 2 x DisplayPort (DP can be converted to DVI-D / HDMI via active cables)
  • 4 x USB 3.2 (2 front, 2 rear) + 2 x USB 2.0 (rear)
  • 6 x COM: 5 x RS-232 + 1 x RS-232/422/485 (1 x DB44 + 2 x DB9 rear)
  • Dual Intel I210-AT Gigabit LAN with WoL, teaming and PXE
  • MIC-in + Line-out, 4-pin remote power on/off, ATX power mode default
  • Wide +12 to +30 V DC input (3-pin terminal block); optional 19 V / 120 W AC adapter
  • Windows 11 IoT Enterprise / Windows 10 64-bit / Windows 7; CE, FCC Class A, UKCA
  • 215 x 272 x 114 mm (W x D x H) without wall mount; net weight 5 kg
