Product Datasheet
20 May 2026
Computing System · Rackmount-System
BAX-R1UA
Series: BAX

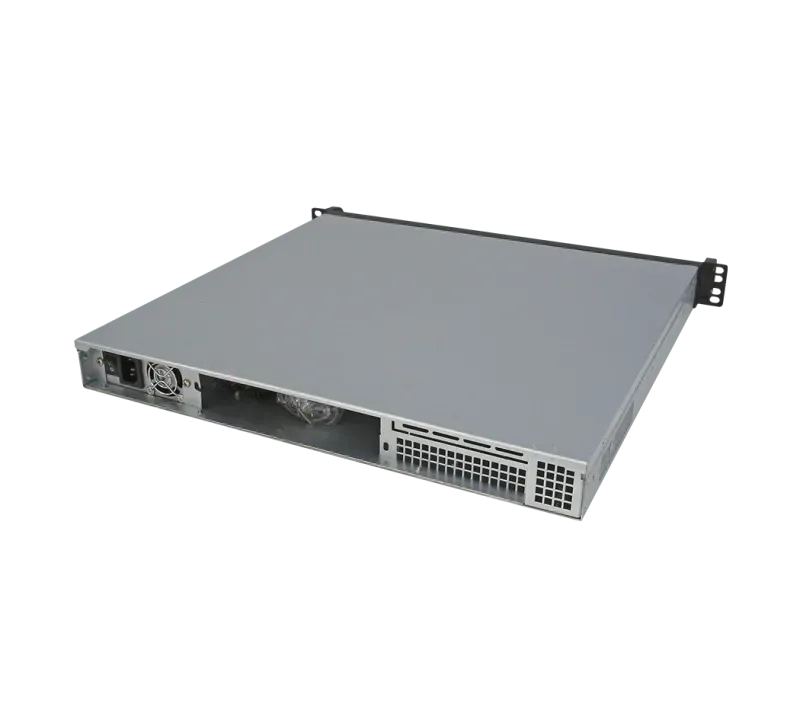

The Avalue BAX-R1UA is a 1U industrial rackmount chassis (ordering code BCC-CASE-R1UA-01R) designed as a space-efficient barebone enclosure for Avalue and standard ATX/industrial motherboards. The processor, chipset, memory and I/O are defined by the installed motherboard, while the chassis provides the slim-profile thermal management, expansion, and serviceability needed for high-density rack deployments. It supports a full-height PCIe slot via riser card, integrated hardware monitoring and watchdog, front USB and power/reset controls with power/HDD status LEDs, and dual 40mm system fans powered by a 1U single PSU. The compact 420 x 427 x 45 mm steel chassis at 4.1 kg makes the BAX-R1UA an ideal 1U platform for dense rackmounted industrial computing.
Key Features
- 1U industrial rackmount chassis (barebone — motherboard-dependent)
- Accepts ATX / industrial motherboards (CPU, chipset, memory per MB)
- 1 x full-height PCIe slot via riser card
- Hardware monitor: CPU temperature, voltages, fan speed
- Watchdog timer (H/W reset)
- Front: 2 x USB 2.0, power & reset buttons, power/HDD LEDs
- Cooling: 2 x 40mm system fans
- 1U single PSU
- 420 x 427 x 45 mm, 4.1 kg (chassis only)
Technical Specifications
System Information
| Processor | Depend on MB |
|---|---|
| Platform Controller Hub | Depend on MB |
| System Memory | Depend on MB |
| I/O Chipset | Depend on MB |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec./min.1sec. or 1min. step |
| H/W Status Monitor | CPU temperature monitoring, Voltages monitoring, CPU fan speed control |
Expansion
| PCIe | 1 x Full height PCIe slot (via riser card) |
|---|
Front I/O
| USB | 2 x USB 2.0 |
|---|---|
| Power Button | 1 x Power Button |
| Reset Button | 1 x Reset Button |
| LED Indicator | 1 x Power status, 1 x HDD |
| System Fan | 2 x 4020S |
Power Requirement
| Power Supply Unit | 1U Single PSU |
|---|
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | 20°C ~ 75°C (-4°F ~ 167°F) |
| Operating Humidity | 0% ~ 90% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 420 (D) x 427 (W) x 45 (H) mm |
| Weight | 4.1kg (Net weight, chassis only) |
Ordering Information
| Ordering Information | BCC-CASE-R1UA-01R：1U Rackmount Chassis |
|---|
