Product Datasheet
20 May 2026
Digital Paper · Public-Display-Solution
EPD-2530
Series: EPD
Manufactured byAvalue

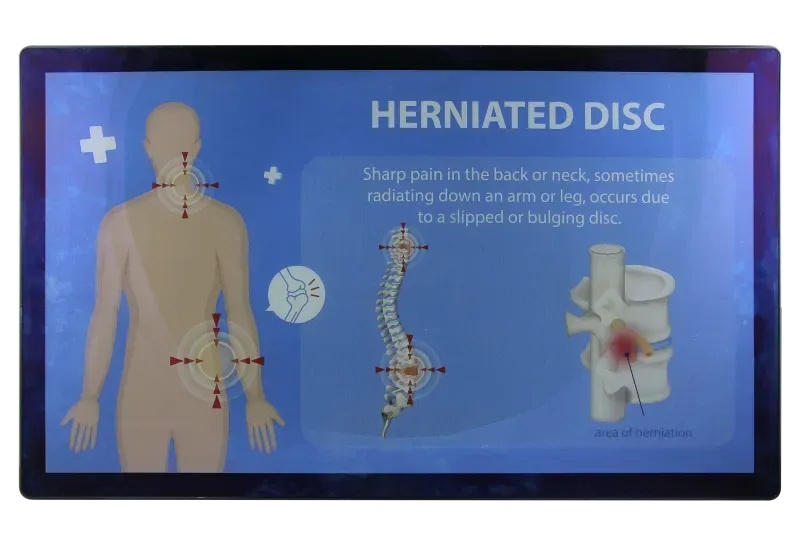

The Avalue EPD-2530 is a 25.3" E Ink Spectra 6 colour ePaper public information display (digital signage), built on an onboard ARM Cortex-A55 Rockchip RK3566 with ultra-low power consumption. With a 3200x1800 E Ink Spectra 6 panel rendering black, white, red, yellow, blue and green, 2GB DDR3L and 16GB eMMC, it provides a sunlight-friendly, always-on colour signage surface that only draws power when content changes. It runs Android 11, offers USB Host and USB Type-C, optional Wi-Fi 2.4G and Bluetooth 5.0, a 12V DC input and VESA 100x100 mounting, in a slim 591.04 x 346.04 x 13.9 mm body weighing ≤4kg, operating 0~40°C.
Key Features
- 25.3" E Ink Spectra 6 colour ePaper public display
- Colours: black / white / red / yellow / blue / green
- Onboard ARM Cortex-A55 Rockchip RK3566
- 3200 x 1800 E Ink Spectra 6 panel
- 2GB DDR3L, 16GB eMMC; ultra-low power
- Android 11; USB Host + USB Type-C
- Optional Wi-Fi 2.4G + Bluetooth 5.0
- 12V DC input; VESA 100x100
- Slim 591.04 x 346.04 x 13.9 mm, ≤4kg; 0~40°C
Technical Specifications
System Information
| System Memory | Storage 16GB eMMC On-Board 2GB DDR3L |
|---|---|
| Processor | Onboard ARM Cortex-A55 RK3566 |
Power Requirement
| DC Input | DC-12V |
|---|
Software Support
| OS | Android 11 |
|---|
External I/O
| USB | 1 x USB Host, 1 x USB Type-C |
|---|
Panel
| Display Type | E Paper Display |
|---|---|
| Resolution | 3200x1800 |
| LCD Size | 25.3“ |
Data Communication
| Bluetooth | Optional Bluetooth 5.0 |
|---|
Mechanical
| Shipping Dimension | 591.04 x 346.04 x 13.9 mm |
|---|---|
| Weight | Weight ≤4Kg |
| Color | Black |
Reliability
| Operating Temp. | 0~40C |
|---|
Mechanical & Environmental
| VESA | 100x100 |
|---|---|
| Dimension (W x L x H) | 591.04 x 346.04 x 13.9 mm |
| Operating Temp. | 0 ~ 40°C |
| Operating Humidity | 5% ~ 90% Relative Humidity, Non-condensing |
| Weight | ≤4Kg |
