Avalue · High Performance Computing

HPS-246UTA

HPS-246UTA FrontHPS-246UTA FrontHPS-246UTA Front
HPS-246UTA, Image 1HPS-246UTA, Image 2HPS-246UTA, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Tower workstation (340 x 488 x 528 mm with handles/pedestal)
  • 8th/9th Gen Intel® Core/Xeon® E (LGA1151, max. TDP 95W)
  • Avalue HPM-246UA server board, Intel® C246 chipset, IPMI 2.0
  • 4 x DDR4 2666MHz ECC/Non-ECC DIMM up to 128GB
  • 1 x 500W PS2 ATX PSU
  • 7 x Intel I210AT 1GbE controllers
  • Flexible PCIe Gen3/Gen2 expansion + 1 x PCI 3.0
  • 3 x front-accessible 2.5" bays; 3 x DP++ (4K)
  • Windows 10 IoT / Server 2016/2019

Product Description

The Avalue HPS-246UTA is a tower workstation built around the Avalue HPM-246UA server board with an 8th/9th Generation Intel® Core™ i7/i5/i3, Pentium®, Celeron® or Xeon® E processor (max.

TDP up to 95W) and Intel® C246 chipset, designed as a network-dense, manageable deskside compute node for edge workloads and networking appliances.

With 4 x DDR4 2666MHz ECC/Non-ECC DIMM up to 128GB, a 500W PS2 ATX PSU and IPMI 2.0 via an ASPEED AST2500 BMC, it packages efficient Core/Xeon-E performance with seven Intel GbE ports into a 340 x 488 x 528 mm tower chassis with external handles and pedestal stand.

It provides flexible PCIe Gen3/Gen2 expansion plus a PCI 3.0 slot, 3 x front-accessible 2.5" bays, 7 x Intel I210AT 1GbE, triple DP++ (4K) display, USB 3.2 Gen2/Gen1 and VGA, running Windows 10 IoT or Windows Server 2016/2019.

Technical Specifications

Processor

Intel LGA1151 Socket supports 8th/9th Generation Intel® Core i7/i5/i3/Pentium/Celeron/Xeon E Processors (Max. TDP at 95W)

Platform Controller Hub

Intel® C246 Chipset

System Memory

4 x DDR4 2666MHz ECC and Non-ECC DIMM support up to 128GB (ECC memory supported by specific CPU SKUs)

I/O Chipset

Nuvoton NCT6106D

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 5~255 seconds/5~255 minutes

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2500 BMC controller onboard

SBC

HPM-246UA

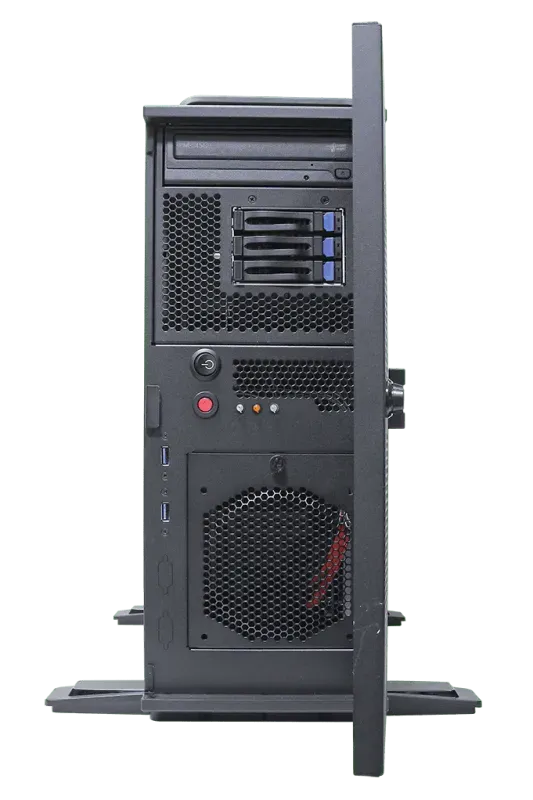

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator

1 x Disk activity indicator

1 x Network activity indicator

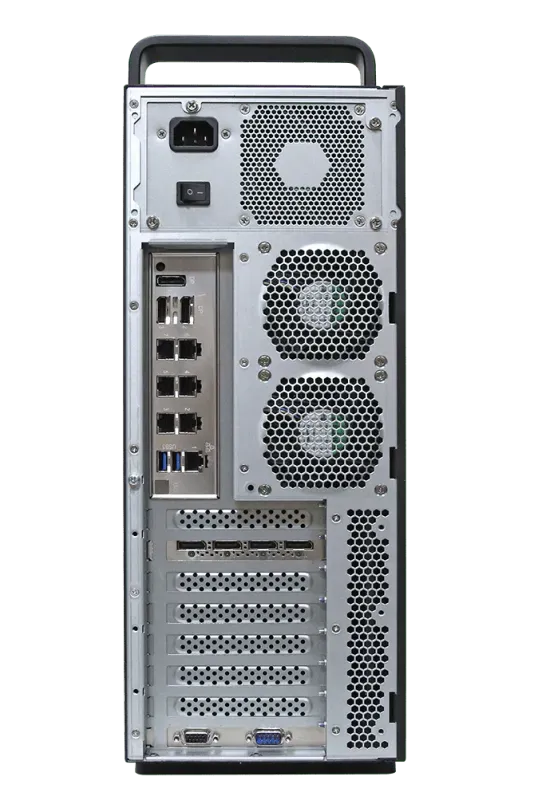

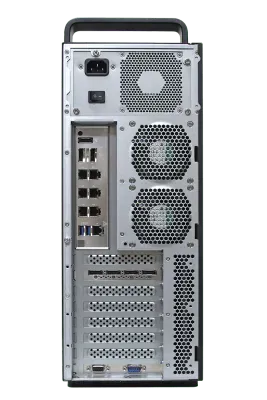

USB

2 x USB 3.2 Gen2 ports

COM Port

1 x RS232 port (Bracket shares with VGA port, RS232 on the top)

DP

3 x DP++ ports

VGA

1 x VGA port (Bracket shares with Serial port, VGA on the bottom)

RJ-45

7 x RJ45 (LAN1 shares IPMI port)

Graphic Chipset

Intel 8th/9th Generation CPU integrated, AST 2500 BMC controller

Resolution

3 x DP++ ports DP: 4096 x 2304 @ 60Hz

HDMI: 4096 x 2160 @ 30Hz

1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 500W PS2 ATX PSU

Expansion

1 x PCIe Gen3 x16 slot, 1 x PCIe Gen2 x8 slot, 1 x PCIe Gen3 x4 slot, 1 x PCIe Gen3 x1 slot, 1 x PCI 3.0 slot

Slot 1, PCI 3.0

Slot 2, PCIe Gen 3.0 x1

Slot 3, PCIe Gen 3.0 x4

Slot 4, PCIe Gen 2.0 x8

Slot 5, PCIe Gen 3.0 x16 (closest to CPU)

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

7 x Intel I210AT 1GbE controllers

LAN Port

7 x RJ45 (LAN1 shares IPMI port)

Operating Temp.

0 ~ 45°C (L6 system)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab

70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

16KG

Dimension (W x L x D)

Tower Chassis 340mm(W) x 488mm(H) x 528mm(D) with external handles & pedestal stand

174.8mm(W) x 430mm(H) x 528mm(D) without external handles & pedestal stand

OS

Windows 10 IoT Enterprise

Windows Server 2016

Windows Server 2019

Ordering Information

HPS-246UTA5-A1R: L6 Tower Workstation w/HPM-246UAA/500W/1x5.25"/3x2.5"

What is HPS-246UTA?

The HPS-246UTA is a high performance computing manufactured by Avalue, designed specifically for rackmount-tower-workstation applications. The Avalue HPS-246UTA is a tower workstation built around the Avalue HPM-246UA server board with an 8th/9th Generation Intel® Core™ i7/i5/i3, Pentium®, Celeron® or Xeon® E processor (max. TDP up to 95W) and Intel® C246 chipset, designed as a network-dense, manageable deskside compute node for edge workloads and networking appliances. With 4 x DDR4 2666MHz ECC/Non-ECC DIMM up to 128GB, a 500W PS2 ATX PSU and IPMI 2.0 via an ASPEED AST2500 BMC, it packages efficient Core/Xeon-E performance with seven Intel GbE ports into a 340 x 488 x 528 mm tower chassis with external handles and pedestal stand. It provides flexible PCIe Gen3/Gen2 expansion plus a PCI 3.0 slot, 3 x front-accessible 2.5" bays, 7 x Intel I210AT 1GbE, triple DP++ (4K) display, USB 3.2 Gen2/Gen1 and VGA, running Windows 10 IoT or Windows Server 2016/2019.

Key Features & Benefits

  • Tower workstation (340 x 488 x 528 mm with handles/pedestal)
  • 8th/9th Gen Intel® Core/Xeon® E (LGA1151, max. TDP 95W)
  • Avalue HPM-246UA server board, Intel® C246 chipset, IPMI 2.0
  • 4 x DDR4 2666MHz ECC/Non-ECC DIMM up to 128GB
  • 1 x 500W PS2 ATX PSU
  • 7 x Intel I210AT 1GbE controllers
  • Flexible PCIe Gen3/Gen2 expansion + 1 x PCI 3.0
  • 3 x front-accessible 2.5" bays; 3 x DP++ (4K)
  • Windows 10 IoT / Server 2016/2019

Applications & Use Cases

The HPS-246UTA is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Internet of Things (IoT) and edge computing
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
