Avalue · High Performance Computing

HPS-621DTA

HPS-621DTA FrontHPS-621DTA FrontHPS-621DTA Front
HPS-621DTA, Image 1HPS-621DTA, Image 2HPS-621DTA, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

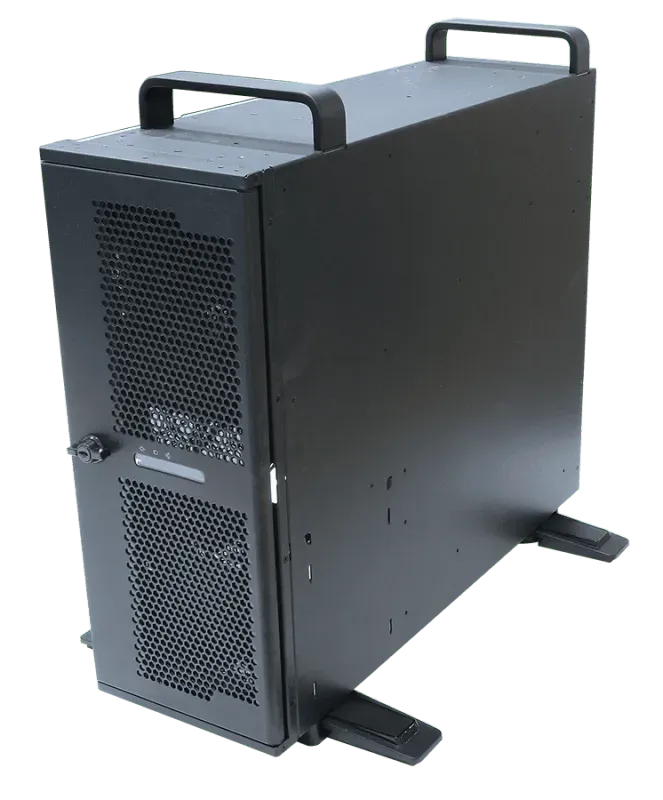

  • Tower workstation (340 x 488 x 528 mm with handle/pedestal)
  • Dual 1st/2nd Gen Intel® Xeon® Scalable (FCLGA3647, max. TDP 150W each)
  • Avalue HPM-621DE dual-socket board, Intel® C621, IPMI 2.0
  • 12 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 1.5TB
  • 1 x 1300W PS2 ATX PSU
  • 4 x PCIe Gen3 x16 + 2 x PCIe Gen3 x8 + 1 x PCI 3.0
  • 3 x front-accessible 2.5" bays + 1 x M.2 NVMe
  • 4 x Intel I210AT 1GbE controllers
  • Windows 10 IoT / Server 2016/2019 / Ubuntu

Product Description

The Avalue HPS-621DTA is a tower workstation built around the Avalue HPM-621DE dual-socket server board for two 1st/2nd Generation Intel® Xeon® Scalable processors (max.

TDP up to 150W each) with the Intel® C621 chipset, designed as a high-core-count, GPU/accelerator-ready deskside compute node for HPC and edge workloads.

With 12 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 1.5TB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2500 BMC, it packages two-socket Xeon Scalable performance into a 340 x 488 x 528 mm tower chassis with external handle and pedestal stand.

It provides 4 x PCIe Gen3 x16, 2 x PCIe Gen3 x8 and a PCI 3.0 slot, an M.2 NVMe, 3 x front-accessible 2.5" bays, quad Intel I210AT 1GbE, USB 3.2 Gen1 and VGA, running Windows 10 IoT, Windows Server 2016/2019 or Ubuntu 18.04 LTS or later.

Technical Specifications

Processor

Dual Intel FCLGA3647 Sockets support 1st and 2nd Generation Intel® Xeon® Scalable Processors (Max. TDP at 150W each)

Platform Controller Hub

Intel® C621 Chipset

System Memory

12 x DDR4 2933/ 2666/ 2400/ 2133 MHz RDIMM/ LRDIMM up to 1.5TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2500 BMC controller onboard

SBC

HPM-621DE

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator

1 x Disk activity indicator

1 x Network activity indicator

USB

4 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port (Bracket shares with VGA port, RS232 on the top)

VGA

1 x VGA port (Bracket shares with Serial port, VGA on the bottom)

RJ-45

4 x RJ45 (LAN1 shares IPMI port)

Graphic Chipset

AST 2500 BMC controller

Resolution

1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU

Expansion

4 x PCIe Gen3 x16 slots, 2 x PCIe Gen3 x8 slots, 1 x PCI 3.0 slot

Slot 1, PCIe 3.0 x16 from CPU1

Slot 2, PCI 3.0

Slot 3, PCIe 3.0 x16 from CPU1

Slot 4, PCIe 3.0 x16 from CPU2

Slot 5, PCIe 3.0 x16 from CPU2

Slot 6, PCIe 3.0 x8 from CPU1

Slot 7, PCIe 3.0 x8 from CPU1 (closest to CPU)

M.2

1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280 form factor

2.5 Drive Bay

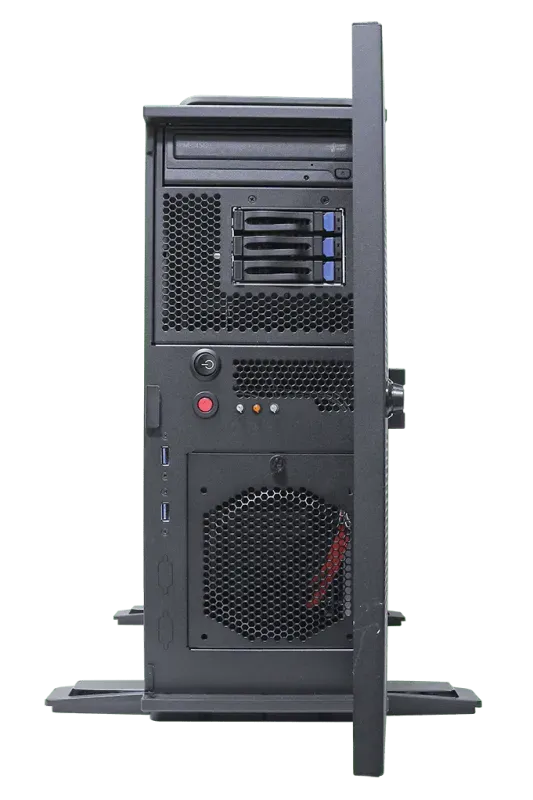

3 x Front accessible 2.5" storage bays

LAN Chipset

4 x Intel I210AT 1GbE controllers

LAN Port

4 x RJ45 (LAN1 shares IPMI port)

Operating Temp.

0 ~ 40°C (L6 system)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab

70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

20.8KG

Dimension (W x L x D)

Tower Chassis 340mm(W) x 488mm(H) x 528mm(D) with external handles & pedestal stand

174.8mm(W) x 430mm(H) x 528mm(D) without external handles & pedestal stand

OS

Windows 10 IoT Enterprise

Windows Server 2016

Windows Server 2019

Ubuntu 18.04 LTS or Later

Ordering Information

HPS-621DTAD-A1R: L6 Tower Workstation w/HPM-621DEA/1300W/1x5.25"/3x2.5"

What is HPS-621DTA?

The HPS-621DTA is a high performance computing manufactured by Avalue, designed specifically for rackmount-tower-workstation applications. The Avalue HPS-621DTA is a tower workstation built around the Avalue HPM-621DE dual-socket server board for two 1st/2nd Generation Intel® Xeon® Scalable processors (max. TDP up to 150W each) with the Intel® C621 chipset, designed as a high-core-count, GPU/accelerator-ready deskside compute node for HPC and edge workloads. With 12 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 1.5TB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2500 BMC, it packages two-socket Xeon Scalable performance into a 340 x 488 x 528 mm tower chassis with external handle and pedestal stand. It provides 4 x PCIe Gen3 x16, 2 x PCIe Gen3 x8 and a PCI 3.0 slot, an M.2 NVMe, 3 x front-accessible 2.5" bays, quad Intel I210AT 1GbE, USB 3.2 Gen1 and VGA, running Windows 10 IoT, Windows Server 2016/2019 or Ubuntu 18.04 LTS or later.

Key Features & Benefits

  • Tower workstation (340 x 488 x 528 mm with handle/pedestal)
  • Dual 1st/2nd Gen Intel® Xeon® Scalable (FCLGA3647, max. TDP 150W each)
  • Avalue HPM-621DE dual-socket board, Intel® C621, IPMI 2.0
  • 12 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 1.5TB
  • 1 x 1300W PS2 ATX PSU
  • 4 x PCIe Gen3 x16 + 2 x PCIe Gen3 x8 + 1 x PCI 3.0
  • 3 x front-accessible 2.5" bays + 1 x M.2 NVMe
  • 4 x Intel I210AT 1GbE controllers
  • Windows 10 IoT / Server 2016/2019 / Ubuntu

Applications & Use Cases

The HPS-621DTA is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Internet of Things (IoT) and edge computing
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
