Avalue · High Performance Computing

HPS-621UTA

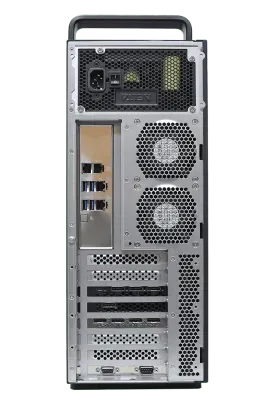

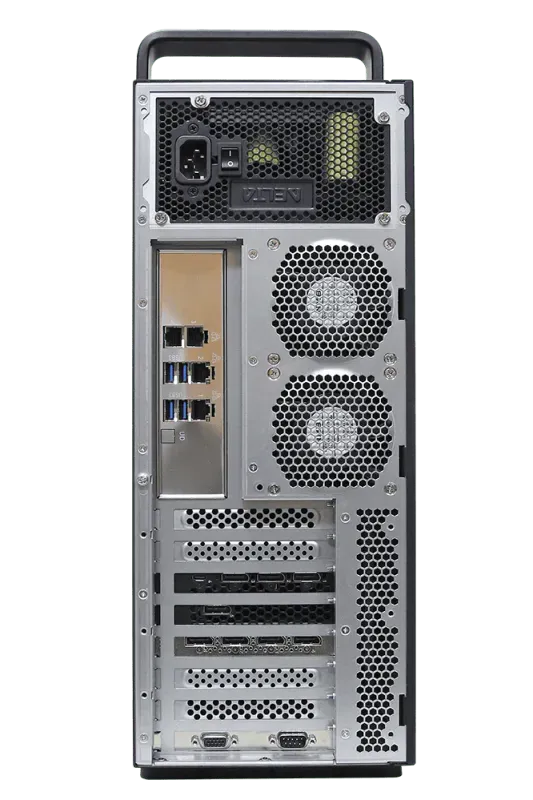

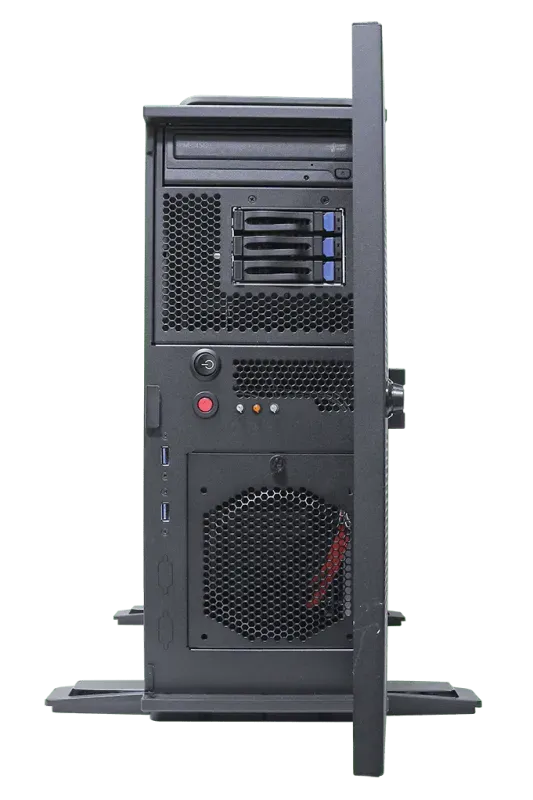

HPS-621UTA FrontHPS-621UTA FrontHPS-621UTA Front
HPS-621UTA, Image 1HPS-621UTA, Image 2HPS-621UTA, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Tower workstation (340 x 488 x 528 mm with handle/pedestal)
  • Single 1st/2nd Gen Intel® Xeon® Scalable (FCLGA3647, max. TDP 150W)
  • Avalue HPM-621UA server board, Intel® C621 chipset, IPMI 2.0
  • 6 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 768GB
  • 1 x 1300W PS2 ATX PSU
  • Flexible PCIe Gen3: 3 x x16 or 6 x x8 + 1 x PCI 3.0
  • 3 x front-accessible 2.5" bays + 1 x M.2 NVMe
  • 4 x Intel I210AT 1GbE controllers
  • Windows 10 IoT / Server 2016/2019 / Ubuntu

Product Description

The Avalue HPS-621UTA is a tower workstation built around the Avalue HPM-621UA server board with a single 1st/2nd Generation Intel® Xeon® Scalable processor (max. TDP up to 150W) and Intel® C621 chipset, designed as a manageable, GPU/accelerator-ready deskside compute node for HPC and edge workloads.

With 6 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 768GB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2500 BMC, it packages Xeon Scalable performance into a 340 x 488 x 528 mm tower chassis with external handle and pedestal stand.

It provides flexible PCIe Gen3 expansion (up to 3 x x16 or 6 x x8 plus a PCI 3.0 slot), an M.2 NVMe, 3 x front-accessible 2.5" bays, quad Intel I210AT 1GbE, USB 3.2 Gen1 and VGA, running Windows 10 IoT, Windows Server 2016/2019 or Ubuntu 18.04 LTS or later.

Technical Specifications

Processor

Intel FCLGA3647 Socket supports 1st and 2nd Generation Intel® Xeon® Scalable Processors (Max. TDP at 150W)

Platform Controller Hub

Intel® C621 Chipset

System Memory

6 x DDR4 2933/ 2666/ 2400/ 2133 MHz RDIMM/ LRDIMM up to 768GB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2500 BMC controller onboard

SBC

HPM-621UA

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator

1 x Disk activity indicator

1 x Network activity indicator

USB

4 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port (Bracket shares with VGA port, RS232 on the top)

VGA

1 x VGA port (Bracket shares with Serial port, VGA on the bottom)

RJ-45

4 x RJ45 (LAN1 shares IPMI port)

Graphic Chipset

AST 2500 BMC controller

Resolution

1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU

Expansion

1 x PCI 3.0 slot, 3 x PCIe Gen3 x16 slots or 6 x PCIe Gen3 x8 slots

Slot 1, PCI 3.0

Slot 2, PCIe 3.0 x8

Slot 3, PCIe 3.0 x16 (switches to x8 when Slot 2 used)

Slot 4, PCIe 3.0 x8

Slot 5, PCIe 3.0 x16 (switches to x8 when Slot 4 used)

Slot 6, PCIe 3.0 x8

Slot 7, PCIe 3.0 x16 (closest to CPU, switches to x8 when Slot 6 used)

M.2

1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280 form factor

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

4 x Intel I210AT 1GbE controllers

LAN Port

4 x RJ45 (LAN1 shares IPMI port)

Operating Temp.

0 ~ 40°C (L6 system)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab

70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

19.2KG

Dimension (W x L x D)

Tower Chassis 340mm(W) x 488mm(H) x 528mm(D) with external handles & pedestal stand

174.8mm(W) x 430mm(H) x 528mm(D) without external handles & pedestal stand

OS

Windows 10 IoT Enterprise

Windows Server 2016

Windows Server 2019

Ubuntu 18.04 LTS or Later

Ordering Information

HPS-621UTAD-A1R: L6 Tower Workstation w/HPM-621UAA/1300W/1x5.25"/3x2.5"

What is HPS-621UTA?

The HPS-621UTA is a high performance computing manufactured by Avalue, designed specifically for rackmount-tower-workstation applications. The Avalue HPS-621UTA is a tower workstation built around the Avalue HPM-621UA server board with a single 1st/2nd Generation Intel® Xeon® Scalable processor (max. TDP up to 150W) and Intel® C621 chipset, designed as a manageable, GPU/accelerator-ready deskside compute node for HPC and edge workloads. With 6 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 768GB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2500 BMC, it packages Xeon Scalable performance into a 340 x 488 x 528 mm tower chassis with external handle and pedestal stand. It provides flexible PCIe Gen3 expansion (up to 3 x x16 or 6 x x8 plus a PCI 3.0 slot), an M.2 NVMe, 3 x front-accessible 2.5" bays, quad Intel I210AT 1GbE, USB 3.2 Gen1 and VGA, running Windows 10 IoT, Windows Server 2016/2019 or Ubuntu 18.04 LTS or later.

Key Features & Benefits

  • Tower workstation (340 x 488 x 528 mm with handle/pedestal)
  • Single 1st/2nd Gen Intel® Xeon® Scalable (FCLGA3647, max. TDP 150W)
  • Avalue HPM-621UA server board, Intel® C621 chipset, IPMI 2.0
  • 6 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 768GB
  • 1 x 1300W PS2 ATX PSU
  • Flexible PCIe Gen3: 3 x x16 or 6 x x8 + 1 x PCI 3.0
  • 3 x front-accessible 2.5" bays + 1 x M.2 NVMe
  • 4 x Intel I210AT 1GbE controllers
  • Windows 10 IoT / Server 2016/2019 / Ubuntu

Applications & Use Cases

The HPS-621UTA is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Internet of Things (IoT) and edge computing
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
