What is the HPS-GNRUTA?

The Avalue HPS-GNRUTA is a tower workstation built around the Avalue HPM-GNRUA server board. It uses an Intel LGA4710 socket supporting Intel Xeon 6 6500P/6700P/6700E series processors with a max TDP of 350W, pairs with 8 x DDR5 memory, a 1300W PS2 ATX PSU and IPMI 2.0 remote management via an AST2600 BMC, all housed in a tower chassis with external handles and a pedestal stand.

Which processors does the HPS-GNRUTA support?

It supports Intel Xeon 6 6500P, 6700P and 6700E series processors on the LGA4710 socket, with a maximum TDP of 350W. The processor works alongside the onboard AST2600 BMC for IPMI 2.0 management and the HPM-GNRUA server board, making the platform suited to demanding AI, HPC and edge server compute tasks that need high core counts and DDR5 memory bandwidth.

How much memory does the HPS-GNRUTA support?

The system has 8 x DDR5 memory slots supporting RDIMM at up to 6400MHz or MRDIMM at up to 8000MHz, for a total capacity of up to 2TB. This high-bandwidth DDR5 memory subsystem is designed to keep pace with the Intel Xeon 6 processor's core count and PCIe Gen5 I/O for memory-intensive HPC and AI workloads.

What expansion does the HPS-GNRUTA offer?

The board provides 4 x PCIe Gen5 x16 slots across seven physical slot positions, with slots 1, 3, 5 and 7 populated and slot 7 closest to the CPU. This Gen5 expansion allows fast accelerators, GPUs or high-speed NICs to be fitted, giving the tower workstation flexibility for compute-heavy or I/O-heavy deployments in AI and HPC environments.

What storage does the HPS-GNRUTA provide?

Storage comes from 2 x M.2 M-Key slots supporting 1 x PCIe 5.0 x4 NVMe SSD from the 1st CPU in 2260/2280/22110 form factors, plus 3 x front-accessible 2.5" drive bays for serviceable storage. This combination gives users both fast NVMe boot/cache storage and expandable bulk 2.5" storage in the same tower chassis.

What networking does the HPS-GNRUTA have?

It has an Intel I210AT 1GbE controller and an Intel E610-XAT2 controller providing 2 x 10GbE ports, totalling 4 x RJ45 ports. Of these, one is a dedicated MGMT port for IPMI access only, the 1GbE LAN1 port is shared with IPMI access, and the remaining two ports run at 10GbE for high-throughput data or storage networking.

What display output does the HPS-GNRUTA have?

Display is handled by the onboard AST2600 BMC graphic chipset through a single VGA port, supporting resolutions up to 1920 x 1200 at 60Hz with 32bpp colour depth. As this is primarily a server-class BMC video output for local console and remote management access rather than a dedicated GPU, users needing higher-performance graphics can use the PCIe Gen5 x16 slots for a discrete card.

What operating systems are supported?

The HPS-GNRUTA supports Windows 11 in both SAC and LTSC servicing channels, Windows Server 2025, Ubuntu 24.04 LTS or later, and Red Hat Enterprise Linux (RHEL). This broad OS support lets the platform run modern Windows Server workloads, containerised Linux services, or enterprise RHEL deployments on the same Intel Xeon 6 hardware.

What is the HPS-GNRUTA's operating temperature range?

The system is rated for an operating temperature range of 0 to 35°C as an L6 system. This makes it suitable for controlled server room or industrial computing room environments rather than uncontrolled outdoor or extreme-temperature sites, and it should be installed with adequate airflow given the 1300W PSU and up to 350W processor TDP.

What storage temperature range does it tolerate?

When powered off, the HPS-GNRUTA is rated to withstand storage temperatures down to -40°C for 24 hours under IEC60068-2-1 cold test conditions, and up to 70°C at 95% relative humidity for 24 hours under IEC 60068-2-3 test conditions. This gives it wide tolerance for shipping and warehousing before deployment.

What humidity range can the HPS-GNRUTA tolerate during operation?

The system can operate at up to 35°C with 95% relative humidity, non-condensing. This level of humidity tolerance is typical for industrial and data centre computing equipment and should still be paired with proper facility climate control to protect the 2.5" drives, DDR5 modules and other internal components over the long term.

What power supply does the HPS-GNRUTA use?

It ships with a single 1300W PS2 ATX power supply unit. This high-wattage PSU is sized to support the Intel Xeon 6 processor's up to 350W TDP, 8 x DDR5 memory modules, multiple 2.5" drives and up to 4 populated PCIe Gen5 x16 accelerator or GPU cards without headroom concerns under heavy load.

Does the HPS-GNRUTA support remote management?

Yes, it includes IPMI 2.0 with an AST2600 BMC controller onboard, accessed through a dedicated MGMT RJ45 port on the rear panel. This lets administrators remotely monitor CPU temperature, fan speed and voltage, and case-open status, and manage the system out-of-band even when the main OS is not running.

What are the chassis dimensions and weight of the HPS-GNRUTA?

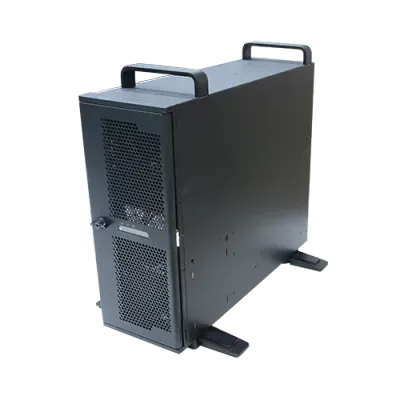

The tower chassis measures 340mm (W) x 488mm (H) x 528mm (D) and includes external handles and a pedestal stand for stability and portability. The complete system weighs 19.5KG, making it a substantial but still movable tower workstation suited for server rooms, labs or edge compute sites.

Does the HPS-GNRUTA support rack or pedestal mounting?

The HPS-GNRUTA ships as a tower chassis with external handles and a pedestal stand rather than as a rack-mount unit. The ordering configuration HPS-GNRUTAD-A1R corresponds to an L6 tower workstation build with the HPM-GNRUAA board, 1300W PSU, one 5.25" bay and three 2.5" bays.

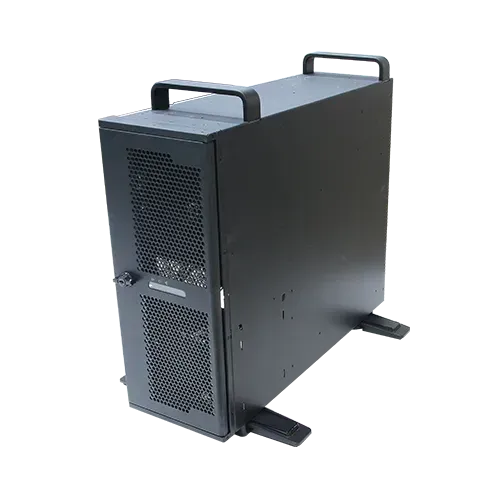

What front-panel I/O does the HPS-GNRUTA have?

The front panel provides 2 x USB 3.2 Gen1 ports, a power button and a reset button, along with power status, disk activity and network activity LED indicators. These front controls and indicators give operators quick local access to power state, storage activity and connectivity without needing to check the BMC console.

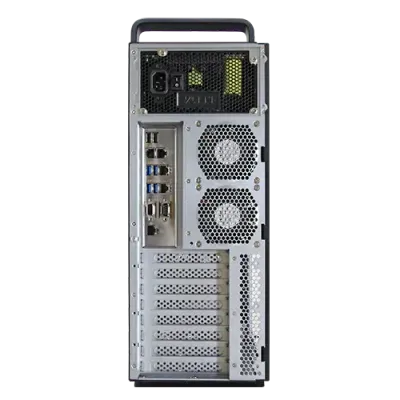

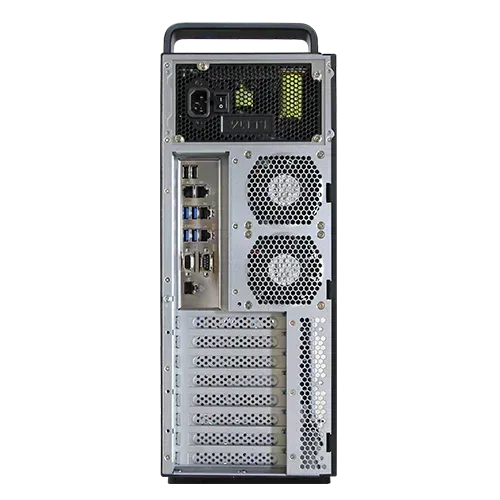

What rear-panel I/O does the HPS-GNRUTA have?

The rear panel offers 2 x USB 3.2 Gen1 ports, a VGA port for local or BMC video, and 4 x RJ45 Ethernet ports covering a dedicated IPMI MGMT port, a shared 1GbE/IPMI LAN1 port, and two 10GbE ports. This gives the workstation both standard peripheral connectivity and dedicated management networking on the rear I/O panel.

Does the HPS-GNRUTA support TPM?

Yes, it has TPM 2.0 onboard as part of the Avalue HPM-GNRUA server board, providing hardware-based security for key storage, platform integrity checks and secure boot in enterprise or industrial deployments that require trusted platform security features.

What is the SBC or motherboard used in the HPS-GNRUTA?

The system is built around the Avalue HPM-GNRUA server board, which carries the LGA4710 CPU socket, 8 DDR5 memory slots, PCIe Gen5 expansion, AST2600 BMC for IPMI 2.0 and the onboard Ethernet controllers. This board is also referenced directly in the ordering code for the tower configuration, HPM-GNRUAA.

What applications is the HPS-GNRUTA suited for?

Given its Intel Xeon 6 platform, DDR5 memory up to 2TB, PCIe Gen5 expansion and 10GbE networking, the HPS-GNRUTA is suited to AI training and inference nodes, HPC compute clusters, edge servers, and data centre or industrial workloads that need high memory bandwidth, fast storage and remote out-of-band management via IPMI 2.0.

How does the HPS-GNRUTA compare with the Avalue HPS-621U4A?

The HPS-GNRUTA uses a newer LGA4710 Intel Xeon 6 platform with DDR5 memory up to 2TB and PCIe Gen5 expansion in a tower chassis, while the HPS-621U4A uses an older LGA3647 Intel Xeon Scalable platform with DDR4 up to 768GB and PCIe Gen3 expansion in a 19" 4U rackmount chassis. Both share a 1300W PSU, IPMI 2.0 management and 3 x front 2.5" bays.

Does the HPS-GNRUTA support 10GbE networking?

Yes, an Intel E610-XAT2 controller provides 2 x 10GbE Ethernet ports, in addition to a separate Intel I210AT controller providing 1GbE connectivity. Combined with the dedicated IPMI MGMT port, this gives the HPS-GNRUTA a total of 4 RJ45 ports covering both high-speed data networking and out-of-band management.

Can I order the HPS-GNRUTA through TSL Automation Solutions in India?

Yes, TSL Automation Solutions is an authorised Avalue distributor in India and supplies the HPS-GNRUTA tower workstation, including the HPS-GNRUTAD-A1R configuration, to customers across the country with technical guidance on configuration, compatible memory and storage options.

What warranty and support does TSL Automation Solutions provide?

TSL Automation Solutions supplies genuine Avalue HPS-GNRUTA units in India backed by manufacturer warranty coverage, along with local pre-sales technical support and after-sales assistance for configuration, deployment and troubleshooting, so customers get a single point of contact for the Xeon 6 tower workstation.

Does the HPS-GNRUTA support case intrusion detection?

Yes, the onboard hardware status monitor includes case open detection in addition to CPU temperature monitoring, fan speed and voltage monitoring, and fan speed control. These monitoring features work with the AST2600 BMC and IPMI 2.0 so administrators can track the physical and thermal status of the system remotely.

What is the watchdog timer range on the HPS-GNRUTA?

The watchdog timer can trigger a system reset event across a range of 0 to 6553 seconds. This lets administrators configure automatic recovery for unresponsive systems, which is useful in unattended AI, HPC or edge server deployments where the HPS-GNRUTA may run without direct human oversight.

What BIOS does the HPS-GNRUTA use?

It uses an AMI UEFI BIOS, providing standard UEFI boot, configuration and firmware management for the Intel Xeon 6 platform, alongside the AST2600 BMC for out-of-band IPMI 2.0 management independent of the host BIOS or operating system state.

How many M.2 slots does the HPS-GNRUTA have and what do they support?

It has 2 x M.2 M-Key slots supporting 1 x PCIe 5.0 x4 NVMe SSD from the 1st CPU, in 2260, 2280 or 22110 form factors. Combined with the 3 x front-accessible 2.5" bays, this gives flexible options for fast NVMe boot storage plus larger-capacity bulk storage drives.

Avalue · High Performance Computing

HPS-GNRUTA

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Tower chassis, 340mm(W) x 488mm(H) x 528mm(D) with external handles & pedestal stand
Intel LGA4710 socket, Intel Xeon 6 6500P/6700P/6700E series (max. TDP 350W)
Avalue HPM-GNRUA server board, IPMI 2.0 with AST2600 BMC
8 x DDR5 6400MHz RDIMM / 8000MHz MRDIMM up to 2TB
1 x 1300W PS2 ATX PSU
4 x PCIe Gen5 x16 expansion slots
3 x front-accessible 2.5" storage bays + 2 x M.2 M-Key NVMe
Intel I210AT 1GbE + Intel E610-XAT2 10GbE (2 x 10GbE ports)
Windows 11 / Server 2025 / Ubuntu 24.04 / RHEL

Product Description

The Avalue HPS-GNRUTA is a tower workstation built around the Avalue HPM-GNRUA server board with an Intel LGA4710 socket supporting Intel Xeon 6 6500P/6700P/6700E series processors (max. TDP 350W), designed for AI, HPC and edge server workloads.

It supports 8 x DDR5 6400MHz RDIMM or 8000MHz MRDIMM memory up to 2TB, a 1300W PS2 ATX PSU, and IPMI 2.0 remote management via an AST2600 BMC.

The tower chassis (340 x 488 x 528mm) includes external handles and a pedestal stand, 3 x front-accessible 2.5" bays, 2 x M.2 NVMe slots, 4 x PCIe Gen5 x16 expansion slots, and quad RJ45 (1GbE, dual 10GbE, dedicated IPMI), running Windows 11, Windows Server 2025, Ubuntu or RHEL.

TSL Automation Solutions supplies and supports the HPS-GNRUTA across India with genuine Avalue parts, technical guidance and after-sales assistance.

Technical Specifications

Processor

Intel LGA4710 Socket supports Intel® Xeon® 6 6500P/6700P/6700E series Processor (Max. TDP at 350W)

System Memory

8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature

Fan speed and voltage monitoring

Fan speed control

Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

SBC

HPM-GNRUA

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator

1 x Disk activity indicator

1 x Network activity indicator

USB

2 x USB 3.2 Gen1 ports

COM Port

2 x USB 3.2 Gen1 ports

VGA

1 x VGA port

RJ-45

4 x RJ45

MGMT port for dedicated IPMI access only

LAN1 port for 1GbE shared with IPMI access

LAN2 and 3 ports for 10GbE

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port

VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU

Expansion

4 x PCIe Gen5 x16 slots

Slot 1, PCIe Gen5 x16

Slot 2, NA

Slot 3, PCIe Gen5 x16

Slot 4, NA

Slot 5, PCIe Gen5 x16

Slot 6, NA

Slot 7, PCIe Gen5 x16(This Slot is closest to the CPU)

M.2

2 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2260/2280/22110 form factor

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

1 x Intel I210AT 1GbE controller

1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

4 x RJ45

MGMT port for dedicated IPMI access only

LAN1 port for 1GbE shared with IPMI access

LAN2 and 3 ports for 10GbE

Operating Temp.

0 ~ 35°C (L6 system)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab

70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

35°C @95% Relative Humidity, Non-condensing

Weight

19.5KG

Dimension (W x L x D)

19" 4U Chassis

430mm(W) x 174.8mm(H) x 528mm(D)

482.6mm(W) x 174.8mm(H) x 528mm(D) with ear mount

OS

Windows 11 SAC and LTSC

Windows Server 2025

Ubuntu 24.04 LTS or later

Red Hat Enterprise Linux (RHEL)

Ordering Information

HPS-GNRUTAD-A1R

L6 Tower Workstation w/HPM-GNRUAA/1300W/1x5.25"/3x2.5"
