HPS-SIEU4A

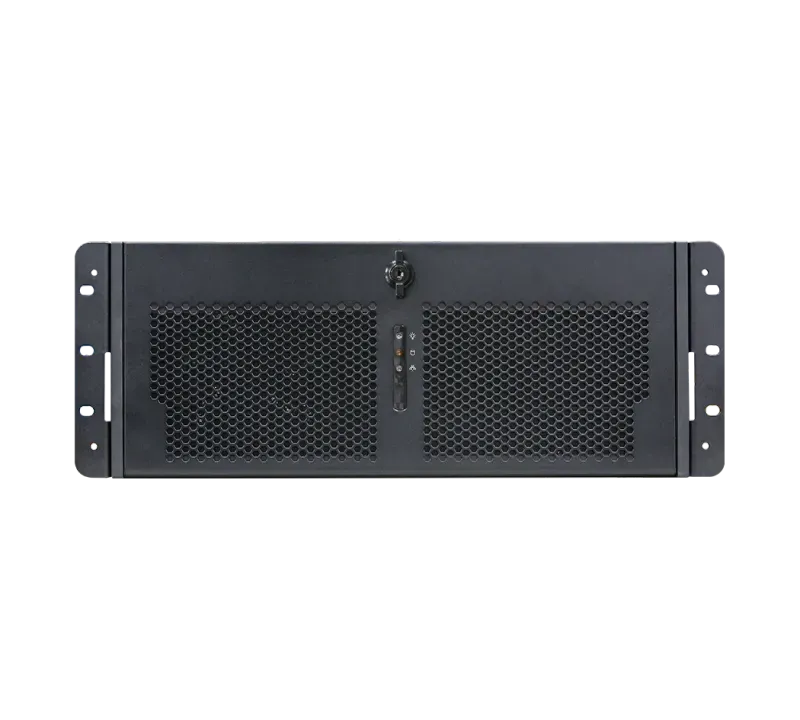

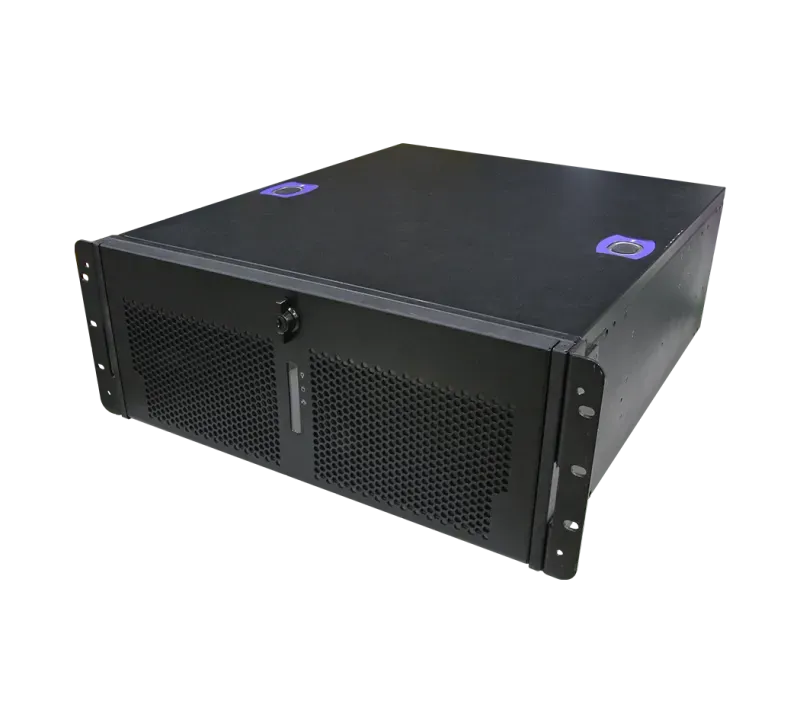

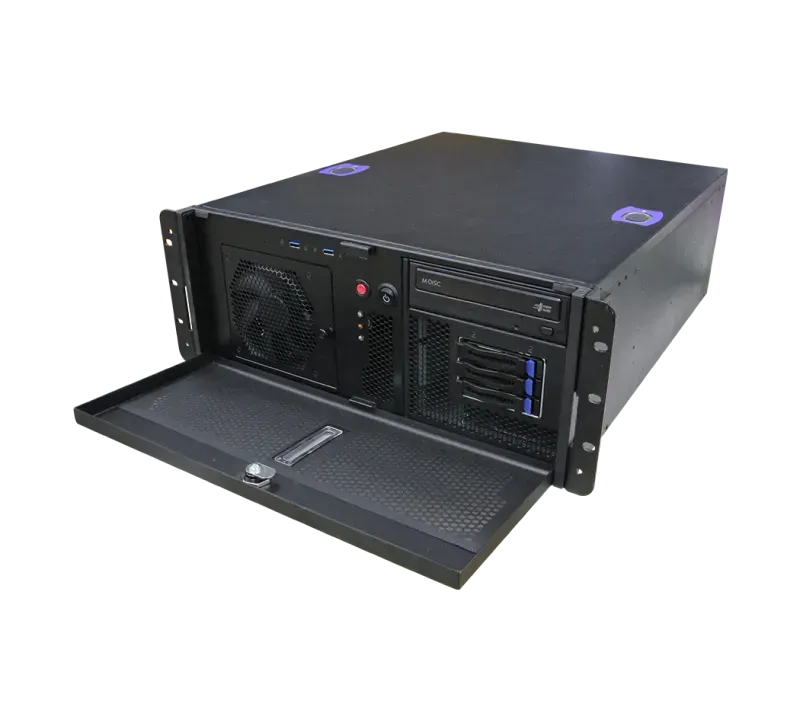

HPS-SIEU4A FrontHPS-SIEU4A FrontHPS-SIEU4A Front
HPS-SIEU4A, Image 1HPS-SIEU4A, Image 2HPS-SIEU4A, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • 19" 4U rackmount workstation (430 x 174.8 x 528 mm)
  • Single 4th Gen AMD EPYC 8004 (AMD SP6, max. TDP 225W)
  • Avalue HPM-SIEUA server board, IPMI 2.0 (AST2600 BMC)
  • 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB
  • 1 x 1300W PS2 ATX PSU
  • 3 x PCIe Gen5 x16 + 4 x PCIe Gen5 x8 slots
  • 3 x front-accessible 2.5" bays + 2 x M.2 NVMe/SATA
  • Intel I210AT 1GbE + I226-LM 2.5GbE + X550AT2 (2 x 10GbE)
  • Windows Server 2019/2022 / Ubuntu / RHEL 9.0+

Product Description

The Avalue HPS-SIEU4A is a 19" 4U rackmount workstation built around the Avalue HPM-SIEUA server board with a single 4th Generation AMD EPYC 8004 processor on the AMD SP6 socket (max. TDP up to 225W), designed as a manageable, GPU/accelerator-ready compute node for HPC and edge servers.

With 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2600 BMC, it packages AMD EPYC performance into a 430 x 174.8 x 528 mm chassis.

It provides 3 x PCIe Gen5 x16 and 4 x PCIe Gen5 x8 slots, 2 x M.2 NVMe/SATA, 3 x front-accessible 2.5" bays, triple Intel Ethernet (I210AT 1GbE, I226-LM 2.5GbE, X550AT2 dual 10GbE), USB 3.2 Gen1 and VGA, running Windows Server 2019/2022, Ubuntu 20.04/22.04 LTS or RHEL 9.0+.

Technical Specifications

Processor

AMD SP6 Socket supports 4th Generation AMD EPYC Processor (Max. TDP at 225W)

Platform Controller Hub

NA

System Memory

6 x DDR5 4800/4400 MHz RDIMM up to 1.5TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

SBC

HPM-SIEUA

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator

1 x Disk activity indicator

1 x Network activity indicator

USB

4 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

VGA

1 x VGA port

RJ-45

5 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 for 2.5GbE, LAN3 and 4 for 10GbE

Graphic Chipset

AST 2600 BMC controller

Resolution

1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU

Expansion

3 x PCIe Gen5 x16 slots and 4 x PCIe Gen5 x8 slots

Slot 1, PCIe 5.0 x8

Slot 2, PCIe 5.0 x16

Slot 3, PCIe 5.0 x8

Slot 4, PCIe 5.0 x16

Slot 5, PCIe 5.0 x8

Slot 6, PCIe 5.0 x16

Slot 7, PCIe 5.0 x8 (closest to CPU)

M.2

2 x M.2 M-Key PCIe 5.0 x4 NVMe SSD/SATA, 2260/2280/22110 form factor

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

1 x Intel I210AT 1GbE controller

1 x Intel I226-LM 2.5GbE controller

1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 for 2.5GbE, LAN3 and 4 for 10GbE

Operating Temp.

0 ~ 35°C (L6 system)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab

70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

35°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x D)

19" 4U Chassis 430mm(W) x 174.8mm(H) x 528mm(D)

482.6mm(W) x 174.8mm(H) x 528mm(D) with ear mount

OS

Windows Server 2019 bare-metal support (KB5017379) & Hyper-V support (KB5018419)

Windows Server 2022

Ubuntu 20.04 LTS & 22.04 LTS or later

Red Hat Enterprise Linux (RHEL) 9.0 or later

Ordering Information

HPS-SIEU4AD-A1R: L6 19" 4U Rackmount w/HPM-SIEUAA/1300W/1x5.25"/3x2.5"

What is HPS-SIEU4A?

The HPS-SIEU4A is a high performance computing manufactured by Avalue, designed specifically for rackmount-tower-workstation applications. The Avalue HPS-SIEU4A is a 19" 4U rackmount workstation built around the Avalue HPM-SIEUA server board with a single 4th Generation AMD EPYC 8004 processor on the AMD SP6 socket (max. TDP up to 225W), designed as a manageable, GPU/accelerator-ready compute node for HPC and edge servers. With 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2600 BMC, it packages AMD EPYC performance into a 430 x 174.8 x 528 mm chassis. It provides 3 x PCIe Gen5 x16 and 4 x PCIe Gen5 x8 slots, 2 x M.2 NVMe/SATA, 3 x front-accessible 2.5" bays, triple Intel Ethernet (I210AT 1GbE, I226-LM 2.5GbE, X550AT2 dual 10GbE), USB 3.2 Gen1 and VGA, running Windows Server 2019/2022, Ubuntu 20.04/22.04 LTS or RHEL 9.0+.

Key Features & Benefits

  • 19" 4U rackmount workstation (430 x 174.8 x 528 mm)
  • Single 4th Gen AMD EPYC 8004 (AMD SP6, max. TDP 225W)
  • Avalue HPM-SIEUA server board, IPMI 2.0 (AST2600 BMC)
  • 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB
  • 1 x 1300W PS2 ATX PSU
  • 3 x PCIe Gen5 x16 + 4 x PCIe Gen5 x8 slots
  • 3 x front-accessible 2.5" bays + 2 x M.2 NVMe/SATA
  • Intel I210AT 1GbE + I226-LM 2.5GbE + X550AT2 (2 x 10GbE)
  • Windows Server 2019/2022 / Ubuntu / RHEL 9.0+

Applications & Use Cases

The HPS-SIEU4A is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
