Product Datasheet
20 May 2026
High Performance Computing · Rackmount-Tower-Workstation
HPS-SIEUTA
Series: HPS

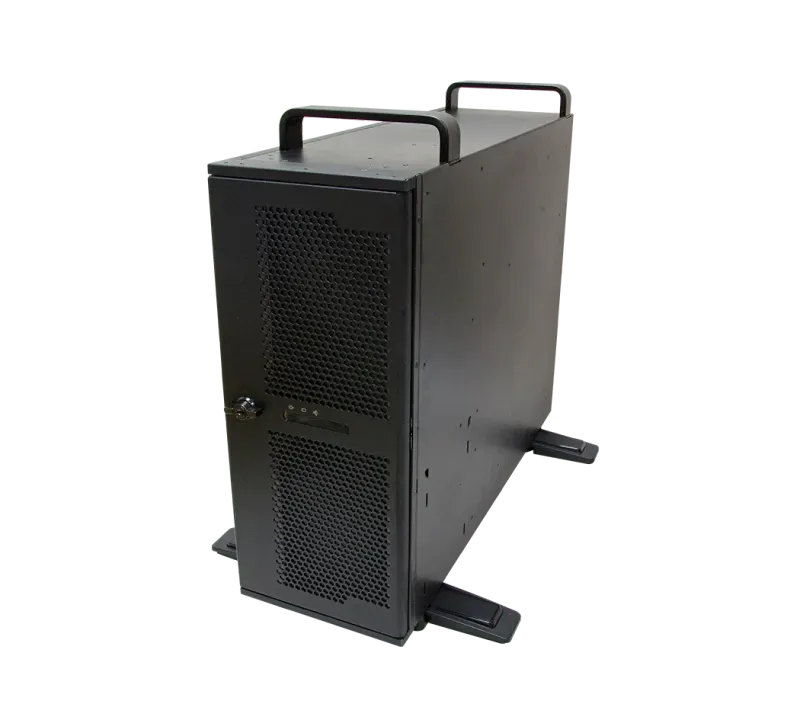

The Avalue HPS-SIEUTA is a tower workstation built around the Avalue HPM-SIEUA server board with a single 4th Generation AMD EPYC 8004 processor on the AMD SP6 socket (max. TDP up to 225W), designed as a manageable, GPU/accelerator-ready deskside compute node for HPC and edge workloads. With 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2600 BMC, it packages AMD EPYC performance into a 340 x 488 x 528 mm tower chassis with external handles and pedestal stand. It provides 3 x PCIe Gen5 x16 and 4 x PCIe Gen5 x8 slots, 2 x M.2 NVMe/SATA, 3 x front-accessible 2.5" bays, triple Intel Ethernet (I210AT 1GbE, I226-LM 2.5GbE, X550AT2 dual 10GbE), USB 3.2 Gen1 and VGA, running Windows Server 2019/2022, Ubuntu 20.04/22.04 LTS or RHEL 9.0+.
Key Features
- Tower workstation (340 x 488 x 528 mm with handles/pedestal)
- Single 4th Gen AMD EPYC 8004 (AMD SP6, max. TDP 225W)
- Avalue HPM-SIEUA server board, IPMI 2.0 (AST2600 BMC)
- 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB
- 1 x 1300W PS2 ATX PSU
- 3 x PCIe Gen5 x16 + 4 x PCIe Gen5 x8 slots
- 3 x front-accessible 2.5" bays + 2 x M.2 NVMe/SATA
- Intel I210AT 1GbE + I226-LM 2.5GbE + X550AT2 (2 x 10GbE)
- Windows Server 2019/2022 / Ubuntu / RHEL 9.0+
Technical Specifications
System Information
| Processor | AMD SP6 Socket supports 4th Generation AMD EPYC Processor (Max. TDP at 225W) |
|---|---|
| Platform Controller Hub | NA |
| System Memory | 6 x DDR5 4800/4400 MHz RDIMM up to 1.5TB |
| BIOS | AMI UEFI BIOS |
| Watchdog Timer | System reset event 0 ~ 6553 seconds |
| H/W Status Monitor | CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection |
| TPM | TPM 2.0 onboard |
| IPMI | IPMI 2.0 with AST 2600 BMC controller onboard |
| SBC | HPM-SIEUA |
Front I/O
| USB | 2 x USB 3.2 Gen1 ports |
|---|---|
| Power Button | 1 x Power button |
| Reset Button | 1 x Reset button |
| LED Indicator | 1 x Power status indicator, 1 x Disk activity indicator, 1 x Network activity indicator |
Rear I/O
| USB | 4 x USB 3.2 Gen1 ports |
|---|---|
| COM Port | 1 x RS232 port |
| VGA | 1 x VGA port |
| RJ-45 | 5 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 for 2.5GbE, LAN3 and 4 for 10GbE |
Display
| Graphic Chipset | AST 2600 BMC controller |
|---|---|
| Resolution | 1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp |
Power Requirement
| Power Supply Unit | 1 x 1300W PS2 ATX PSU |
|---|
Expansion
| Expansion | 3 x PCIe Gen5 x16 slots and 4 x PCIe Gen5 x8 slots, Slot 1, PCIe 5.0 x8, Slot 2, PCIe 5.0 x16, Slot 3, PCIe 5.0 x8, Slot 4, PCIe 5.0 x16, Slot 5, PCIe 5.0 x8, Slot 6, PCIe 5.0 x16, Slot 7, PCIe 5.0 x8 (closest to CPU) |
|---|
Storage
| M.2 | 2 x M.2 M-Key PCIe 5.0 x4 NVMe SSD/SATA, 2260/2280/22110 form factor |
|---|---|
| 2.5 Drive Bay | 3 x Front accessible 2.5" storage bays |
Ethernet
| LAN Chipset | 1 x Intel I210AT 1GbE controller, 1 x Intel I226-LM 2.5GbE controller, 1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports |
|---|---|
| LAN Port | 5 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 for 2.5GbE, LAN3 and 4 for 10GbE |
Mechanical & Environmental
| Operating Temp. | 0 ~ 35°C (L6 system) |
|---|---|
| Storage Temp. | -40°C 24hrs IEC60068-2-1 Cold test Test: Ab, 70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca |
| Operating Humidity | 5°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x D) | Tower Chassis 340mm(W) x 488mm(H) x 528mm(D) with external handles & pedestal stand, 174.8mm(W) x 430mm(H) x 528mm(D) without external handles & pedestal stand |
Software Support
| OS | Windows Server 2019 bare-metal support (KB5017379) & Hyper-V support (KB5018419), Windows Server 2022, Ubuntu 20.04 LTS & 22.04 LTS or later, Red Hat Enterprise Linux (RHEL) 9.0 or later |
|---|
Ordering Information
| Ordering Information | HPS-SIEUTAD-A1R: L6 Tower Workstation w/HPM-SIEUAA/1300W/1x5.25"/3x2.5" |
|---|
