HPM-SRSUA

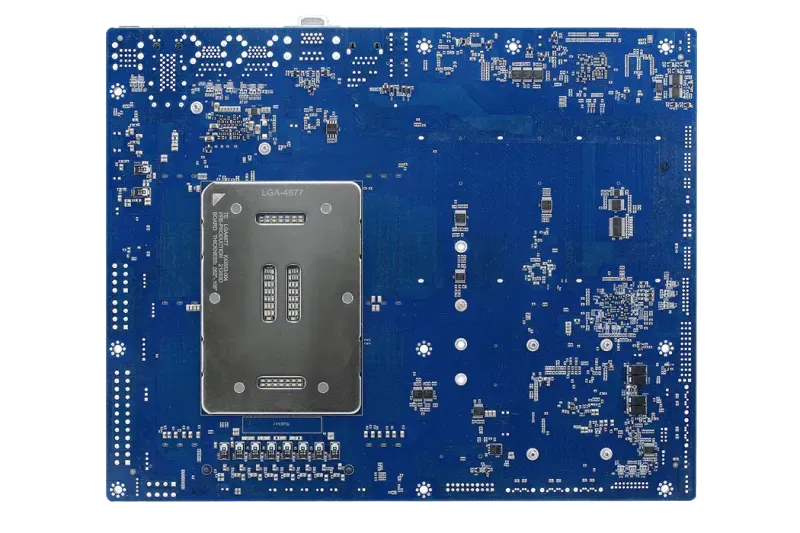

HPM-SRSUA FrontHPM-SRSUA Front

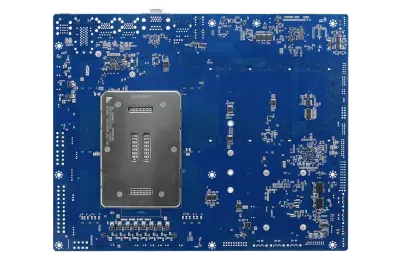

HPM-SRSUA, Image 1HPM-SRSUA, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Single 4th Gen Intel® Xeon® Scalable ATX server board with IPMI 2.0
  • Intel LGA4677 socket (max. TDP 270W), Intel® C741 chipset
  • 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB
  • TPM 2.0 onboard; IPMI 2.0 with AST2600 BMC controller
  • Intel I210AT 1GbE + I226-LM 2.5GbE + X550AT2 (2 x 10GbE)
  • 4 x PCIe Gen5 x16 + 3 x PCIe Gen5 x4 slots
  • 1 x M.2 M-Key PCIe 3.0 x4 NVMe (2242/2260/2280/22110)
  • 5 x SATA III (SATA 1~4 RAID 0/1/5/10)
  • 12" x 9.6" (304.8 x 243.84 mm); Windows 10 IoT / Server IoT / Ubuntu / RHEL

Product Description

The Avalue HPM-SRSUA is a single-socket ATX server board built on the Intel LGA4677 socket for 4th Generation Intel® Xeon® Scalable processors (max. TDP up to 270W) with the Intel® C741 chipset, designed as a manageable, expansion-rich compute platform for edge servers and HPC nodes.

With 6 x DDR5 4800/4400MHz RDIMM up to 1.5TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2600 BMC, it delivers data-center-class x86 performance in a 12" x 9.6" board.

It provides 4 x PCIe Gen5 x16 and 3 x PCIe Gen5 x4 slots, an M.2 M-Key PCIe 3.0 x4 NVMe, 5 x SATA III (RAID 0/1/5/10), triple Intel Ethernet (I210AT 1GbE, I226-LM 2.5GbE, X550AT2 dual 10GbE), and USB 3.2 Gen1/USB 2.0, running Windows 10 IoT / Windows Server IoT 2019/2022, Ubuntu or RHEL.

Technical Specifications

Processor

Intel LGA4677 Socket supports 4th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)

Platform Controller Hub

Intel® C741 Chipset

System Memory

6 x DDR5 4800/ 4400 MHz RDIMM up to 1.5TB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

USB

4 x USB 3.2 Gen1 ports

2 x USB 2.0 ports

COM Port

1 x RS232 port

RJ-45

5 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 port for 2.5GbE, LAN3 and 4 ports for 10GbE

VGA

1 x VGA port

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port, VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

4 x PCIe Gen5 x16 slots and 3 x PCIe Gen5 x4 slots

Slot 1, PCIe 5.0 x16

Slot 2, PCIe 5.0 x4

Slot 3, PCIe 5.0 x16

Slot 4, PCIe 5.0 x4

Slot 5, PCIe 5.0 x16

Slot 6, PCIe 5.0 x4

Slot 7, PCIe 5.0 x16 (closest to CPU)

M.2

1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor

USB

4 x Internal USB 3.2 Gen1 ports

SATA

5 x SATA III (SATA 1~4 support RAID 0,1,5,10)

Serial

1 x Internal RS232 port

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

1 x Intel I210AT 1GbE controller

1 x Intel I226-LM 2.5GbE controller

1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45 MGMT port for dedicated IPMI access only, LAN1 port for 1GbE shared with IPMI access, LAN2 port for 2.5GbE, LAN3 and 4 ports for 10GbE

Operating Temp.

0 ~ 60°C (32 ~ 140°F) to support up to 250W TDP CPU

0 ~ 50°C (32 ~ 122°F) to support up to 270W TDP CPU

Storage Temp.

-40 ~ 85°C

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

1.19KG

Power Connector

1 x Std. 24 Pin ATX connector

3 x 8 Pin SSI 12V connectors

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.54mm

OS

Windows 10 IoT Enterprise LTSC 2021

Windows Server IoT 2019 with VT-d disabled

Windows Server IoT 2022

Ubuntu 21.10, 22.04 LTS or later

Red Hat Enterprise Linux (RHEL) 8.2 and later

Ordering Information

HPM-SRSUAA-A1R: ATX 1xLGA4677 Intel 4th Gen.C741/X550 6xDDR5/4xPCIex16/2x10GbE/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3

HPM-SRSUAL-A1R: ATX 1xLGA4677 Intel 4th Gen.C741 6xDDR5/4xPCIex16/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3
