Industrial & Embedded Motherboard · 1.8inch-SBC

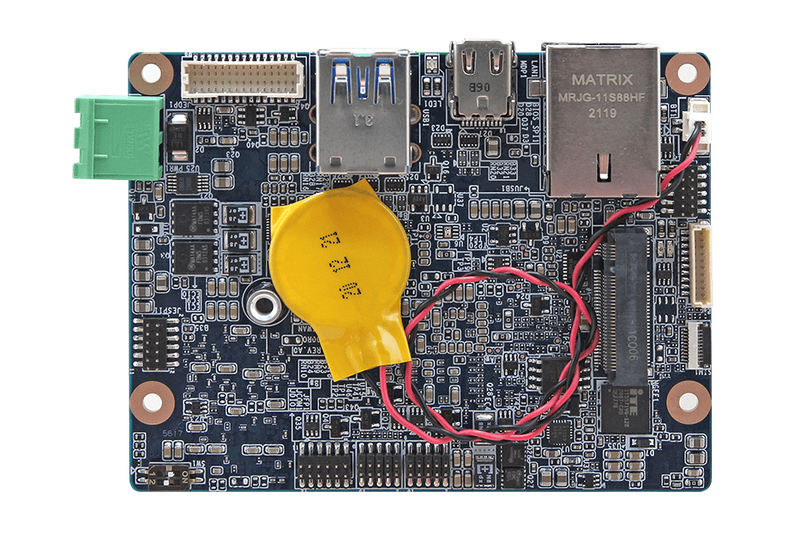

EZX-EHLP
Series: EZX
The Avalue EZX-EHLP is a compact 1.8-inch Single Board Computer (SBC) designed for embedded and industrial applications. It integrates Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® J Series processors, offering reliable performance in a small form factor. Key features include 4GB onboard LPDDR4 memory (expandable to 8GB), dual display outputs via Mini DP and eDP 1.3, a single Intel® I210AT/IT Gigabit Ethernet port, and versatile expansion options through an M.2 Key-B slot supporting PCIe, USB, SATA, and SIM cards. The board also provides multiple USB ports, a serial interface, and GPIOs, making it suitable for various industrial automation, IoT, and edge computing applications.
Key Features
- Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® J Series Processors (Bottom Layer Soldered Processor)
- Onboard Single Channel LPDDR4 4GB Memory Down (8GB for BOM Option)
- Dual Display, Mini DP, eDP 1.3
- Single Intel® I210AT/IT Gigabit Ethernet
- M.2 Key-B 3042/2242 Bridge Bracket to 3052 (with PCIe x2 (Via OEM BIOS Request) or Default (PCIe x1+USB2.0/USB3.0), or (SATAIII+ USB2.0/USB3.0), SIM Slot for SSD/LTE/IO Cards) with FPC Connector
- 1 x Dual Deck USB3.1 Gen2 Type A for 2 x USB 3.1 Gen2 at I/O, 4 x USB 2.0 by Pin Header
- 1 x RS-232/422/485
- DC in +12V
Technical Specifications
System Information
| Processor | Onboard Intel® Pentium®/Celeron®/Atom™ SoC BGA Processor (with CPU Bottom Mounted) |
|---|---|
| System Memory | Onboard Single Channel LPDDR4 4GB Memory Down (8GB for BOM Option) |
| Platform Controller Hub | Integrated |
| I/O Chipset | EC iTE IT5571 |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step |
| BIOS | AMI BIOS, 256Mbit SPI Flash ROM |
| H/W Status Monitor | CPU & System Temperature Monitoring Voltages Monitoring |
| TPM | Onboard eMMC 5.1 64GB |
Storage
| Storage | 1 x M.2 Type B |
|---|
Display
| Multiple Display | Dual Display |
|---|---|
| Graphic Chipset | Intel® UHD Graphics |
| Spec. & Resolution | Mini DP: Max Resolution 4096x2160@60Hz, eDP1.3: Max Resolution 4096x2160@60Hz |
Expansion
| Expansion | 1 x M.2 Type B 3042/2242 Bridge Bracket to 3052, (with PCI-e x2 via OEM BIOS Request, or Default PCI-e x1+USB2.0/USB3.0,, or SATA III+ USB2.0/USB3.0,, SIM Slot for SSD/LTE/IO Cards), *Default is PCI-e x1/SATA III+USB2.0/USB3.0Support WWAN+GNSS or NVMe SSD |
|---|
Ethernet
| LAN Chipset | 1 x Intel I210AT/IT Gigabit Ethernet |
|---|---|
| Ethernet Interface | 1 x 10/100/1000 Base-Tx GbE Compatible |
| LAN Port | 1 x RJ-45 |
Software Support
| OS | Windows 10, Linux |
|---|
Certification
| Certification Information | CE, FCC Class, RoHS Compliant |
|---|
I/O
| USB | 2 x USB 3.1 Gen2, 4 x USB2.0 |
|---|---|
| COM Port | 1 x RS232/422/485 |
| DIO | 1 x 8-bit GPIO |
Mechanical & Environmental
| Operating Temp. | 0~60°C, w/HDD/SSD, Ambient with 0.5 m/s Air Flow Atom N/J Series CPU SKU, -20~60°C, w/HDD/SSD, Ambient with 0.5 m/s Air Flow Atom x6000E Series CPU SKU |
|---|---|
| Storage Temp. | -40°C ~ 75°C (-40°F ~ 167°F) |
| Dimension (L x W) | 3.31" x 2.55" (84mm x 65mm) |
| Weight | 0.66lbs (0.3Kgs) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Power Requirement | DC in +12V |
| Power Mode | AT/ATX (Default Setting: ATX) |
Ordering Information
| Ordering Information | EZX-EHLP-J6412-A1R, EZX-EHLP/J6412/1COM/6USB/1LAN/A1, EZX-EHLP-J6413-A1R, EZX-EHLP/J6413/1COM/6USB/1LAN/A1, EZX-EHLP-X11E-A1R, EZX-EHLP/x6211E/1COM/6USB/1LAN/A1, EZX-EHLP-X13E-A1R, EZX-EHLP/x6413E/1COM/6USB/1LAN/A1, EZX-EHLP-X12RE-A1R, EZX-EHLP/x6212RE/1COM/6USB/1LAN/A1, Intel® Pentium®/Celeron®/Atom™ SoC BGA Processor 1.8 SBC Motherboard |
|---|
