Avalue · Industrial & Embedded Motherboard

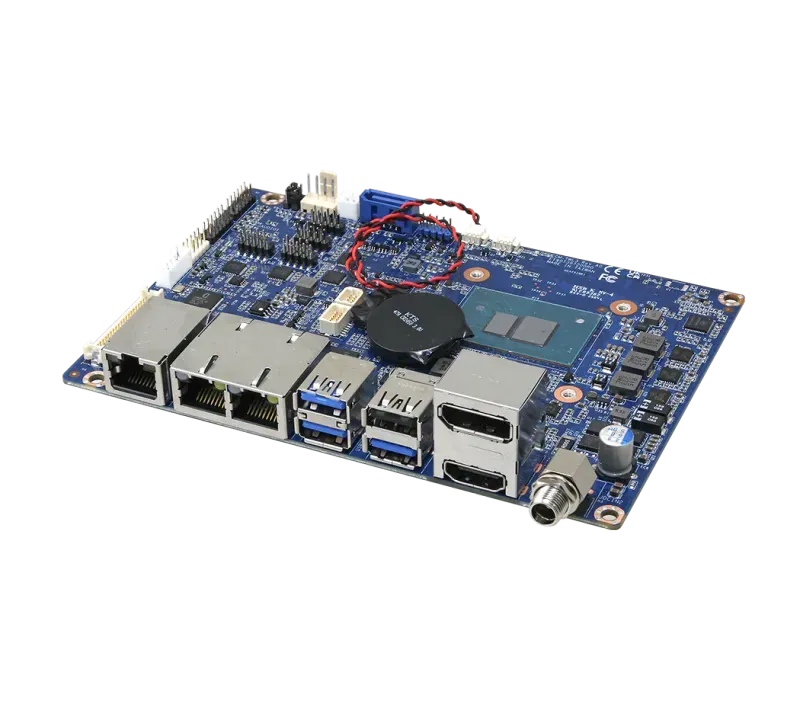

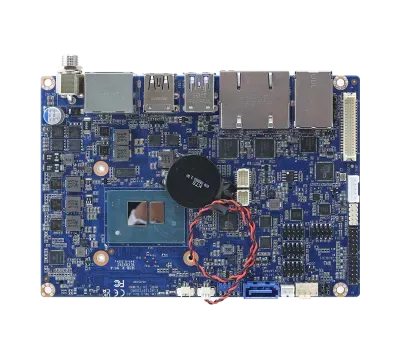

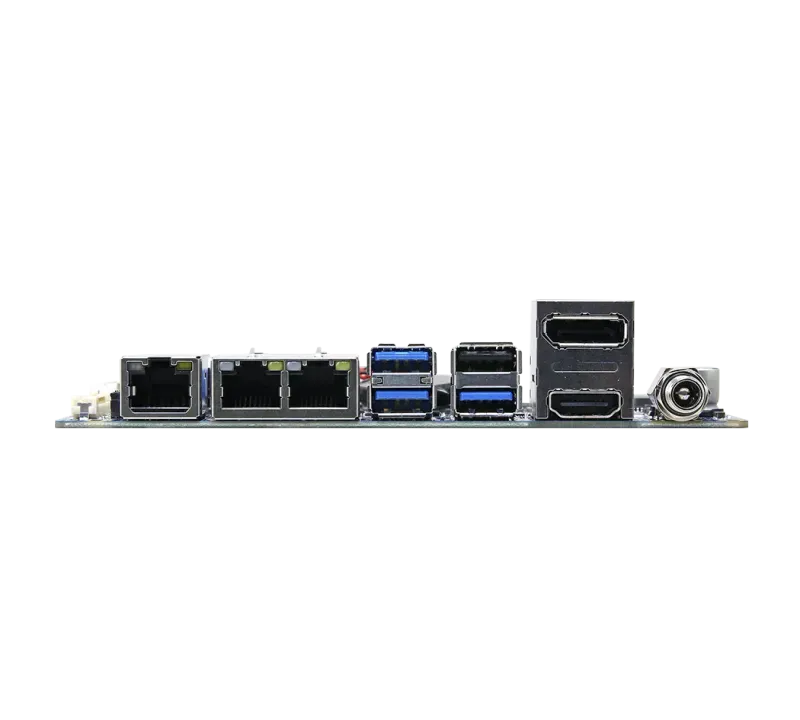

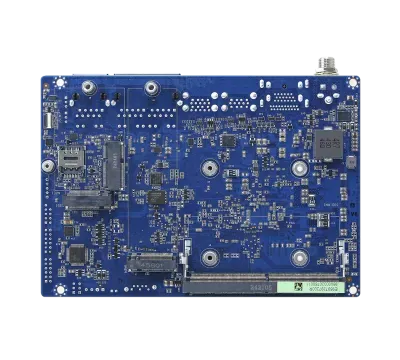

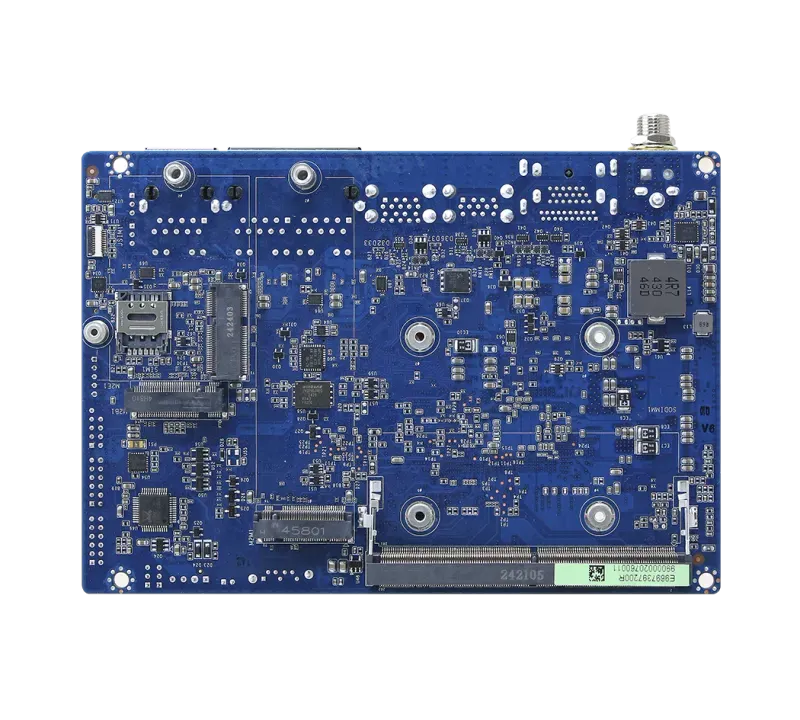

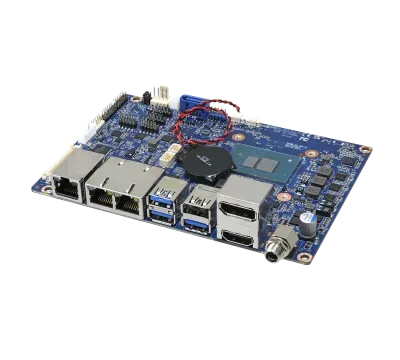

ECM-ASL3

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Onboard (soldered) Intel Processor N97 / Core i3-N305 / Atom x7000RE series
1 x DDR5 4800MHz SO-DIMM, up to 16GB
Triple Independent Display: HDMI 2.0b + DP 1.4 (4K@60Hz) + LVDS/eDP
Dual Intel I210 Gigabit LAN + 1 x Intel I226 2.5GbE
Triple M.2 Expansion: Key-B (5G/WWAN+GNSS), Key-E (Wi-Fi), Key-M (NVMe/SATA)
1 x SATA III storage
Onboard TPM 2.0 (NuvoTon NPCT760, co-lay Infineon SLB9670)
Wide DC +9V ~ +36V Input
3.5" SBC form factor, Windows and Linux support

Product Description

The Avalue ECM-ASL3 is a 3.5-inch industrial micro module SBC with a top-layer soldered-down Intel processor, supporting the Intel Processor N97, Intel Core i3-N305, and Intel Atom x7000RE series.

It pairs a single DDR5 4800MHz SO-DIMM socket (up to 16GB) with onboard TPM 2.0 security and a wide DC +9V to +36V input, making it a compact, rugged compute core for embedded HMI, edge, and industrial control designs.

The ECM-ASL3 drives triple independent display through HDMI 2.0b, DisplayPort 1.4 (both up to 4096x2160 @ 60Hz) and an LVDS/eDP channel, and delivers strong networking with two Intel I210 Gigabit and one Intel I226 2.5GbE ports.

Triple M.2 expansion (Key-B with 5G/WWAN+GNSS SIM support, Key-E for Wi-Fi, Key-M for NVMe/SATA storage) plus SATA III gives integrators flexible storage and wireless options in a board-level form factor running Windows and Linux.

Technical Specifications

Processor

Onboard Intel® Processor N97, and Intel® Core™ i3-N305 Processor, Intel Atom® x7000RE series processors

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max.

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

BIOS

AMI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU temperature monitoring

Voltages monitoring

CPU fan speed control

TPM

Onboard NuvoTon_NPCT760AABYX, co-lay Infineon_

SLB9670VQ2.0

Board

3.5"

Expansion

1 x M.2 Key B 3042/3052, BOM Optional PCIe x 1 or USB3.2 Gen1 + USB2.0 (default USB3.2), support 5G (3.3V & 3.8V), 1 x SIM card slot, support WWAN+GNSS or SSD

1 x M.2 Key E 2230 support WiFi (1 x PCIe x 1, USB2.0 Signal), CNVi

not support Twin Lake & Amston Lake, only support Alder Lake processor

1 x M.2 Key M 2280 (1 x PCIe Gen3 x1 / SATA auto detection)

Storage

1 x M.2 (Key M, 2280)

1 x M.2 (Key B, 3042/3052)

1 x SATA III

Graphic Chipset

Intel® UHD Graphics

Spec. & Resolution

HDMI 2.0b Max resolution 4096 x 2160@60Hz

DP 1.4 Max resolution 4096 x 2160@60Hz

LVDS 1920 x 1080 Dual channel 18/24-bits or eDP 1920 x 1080@60Hz (2 Lanes)

Multiple Display

Triple Display

LVDS

1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out, Line-in, Mic-in

LAN Chipset

2 x Intel® I210AT/IT

1 x Intel® I226V/IT

Ethernet Interface

10/100/1000/2.5G Base-Tx GbE compatible

LAN Port

3 x RJ-45

Power Mode

AT/ATX (Default Setting: AT)

OS

Windows 11, Linux

Certification Information

CE, FCC, RoHS Compliant

USB

3 x USB3.2 Gen2, 1 x USB2.0 at I/O

2 x USB2.0 by pin header

COM Port

2 x RS-232/RS422/RS485

2 x RS-232

SATA

1 x SATA III

DIO

1 x 8-bit GPIO

MIO

2 x 6 pin for eSPI

1 x SIM Card Slot

Operating Temp.

Standard Temperature: 0°C ~ 60°C (32°F~140°F) with 0.5m/s Air Flow

Extend Temperature: -40°C ~ 80°C (-40°F ~ 176°F) with 0.5m/s Air Flow for Wide Temp CPU SKU

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.44lbs (0.2kg)

Power Requirement

DC in +9V ~ +36V

Dimension (L x W)

5.7" x 4" (146mm x 101mm)

Ordering Information

ECM-ASL3-N97-A1R

ECM-ASL3-N305-A1R

ECM-ASL3-7433-A1R

ECM-ASL3-7835-A1R
