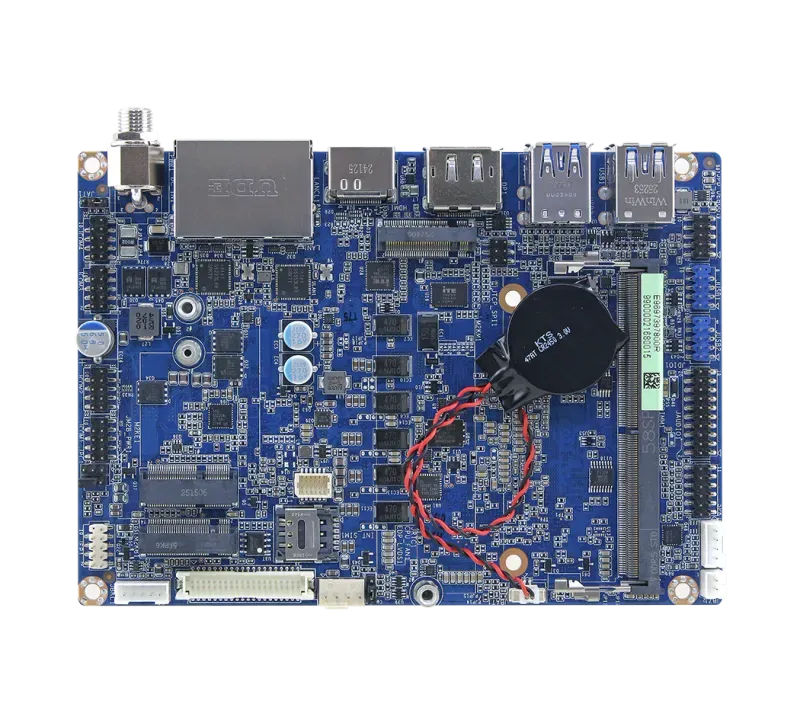

ECM-PTL

Series: ECM

Manufactured byAvalue

The Avalue ECM-PTL is a high-performance 3.5-inch industrial SBC built for the Intel Core Ultra Series 3 processors, pairing AI-capable compute with a single DDR5 SO-DIMM socket running at 6400MHz (H404) or 7200MHz (H484) and supporting up to 32GB. Onboard TPM 2.0 and a board-level form factor make it a secure, compact platform for next-generation edge AI, vision, and industrial control systems. Graphics are a standout: the ECM-PTL drives up to four independent displays via DisplayPort 2.1 and HDMI 2.1b (each up to 7680x4320 @ 30Hz), USB Type-C DisplayPort (4096x2160 @ 60Hz), and an LVDS/eDP channel. PCIe Gen5 NVMe storage through an M.2 Key-M slot, an M.2 Key-B slot with 5G/WWAN+GNSS SIM support, and an M.2 Key-E slot for Wi-Fi/CNVi give integrators leading-edge storage, wireless, and connectivity for Windows and Linux deployments.

Key Features

Intel Core Ultra Series 3 processors (AI-capable)
1 x DDR5 SO-DIMM 6400MHz (H404) / 7200MHz (H484), up to 32GB
Quad Independent Display: DP 2.1 + HDMI 2.1b (up to 8K@30Hz) + USB-C DP + LVDS/eDP
PCIe Gen5 NVMe via M.2 Key-M 2280
M.2 Key-B (5G, WWAN+GNSS, SIM) + M.2 Key-E (Wi-Fi/CNVi)
Onboard TPM 2.0 (NuvoTon NPCT760)
AMI uEFI BIOS, 256Mbit SPI Flash ROM
3.5" SBC form factor
Windows and Linux support

Technical Specifications

System Information

Processor	Intel® Core™ Ultra Series 3 processors
System Memory	1 x 262-pin DDR5 6400MHz (H404) SO-DIMM socket, 7200MHz (H484) SO-DIMM socket supports up to 32GB Max.
I/O Chipset	EC iTE IT5782VG
Watchdog Timer	H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
BIOS	AMI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor	CPU & system temperature monitoring Voltages monitoring
TPM	Onboard NuvoTon NPCT760AABYX supports TPM 2.0
Board	3.5"

Expansion

Expansion	1 x M.2 Key M 2280 (with 1 x PCIe Gen5) NVME, 1 x M.2 Key B 3042/3052/2242 (with 1 x PCIe x1, USB 3.2 Gen2, USB 2.0 with 1 x SIM card slot support WWAN+GNSS) support 5G (3.3V & 3.8V), * Only supports one SIM card (co-lay 1 x 10pin FPC connector for uSIM card adapter), 1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCIe x1 & USB 2.0 Signal)

Storage

Storage	1 x M.2 (Key M, 2280), 1 x M.2 (Key B, 3042/3052/2242)

Display

Graphic Chipset	Intel® Graphics
Spec. & Resolution	1 x DP 2.1: Max: 7680 x 4320@30 Hz, 1 x USB Type C support DP: 4096 x 2160@60Hz, 1 x HDMI 2.1b: 7680 x 4320@30Hz, 1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP: 1920 x 1080@60Hz (2 Lanes), default LVDS, Note: EDP_LVDS1 Support 1 x LVDS or 1 x eDP
Multiple Display	Four Display
LVDS	1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP: 1920 x 1080@60Hz (2 Lanes) Default LVDS., Note: EDP_LVDS1 Support 1 x LVDS or 1 x eDP

Audio

Audio Codec	Realtek ALC888S HD Audio Decoding Controller
Audio Interface	Line-in, Mic-in, Line-out
Audio Amplifier	2 x 2W 4Ω Amplifier

Ethernet

LAN Chipset	1 x Intel® I226LM 2.5 Gigabit Ethernet Controller, 1 x Intel® I226V 2.5 Gigabit Ethernet Controller, or, 2 x Intel® I226IT 2.5 Gigabit Ethernet Controller for extend temperature skus
Ethernet Interface	10/100/1000/2.5G Base-Tx GbE compatible
LAN Port	2 x RJ-45

Power Requirement

Power Mode	AT/ATX (Default Setting: AT)

Software Support

OS	Windows 11, Linux

Certification

Certification Information	CE, FCC, RoHS Compliant

I/O

USB	4 x USB 2.0 by pin header, 2 x USB 3.2 Gen 2 x1 at rear I/O, 1 x USB 3.2 Gen 1 x1 at rear I/O + 1 x USB Type-C 5V 3A at I/O (with USB 3.2 Gen 2x2 & DP 2.1 signal display output)
COM Port	2 x RS-232, 2 x RS-232/422/485
DIO	1 x 16-bit GPIO
MIO	1 x eSPI, 1 x BIOS SPI, 1 x SIM Card Slot

Mechanical & Environmental

Operating Temp.	Standard Temperature CPU SKU: 0°C ~ 60°C (-4~140°F) with 0.5m/s Air Flow, Extend Temperature CPU SKU: TBC for extend Temp CPU SKU
Storage Temp.	-40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	0.44lbs (0.2kg)
Power Requirement	DC in +12V ~ +24V
Dimension (L x W)	5.7" x 4" (146mm x 101mm)

Ordering Information

Ordering Information	TBC
