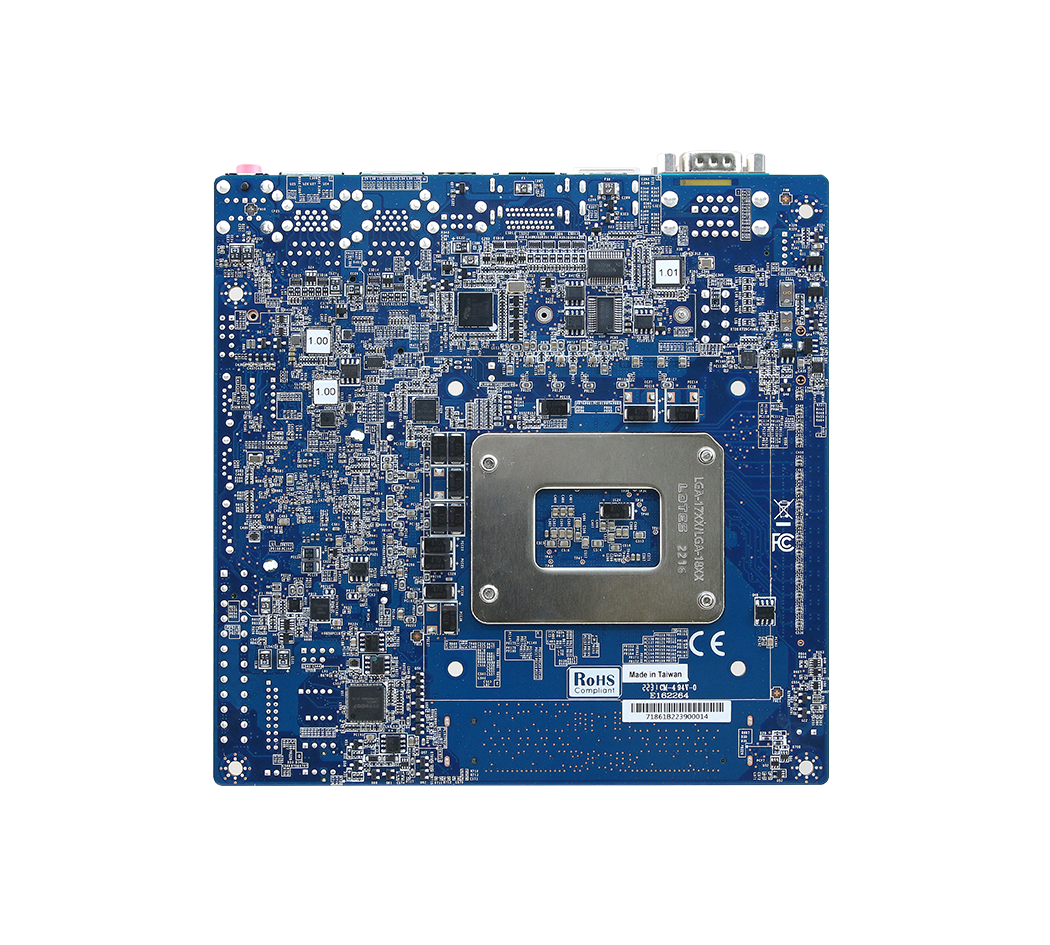

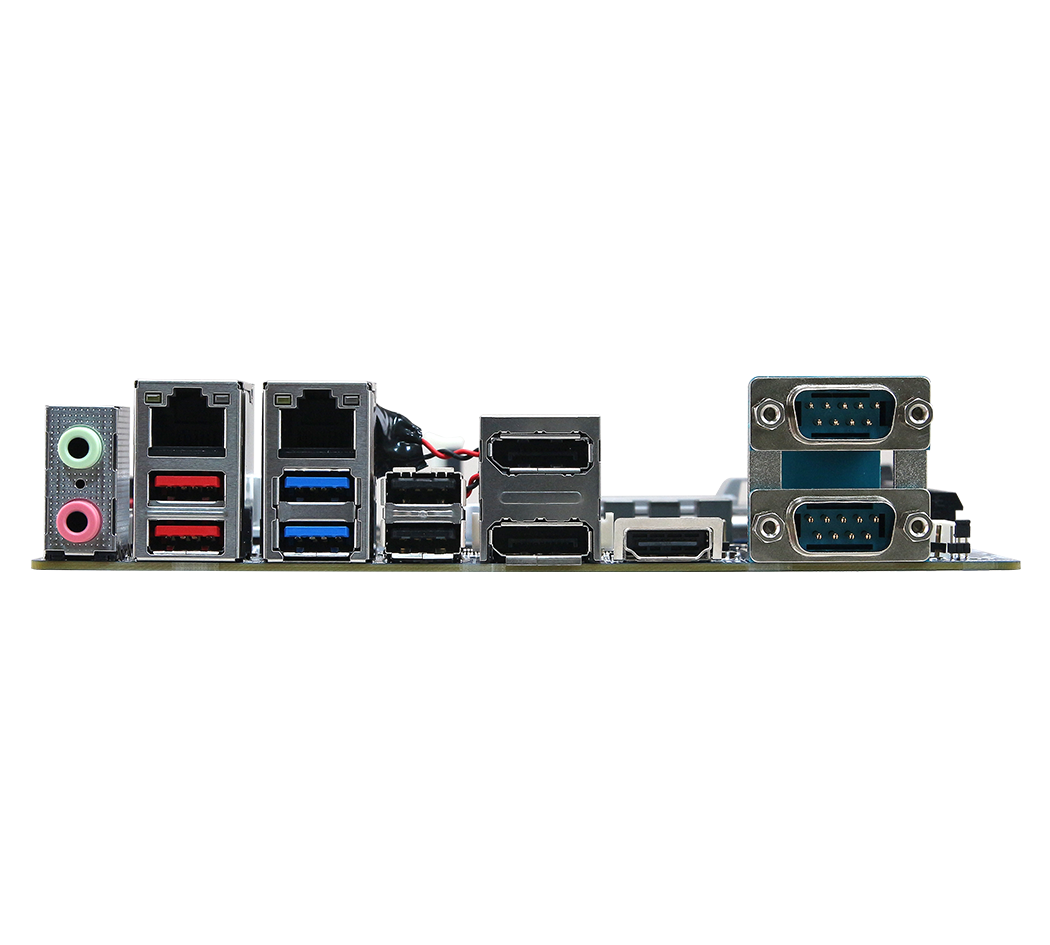

MX610H

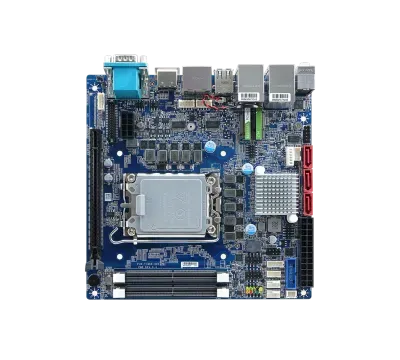

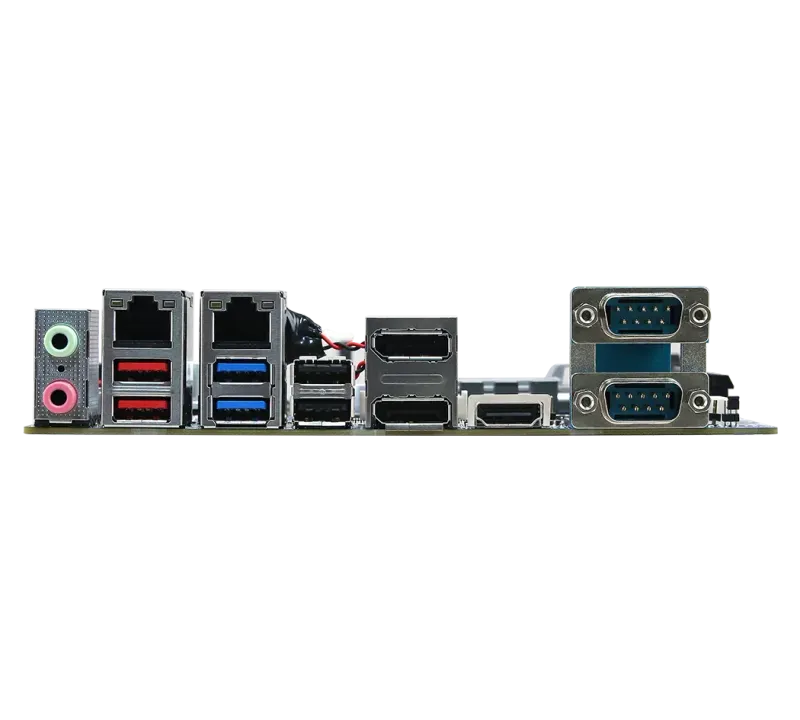

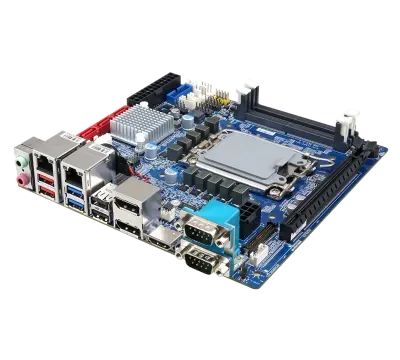

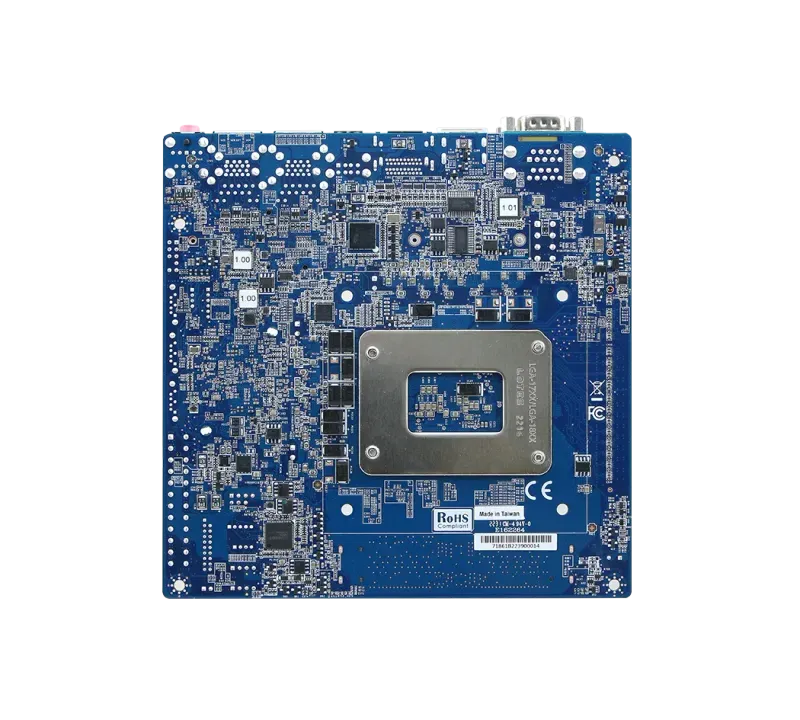

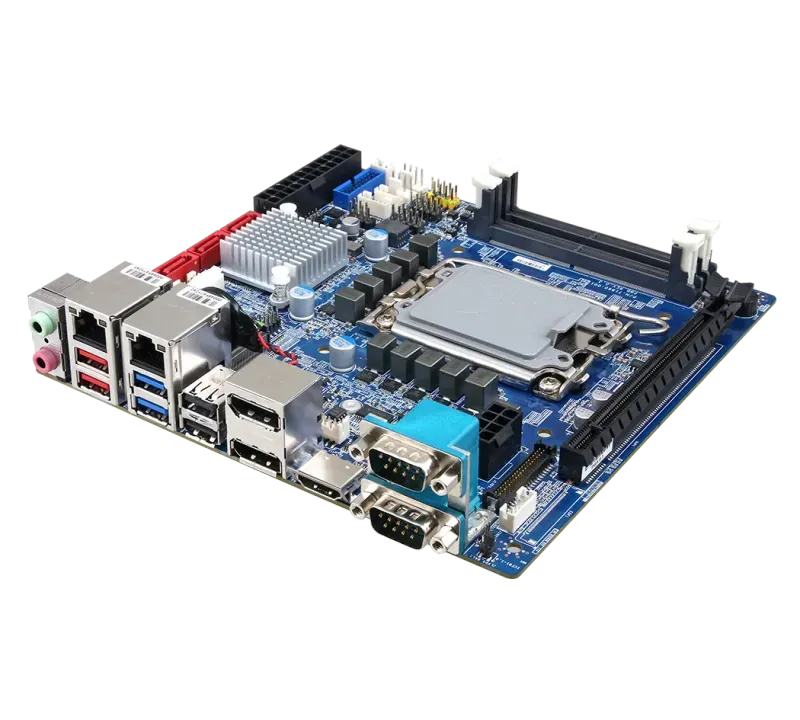

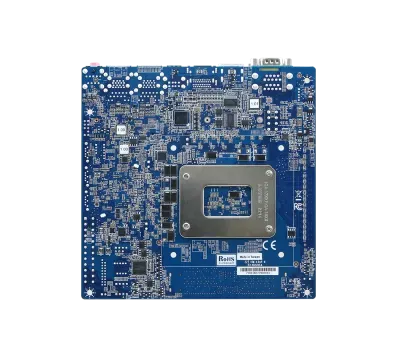

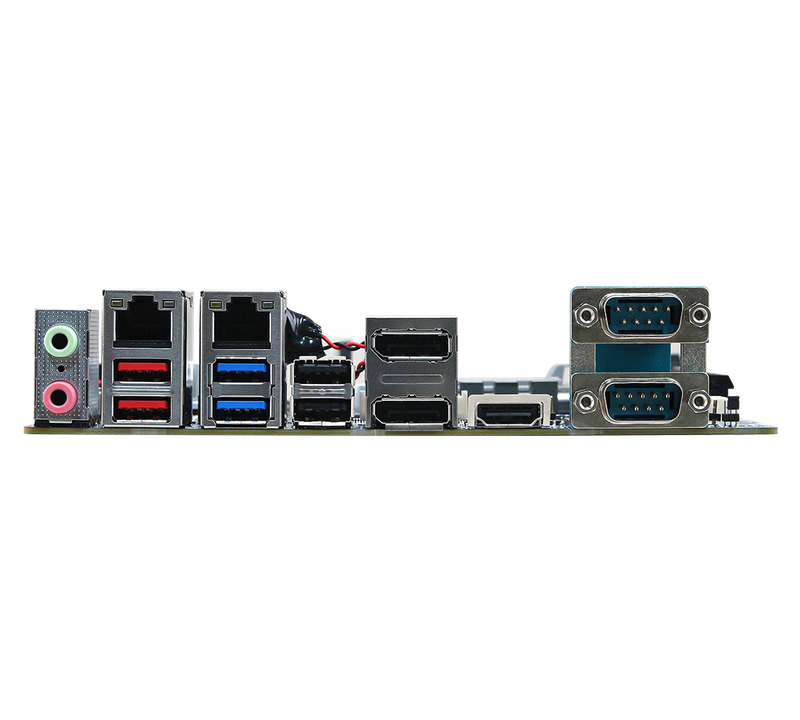

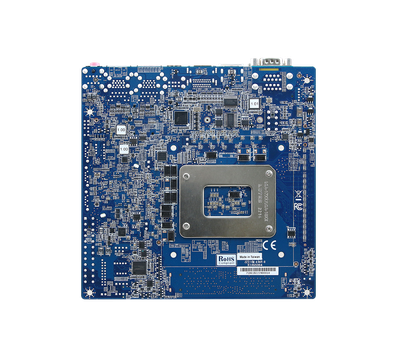

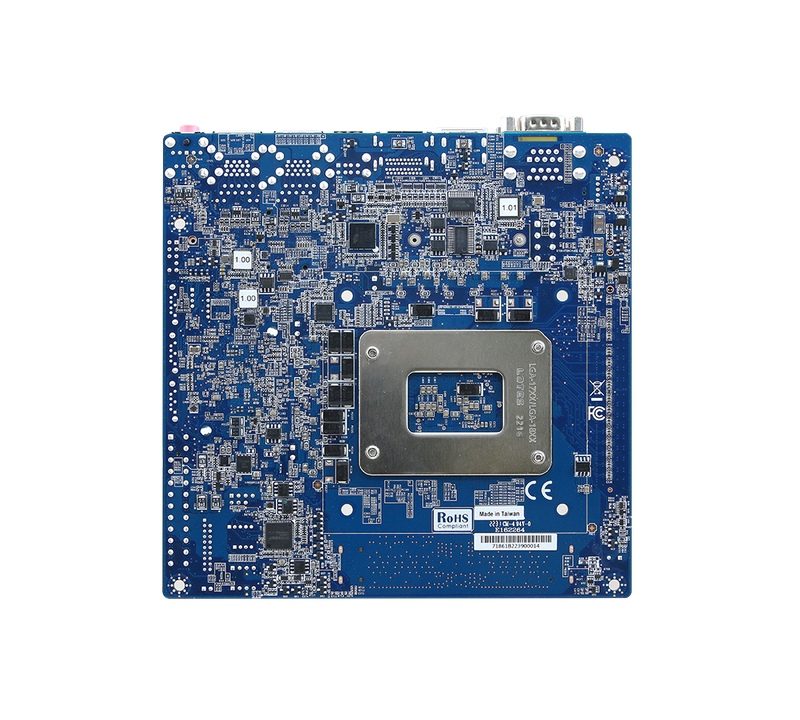

MX610H FrontMX610H FrontMX610H FrontMX610H Front
MX610H FrontMX610H FrontMX610H FrontMX610H Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • 12/13/14th Gen. Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor with Intel® H610E Chipset
  • 2 x SODIMM Sockets Support DDR5 4800 MHz Up to 64GB
  • HDMI, 2 x DP++, LVDS/eDP
  • 1 x PCIe x16 (Gen4)
  • 1 x Intel® I219LM , 1 x Intel® i226V
  • 6 x USB 3.2 Gen 1x1, 6 x USB 2.0
  • 1 x M.2 M-Key 2242/2280, 1 x M.2 E-Key 2230
  • 4 x COM
  • ATX Power

Product Description

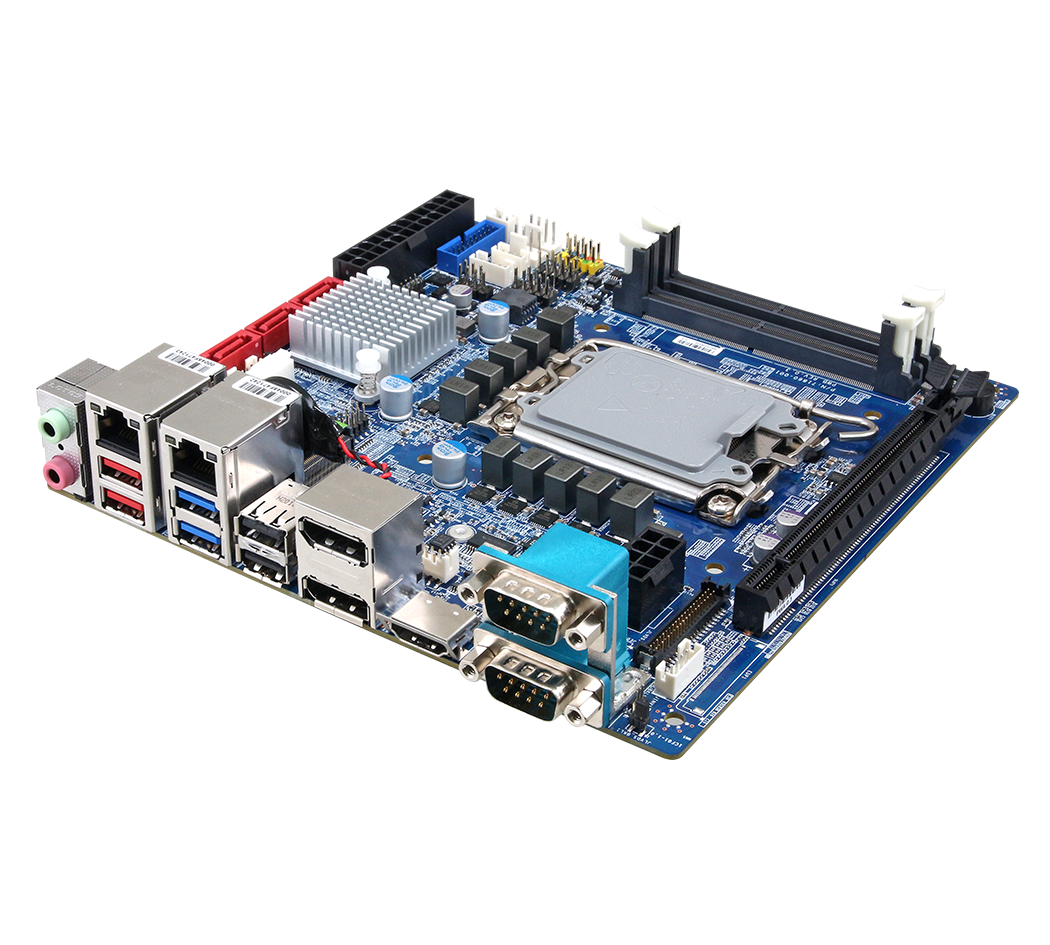

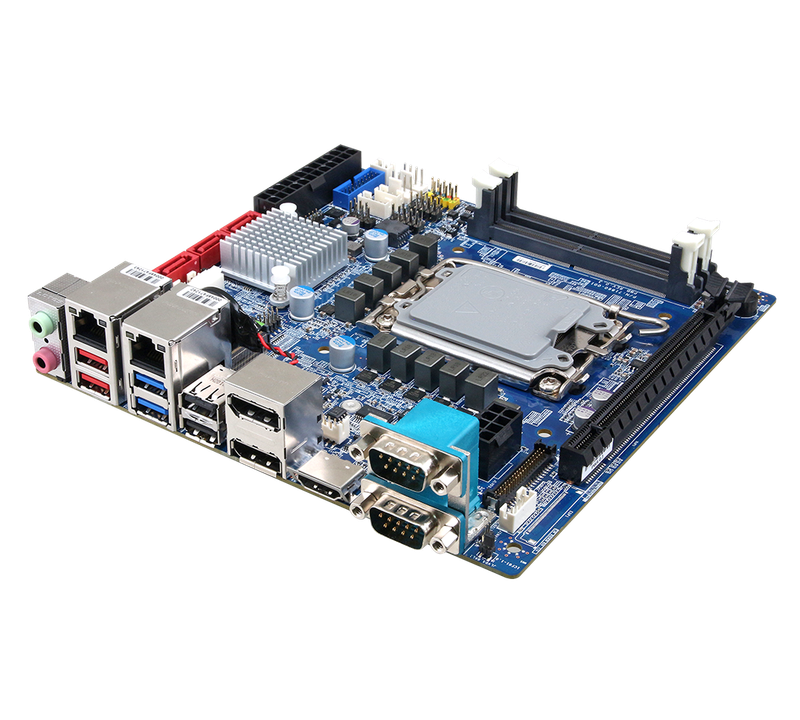

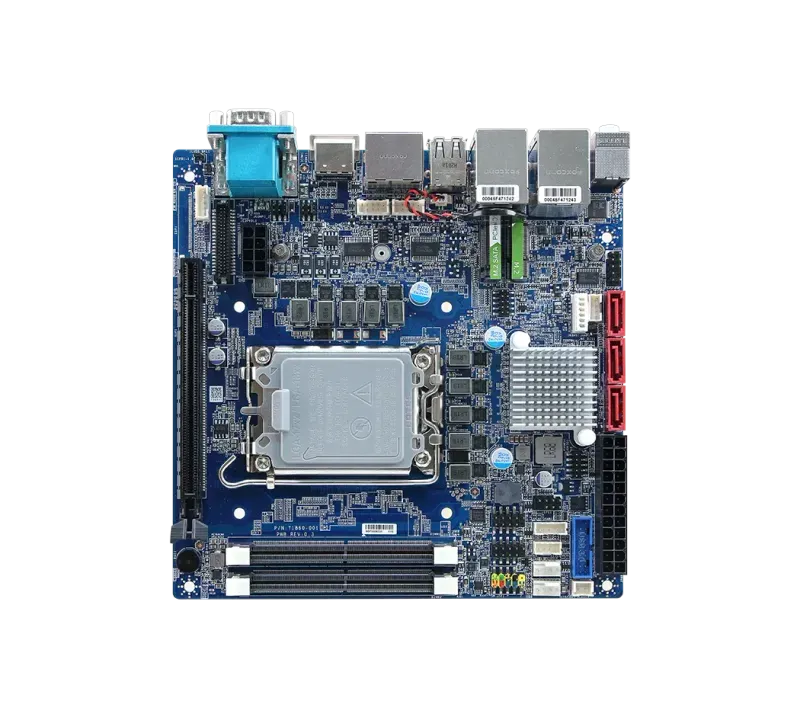

The Avalue MX610H is a Mini-ITX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors with a TDP of up to 65W, utilizing the Intel® H610E chipset.

The board accommodates up to 64GB DDR5 4800MHz SO-DIMM memory.

Key features include triple display outputs (1 x HDMI 1.4b, 2 x DisplayPort++ 1.4a), dual Intel® Ethernet ports (1 x I225-V 2.5GbE, 1 x I219-LM GbE), multiple USB ports (4 x USB 3.2 Gen1, 2 x USB 2.0 Type-A, additional headers), serial interfaces (1 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through 1 x PCIe x16 Gen4 slot, 1 x M.2 M-Key (2242/2280) NVMe (PCIe x4 + SATA III), and 1 x M.2 E-Key (2230) with CNVi support.

With a compact form factor of 170mm x 170mm, ATX power input, and support for Windows 10, Windows 11, and Linux operating systems, the MX610H offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

LGA 1700 Socket Supports 12/13/14th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processors (Max. TDP at 65W)

Platform Controller Hub

Intel® H610E Chipset

System Memory

2 x 262-Pin DDR5 4800MHz SO-DIMM Socket Supports Up to 64GB (Non-ECC)

I/O Chipset

nuvoton NCT6126D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard infineon SLB 9670VQ2.0 support TPM2.0

Board

Mini ITX

Display

Multiple Display

Triple Display

Graphic Chipset

Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent)

Spec. & Resolution

1 x HDMI 1.4b 4K@30Hz

2 x Dual Mode DisplayPort (DP++) 1.4a 4K@60Hz

Dual Channel 18/24-bits LVDS

LVDS

Dual Channel 18/24-bits LVDS

Expansion

Expansion

1 x PCIe x16 (Gen4)

1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III)

1 x M.2 E-Key 2230 with CNVi Support (PCIe x1 + USB 2.0)

Audio

Audio Codec

Realtek ALC897 HD Audio Decoding Controller

Audio Interface

Mic-in, Line-out

Audio Amplifier

3W per channual Amplifier

Ethernet

LAN Chipset

1 x Intel® I219LM Gigabit Ethernet PHY

1 x Intel® i226V 2.5 Gigabit Ethernet

Ethernet Interface

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

LAN Port

2 x RJ-45

Software Support

OS

Windows 10, Windows 11, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

4 x USB 3.2 Gen1x1

2 x USB 2.0 Type-A

2 x USB 3.2 Gen1x1 by pin header

4 x USB 2.0 by pin header

COM Port

2 x RS232

2 x RS-232/422/485

SATA

2 x SATA III

DIO

1 x 8-bit GPIO

Mechanical & Environmental

Operating Temp.

0°C to 60°C (32°F ~ 140°F)

Storage Temp.

-20° C ~ 80° C (-4°F ~ 176°F)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

5% to 90% Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Ordering Information

Ordering Information

EMX-ADLP-U15-A1R (i3-1215UE, 15W, Thin, 2DP/2LAN)

Intel® 12th/13/14th Gen. Core™ i9/i7/i5/i3 Processor Mini ITX Motherboard with Intel® H610E PCH

What is MX610H?

The MX610H is a industrial & embedded motherboard manufactured by Avalue, designed specifically for mini-itx applications. The Avalue MX610H is a Mini-ITX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors with a TDP of up to 65W, utilizing the Intel® H610E chipset. The board accommodates up to 64GB DDR5 4800MHz SO-DIMM memory. Key features include triple display outputs (1 x HDMI 1.4b, 2 x DisplayPort++ 1.4a), dual Intel® Ethernet ports (1 x I225-V 2.5GbE, 1 x I219-LM GbE), multiple USB ports (4 x USB 3.2 Gen1, 2 x USB 2.0 Type-A, additional headers), serial interfaces (1 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through 1 x PCIe x16 Gen4 slot, 1 x M.2 M-Key (2242/2280) NVMe (PCIe x4 + SATA III), and 1 x M.2 E-Key (2230) with CNVi support. With a compact form factor of 170mm x 170mm, ATX power input, and support for Windows 10, Windows 11, and Linux operating systems, the MX610H offers a robust solution for space-constrained environments.

Key Features & Benefits

  • 12/13/14th Gen. Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor with Intel® H610E Chipset
  • 2 x SODIMM Sockets Support DDR5 4800 MHz Up to 64GB
  • HDMI, 2 x DP++, LVDS/eDP
  • 1 x PCIe x16 (Gen4)
  • 1 x Intel® I219LM , 1 x Intel® i226V
  • 6 x USB 3.2 Gen 1x1, 6 x USB 2.0
  • 1 x M.2 M-Key 2242/2280, 1 x M.2 E-Key 2230
  • 4 x COM
  • ATX Power

Applications & Use Cases

The MX610H is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • High-performance computing and data processing tasks
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Custom industrial computing solutions
  • Industrial and embedded applications
  • Industrial automation platforms
  • Embedded system development
