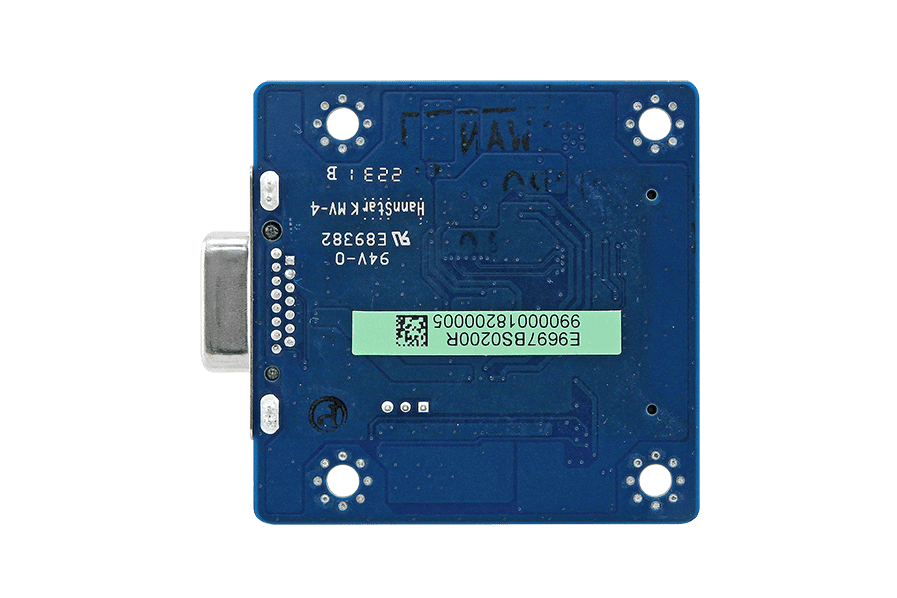

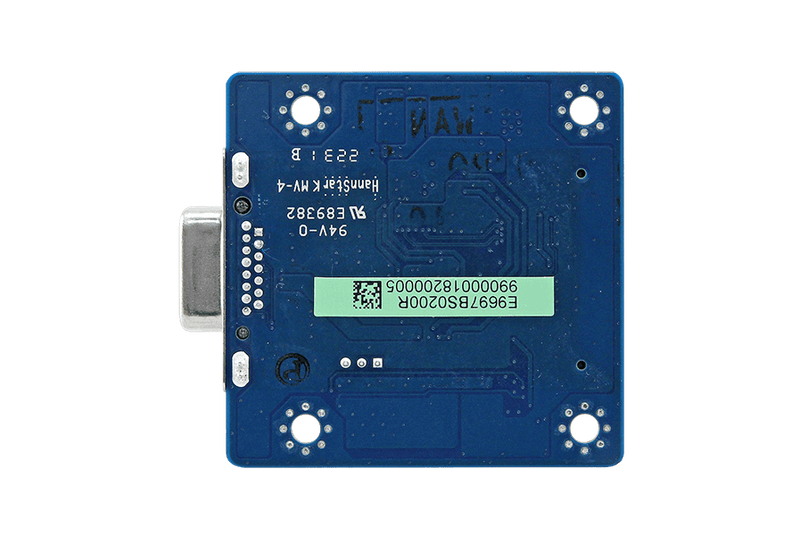

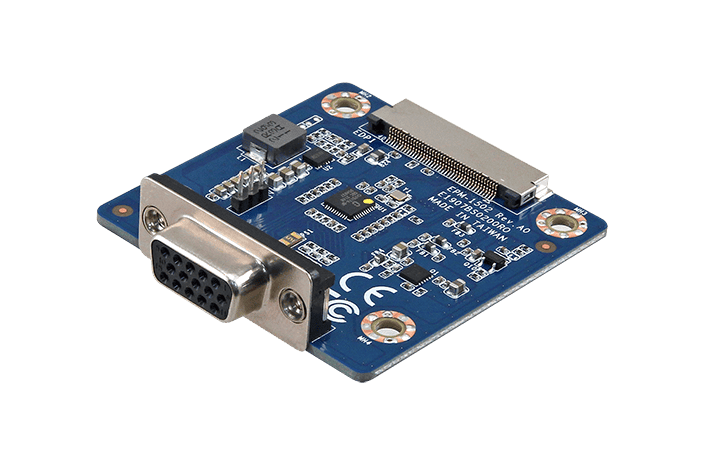

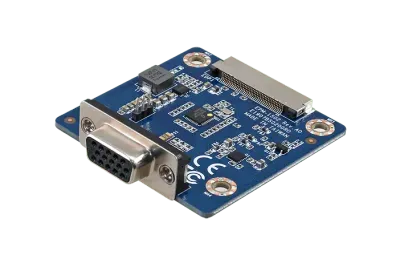

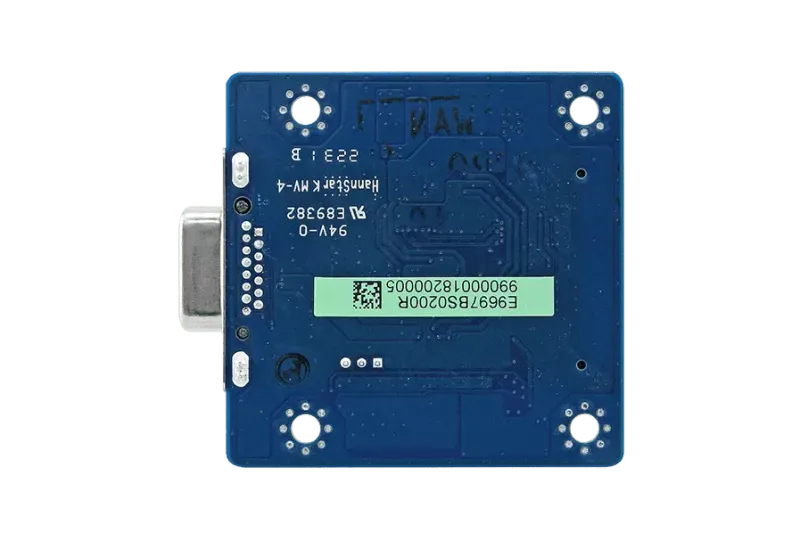

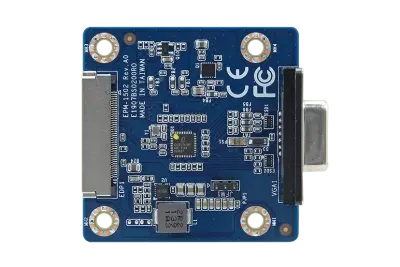

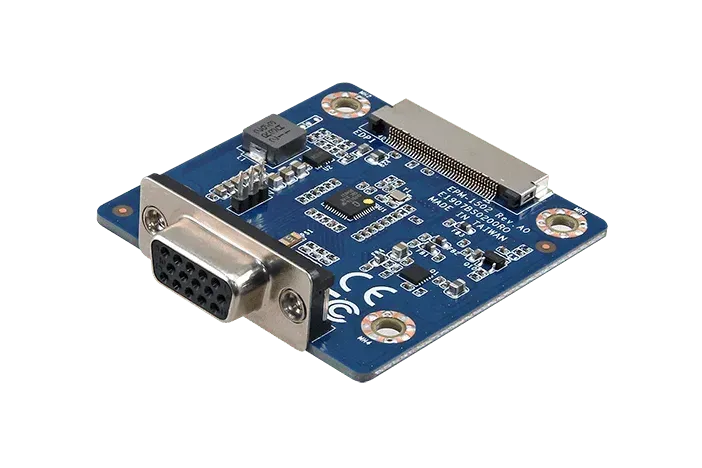

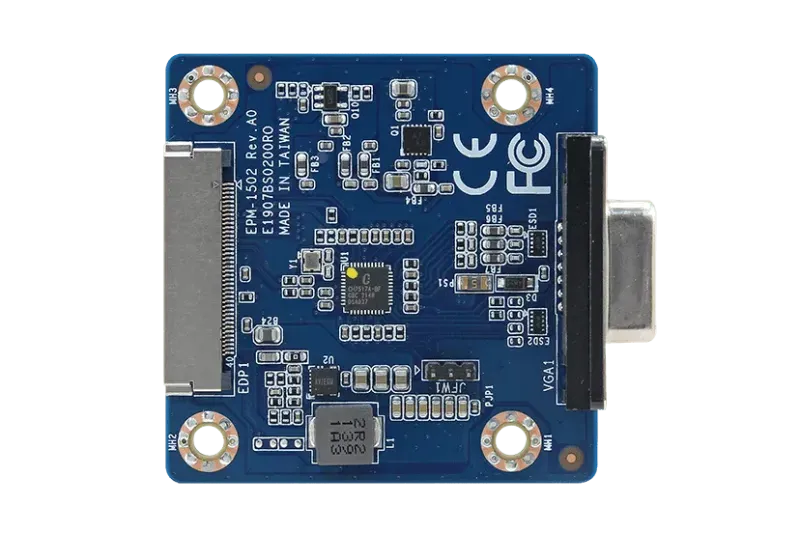

Avalue EPM-1502 eDP to VGA Converter

Product Description

The Avalue EPM-1502 is an eDP (Embedded DisplayPort) to VGA converter engineered for industrial environments. It supports resolutions up to 1920x1200 at 60Hz with reduced blanking. Designed with the Chrontel CH7517A-BFI chipset, the EPM-1502 ensures reliable video signal conversion.

It features a compact form factor of 50mm x 50mm x 10.55mm and operates within a temperature range of -40°C to 85°C. The module draws power from the main board's eDP connector and offers a DB-15 VGA output interface.

This converter is an excellent choice for embedded systems requiring dependable VGA output.

Technical Specifications

Display

Multiple Display

Depend on the Intel platform

Spec. & Resolution

1920x1200@60Hz with reduced blanking

I/O

Output Interface

DB-15 VGA

Input Interface

40pin eDP

Mechanical & Environmental

Dimension

50mm*50mm*10.55mm

Form-Factor

Customizes

Vibration Test

5G @5~500Hz

Operating Temp.

Standard temperature 0°C ~ 60°C

Wide temperature -40°C ~ 85°C

Storage Temp.

-40°C ~ +85°C

Weight

11g

Ordering Information

Standard temp. ordering PN:

-EPM-1502-A1R

Wide temp. ordering PN:

-EPM-1502-A2R

What is EPM-1502?

The EPM-1502 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1502 is an eDP (Embedded DisplayPort) to VGA converter engineered for industrial environments. It supports resolutions up to 1920x1200 at 60Hz with reduced blanking. Designed with the Chrontel CH7517A-BFI chipset, the EPM-1502 ensures reliable video signal conversion. It features a compact form factor of 50mm x 50mm x 10.55mm and operates within a temperature range of -40°C to 85°C. The module draws power from the main board's eDP connector and offers a DB-15 VGA output interface. This converter is an excellent choice for embedded systems requiring dependable VGA output.

Key Features & Benefits

Features information coming soon.
