Avalue EPM-1606 mPCIe to M.2 A/E Key Transfer Board |...

Product Description

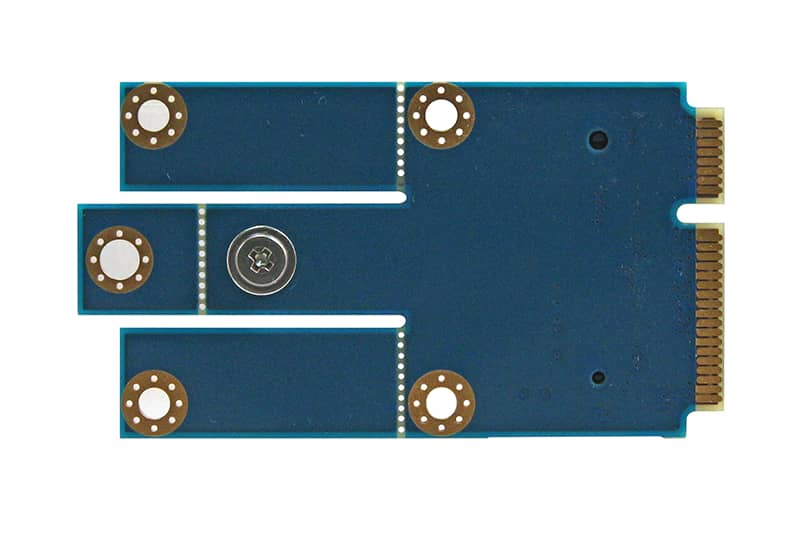

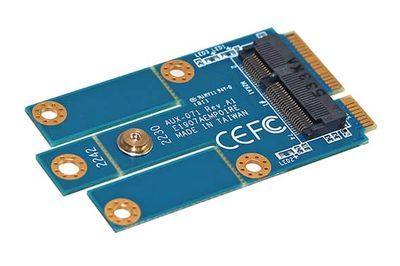

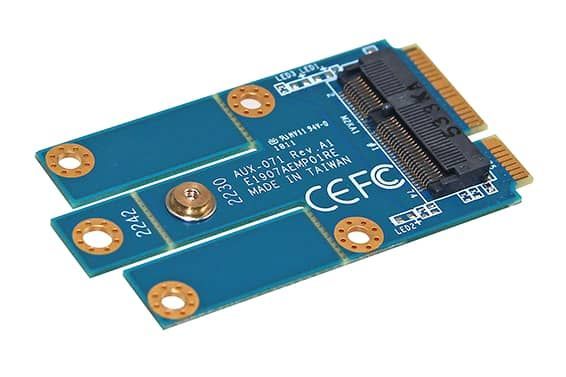

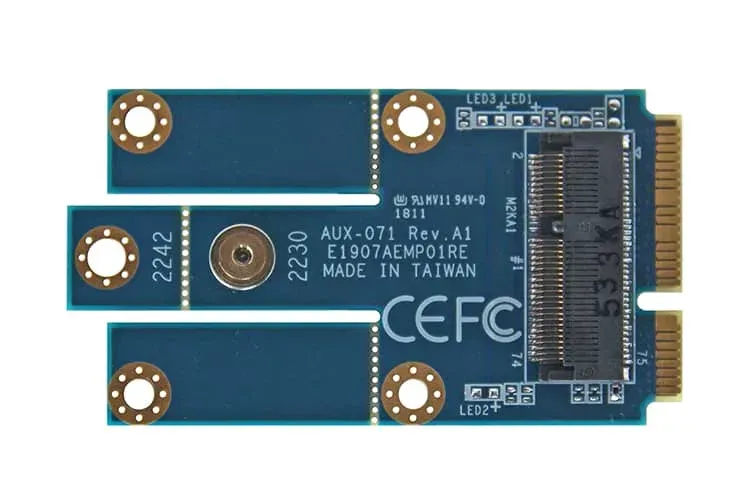

The Avalue EPM-1606 is a compact mPCIe to M.2 A/E Key transfer board engineered for industrial environments. It provides an M.2 2230/2242 E Key socket via a PCIe 2.0 interface, allowing for flexible expansion options.

Designed to withstand harsh conditions, the EPM-1606 operates within a temperature range of -40°C to +85°C and endures vibration (5G @ 5~500Hz) and shock (10G @ 11ms) tests. Measuring 90mm x 35.5mm, this module is an excellent choice for embedded systems requiring dependable connectivity solutions.

Technical Specifications

Power Requirement

Power Consumption

3.3V±5%

I/O

Output Interface

M.2 2230/2242 E Key socket

Input Interface

PCI-Express. 2.0

Mechanical & Environmental

Dimension

90mm x 35.5mm

Form-Factor

mPCIe

Vibration Test

5G @5~500Hz

Operating Temp.

-40°C ~ +85°C

Storage Temp.

-55~+95°C

Shock Test

10G @ 11ms

Software Support

OS

Windows 10 and Linux

Ordering Information

EPM-1606-A1R

What is EPM-1606?

The EPM-1606 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1606 is a compact mPCIe to M.2 A/E Key transfer board engineered for industrial environments. It provides an M.2 2230/2242 E Key socket via a PCIe 2.0 interface, allowing for flexible expansion options. Designed to withstand harsh conditions, the EPM-1606 operates within a temperature range of -40°C to +85°C and endures vibration (5G @ 5~500Hz) and shock (10G @ 11ms) tests. Measuring 90mm x 35.5mm, this module is an excellent choice for embedded systems requiring dependable connectivity solutions.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The EPM-1606 is ideal for various industrial automation applications:

Custom industrial computing solutions
Industrial automation platforms
Embedded system development
Control system integration
