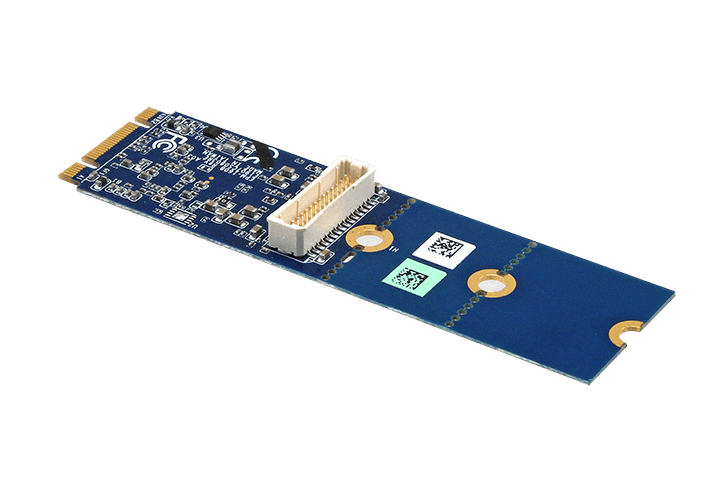

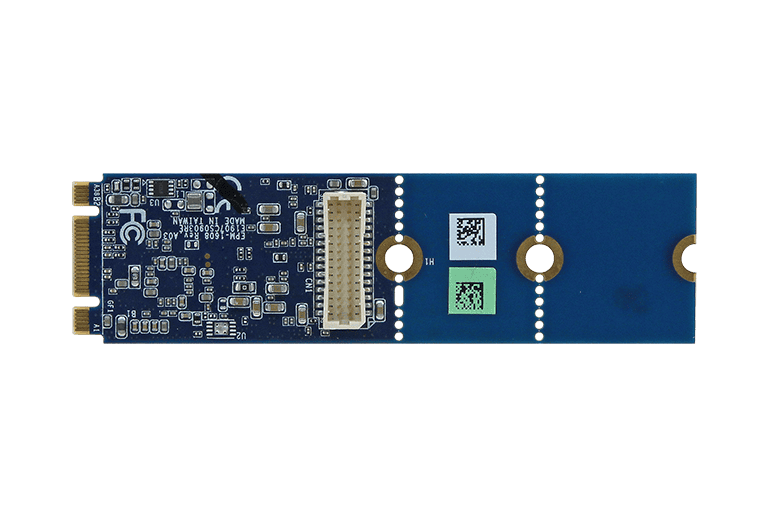

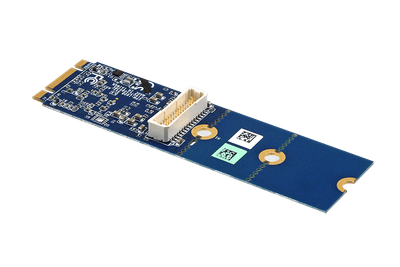

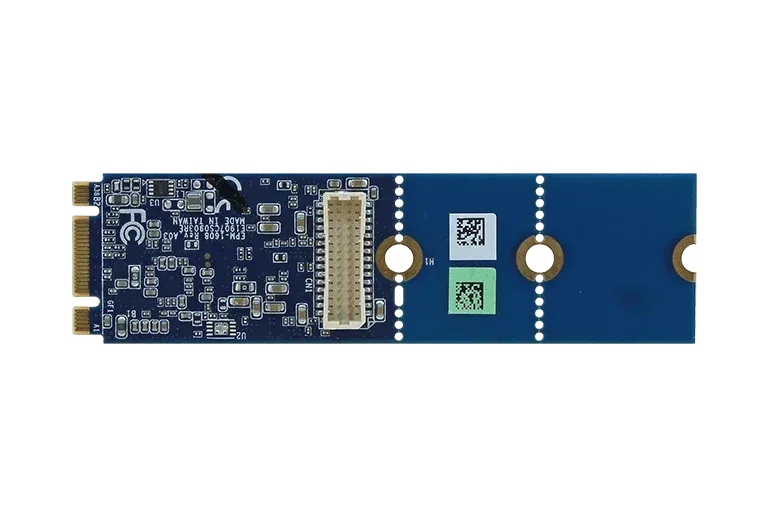

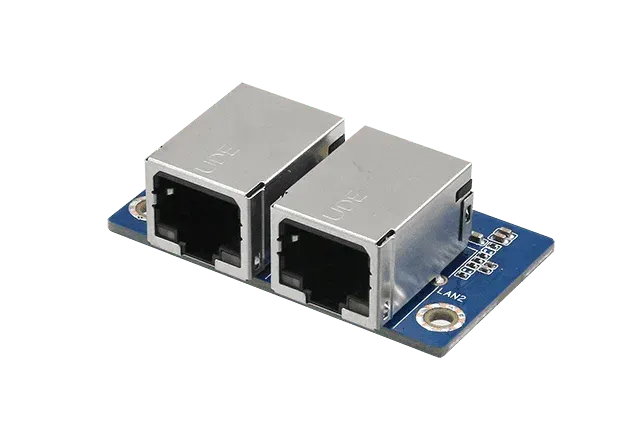

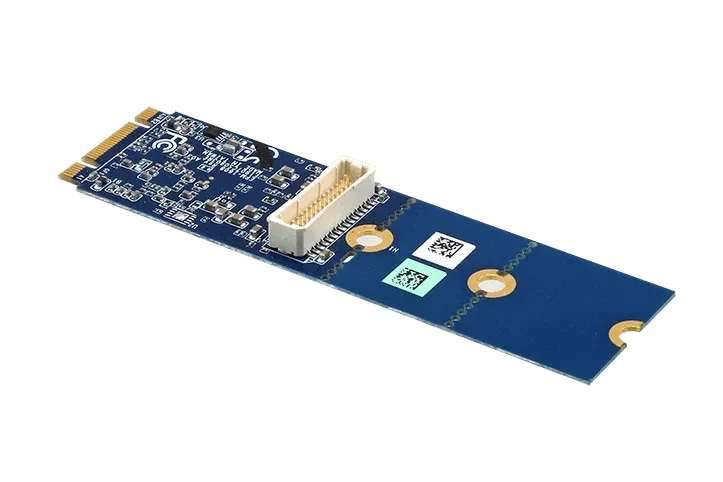

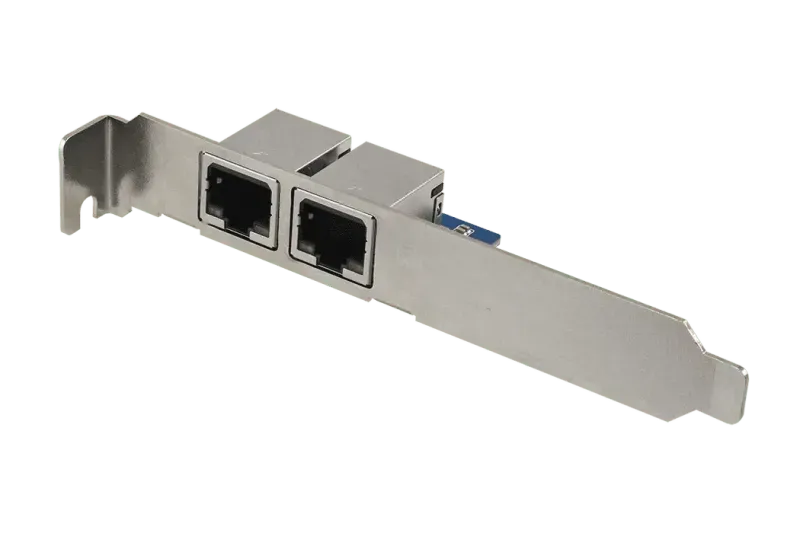

Avalue EPM-1608 M.2 Dual 2.5GbE LAN Module

Product Description

The Avalue EPM-1608 is a compact M.2 LAN module designed to provide dual 2.5GbE Ethernet connectivity for embedded systems. Utilizing a PCI Express 2.0 interface, it ensures reliable and efficient network performance.

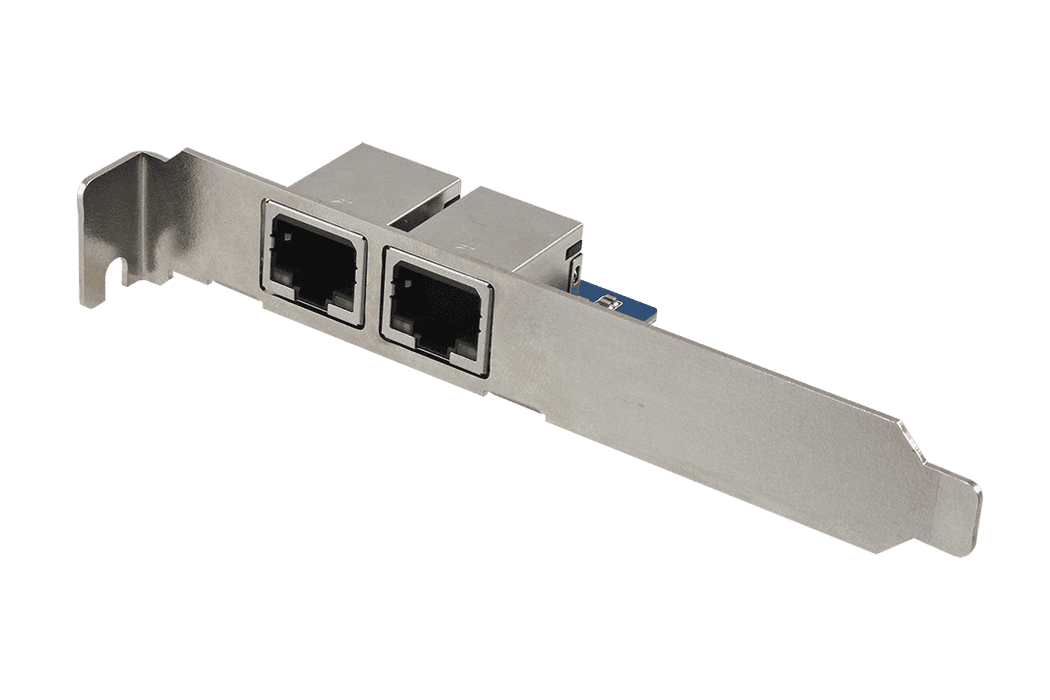

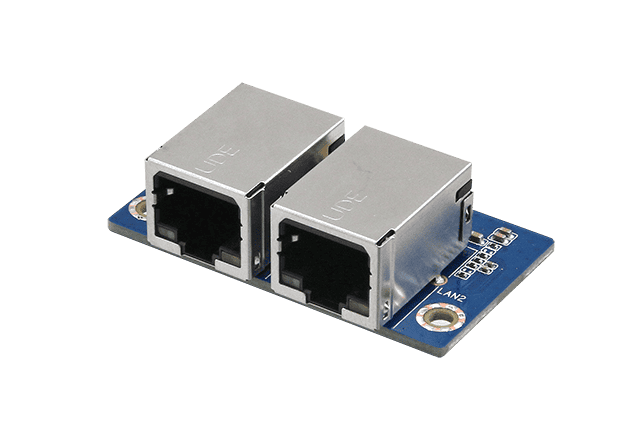

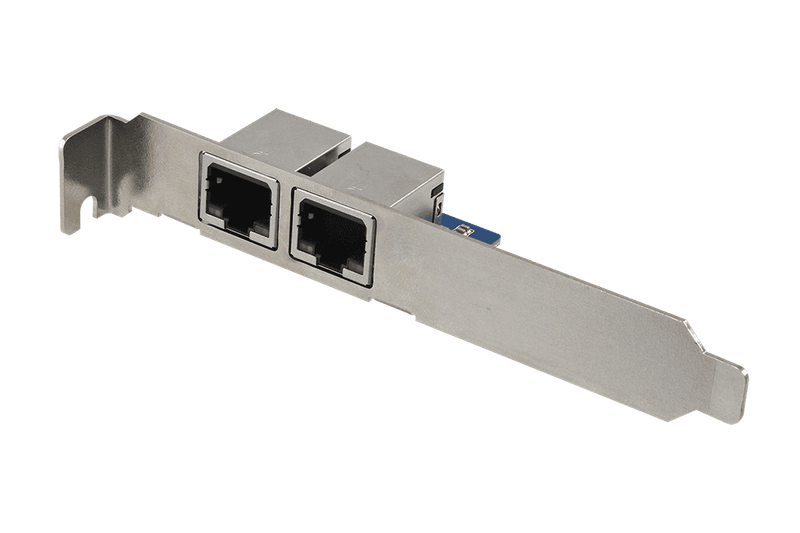

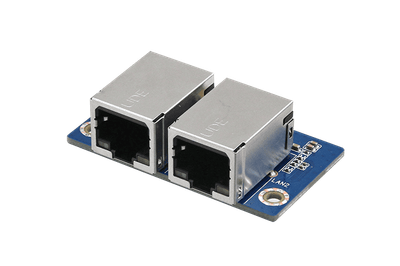

The module's innovative 3-in-1 design supports M.2 2242, 2260, and 2280 form factors with B-M keying, making it compatible with a wide range of host systems. It features dual RJ45 ports with 2kV isolation, ensuring robust and secure connections.

Operating within a temperature range of 0°C to 70°C and measuring 22mm in width with lengths of 42mm, 60mm, or 80mm, the EPM-1608 is an excellent choice for space-constrained applications requiring enhanced networking capabilities.

Technical Specifications

I/O

Output Interface

2 x RJ45 or 1 x RJ45

Input Interface

PCI-Express. 2.0

Mechanical & Environmental

Dimension

22mm*42mm/60mm/80mm

Form-Factor

3-In-1 M.2 2280/2260/2242 B-M Key

Vibration Test

5G @5~500Hz

Operating Temp.

Standard temperature 0°C ~ 70°C

Storage Temp.

-20°C ~ +70°C

Shock Test

10G @ 11ms

Software Support

OS

Windows 10

Ethernet

LAN Chipset

Intel® I226-LM

Ordering Information

Standard Ordering PN:

-EPM-1608D-A1R

-EPM-1608S-A1R

What is EPM-1608?

The EPM-1608 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1608 is a compact M.2 LAN module designed to provide dual 2.5GbE Ethernet connectivity for embedded systems. Utilizing a PCI Express 2.0 interface, it ensures reliable and efficient network performance. The module's innovative 3-in-1 design supports M.2 2242, 2260, and 2280 form factors with B-M keying, making it compatible with a wide range of host systems. It features dual RJ45 ports with 2kV isolation, ensuring robust and secure connections. Operating within a temperature range of 0°C to 70°C and measuring 22mm in width with lengths of 42mm, 60mm, or 80mm, the EPM-1608 is an excellent choice for space-constrained applications requiring enhanced networking capabilities.
