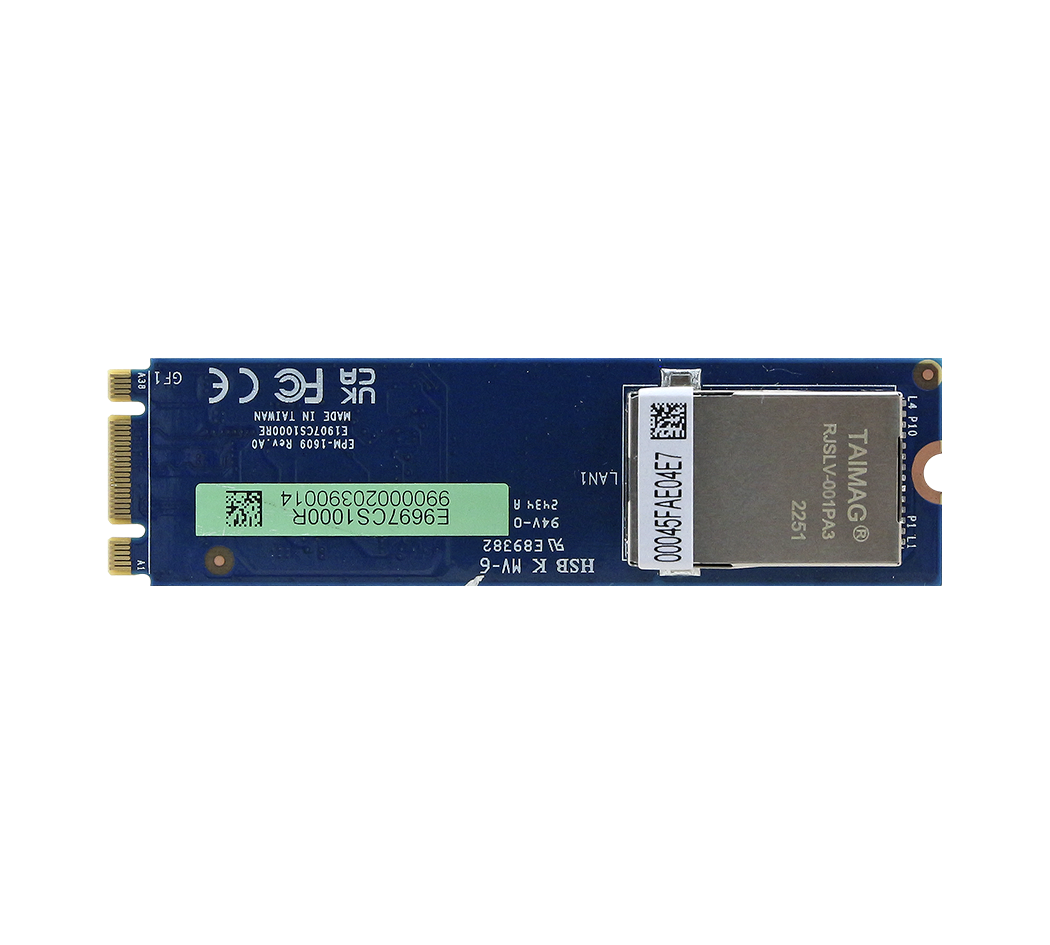

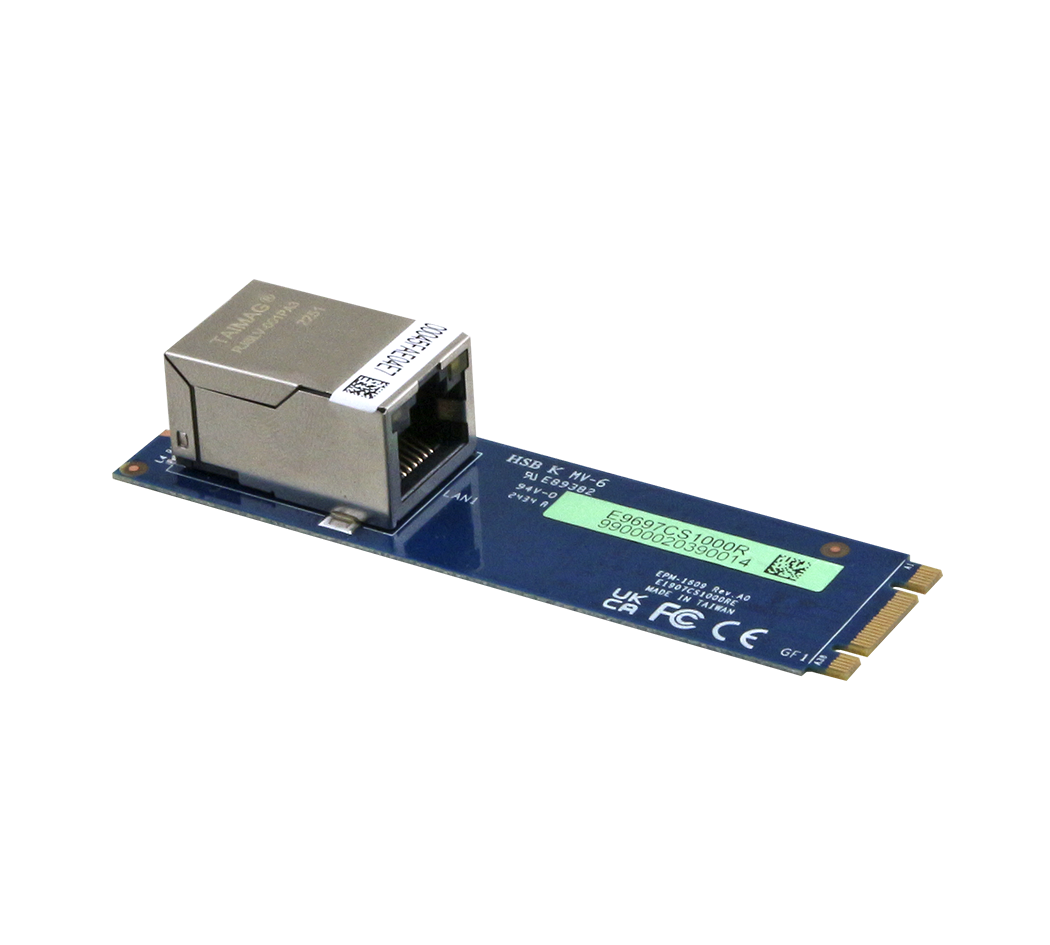

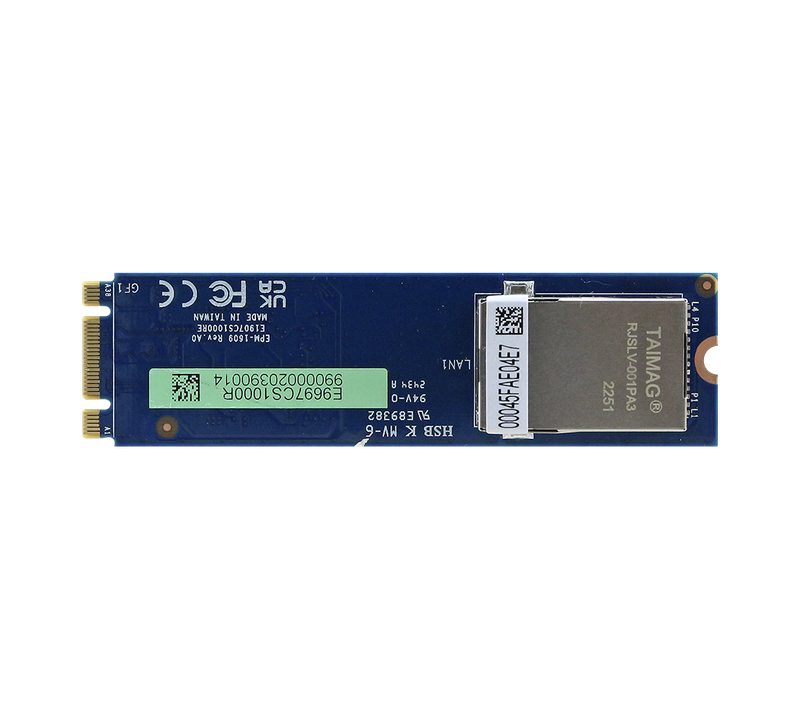

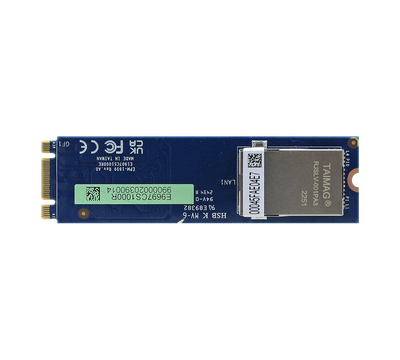

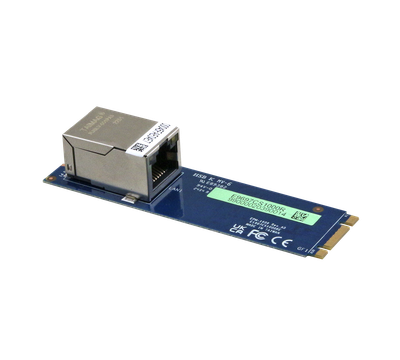

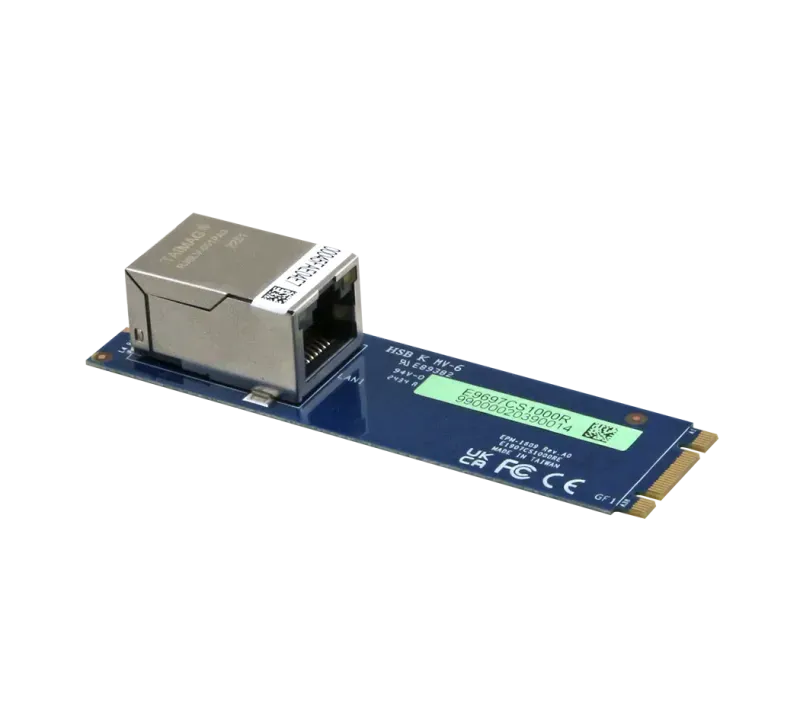

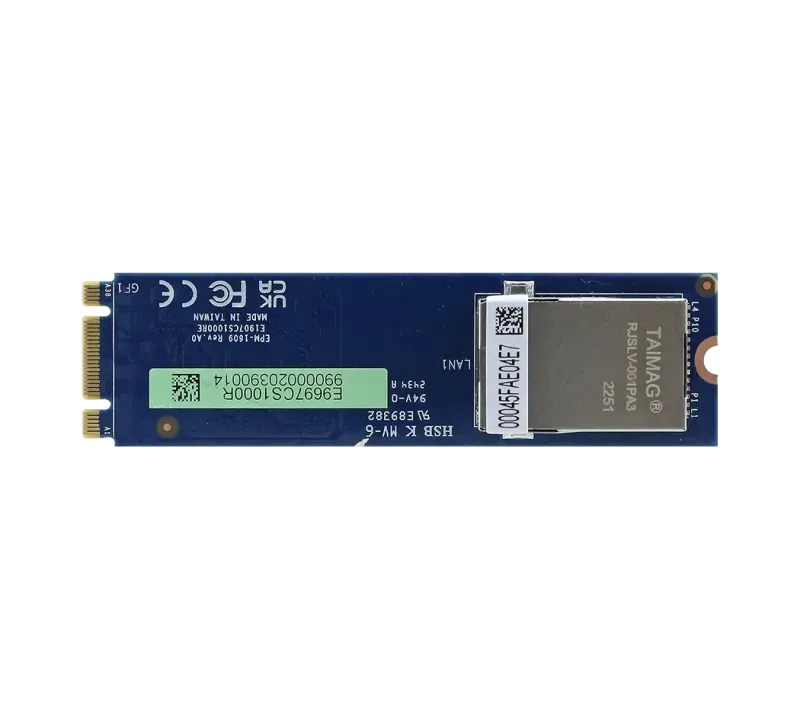

Avalue EPM-1609 M.2 2.5GbE LAN Module

Product Description

The Avalue EPM-1609 is a compact M.2 2280 B/M Key LAN module designed to provide high-speed 2.5GbE Ethernet connectivity for embedded systems. Utilizing the Intel® I226-LM chipset and a PCI Express x1-lane host interface, it ensures reliable and efficient network performance.

The module's robust design includes a vibration resistance of 0.00454G²/Hz (1.5 Grms) and shock resistance of 10G @ 11ms, making it suitable for industrial environments.

Operating within a temperature range of 0°C to 70°C and measuring 22mm x 80mm, the EPM-1609 is an excellent choice for space-constrained applications requiring enhanced networking capabilities.

Technical Specifications

I/O

Output Interface

2.5GbE LAN x 1

Input Interface

Support PCI Express x1-lane host interface(not support PCIe x4)

Mechanical & Environmental

Dimension

22mm*80mm

Form-Factor

M.2 2280 B/M Key

Vibration Test

0.00454G²/Hz, 1.5 Grms

Operating Temp.

Standard temperature 0°C ~ 70°C

Storage Temp.

-20°C ~ +70°C

Shock Test

10G @ 11ms

Software Support

OS

Windows Server, Windows 11, Windows 10

Ethernet

LAN Chipset

Intel® I226-LM

Ordering Information

Standard Ordering PN:

-EPM-1609-A1R

What is EPM-1609?

The EPM-1609 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1609 is a compact M.2 2280 B/M Key LAN module designed to provide high-speed 2.5GbE Ethernet connectivity for embedded systems. Utilizing the Intel® I226-LM chipset and a PCI Express x1-lane host interface, it ensures reliable and efficient network performance. The module's robust design includes a vibration resistance of 0.00454G²/Hz (1.5 Grms) and shock resistance of 10G @ 11ms, making it suitable for industrial environments. Operating within a temperature range of 0°C to 70°C and measuring 22mm x 80mm, the EPM-1609 is an excellent choice for space-constrained applications requiring enhanced networking capabilities.
