Product Datasheet
20 May 2026
Intelligent Healthcare · AI-PC-and-Data-Gateway
MAB-T660D
Series: MAB
Manufactured byAvalue
The Avalue MAB-T660D is a compact medical-grade AI PC / data gateway built on 12/13/14th Generation Intel Core i3/i5/i7/i9 processors (up to 65W TDP) and the Intel H610E chipset, designed as a space-efficient edge-AI node for healthcare data aggregation and inferencing. With dual DDR5 SO-DIMM (up to 64GB), a PCIe Gen4 x16 slot via riser, and IEC/EN 60601-1 compliance, it brings GPU-ready compute into a clinically certified compact chassis. Connectivity includes 1x GbE + 1x 2.5GbE Intel LAN, M.2 M-Key NVMe and M.2 E-Key CNVi, an internal 2.5" SSD bay, USB 3.2/2.0 front and rear, DP 1.4a and HDMI, a wide 12~24V DC input with an optional medical 180W adapter, dTPM 2.0 and iAMT, running Windows 10/11 or Linux.
Key Features
- 12/13/14th Gen Intel Core i9/i7/i5/i3 (up to 65W TDP), Intel H610E chipset
- 2 x DDR5 SO-DIMM up to 64GB (non-ECC, CPU dependent)
- 1 x PCIe Gen4 x16 (via riser card)
- M.2 M-Key NVMe + M.2 E-Key CNVi (Wi-Fi)
- 1 x Intel GbE + 1 x Intel 2.5GbE LAN
- Internal 2.5" SSD bay, USB 3.2 Gen1 + USB 2.0 (front & rear)
- DP 1.4a + HDMI, dTPM 2.0, iAMT
- Wide 12~24V DC input (optional medical 180W adapter), IEC/EN 60601-1
- Windows 10/11 / Linux
Technical Specifications
System Information
| Processor | 12th Gen Alder Lake/ 13th Gen Raptor Lake/ 14th Gen Raptor Lake Refresh Intel® Core™ i3/i5/i7/i9 Processors. Max TDP 65W |
|---|---|
| Platform Controller Hub | Intel® H610E Chipset |
| System Memory | 2 x SODIMM sockets support DDR5 5600MHz up to 64GB (Non-ECC) (CPU dependent) |
| I/O Chipset | Nuvoton NCT6126D (eSPI super IO) |
| BIOS | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 5~255 seconds/5~255 minutes |
| H/W Status Monitor | CPU temperature monitoring, Voltages monitoring, CPU fan speed control |
| TPM | dTPM2.0 |
| iAMT | Yes |
| SBC | MX610HD |
Expansion
| M.2 | 1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III), 1 x M.2 E-Key 2230 CNVi (PCIe x1 + USB 2.0) |
|---|---|
| PCIe | 1 x Gen 4 PCIe x16 |
Storage
| M.2 | 1 x M.2 Key-M 2242/2280 NVMe (PCIex4, SATA3) |
|---|---|
| Storage | 1 x Internal 2.5”Drive Bay |

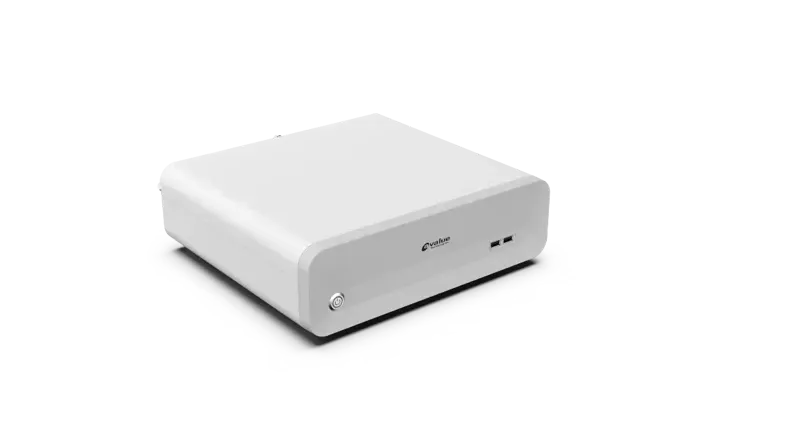

Front I/O
| Power Button | 1 x PWR Button |
|---|---|
| LED Indicator | 1 x Power on/off LED |
| USB | 2 x USB 2.0 |
Rear I/O
| USB | 2 x USB 2.0 (Type A), 2 x USB 3.2 (Type A) |
|---|---|
| LAN Port | 2 x RJ45 |
| Audio | Line-out, Mic-in |
| DP | 1 x DP |
| HDMI | 1 x HDMI |
| AC/DC Input | DC-In |
Display
| Graphic Chipset | Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent) |
|---|---|
| Spec. & Resolution | 1 x DP 1.4a 4096 x 2304@60Hz, 1 x HDMI 1.4b 3840 x 2160 @30Hz |
Audio
| Audio Codec | Realtek HD Audio Codec |
|---|---|
| Audio Amplifier | TI TPA3005 Stereo Class-D 3W4Ω |
Power Requirement
| Voltage Input Spec | 12V-24V Wide Range DC-In |
|---|---|
| Voltage Input Conn. | 4-pin DC Jack |
| ACPI | Single power ATX support S0, S3, S4, S5 |
| Power Mode | AT / ATX mode (Default ATX) |
| Adapter | External 180W adapter (Optional medical 180W adapter) |
Ethernet
| LAN Chipset | 1 x Intel® i225LM 2.5 Gigabit Controller, 1 x Intel® I219-V Gigabit Ethernet PHY |
|---|---|
| Data Rate Per Port | 2.5GbE (I225-LM), 1GbE (I219-V) |
Software Support
| OS | Win 10, Win 11, Linux |
|---|
Certification
| Certification Information | IT CE/FCC |
|---|
Internal I/O
| SATA Signal | 2 x SATA III |
|---|---|
| SATA PWR | 1 x 15-pin SATA Power Connector (2 Devices) |
| GPIO | 1 x 8-bit GPIO Header |
| USB Port | 1 x 2 x 5 pin, pitch 2.54mm connector for 2 x USB 2.0 (USB78), 1 x 2 x 10 pin, pitch 2.00mm connector for 2 x USB 3.2 Gen 1x1 (USB56) |
| COM Port | COM1~COM2:, • 2 x RS232/422/485 ports, selectable via BIOS, • Connector: 2 x 5-pin header (2.00mm pitch), • Pin 9: No power output, • Power selection (Pin 9) available via jumper (JCOMPWR1~2): +5V / +12V / RI (Ring Indicator), COM3:, • 1 x RS232 port, • Connector: 2 x 5-pin header (2.00mm pitch), • Pin 9: No power output, • Power configuration via jumper (JCOMPWR3): +5V / +12V / RI |
| AT/ATX Selector | 1 x 1 x 3 pin, pitch 2.00mm connector for AT/ATX jumper (JPSON1) |
| RTC Battery | 1 x 2 Pin, pitch 1.25mm horizontal type battery connector (SMD Type) |
| Audio | 1 x 2 x 5 pin, pitch 2.54mm connector for front panel audio (FP_AUDIO1) |
| DC-Input | 1 x 4 pin, pitch 2.50mm Mini-Fit Jr DC Jack at IO (DC_IN1) |
| Buzzer | Onboard |
| CPU/System FAN | 65W cooler fan; N/A |
| AC/DC Input Conn. | 1 x 2 x 2 pin, pitch 2.40mm for 12V ATX power (ATX12V1) |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) with 0.5m/s air flow (turbo mode off) |
|---|---|
| Drop Test | Package drop test:One corner, three edges, six faces, ISTA 2A, IEC-60068-2-32 |
| Shock Test | With SSD : 10 Grms, IEC 60068-2-27, half sine, 11ms |
| Vibration Test | Operating with SSD : 0.5 Grms, IEC 60068-2-64, 5 ~ 500Hz, 0.5hr/axis |
| Weight | 4.8 kg |
| Dimension (W x L x H) | 315 * 273 * 92 mm |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Storage Temp. | -20°C ~ 60°C(-4°F ~ 140°F) |
