RCC-GENICART-02R

RCC-GENICART-02R FrontRCC-GENICART-02R FrontRCC-GENICART-02R Front
RCC-GENICART-02R FrontRCC-GENICART-02R FrontRCC-GENICART-02R Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • Easy Cleaning & Silver-ion defence
  • Award winning power solution hot-swappable Dual system
  • Lightweight Maneuverability
  • "Ergonomically Designed",
  • "Small footprint for space saving",
  • "Heavy duty castors, all wheel braking",
  • "Robust construction for busy environments",
  • "Custom mount fittings and accessories",
  • "Wireless cable management system, no trip hazards",
  • "Height Adjustable or Fixed Height",
  • "GeniTec Power module (IP67), for shift-to-shift use and easy cleaning"

Product Description

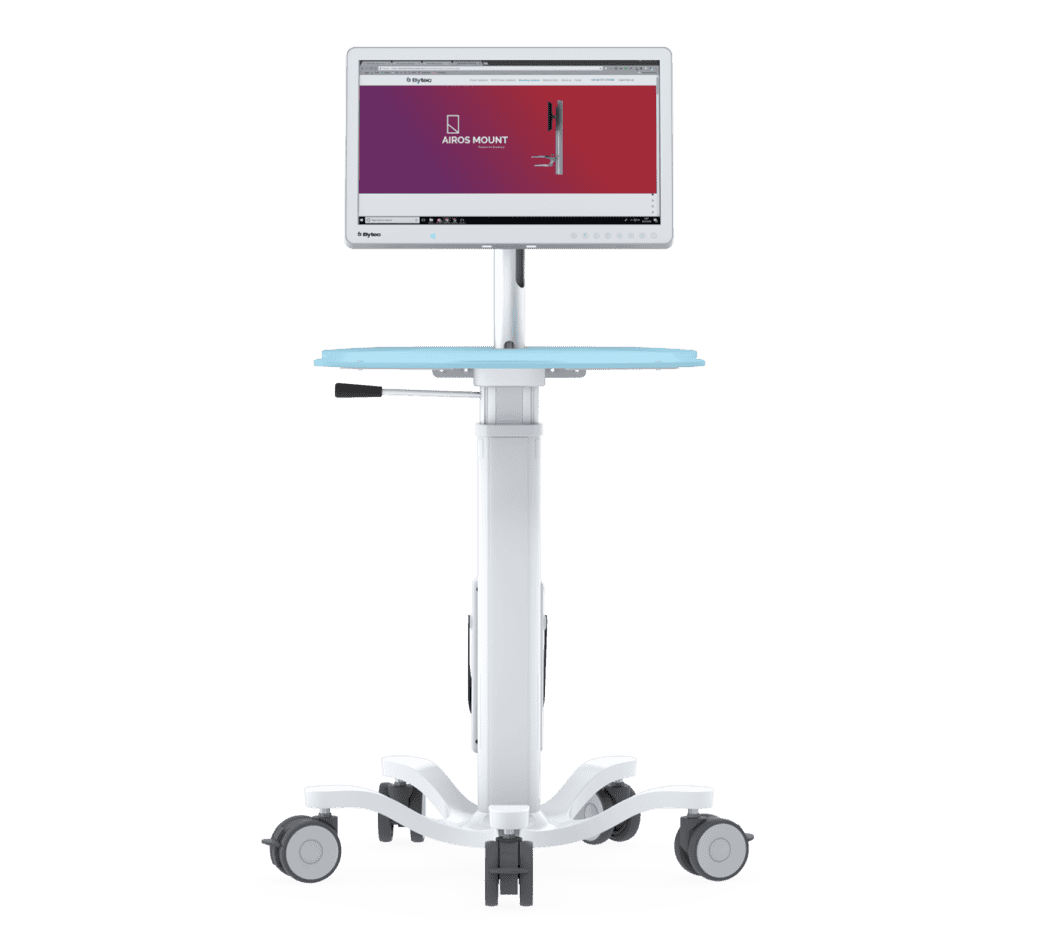

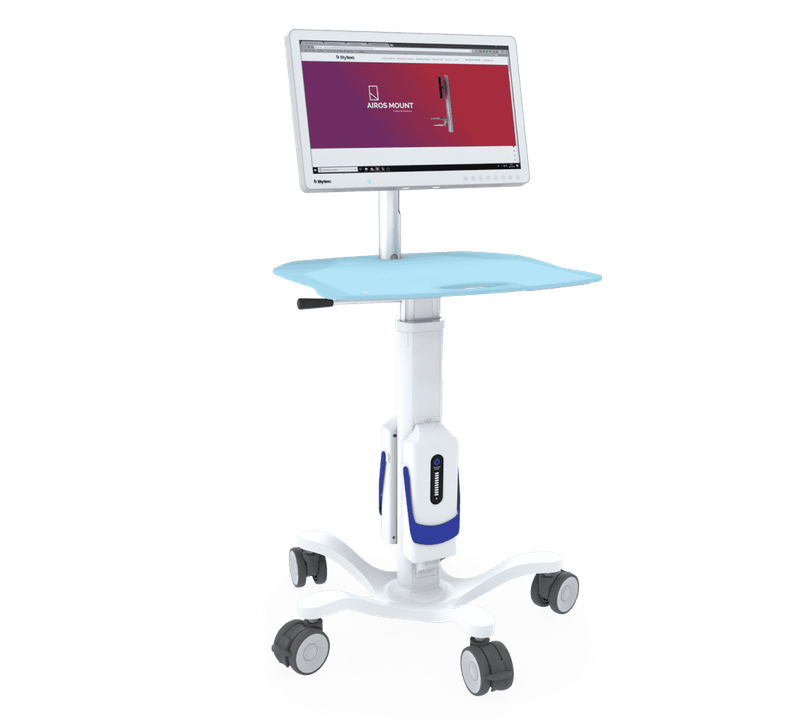

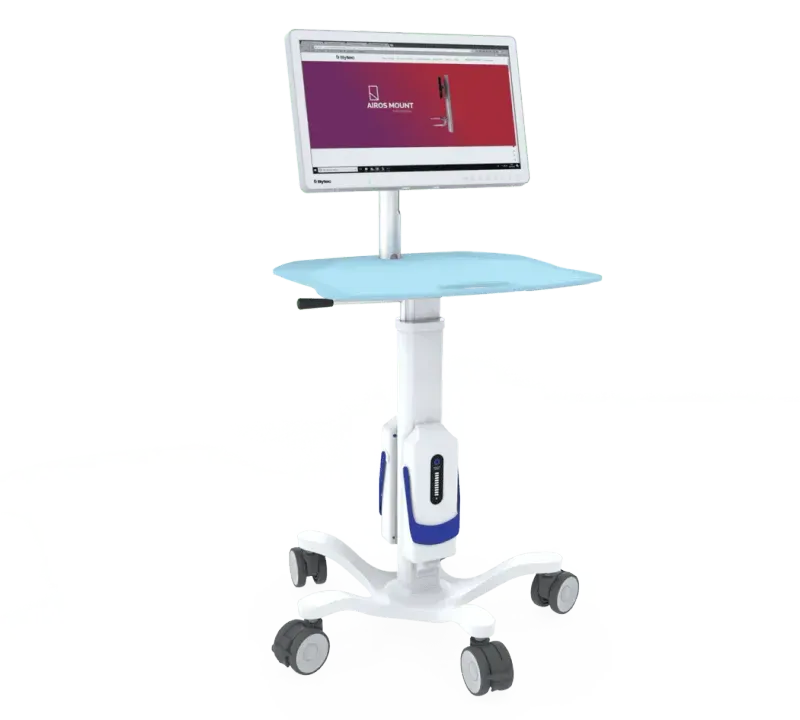

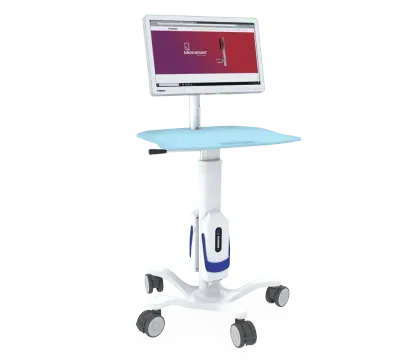

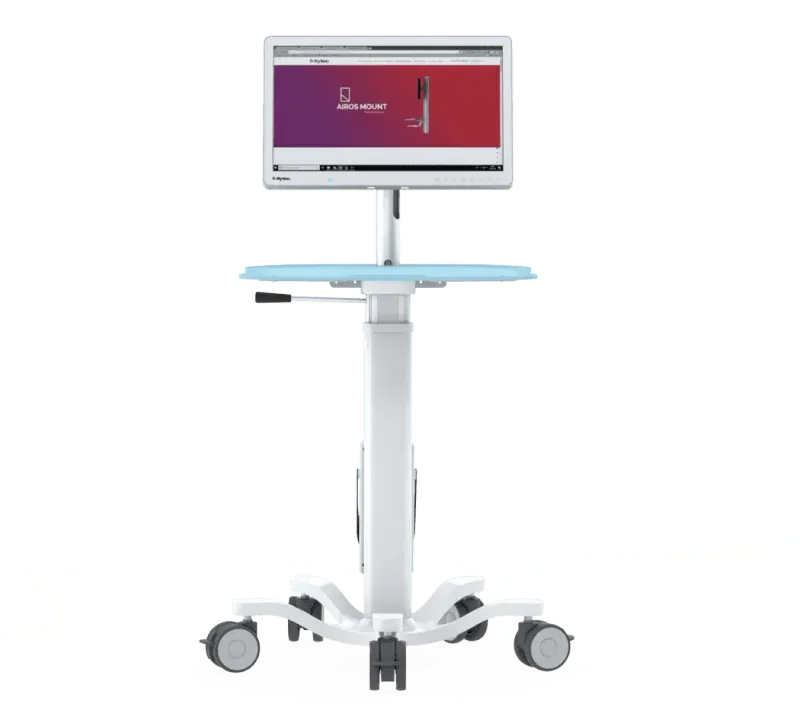

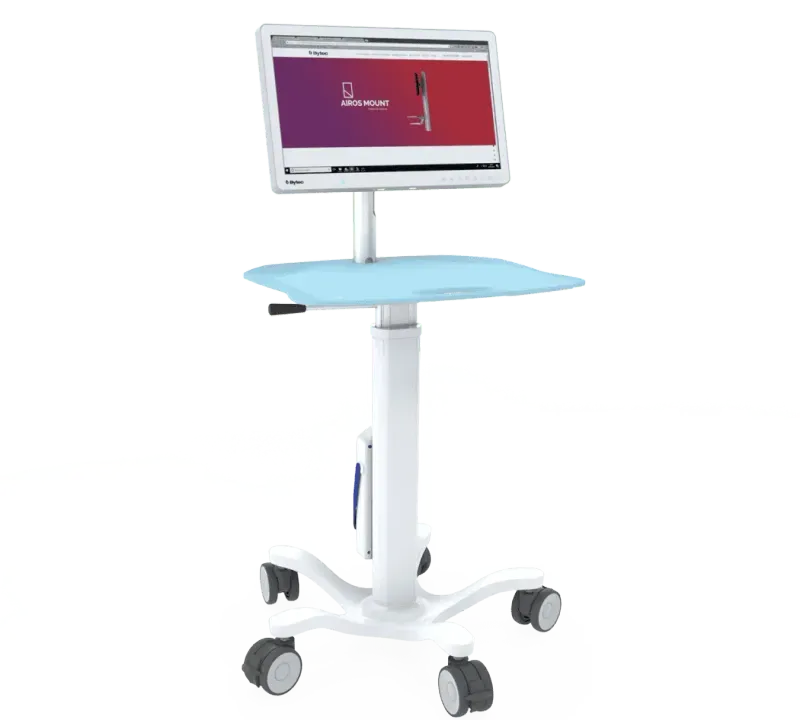

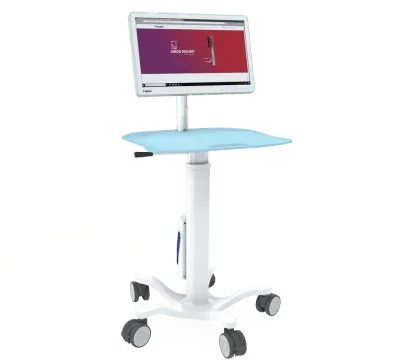

The Avalue RCC-GENICART-02R is a height-adjustable medical IT cart designed to enhance mobility and efficiency in healthcare settings. Equipped with a dual power system, it ensures uninterrupted operation of medical devices.

The ergonomic design includes adjustable height settings, durable casters with brakes for easy maneuverability, and a compact footprint for space optimization.

The cart supports seamless integration with Avalue's HID series panel PCs and other medical equipment, making it suitable for various clinical applications such as patient monitoring, electronic medical records (EMR) management, and telemedicine.

Technical Specifications

SPEC

Height

300mm Range ( 810mm-1110mm)

Base size

675mm diameter - 5 wheel base/

561 mm x 557 mm - 4 wheel base

Accessories Available

Handle, Basket, Medi-Rail, Cable Hook, Drip Pole, PSU Adapter Holder, Keyboard Tray

Geni-Tec System

Dual Dock push button release, adjustable regulated output

12-28V (Battery Modules Supplied Separately)

Castors

5 castors, 100 mm, all braked

4 castors, 100 mm, all braked

Footprint

400mm X 955mm

System Input Voltage

28 VDC

Compliance

CE / UKCA

Power System ; EN/ES/IEC 60601-1

Power Module: IEC 62133, UL 2054, UN38.3

Ordering Information

Ordering Information

RCC-GENICART-02R (HA), Height Adjustable Geni-Cart with Dual power system, 300mm Range ( 810mm-1110mm)

RCC-GENICART-01R (FH), Fixed Height Geni-Cart with Dual power system, 300mm Range ( 810mm-1110mm

What is RCC-GENICART-02R?

The RCC-GENICART-02R is a intelligent healthcare manufactured by Avalue, designed specifically for medical-cart-stand-arm-battery applications. The Avalue RCC-GENICART-02R is a height-adjustable medical IT cart designed to enhance mobility and efficiency in healthcare settings. Equipped with a dual power system, it ensures uninterrupted operation of medical devices. The ergonomic design includes adjustable height settings, durable casters with brakes for easy maneuverability, and a compact footprint for space optimization. The cart supports seamless integration with Avalue's HID series panel PCs and other medical equipment, making it suitable for various clinical applications such as patient monitoring, electronic medical records (EMR) management, and telemedicine.

Key Features & Benefits

  • Easy Cleaning & Silver-ion defence
  • Award winning power solution hot-swappable Dual system
  • Lightweight Maneuverability
  • "Ergonomically Designed",
  • "Small footprint for space saving",
  • "Heavy duty castors, all wheel braking",
  • "Robust construction for busy environments",
  • "Custom mount fittings and accessories",
  • "Wireless cable management system, no trip hazards",
  • "Height Adjustable or Fixed Height",
  • "GeniTec Power module (IP67), for shift-to-shift use and easy cleaning"

Applications & Use Cases

The RCC-GENICART-02R is ideal for various industrial automation applications:

  • Harsh industrial environments requiring dust and water protection
  • DC-powered industrial installations and mobile applications
  • Various clinical applications such as patient monitoring
  • Wireless connectivity and remote monitoring applications
  • Healthcare and medical device integration
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
