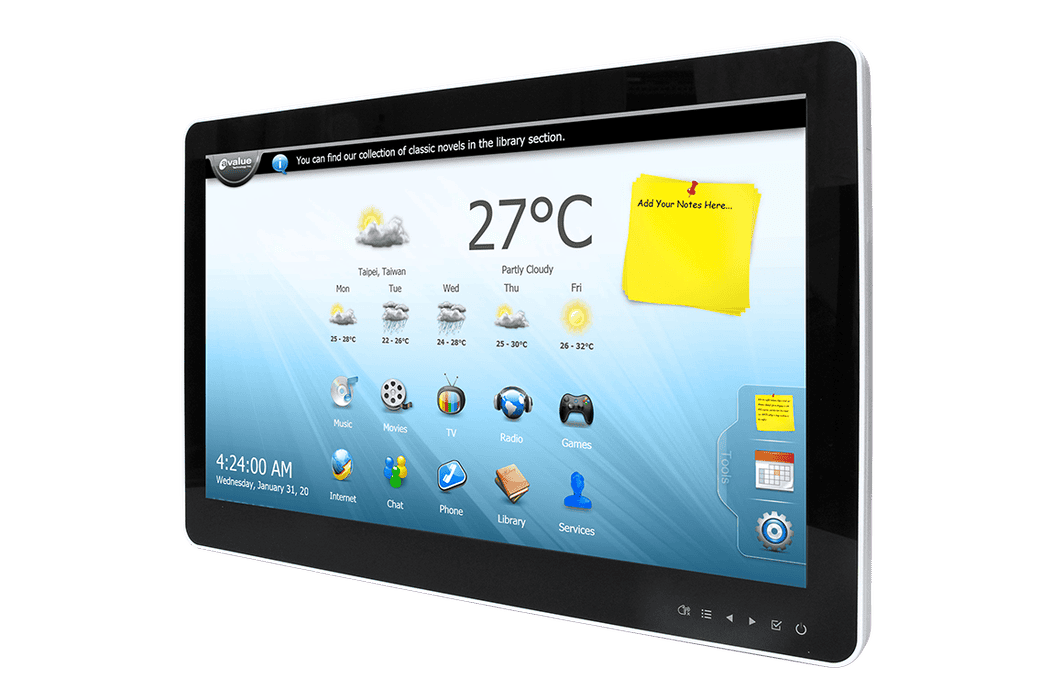

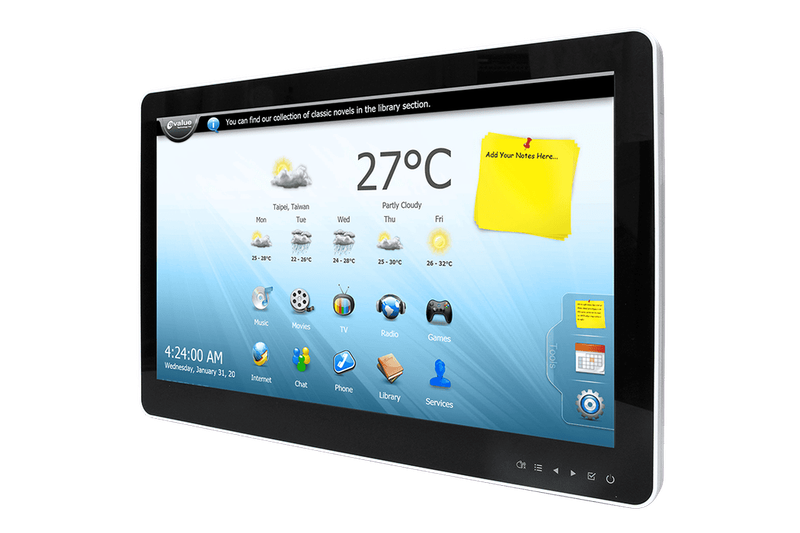

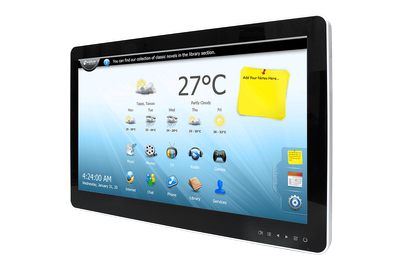

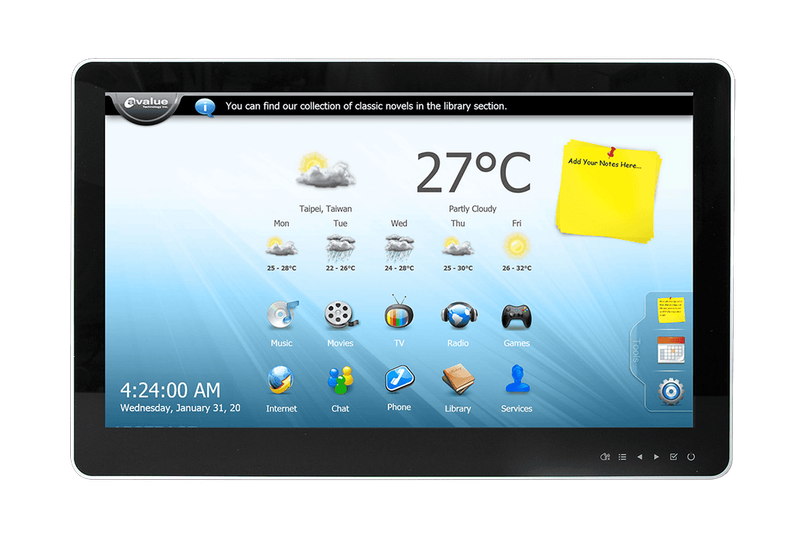

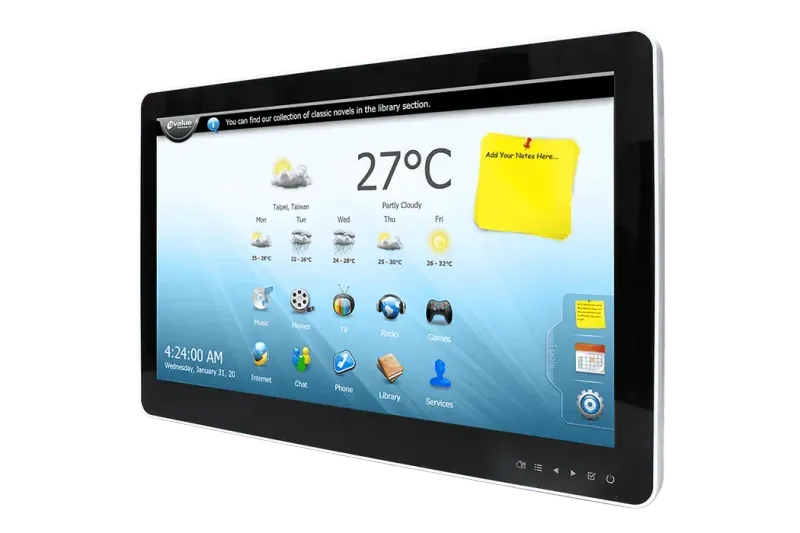

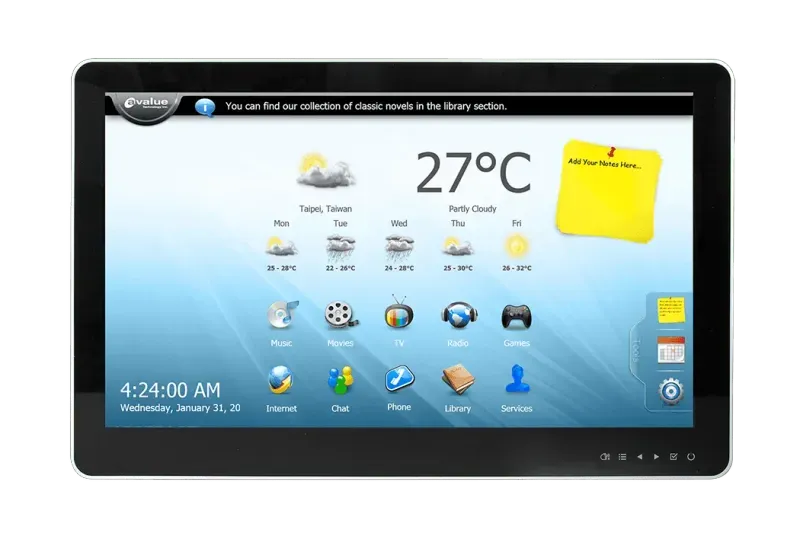

Avalue HID-2100 21.5" Medical Touchscreen Monitor

Product Description

The Avalue HID-2100 is a 21.5-inch Full HD (1920 x 1080) medical touchscreen monitor designed for precision imaging in healthcare settings. It features a projective capacitive multi-touch screen supporting up to 10 touch points, ensuring intuitive operation.

The monitor offers a brightness of 250 cd/m² and a contrast ratio of 1000:1, delivering clear and sharp images. Its front panel is IP65-rated for protection against dust and water, and the anti-microbial housing enhances hygiene.

With multiple input interfaces including HDMI, DisplayPort, and VGA, it ensures compatibility with various medical imaging equipment. Additional features include integrated 2W speakers, fanless design for silent operation, and compliance with CE and FCC certifications.

Technical Specifications

System Information

Other

1 x DP 1 x Line in 1 x Line out

MCU

RTD2525A

Board

HID-2100 AD board

Audio

Speaker Output

2 x 2W

Power Requirement

DC Input Connector

Lockable DC Jack

DC Input

+24V

Certification

Certification Information

CE, FCC

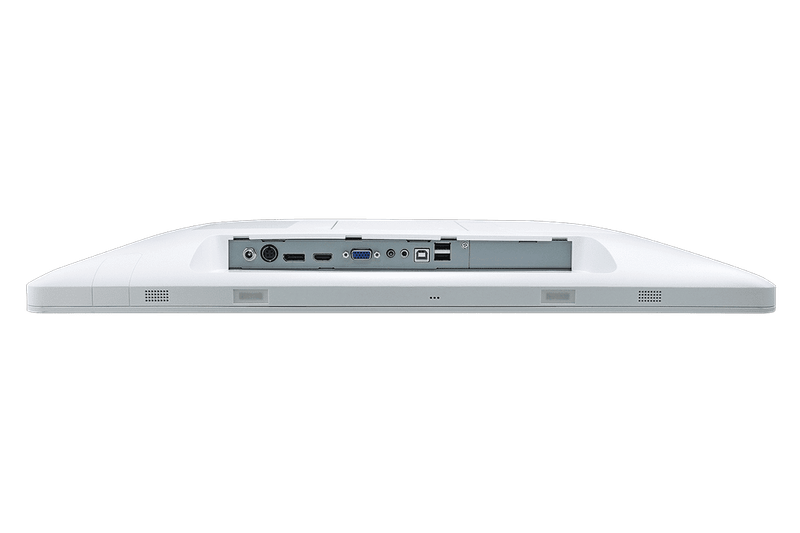

External I/O

USB Port

2 x USB 2.0

Panel

LCD Size

21.5"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

0.24795 (H) x 0.24795 (V)

Luminance

250 cd/m2

Contrast ratio

1000

Viewing angle

89(U), 89(D), 89(L), 89(R)

Response time

22 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

86%

Touch Controller

USB touch (EETI EXC3188)

I/O

HDMI

1 x HDMI

VGA

1 x VGA

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Weight

5.5 kg

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front IP65

Dimension (W x L x H)

539.6 x 342.6 x 45.2 mm

System Fan

Fanless

Construction - Front

White plastic

Construction - Rear

White plastic

Finishing

Anti-microbial

Fanless

Yes

Color

White

Component

Adapter

+24V

Ordering Information

HID-2100-252-A1R

HID 21.5 PCAP Multi-touch Monitor

1920x1080/DP/HDMI/VGA/Line in/Line out/DC out 24V 30W/2W speaker

Front OSD key/2xUSB/USB type B for Touch/

24V DC in/120W Medical Power adapter

Power Cord:

E1702031000R EU Power Cord

E1702031833R US Power Cord

E170203183CR JP Power Cord

E170P060380R UK Power Cord

E1702031831R AU Power Cord

E170P060391R CN Power Cord

What is HID-2100?

The HID-2100 is a intelligent healthcare manufactured by Avalue, designed specifically for medical-display applications. The Avalue HID-2100 is a 21.5-inch Full HD (1920 x 1080) medical touchscreen monitor designed for precision imaging in healthcare settings. It features a projective capacitive multi-touch screen supporting up to 10 touch points, ensuring intuitive operation. The monitor offers a brightness of 250 cd/m² and a contrast ratio of 1000:1, delivering clear and sharp images. Its front panel is IP65-rated for protection against dust and water, and the anti-microbial housing enhances hygiene. With multiple input interfaces including HDMI, DisplayPort, and VGA, it ensures compatibility with various medical imaging equipment. Additional features include integrated 2W speakers, fanless design for silent operation, and compliance with CE and FCC certifications.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The HID-2100 is ideal for various industrial automation applications:

Healthcare and medical device integration
Precision imaging in healthcare settings
Industrial automation and control
Manufacturing process monitoring
Quality assurance and inspection
Production line automation
