RCC-MS-GMD65GT

Series: RCC

Manufactured byAvalue

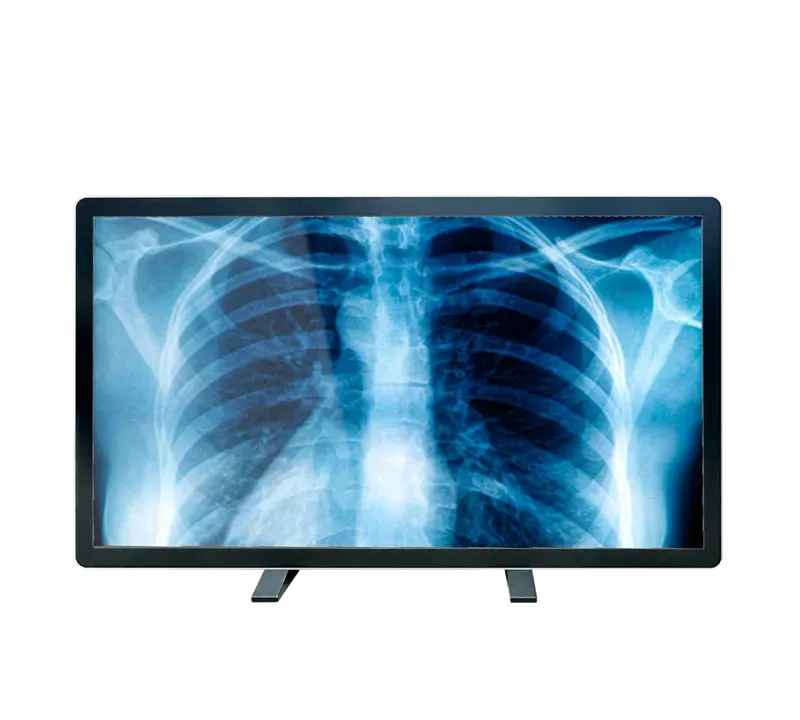

The Avalue RCC-MS-GMD65GT is a 65" 4K (3840x2160) medical display in a metal enclosure (RTOP6521AMA/T), designed for operating-room and clinical large-format imaging. With IP65 front / IP32 whole-unit sealing, optional DICOM Barten-curve compliance, and a fanless GM-metal build, it delivers a high-fidelity 1.07-billion-colour image for surgical and diagnostic review. It supports Full, Dual (PBP/PIP) and Quad signal modes, with VGA, DVI, HDMI and dual DisplayPort inputs, an internal medical-rated AC power supply, optional AG-PCAP 10-point touch, speaker, DICOM and remote control. VESA 400x400 mounting and EN/IEC 60601-1 medical certification make it a complete OR-grade display.

Key Features

65" 4K UHD (3840x2160) medical display, metal enclosure
AG glass 460 nits / optional AG PCAP 440 nits, 4000:1 contrast
1.07 billion colours, optional DICOM Barten-curve compliance
Full / Dual (PBP/PIP) / Quad signal modes
VGA, DVI, HDMI, 2 x DisplayPort inputs
Optional AG-PCAP 10-point multi-touch
IP65 front, IP32 whole unit, fanless GM-metal build
Internal medical AC power supply, VESA 400x400
EN/IEC 60601-1 ed3.2 medical certification

Technical Specifications

Certification

Certification Information	FCC Class B, VCCI, CE (EN 62368-1; EN 55032/55035), CE (EN60601-1, ed 3.2; EN60601-1-2, ed 4.1)

Panel

LCD Size	65"
Display Type	4K
Resolution	3840 x 2160
Luminance	AG glass 460 nits, AG PCAP 440 nits (optional)
Contrast ratio	4000
Viewing angle	89/89 Deg. Horizontal &Vertical
Response time	8 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Display color	1.07 G
DICOM compliant	Barten curve (optional)
AG Protection Glass	Yes
Active display area	1429.6 mm x 804.6mm

I/O

Display Port	2 x Display port
HDMI	1 x HDMI
VGA	1 x VGA
RS232	Yes
Input Interface	1 x VGA, 1 x DVI, 1 x HDMI, 2 x Display port
Digital input	Standard DVI & DisplayPort
Analog input	Video: 0.7Vpp/75 ohm, Sync: Separate TTL level. Composite, Sync or sync on green,, Hor: 30~92KHz, Ver: 50~85Hz
Cables	HDMI 1.8M 4K cable x 1, USB touch cable x 1
Plug & play	VESADDC2B
User control and indicator	Power indicator x1, Sensor keys x 8, TOUCH DISABLED/SOURCE/PIP/SWAP/MENU/-/+/POWER

Mechanical & Environmental

Storage Temp.	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	10% ~ 90% relative humidity, non-condensing
Weight	50 kg
Vibration Test	With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test	With SSD/mSATA: 10Grms, IEC 60068-2-27, half sine, 11ms
IP Rating	IP65 in front, IP32 whole unit
VESA	400 x 400
System Fan	Fanless
Construction	GM metal
Power Requirement	Internal power supply:100~250Vac, 60/50Hz
Power Mode	AC In
Mounting Kit	Stand (optional), VESA mount kit (optional), Wall mount kit (optional)
Dimension	1521mmx945mmx105mm
Base stand	Base stand & Wall mount
Power consumption	On:<350W; active off: <20W
Power management	EPA Energy Star compliant

Color Mode

Color temperature	Cool/neutral/warm/user
gamma	1.8/2.0/2.2/2.4/linear
Calibration mode	Communication protocol is ready to calibrate the monitor through, USB (optional)

Optional Items

Optional Items	AG PCAP touch, Speaker, DICOM, Remote control

Ordering Information

RCC-MS-GMD65G-01R (Normal Display without power cord), RCC-MS-GMD65G-02R (Normal Display with EU power cord), RCC-MS-GMD65G-03R (Normal Display with US/TW power cord), RCC-MS-GMD65G-04R (Normal Display with UK power cord), RCC-MS-GMD65T-01R (Touch display without power cord), RCC-MS-GMD65T-02R (Touch display with EU power cord), RCC-MS-GMD65T-03R (Touch display with US/TW power cord), RCC-MS-GMD65T-04R (Touch display with UK power cord)
