What is the CAXA0-DC?

A desktop cradle for the CAXA0 tablet, providing docking, charging, and expanded connectivity (3x USB 2.0, 1x LAN).

What environments is the CAXA0-DC suitable for?

Hospitals, clinics, and industrial settings requiring secure docking and device integration.

What power input does the CAXA0-DC support?

+19V DC input for continuous operation.

What certifications does the CAXA0-DC have?

CE and FCC certified for safety and EMC compliance.

What is the IP rating of the CAXA0-DC?

IPX1 for basic protection against dripping water.

What are medical tablets and their typical applications?

Medical tablets are portable computing devices designed for point-of-care, patient data entry, diagnostics, and mobile healthcare workflows.

What certifications should a medical tablet have?

Look for certifications such as CE, FCC, EN60601-1, EN60601-1-2, IP65, and MIL-STD-810G for safety, hygiene, and ruggedness.

What is the benefit of rugged or antibacterial housing?

Rugged or antibacterial housing ensures durability, drop resistance, and hygiene in clinical environments.

What processors are available in medical tablets?

Options include ARM-based and Intel® Celeron® processors, depending on the model.

What display sizes and resolutions are available?

Display sizes range from 10-inch to 10.1-inch, with HD or higher resolutions.

What input/output interfaces are supported?

Most models support Wi-Fi, Bluetooth, USB, HDMI, and some offer NFC, LAN, and barcode scanning.

How do I install a medical tablet in a healthcare environment?

Use the provided wall mount or desktop cradle for secure installation. Follow manufacturer guidelines for power and data connections.

How do I connect input devices and peripherals?

Use the available USB, LAN, and wireless interfaces. Ensure all connections are secure and compatible with medical standards.

What should I do if the tablet does not power on?

Check the power adapter, battery charge, and cable connections. Test with a known-good power source.

How can I resolve touchscreen or display issues?

Verify input signal, cable quality, and display settings. Calibrate the touchscreen if needed and refer to the product manual.

What steps should I take if there are connectivity problems?

Check cable connections, update drivers, verify network settings, and test with alternate cables or ports.

Avalue CAXA0-DC Desktop Cradle for CAXA0 Medical Tablet...

Product Description

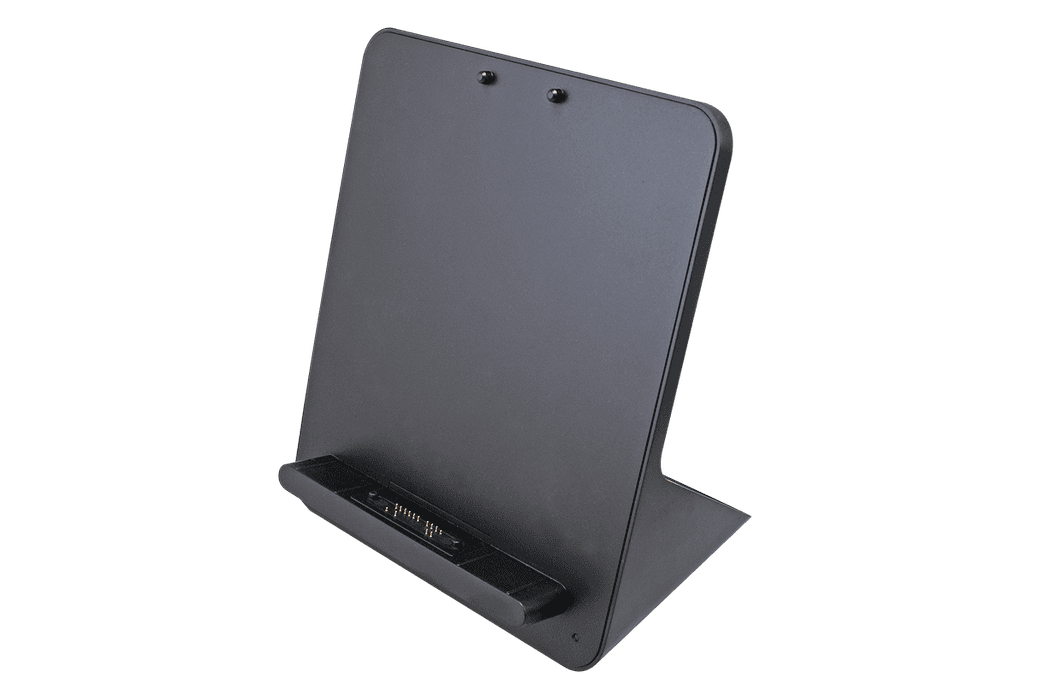

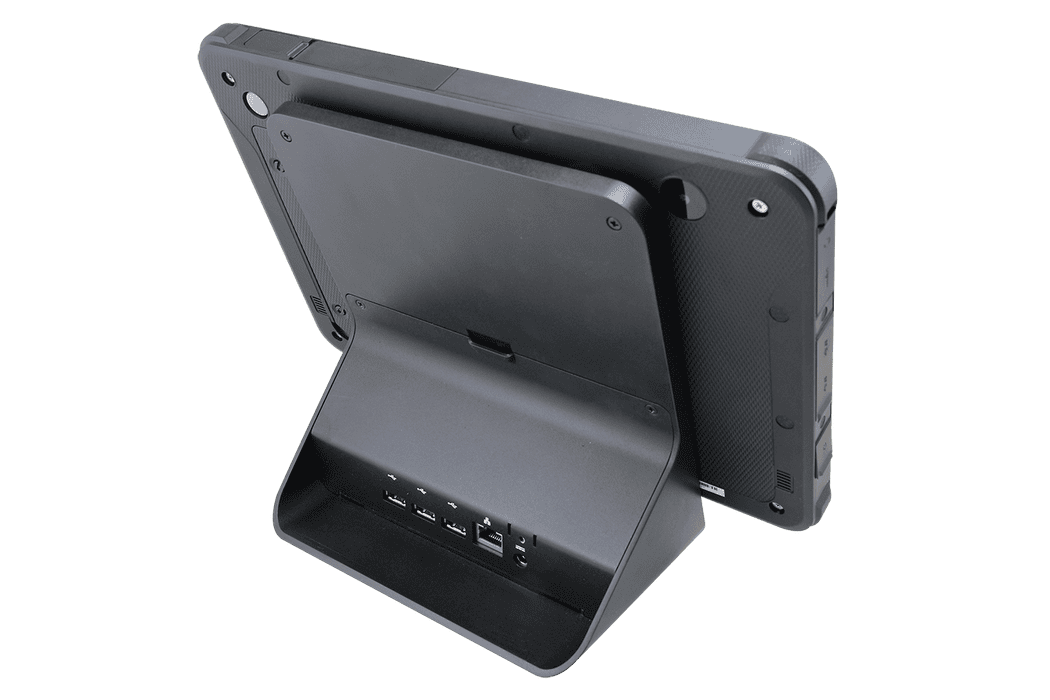

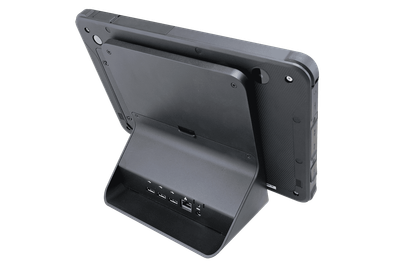

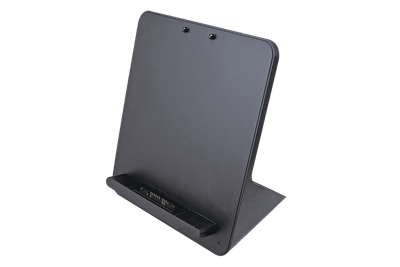

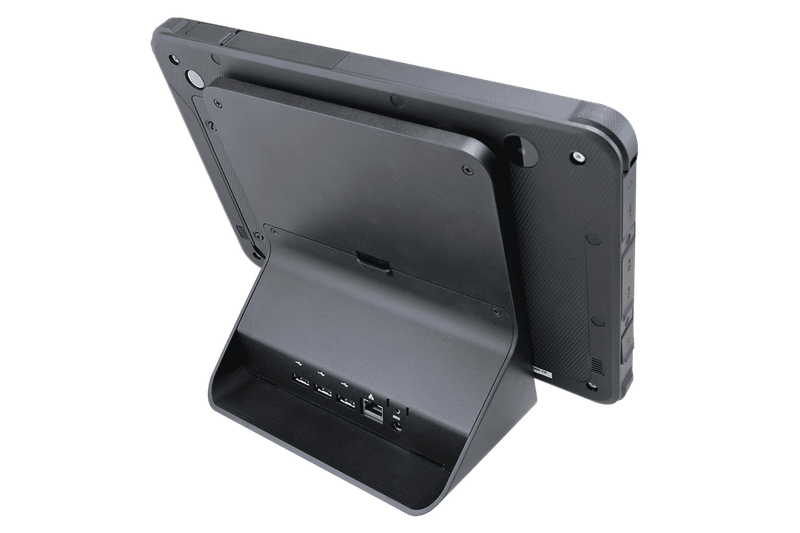

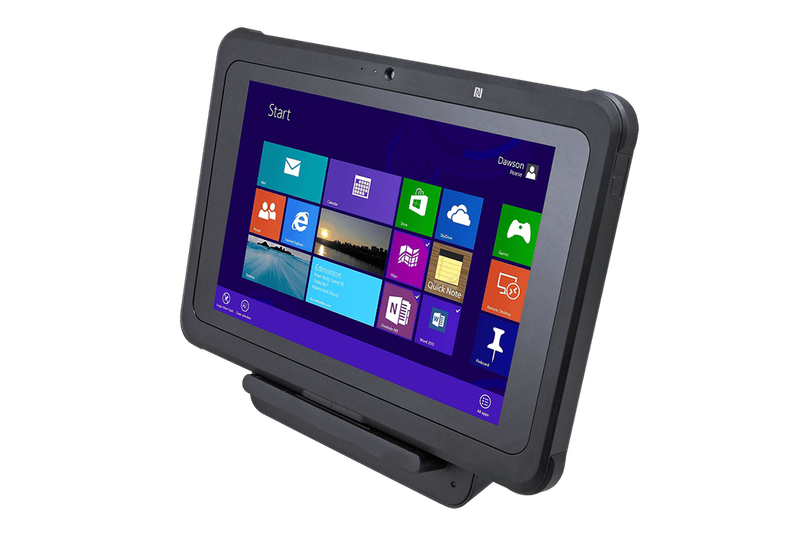

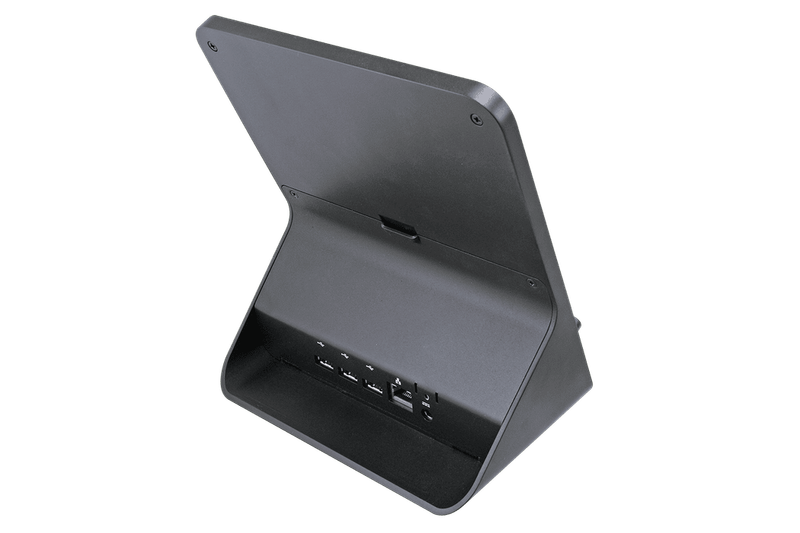

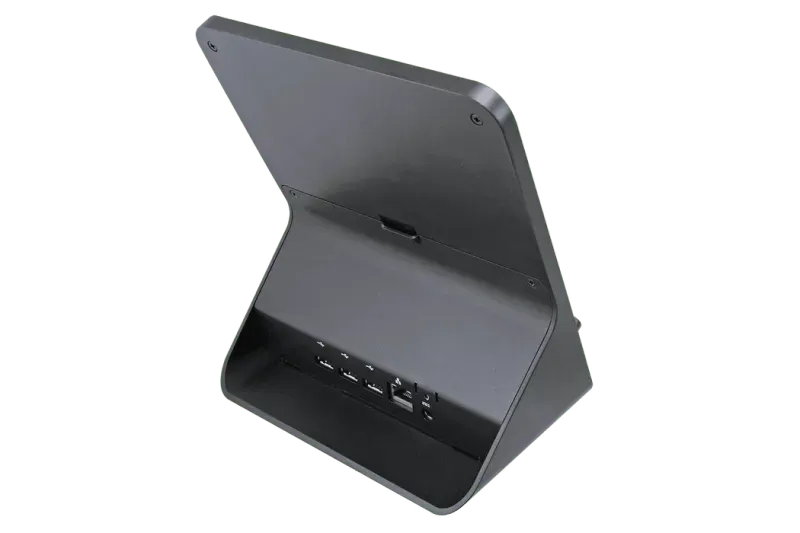

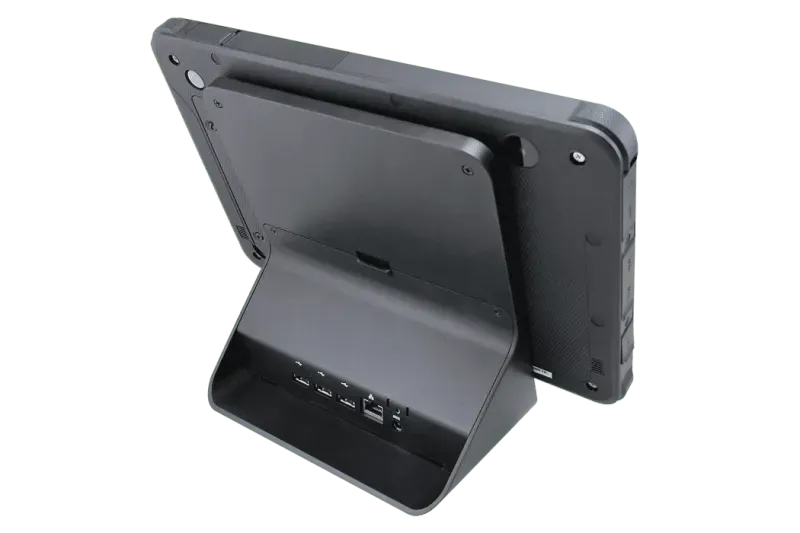

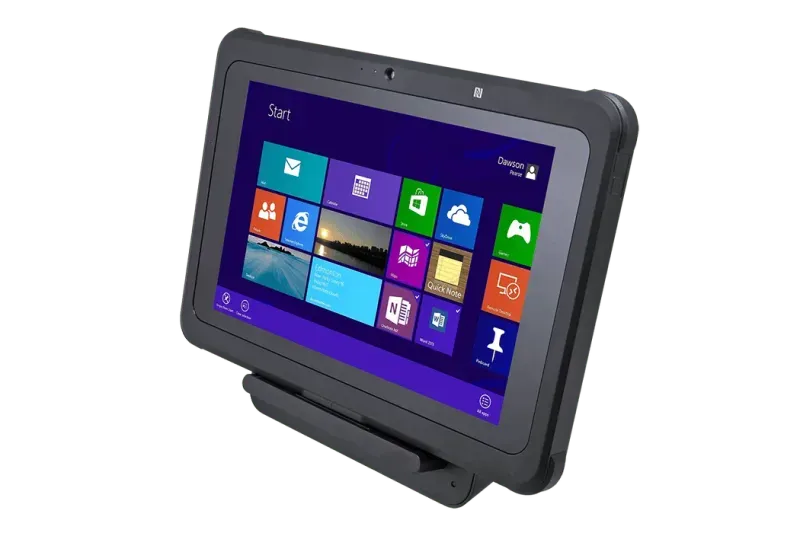

The Avalue CAXA0-DC Desktop Cradle is designed to complement the CAXA0 semi-rugged medical tablet, providing a secure and versatile docking solution.

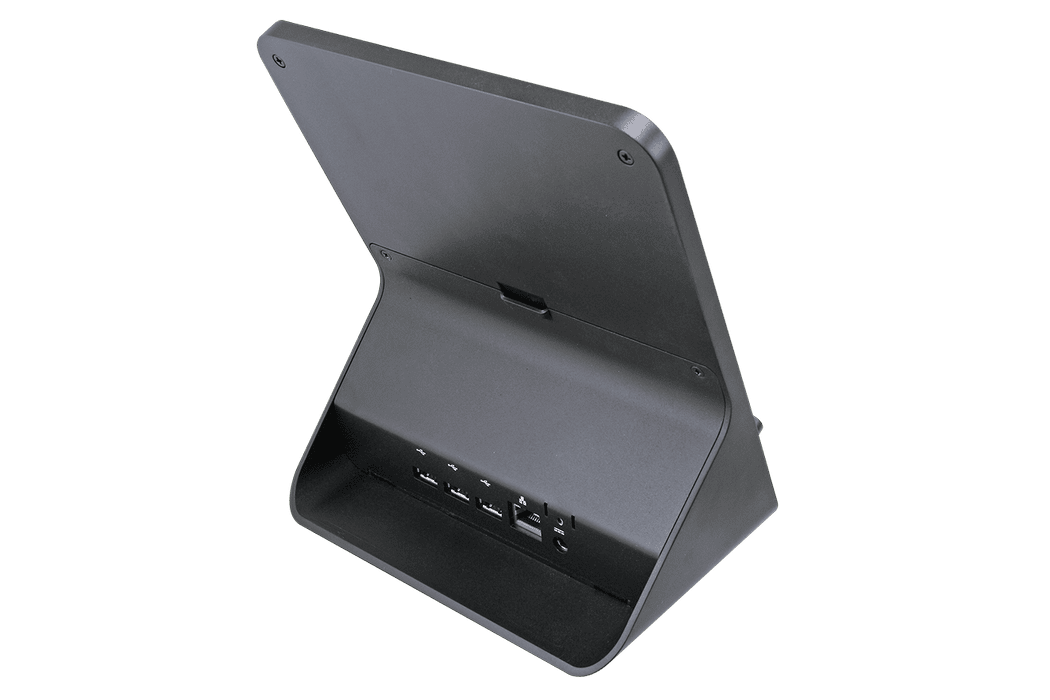

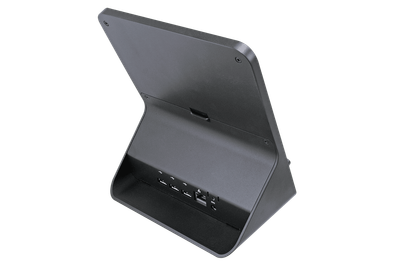

This cradle expands the tablet's connectivity options by offering three USB 2.0 ports and a 10/100 LAN port, facilitating integration with various peripherals and network infrastructures.

The 19V DC input ensures consistent power supply, making it suitable for continuous operation in demanding environments. Its robust design makes it ideal for use in hospitals, clinics, and industrial settings where space optimization and device accessibility are crucial.

Technical Specifications

Power Requirement

DC Input Connector

DC Jack

DC Input

+19V

Certification

Certification Information

CE, FCC

External I/O

USB Port

USB 2.0 x3

LAN Port

10/100 LAN x1

System COntrol

LED Indicator

1 x Tablet link LED indicator

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

15%~95% Relative Humidity, Non-Condensing

Storage Humidity

5%~90% Relative Humidity, Non-Condensing

IP Rating

IPX1

Construction

Plastic

Ordering Information

CAXA0-DCA1-S03R

CAXA0 Desktop cradle /USB2.0x3/LAN/DC19V, without Adapter

What is CAXA0-DC?

The CAXA0-DC is a intelligent healthcare manufactured by Avalue, designed specifically for medical-tablet applications. The Avalue CAXA0-DC Desktop Cradle is designed to complement the CAXA0 semi-rugged medical tablet, providing a secure and versatile docking solution. This cradle expands the tablet's connectivity options by offering three USB 2.0 ports and a 10/100 LAN port, facilitating integration with various peripherals and network infrastructures. The 19V DC input ensures consistent power supply, making it suitable for continuous operation in demanding environments. Its robust design makes it ideal for use in hospitals, clinics, and industrial settings where space optimization and device accessibility are crucial.

Key Features & Benefits

Desktop Cradle for CAXA0
+19V DC input
Support 3 x USB2.0
Support 1 x 10/100 LAN

Applications & Use Cases

The CAXA0-DC is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Continuous operation in demanding environments
Industrial automation and control
Manufacturing process monitoring
Quality assurance and inspection
Production line automation
