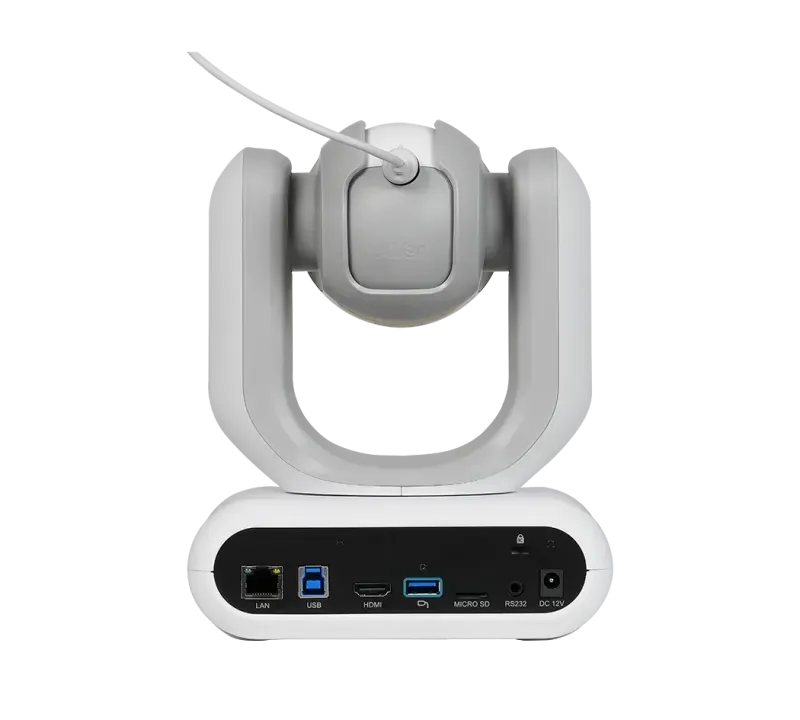

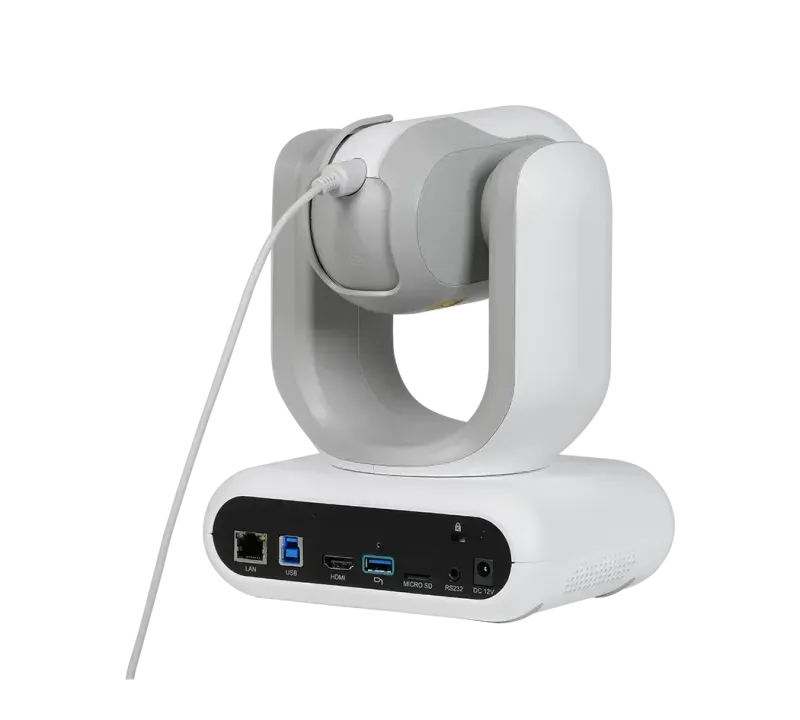

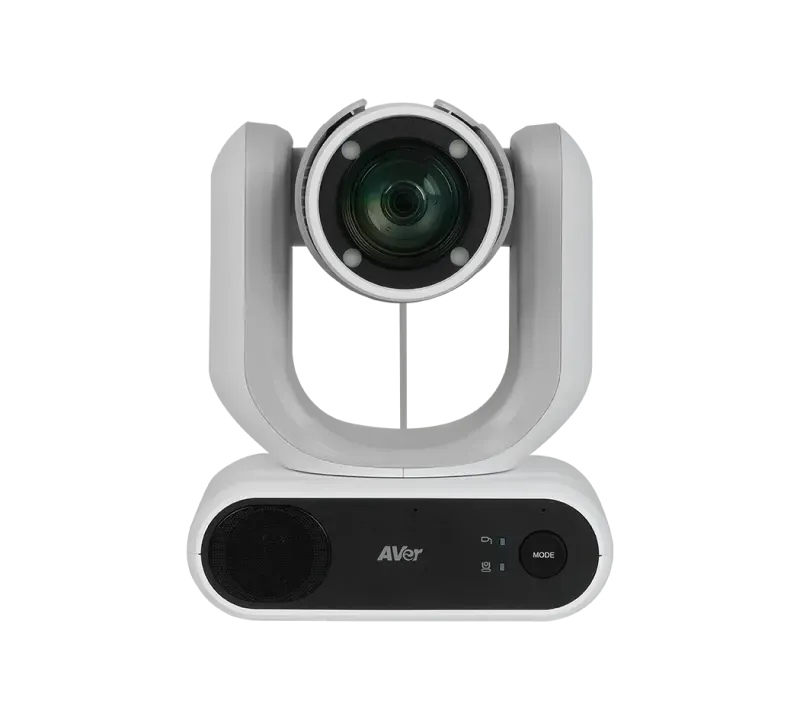

MD330U

MD33OU FrontMD33OU FrontMD33OU FrontMD33OU Front
MD33OU FrontMD33OU FrontMD33OU FrontMD33OU Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

Product Description

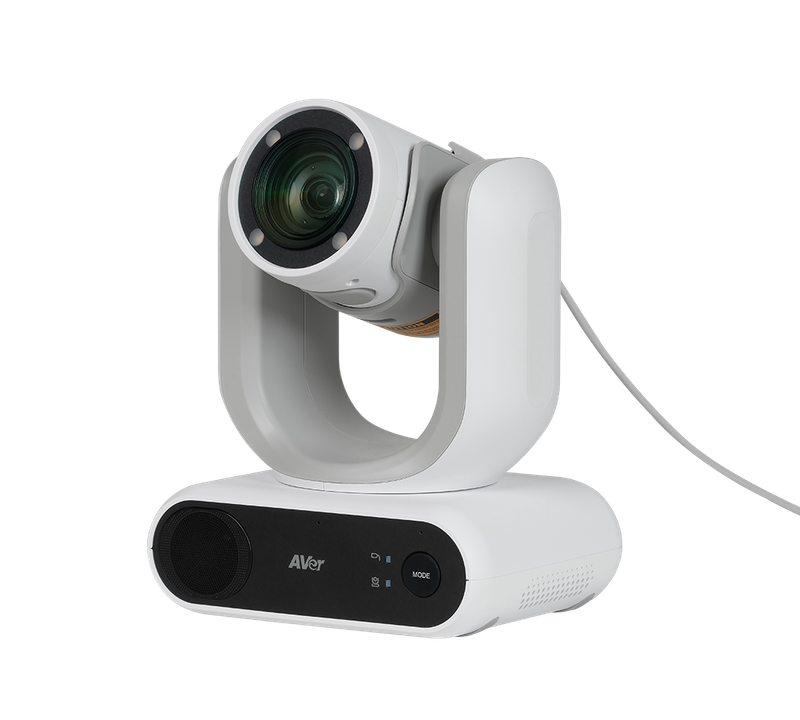

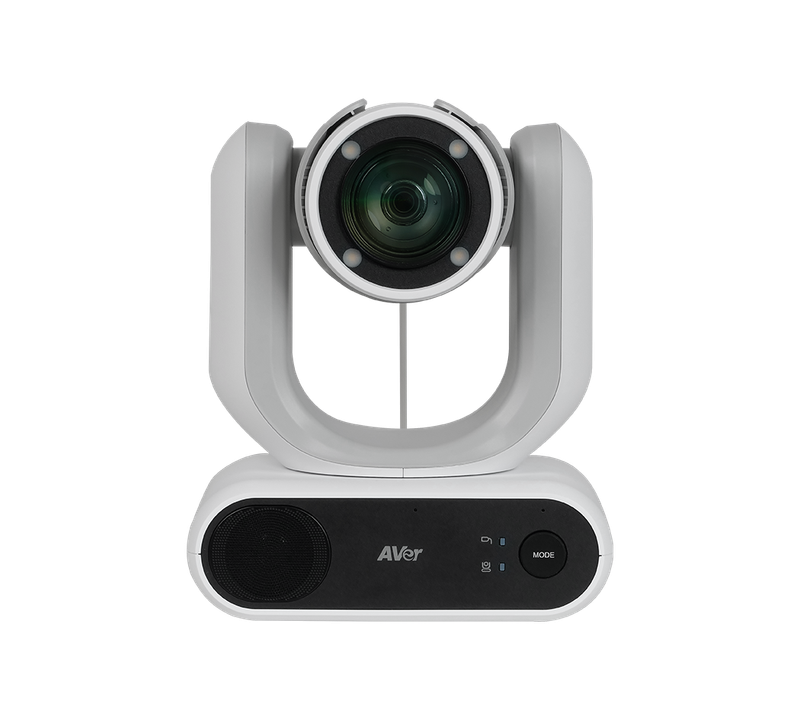

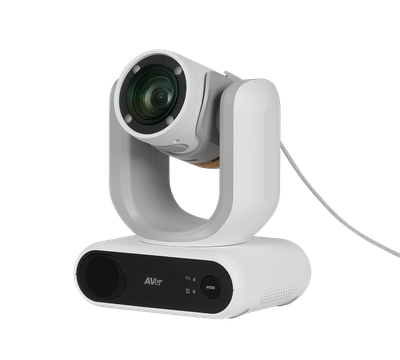

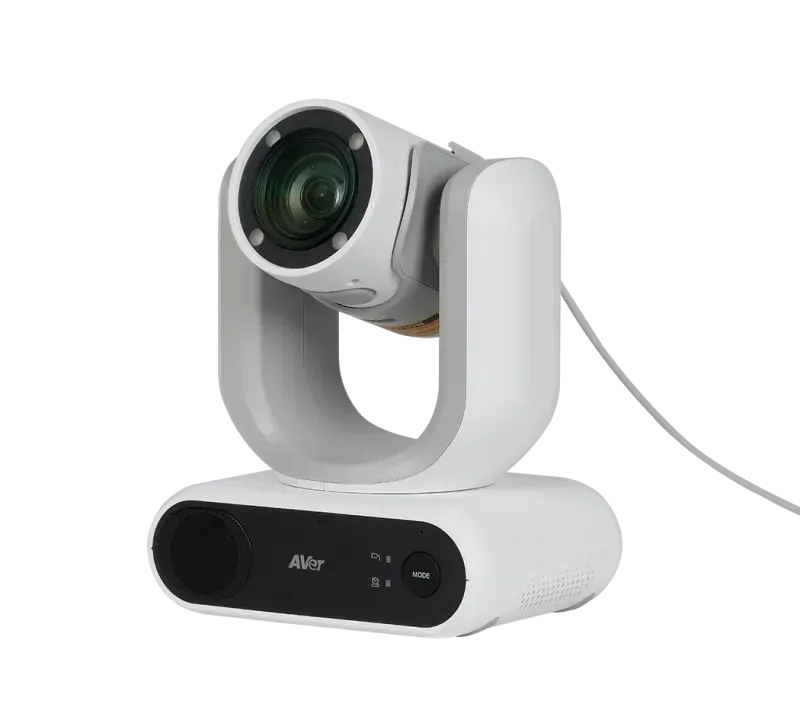

The AVer MD330U is a cutting-edge medical-grade PTZ camera designed for telemedicine and patient monitoring. Equipped with a 1/2.8\" Exmor CMOS sensor, it delivers ultra-clear 4K resolution and 30X optical zoom, ensuring precise imaging for clinical diagnostics.

The detachable camera head allows for 360-degree close-up views, facilitating detailed examinations. AI-powered noise reduction enhances audio clarity, while infrared night vision ensures 24/7 monitoring without disturbing patients.

Certified with IEC 60601-1-2, the MD330U integrates seamlessly into healthcare environments, supporting HDMI, USB 3.0, and IP streaming interfaces.

Technical Specifications

Camera

Image Sensor

1/2.8\" Exmor CMOS

Power Frequencies

50Hz/60Hz

Image Processing

Noise Reduction (2D / 3D), Flip, Mirror,WDR,BLC

Camera Control - Protocols

VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP)

Preset Positions

10 (IR), 256 (RS-232 / IP)

Preset Speed

Pan: 200°/sec, Tilt: 200°/sec

Pan / Tilt Speed (Manual)

Pan: 0.1° to 100°/sec, Tilt: 0.1° to 100°/sec

Pan / Tilt Angles

Pan: ±170°, Tilt: +90° / -35°

Minimum Working Distance

Wide: 0.01 m, Tele: 1.2 m

Aperture (Iris)

F = 1.6 (Wide) to 4.7 (Tele)

Focal Length

f = 4.3 mm (Wide) to 129 mm (Tele)

Optical Zoom

30X

White Balance

Auto, Manual

Exposure Control

Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR

Shutter Speed

1/1 to 1/10,000 sec

Viewing Angles

DFOV: 75.5° (Wide) to 3.1° (Tele)

HFOV: 68.0° (Wide) to 2.7° (Tele)

VFOV: 41.7° (Wide) to 1.5° (Tele)

Gain

Auto, Manual

S/N Ratio

≥ 50dB

Minimum Illumination

0.7 lux (IRE50, F1.6, 30fps)

Output Resolutions

4K/30 (IP/UVC only), 1080p/60, 1080p/59.94, 1080p/50, 1080p/30

1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30

Effective Picture Elements

8 Megapixels

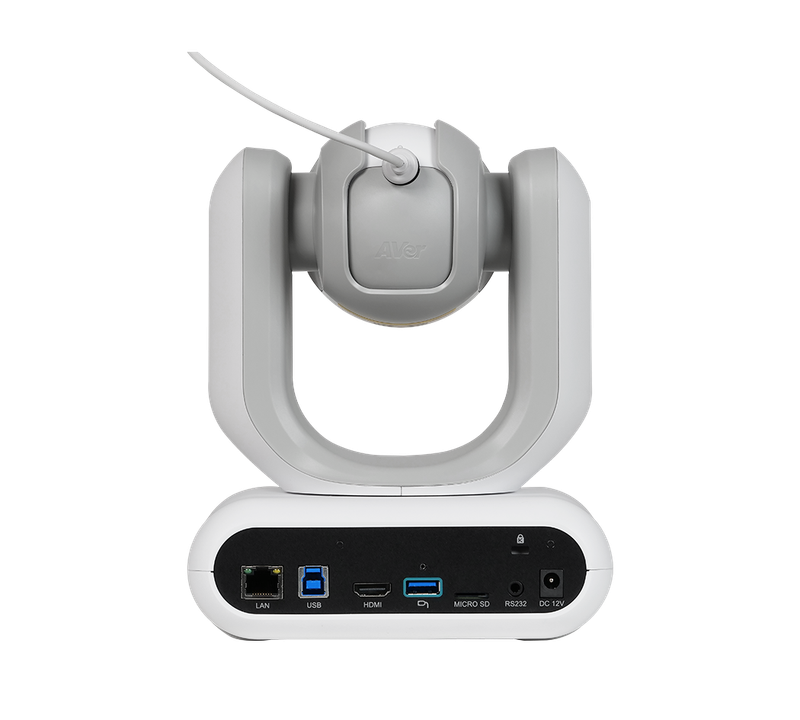

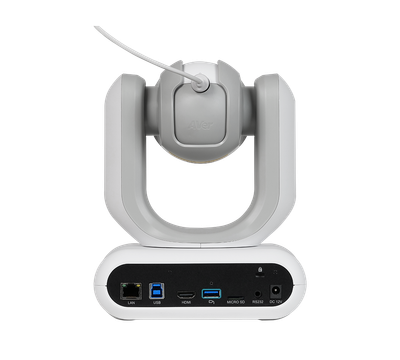

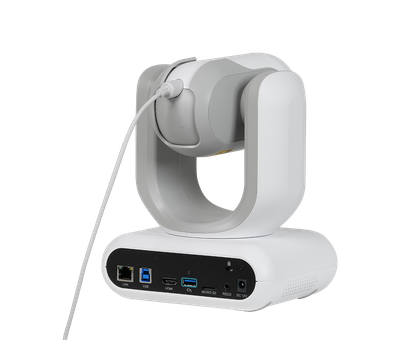

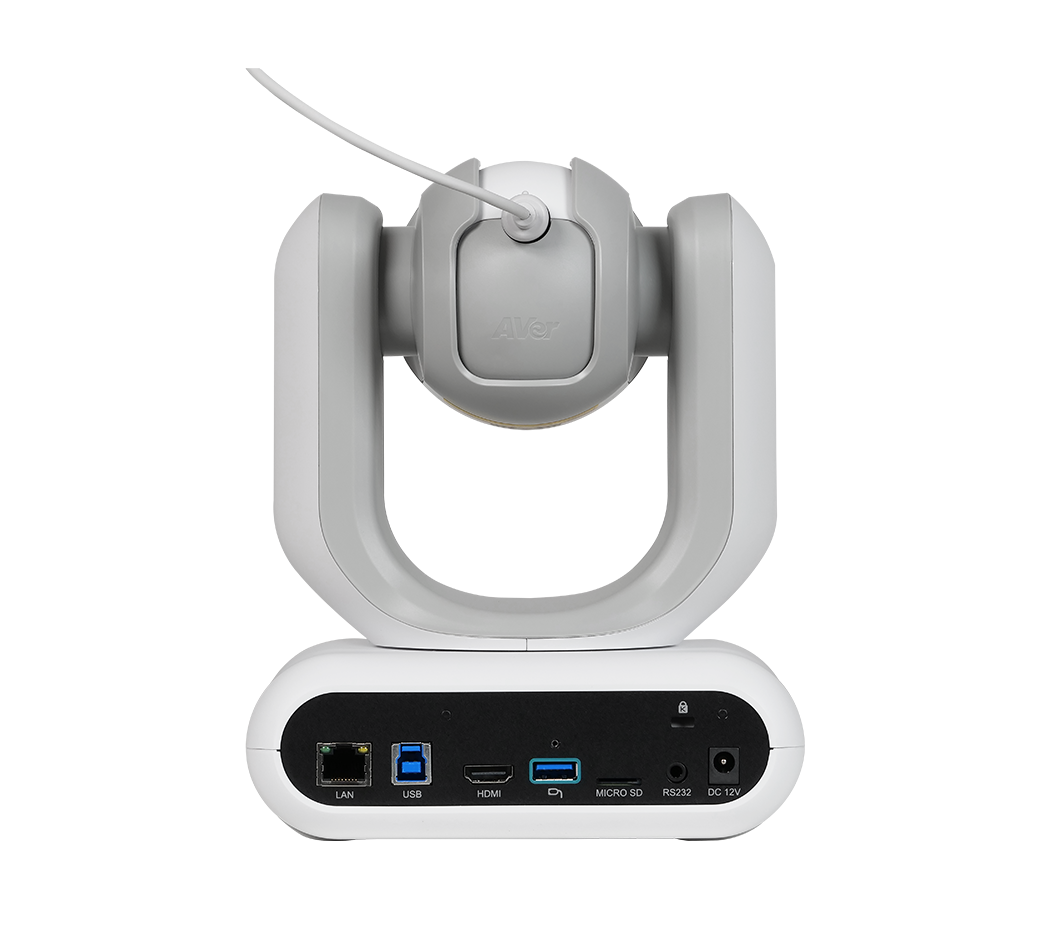

Interface

Video Outputs

HDMI, IP, USB

Audio Outputs

HDMI, IP, USB

General

Power Requirement

100-240V AC~ to 12V DC /3.34A

Operating Conditions

Temperature: 0°C to +35°C; Humidity: 20% to 80%

Storage Conditions

Temperature: -20°C to +60°C; Humidity: 20% to 95%

Dimensions (W x H x D)

168 x 205 x 126 mm

Net Weight

1.95kg

Application

Indoor

Security

Kensington Slot

Remote Control

Infrared

Power Consumption

36W

Tally Lamp

N/A

Speaker

Embedded Speaker

Yes

SPL

77 dB SPL (1W; 1m)

Maximum SPL

90 dB SPL at 0.5 meter

Microphone

Built-in Microphone

2 (Omnidirectional)

AI Noise Reduction

Yes

Pickup Range

5 m

Sensitivity

-33 dBFS

Frequency Response

20 Hz to 2KHz

Maximum SPL

133 dB SPL at 0.5 m

Loop Recording

Resolution

Up to 4K

Length of Video

5 minutes

Recording Modes

Loop & continuous

Loop Mechanism

Wipe the oldest clip

IP Streaming

Resolution

4K 30fps

Network Video Compress Formats

H.264, H.265

Maximum Frame Rate

4K 30fps

Network Interface

10 / 100 / 1000 Base-T

Multi-Stream Capability

2 (RTSP / Web Page), 4K 30fps (max.)

Network Protocols

IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP,

RTMP, VISCA over I

USB

Connector

USB 3.0

Video Formats

MJPEG, YUY2

USB Video Class (UVC)

UVC1.1

USB Audio Class (UAC)

UAC1.0

Audio Formats

PCM

Software Tools

IP Search and Configuration Tool

Support Windows® 7 or later

Warranty

Camera

3 Years

Accessories

1 Year

Package Contents

Package Contents

Camera, remote control, power adapter, power cord, screws(x2), USB cable, quick start guide

What is MD330U?

The MD330U is a intelligent healthcare manufactured by Avalue, designed specifically for peripherals-and-accessories applications. The AVer MD330U is a cutting-edge medical-grade PTZ camera designed for telemedicine and patient monitoring. Equipped with a 1/2.8\" Exmor CMOS sensor, it delivers ultra-clear 4K resolution and 30X optical zoom, ensuring precise imaging for clinical diagnostics. The detachable camera head allows for 360-degree close-up views, facilitating detailed examinations. AI-powered noise reduction enhances audio clarity, while infrared night vision ensures 24/7 monitoring without disturbing patients. Certified with IEC 60601-1-2, the MD330U integrates seamlessly into healthcare environments, supporting HDMI, USB 3.0, and IP streaming interfaces.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The MD330U is ideal for various industrial automation applications:

  • Healthcare and medical device integration
  • Telemedicine and patient monitoring
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
