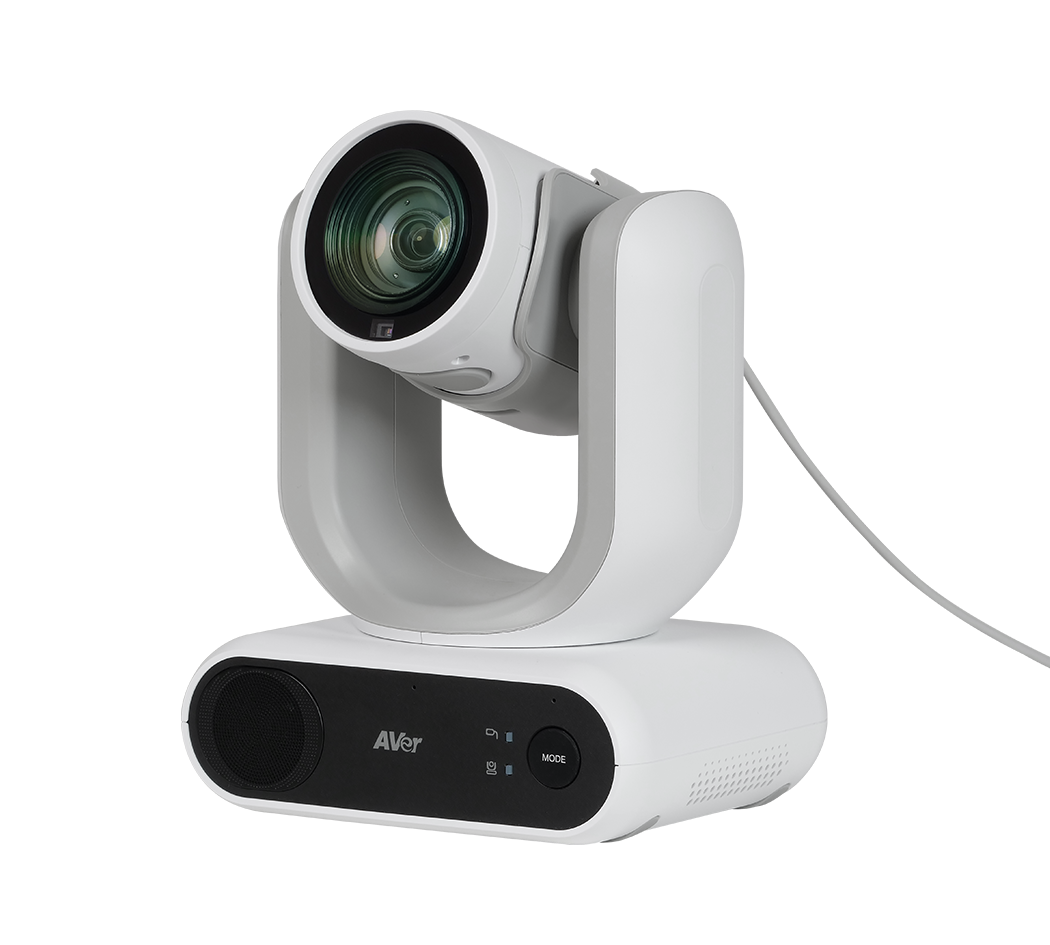

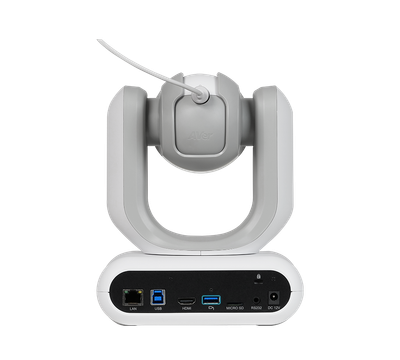

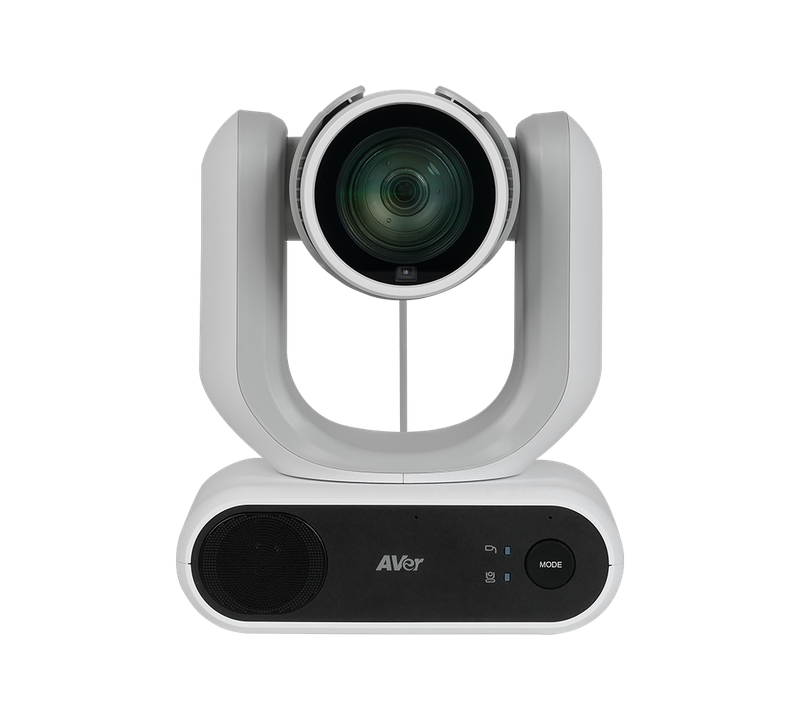

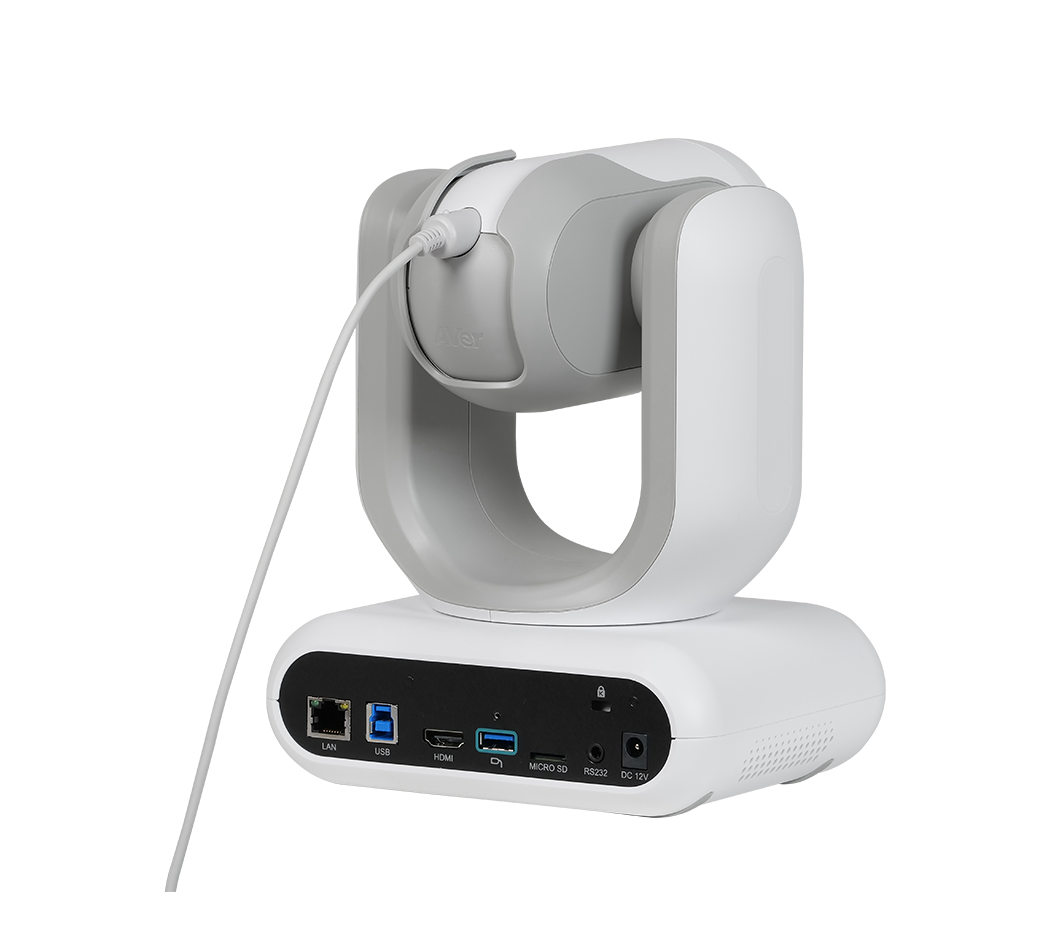

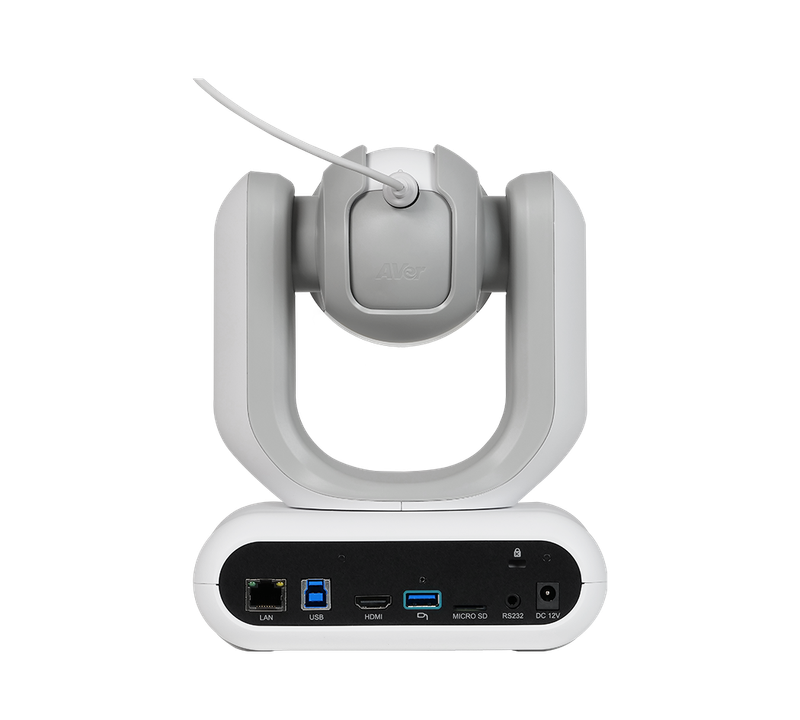

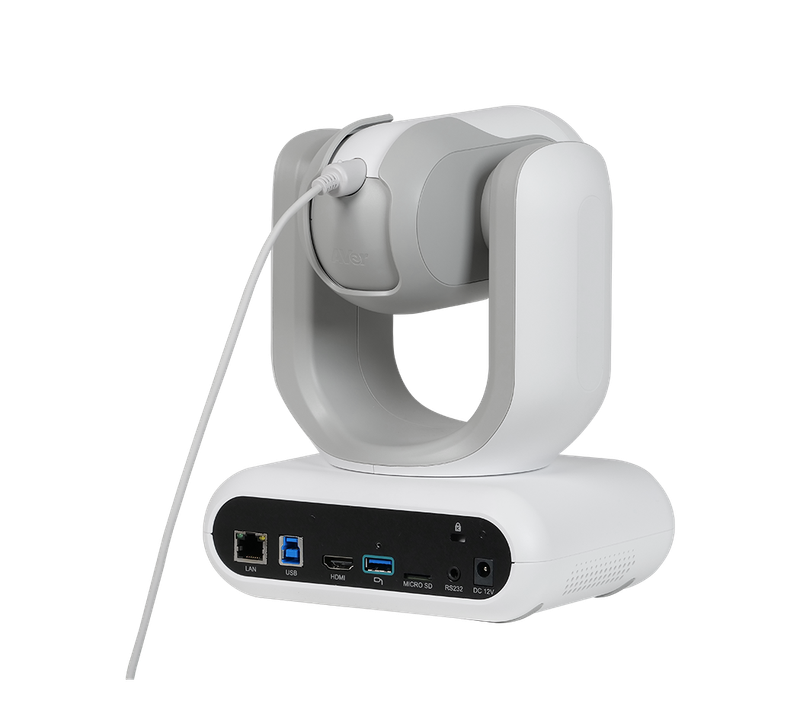

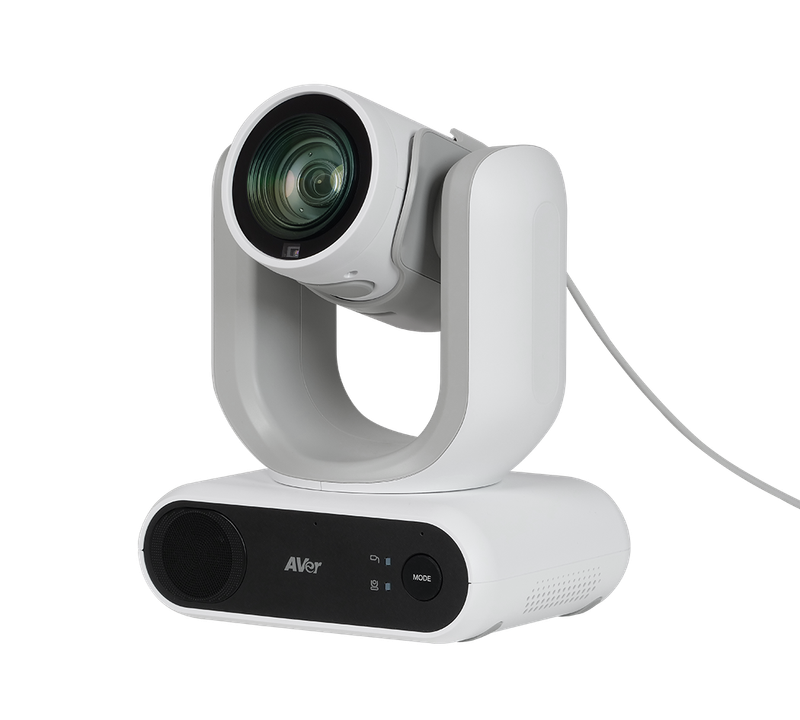

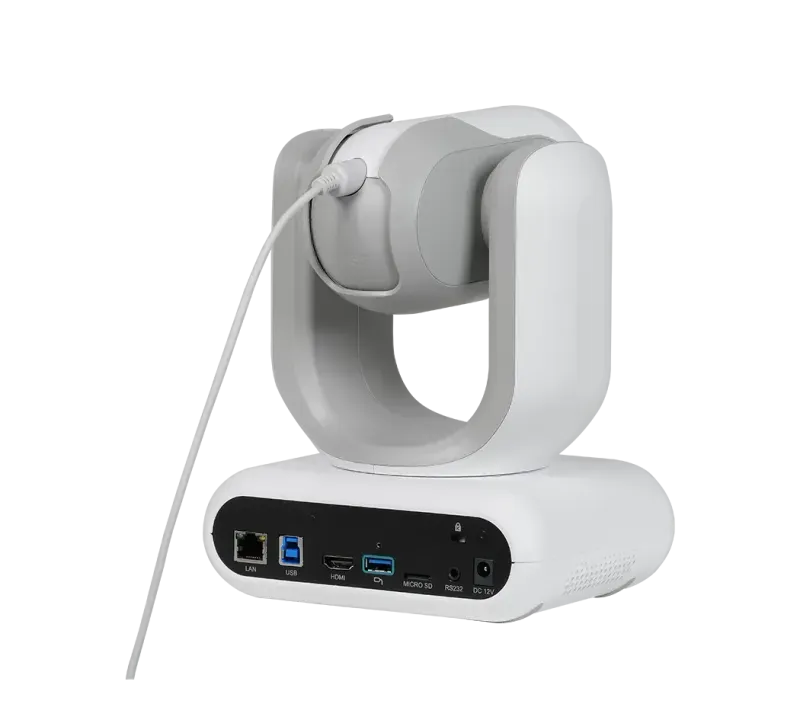

MD330UI

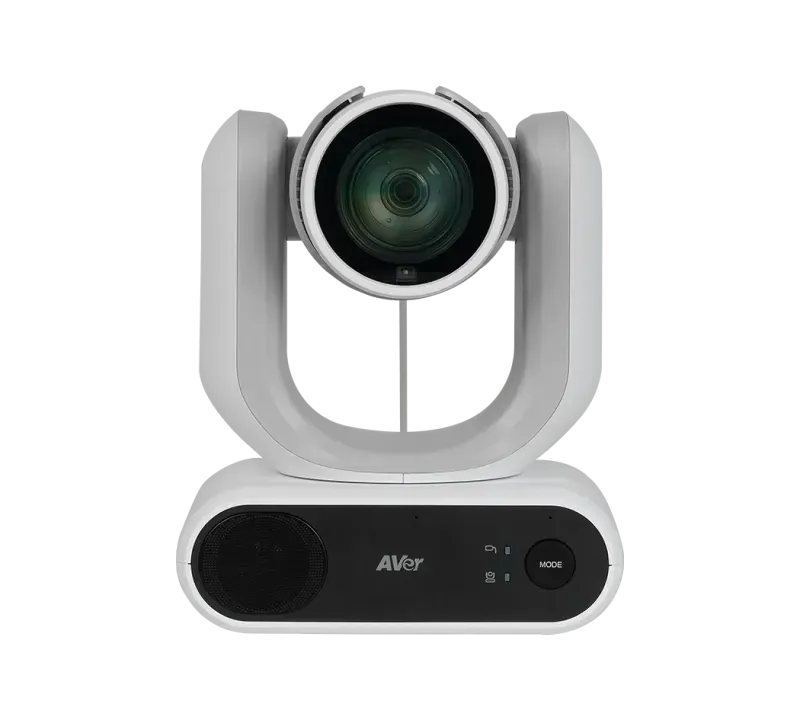

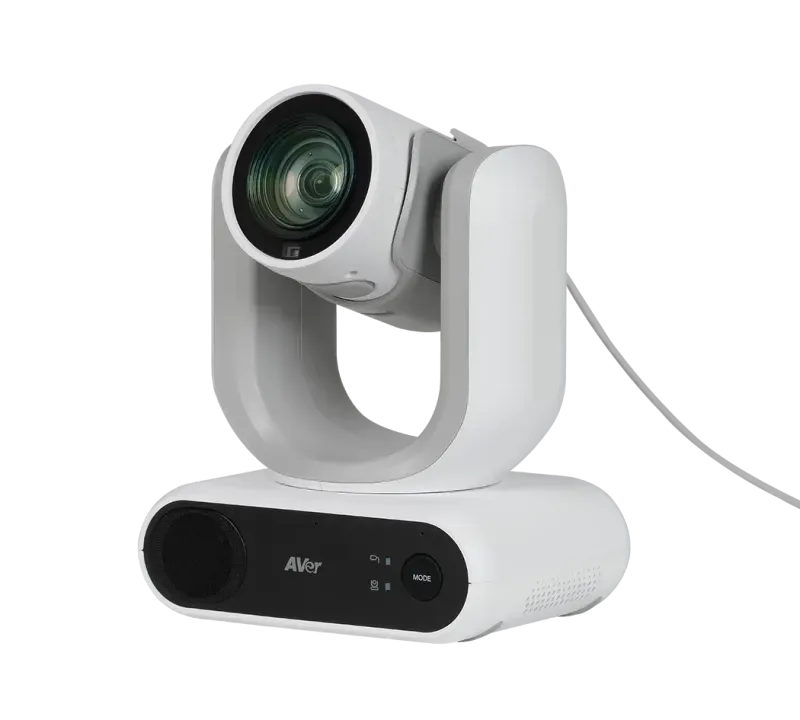

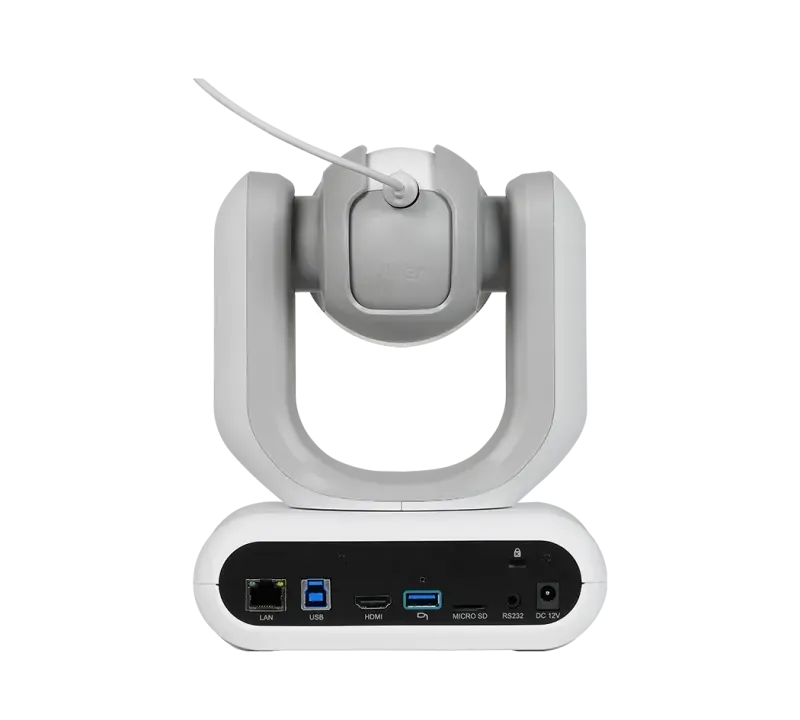

MD330UI FrontMD330UI FrontMD330UI FrontMD330UI Front
MD330UI FrontMD330UI FrontMD330UI FrontMD330UI Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

Product Description

The AVer MD330UI is a cutting-edge medical-grade PTZ camera designed for telemedicine and patient monitoring. Equipped with a 1/2.8\" Exmor CMOS sensor, it delivers ultra-clear 4K resolution and 30X optical zoom, ensuring precise imaging for clinical diagnostics.

The detachable camera head allows for 360-degree close-up views, facilitating detailed examinations. AI-powered noise reduction enhances audio clarity, while infrared night vision ensures 24/7 monitoring without disturbing patients.

Certified with IEC 60601-1-2, the MD330UI integrates seamlessly into healthcare environments, supporting HDMI, USB 3.0, and IP streaming interfaces.

Technical Specifications

Camera

Image Sensor

1/2.8\" 4K Exmor CMOS

Power Frequencies

50Hz/60Hz

Image Processing

Noise Reduction (2D / 3D), Flip, Mirror,WDR,BLC

Camera Control - Protocols

VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP)

Preset Positions

10 (IR), 256 (RS-232 / IP)

Preset Speed

Pan: 200°/sec, Tilt: 200°/sec

Pan / Tilt Speed (Manual)

Pan: 0.1° to 100°/sec, Tilt: 0.1° to 100°/sec

Pan / Tilt Angles

Pan: ±170°, Tilt: +90° / -35

Minimum Working Distance

Wide: 0.01 m, Tele: 1.2 m

Aperture (Iris)

F = 1.6 (Wide) to 4.7 (Tele)

Focal Length

f = 4.3 mm (Wide) to 129 mm (Tele)

Optical Zoom

30X

White Balance

Auto, Manual

Exposure Control

Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR

Shutter Speed

1/1 to 1/10,000 sec

Viewing Angles

DFOV: 75.5° (Wide) to 3.1° (Tele)

HFOV: 68.0° (Wide) to 2.7° (Tele)

VFOV: 41.7° (Wide) to 1.5° (Tele)

Gain

Auto, Manual

S/N Ratio

≥ 50dB

Minimum Illumination

0.7 lux (IRE50, F1.6, 30fps)

Output Resolutions

4K/30 (IP/UVC only), 1080p/60, 1080p/59.94, 1080p/50, 1080p/30

1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30

Effective Picture Elements

8 Megapixels

Interface

Video Outputs

HDMI, IP, USB

Audio Outputs

HDMI, IP, USB

General

Power Requirement

100-240V AC~ to 12V DC /3.34A

Operating Conditions

Temperature: 0°C to +35°C; Humidity: 20% to 80%

Storage Conditions

Temperature: -20°C to +60°C; Humidity: 20% to 95%

Dimensions (W x H x D)

168 x 205 x 126 mm

Net Weight

1.95kg

Application

Indoor

Security

Kensington Slot

Remote Control

Infrared

Power Consumption

36W

Tally Lamp

N/A

Speaker

Embedded Speaker

Yes

SPL

77 dB SPL (1W; 1m)

Maximum SPL

90 dB SPL at 0.5 meter

Microphone

Built-in Microphone

2 (Omnidirectional)

AI Noise Reduction

Yes

Pickup Range

5 m

Sensitivity

-33 dBFS

Frequency Response

20 Hz to 2KHz

Maximum SPL

133 dB SPL at 0.5 m

Loop Recording

Resolution

Up to 4K

Length of Video

5 minutes

Recording Modes

Loop & continuous

Loop Mechanism

Wipe the oldest clip

IP Streaming

Resolution

4K, 30fps

Network Video Compress Formats

H.264, H.265

Maximum Frame Rate

4K, 30fps

Network Interface

10 / 100 / 1000 Base-T

Multi-Stream Capability

2 (RTSP / Web Page), 4K 30fps (max.)

Network Protocol

IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP,RTMP, VISCA over IP

USB

Connector

USB 3.0

Video Formats

MJPEG, YUY2

USB Video Class (UVC)

UVC1.1

USB Audio Class (UAC)

UAC1.0

Audio Formats

PCM

Software Tools

IP Search and Configuration Tool

Support Windows® 7 or later

Warranty

Camera

3 Years

Accessories

1 Year

Package Contents

Package Contents

Camera, Remote Control, Power Adapter, Power Cord, Screws(x2), USB Cable, Quick Start Guide

What is MD330UI?

The MD330UI is a intelligent healthcare manufactured by Avalue, designed specifically for peripherals-and-accessories applications. The AVer MD330UI is a cutting-edge medical-grade PTZ camera designed for telemedicine and patient monitoring. Equipped with a 1/2.8\" Exmor CMOS sensor, it delivers ultra-clear 4K resolution and 30X optical zoom, ensuring precise imaging for clinical diagnostics. The detachable camera head allows for 360-degree close-up views, facilitating detailed examinations. AI-powered noise reduction enhances audio clarity, while infrared night vision ensures 24/7 monitoring without disturbing patients. Certified with IEC 60601-1-2, the MD330UI integrates seamlessly into healthcare environments, supporting HDMI, USB 3.0, and IP streaming interfaces.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The MD330UI is ideal for various industrial automation applications:

  • Healthcare and medical device integration
  • Telemedicine and patient monitoring
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
