Avalue · IoT Solution

A300

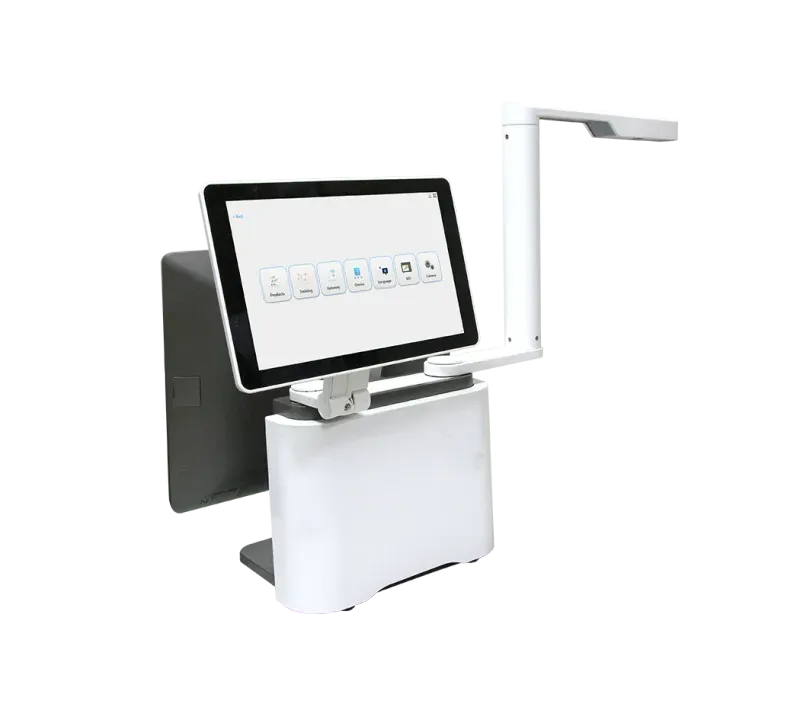

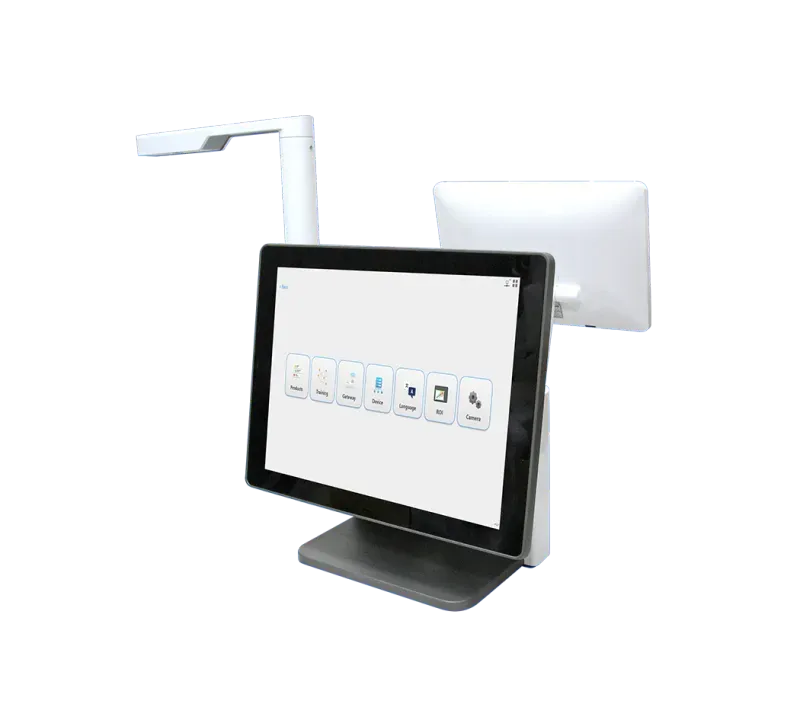

A300 FrontA300 Front
A300, Image 1A300, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Dual-display AI POS system (RENITY AIR family)
  • 6th Gen Intel® Core™ i5-1235U processor
  • 15" operator touch monitor + 10.1" customer touch monitor
  • Built-in RENITY AIR (AI Object Recognition) software
  • True-flat projected-capacitive touch, IP66 front panel
  • 4 x RS-232 (0/5/12V), 1 x GbE
  • 3 x USB 2.0 + 3 x USB 3.1
  • M.2 B-Key (WWAN+GNSS / SATA storage) + M.2 E-Key (Wi-Fi)
  • 19V DC input; CE, FCC, RoHS

Product Description

The Avalue A300 is a dual-display AI point-of-sale system in the RENITY AIR-AI family, built on a 6th Gen Intel® Core™ i5-1235U processor with a 15" operator touch monitor plus a 10.1" customer touch monitor, designed for AI object-recognition checkout in retail and food service.

It ships with the built-in RENITY AIR (AI Object Recognition) software so items are identified at the point of sale.

It offers 4x RS-232 (jumper-set 0/5/12V), Gigabit Ethernet, 3x USB 2.0 + 3x USB 3.1, M.2 expansion (B-Key WWAN+GNSS/SATA storage, E-Key Wi-Fi), an IP66 front panel and a 19V DC input, in a 357.7 x 325.03 x 196.55 mm chassis (CE/FCC/RoHS).

Technical Specifications

SBC

Intel® Core™ i5-1235U Processor

COM Port

4 x RS-232 (jumper setting, support DC+0/5/12V, default 0V)

LAN Port

1 x Gigabit Ethernet by RJ-45

DC Input

1 x Mini Din 4P (DC+19V only)

Adapter

+19VDC, Std. 65 watt (PUSB uses 180W adapter)

+19VDC, Std. 90 watt (PUSB uses 180W adapter)

Certification Information

CE, FCC, ROHS

LCD Size

15" 4:3 TFT LCD (LED backlight)

17" 5:4 TFT LCD (LED backlight)

Resolution

15" 1024 x 768 (4:3)

17" 1280 x 1024 (5:4)

Luminance

400 cd/m2

Touch Type

True Flat Projected Capacitive Technology

USB

3 x USB 2.0

3 x USB 3.1

Operating Temp.

0°C ~ 40°C

Storage Temp.

-20°C ~ 60°C

Operating Humidity

10% ~ 90% RH, non-condensing

IP Rating

IP66 (Front Panel)

Dimension (W x L x D)

357.7 x 325.03 x 196.55 mm

Power Requirement

DC 19V

Color

Main Unit: Space Gray / Black / White

Ordering Information

A300

What is A300?

The A300 is a iot solution manufactured by Avalue, designed specifically for air-ai-solution applications. The Avalue A300 is a dual-display AI point-of-sale system in the RENITY AIR-AI family, built on a 6th Gen Intel® Core™ i5-1235U processor with a 15" operator touch monitor plus a 10.1" customer touch monitor, designed for AI object-recognition checkout in retail and food service. It ships with the built-in RENITY AIR (AI Object Recognition) software so items are identified at the point of sale. It offers 4x RS-232 (jumper-set 0/5/12V), Gigabit Ethernet, 3x USB 2.0 + 3x USB 3.1, M.2 expansion (B-Key WWAN+GNSS/SATA storage, E-Key Wi-Fi), an IP66 front panel and a 19V DC input, in a 357.7 x 325.03 x 196.55 mm chassis (CE/FCC/RoHS).

Key Features & Benefits

  • Dual-display AI POS system (RENITY AIR family)
  • 6th Gen Intel® Core™ i5-1235U processor
  • 15" operator touch monitor + 10.1" customer touch monitor
  • Built-in RENITY AIR (AI Object Recognition) software
  • True-flat projected-capacitive touch, IP66 front panel
  • 4 x RS-232 (0/5/12V), 1 x GbE
  • 3 x USB 2.0 + 3 x USB 3.1
  • M.2 B-Key (WWAN+GNSS / SATA storage) + M.2 E-Key (Wi-Fi)
  • 19V DC input; CE, FCC, RoHS

Applications & Use Cases

The A300 is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • Ai object-recognition checkout in retail and food service
  • Wireless connectivity and remote monitoring applications
  • Legacy equipment integration and serial communication
  • High-performance computing and data processing tasks
  • Interactive control interfaces and operator panels
  • Peripheral device connectivity and data transfer
  • Data logging and storage-intensive operations
