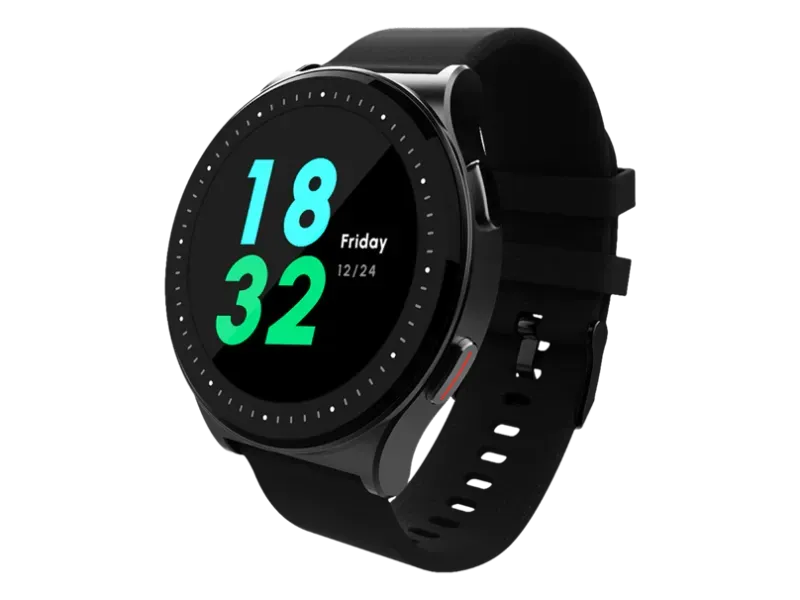

UG-T320H

Series: UG

Manufactured byAvalue

The Avalue UG-T320H is a high-band wearable UWB wristband tag for the ARTEMIS real-time location system (RTLS), combining indoor location with health and safety monitoring. It supports high-band IEEE 802.15.4a UWB (Channels 5/9) plus smart rest mode, heart-rate, blood-oxygen and activity monitoring, with SOS alert, vibration, buzzer and message functions. With two buttons (Home / Service Call), a round ø45 x 14.5 mm 45 g body and magnetic +5V charging, it offers an adjustable 110 Kbps / 850 Kbps / 6.8 Mbps physical rate, ToF/TDoA modes, 0~45°C operation and TELEC RF compliance — a health-aware RTLS wristband for TELEC regions.

Key Features

High-band wearable UWB wristband tag for the ARTEMIS RTLS
IEEE 802.15.4a UWB, high-band Channels 5/9 (6.48/7.98 GHz)
Heart-rate, blood-oxygen and activity monitoring, smart rest mode
SOS alert, vibration, buzzer, message
2 buttons (Home / Service Call)
ToF / TDoA working modes
+5V DC-in magnetic charging
0°C ~ 45°C operation
Meets TELEC RF regulation; ø45 x 14.5 mm, 45 g

Technical Specifications

General

Standard	IEEE802.15.4a
External I/O	Button x 2 (Home/Service Call)
Dimension (mm)	ø45 x 14.5 (wrist band excluded)
Weight (g)	45
Power Requirement	+5V DC-in with magnetic charging sit
Operating Temperature	0°C~45°C(32~113°F )

UWB

Working Frequency	Channel 5: 6.48 (GHz), Channel 9: 7.98 (GHz)
Physical Rate	110 Kbps / 850 Kbps / 6.8 Mbps (Adjustable)
Channel Bandwidth	500 MHz
Antenna Specification	Chip antenna, peak gain -6.43dbi (average)
Working Mode	ToF / TDoA

Certification

Regulatory Certification	TELEC

Ordering Information

Ordering Information	UG-T320H-A1-1R
