FTC-05WN

Series: FTC

Manufactured byAvalue

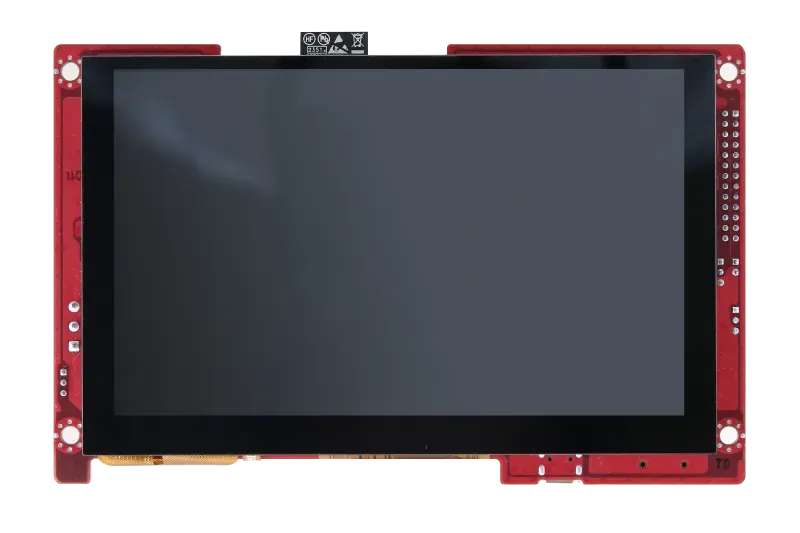

The Avalue FTC-05WN is a Flex Touch Console for HMI applications, built on an STMicroelectronics STM32H7 MCU with a 5" 800x480 capacitive touch panel, designed as a compact, easily-programmed operator interface for machines and IoT equipment. With 256MB system memory, a Micro SD slot and a no-code / low-code (Python) development model backed by a free Integrated Development Environment (IDE), it shortens HMI deployment. It provides Wi-Fi, RS-485, a Micro USB OTG port and a customizable interface set (Ethernet, RS-232, CAN bus options), on a 12-24V DC input over a wide -15 ~ 65°C range, in a 120.7 x 75.8 mm form factor.

Key Features

Flex Touch Console for HMI applications
STMicroelectronics STM32H7 MCU
5" 800 x 480 capacitive touch panel
256MB system memory; Micro SD slot
Wi-Fi + RS-485; Micro USB OTG
Customizable Ethernet / RS-232 / CAN bus options
No-code / low-code (Python) development
Free Integrated Development Environment (IDE)
DC 12-24V input; wide -15 ~ 65°C operating range

Technical Specifications

Specification

MCU	STM32H7
System Memory	2Gb (256MB)
Touch Panel	Capacitive TP
Edge I/O	1 x Micro SD slot, 1 x Micro USB (use for OTG), 1 x RS485, 1 x WIFI
Resolution	800 x 480

Power Requirement

Power Input	DC 12-24V
Power Mode	AT

Mechanical & Environmental

Operating Temperature	-15~65°C (-5~149°F)
Storage Temperature	-30~80°C (-22~176°F)
Dimension	120.7 x 75.8

Software Support

OS	Non OS (no-code / low-code Python development via free IDE)

Ordering Information

Order Information	FTC-05WN-A1-01R
