APC-15W00

Series: APC

Manufactured byAvalue

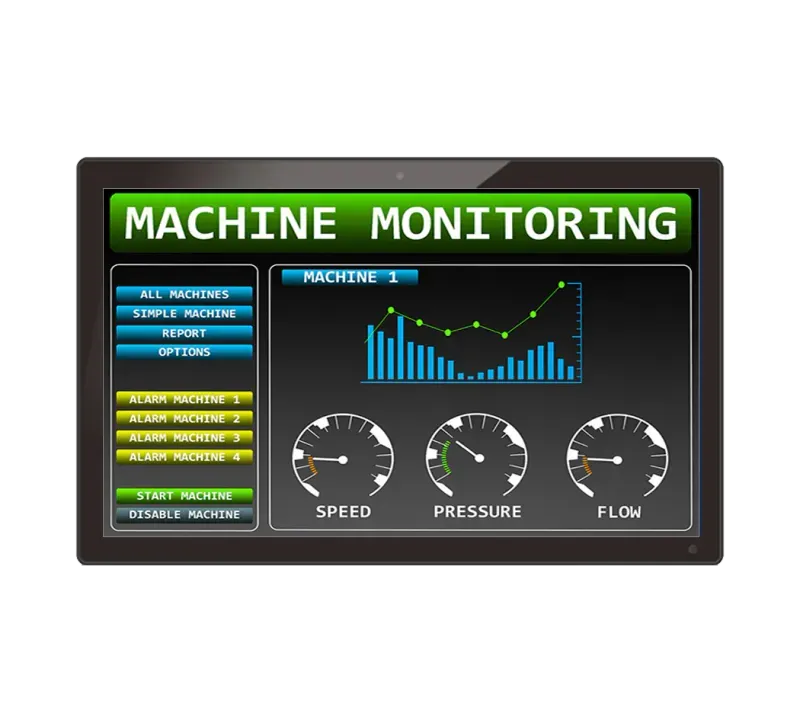

The Avalue APC-15W00 is a 15.6" Full-HD (1920x1080) projected-capacitive multi-touch industrial monitor designed as a compact, fanless display for retail, signage, and interactive front-ends. With HDMI and AV (CVBS+Audio) inputs, a built-in 5MP camera, and dual 2W speakers, it works as a self-contained touch display driven by an external source. The 10-point PCAP touch panel reports over USB and the unit runs on a simple +12V DC input with fanless 0~40°C operation. A multi-language OSD, SD/MMC/MS card slot, remote controller, adapter, and stand make the APC-15W00 an easy-to-deploy interactive monitor.

Key Features

15.6" Full-HD (1920x1080) LCD with projective-capacitive 10-point multi-touch
HDMI input + AV input (CVBS + Audio)
Built-in 5.0MP camera
2 x 2W speakers, 3.5mm earphone
Multi-language OSD
USB touch/camera interface, SD/MMC/MS card slot
+12V DC input, fanless 0~40°C
VESA 100 x 100mm, ABS+PC construction
Ships with remote controller, adapter and stand

Technical Specifications

System Information

Other	Multi OSD language

Audio

Audio Codec	1 x 3.5mm earphone
Speaker Output	2 x 2W

Power Requirement

DC Input	+12V

External I/O

USB Port	1 x USB 2.0, 2 x USB 2.0 for Touch/Camera

Panel

LCD Size	15.6"
Resolution	1920 x 1080
Luminance	250 cd/m2
Contrast ratio	700
Viewing angle	85 (U), 85 (D), 85 (L), 85 (R)
Backlight	LED
Touch Type	Projective capacitive multi-touch supports up to 10 points

I/O

HDMI	1 x HDMI input
Other	1 x SD/MMC/MS
Camera	5.0 M/P (PC HDMI input mode for use)

DC In / Out Connector

Input Power Connector	Power Jack : DC 12V power input

Mechanical & Environmental

Operating Temp.	0 ~ 40 degree
Operating Humidity	20~80%RH
Dimension (W x L x D)	388 x 245 x 27 mm
VESA	100 x 100mm
Weight	1.7 Kg
Color	black
Construction	ABS + PC

Accessory

Accessory	1 x Remote Contorller, 1 x Adapter, 1 x Stand

Ordering Information

Ordering Information	APC-15W00
