OFM-3700

Series: OFM

Manufactured byAvalue

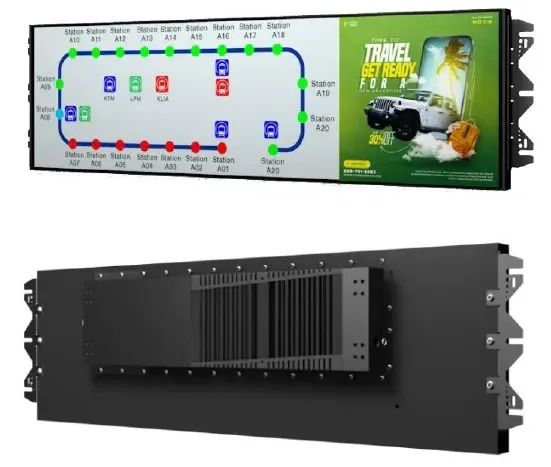

The Avalue OFM-3700 is a 37" high-brightness stretched bar display (CVD) built for demanding transportation environments. With a 1920x540 ultra-wide Hi-TNi panel, 1000-nit brightness, optical bonding with low-reflect cover glass, and a 5000:1 contrast ratio, it delivers a clear, robust image for in-vehicle and platform signage. An IP65/IK10-rated front, a wide -25~55°C operating range, EN50155/EN45545 rail certification, and a wide +24~110V DC input make the OFM-3700 a rugged, integration-ready stretched display for transportation passenger information.

Key Features

37" (1920x540 ultra-wide stretched bar) high-brightness display (CVD)
1000-nit sunlight-readable Hi-TNi panel
Optical bonding with low-reflect cover glass
5000:1 contrast ratio, 11 ms response
IP65 / IK10 rated front
Wide -25~55°C operating temperature
EN50155 / EN45545 rail certification
HDMI input, wide +24~110V DC input
Application: transportation passenger information

Technical Specifications

Certification

Certification Information	EN50155/EN45545

External I/O

HDMI	1x HDMI

Panel

LCD Size	37"
Resolution	1920 x 540
Luminance	1000 cd/m2
Contrast ratio	5000
Frame Rate (Hz)	60
Active Display Area (mm)	904.32 x 254.34
Response time	11 ms

Mechanical & Environmental

Operating Temp.	-25°C ~ 55°C
Storage Temp.	-30°C ~ 85°C
Power Consumption (W/max.)	85
Power Requirement	+24~+110V DC In
Dimension (W x L x H)	961 x 290.9 x 86.76 mm

Ordering Information

OFM-3700-X000G-1R | 37" Open frame transportation monitor/ 1920 x 540/ 1000nits/ HDMI/ DC-IN/ EN45545/EN50155 certify/+24 ~ 110V DC-in, VMS-RPPS, Intel® 13th Core 7/5/3/Celeron®Processor/4LAN/4COM/4USB/2DP/2HDMI, VMS-CFS, 8th/9th Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors/2LAN/3COM/4USB/1DP/2HDMI, AIB-Q6490 | Qualcomm® Kryo™ 670, 8 cores, up to 2.7 GHz, 12 TOPS (INT8)/1LAN/1COM/6USB/1HDMI/DC IN, AIB-3588 | Rockchip RK3588/2LAN/4USB/1HDMI IN/2HDMI OUT/1Type C DP/DC IN, AIB-3566 | Rockchip RK3566/1LAN/2USB/1HDMI IN/1HDMI OUT/DC IN
