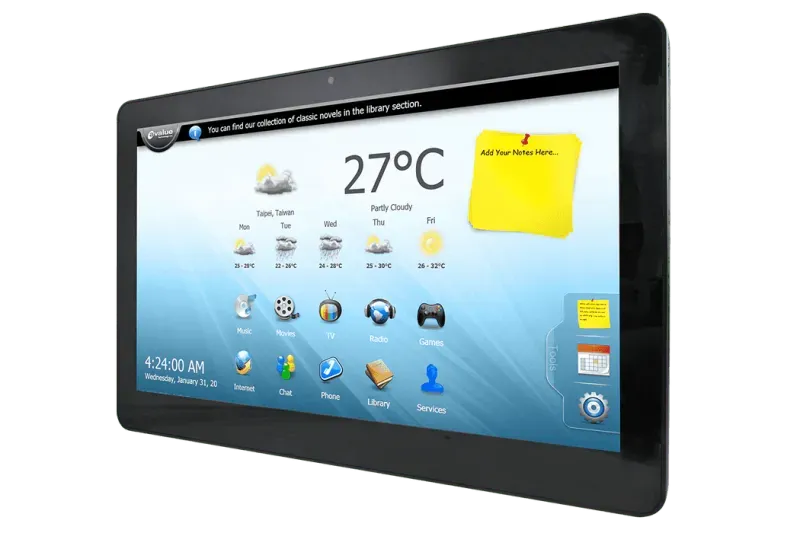

APC-2138

Series: APC

Manufactured byAvalue

The Avalue APC-2138 is a 21.5" Full-HD ultra-light expandable industrial touch panel PC powered by 11th Generation Intel Core i3/i5 (Tiger Lake) on the EMX-TGLC/EMX-TGLP SBC, designed as a sleek, fanless terminal for smart-ward bedside, point-of-care, and self-service touch HMI. With dual DDR4 3200MHz SO-DIMM (up to 64GB), onboard TPM 2.0, and flexible M.2 expansion, it delivers responsive x86 performance in a slim plastic enclosure with an IP65 front. The 1920x1080 PCAP 10-point multi-touch panel pairs with Intel I225IT 2.5GbE + Intel I219LM Gigabit Ethernet, 4x USB 3.0, dual DP++, and dual 2W speakers. M.2 Key-B (WWAN+GNSS/NVMe SSD) and M.2 Key-E (Wi-Fi/CNVi) slots plus a 2.5" SSD with service window add expansion. A wide +12~24V DC input and fanless operation make the APC-2138 a durable bedside and HMI terminal.

Key Features

21.5" Full-HD (1920x1080) PCAP 10-point multi-touch panel PC, fanless
11th Gen Intel Core i5-1135G7 / i3-1115G4 (Tiger Lake), EMX-TGLC/TGLP
2 x 260-pin DDR4 3200MHz SO-DIMM, up to 64GB (non-ECC)
Onboard Nuvoton NPCT754 TPM 2.0
M.2 Key-B (WWAN+GNSS or NVMe SSD), M.2 Key-E (Wi-Fi / CNVi)
2.5" SSD bay with service window + M.2 slot
Intel I225IT 2.5GbE + Intel I219LM GbE, 4x USB 3.0, 2x DP++
Front panel IP65, 2x 2W speakers
Wide +12 ~ +24V DC input, fanless; CE / FCC Class B / VCCI

Technical Specifications

System Information

Processor	Intel® Core™ i5-1135G7 (up to 4.2GHz, quad-core, 8M Cache, TDP: 15W), Intel® Core™ i3-1115G4 (up to 3.0GHz, dual-core, 6M Cache, TDP: 15W)
Platform Controller Hub	Intel® Tiger Lake SoC integrated
System Memory	2 x 260-pin DDR4 3200 MHz SO-DIMM supports up to 64GB (non ECC only)
I/O Chipset	EC iTE IT8528E
Watchdog Timer	H/W reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor	CPU temperature monitoring, Voltages monitoring, CPU fan speed control
TPM	Onboard NuvoTon NPCT754AADYX support TPM 2.0
SBC	EMX-TGLC / EMX-TGLP

Expansion

Expansion	1 x M.2 type B 3042/3052/2242/2260/2280 support WWAN+GNSS or NVMe SSD, 1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 signal)

Storage

Storage	1 x 2.5 Drive bay, 1 x M.2 slot

Display

Graphic Chipset

Intel® 11th Generation CPU integrated

Spec. & Resolution

DP1+DP2 (DP1.4): Max: 7680 x 4329@60 Hz, DP3+DP4 (DP1.4): Max: 7680 x 4329@60 Hz, Single DP port (2021/2 Lab test): 5120 x 2160 @60 Hz, DVT check Max: 7680 x 4329@60 Hz, Note: This resolution is actual test result. Intel resolution as below:, 2 x DP++ : 1920 x 1080@60 Hz, 2 x DP: 4096 x 2304@60 Hz, LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (chrontel CH7511B eDP to LVDS), eDP 4096 x 2304@60 Hz, *2 x DP++, LVDS, eDP default (thin mini ITX), optional: DP3 and DP4 for full height, (Maximum: 6 for quadruple independent displays)

Audio

Audio Codec	Realtek ALC888S
Speaker Output	2 x 2W

Ethernet

LAN Chipset	1 x Intel® I225IT 2.5 Gigabit Ethernet, 1 x Intel® I219LM Gigabit Ethernet PHY
Ethernet Interface	10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input	+12V~+24V
DC Input Connector	4-pin din

Software Support

OS	Win10 / Win11

Certification

Certification Information	CE, FCC Class B, VCCI

Specification

Dimension	539.6 * 342.6 * 45.2 mm

Panel

LCD Size	21.5"
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	248.25um (H) x248.25um (V)
Luminance	250 cd/m2
Contrast ratio	3000
Viewing angle	89 (U), 89 (D), 89 (L), 89 (R)
Response time	18ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Touch Light Transmission	89%

External I/O

USB Port	4 x USB 3.0
LAN Port	2 x LAN
Display Port	2 x DP++
Switch	Power switch
DC input	24V DC in
LED indicator	Power LED

Mechanical & Environmental

Operating Temp.	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.	-10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity	0% @ 90% Relative humidity, non-condensing
Dimension (W x L x H)	539.6 x 342.6 x 45.2 mm
Weight	6.3 Kg
Vibration Test	With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test	With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms
IP Rating	Front IP65
Mounting Kit	Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Power Mode	AT/ATX
System Fan	Fanless
Construction - Front	Plastic- black
Construction - Rear	Plastic- black

Component

Adapter	Input:100 ~ 240Vac/ 50 ~ 60Hz, Output:90W adapter (24V @ 3.75A adapter) AC-DC adapter

Packing List

Packing List	1 x APC-2138, 1 x Power adapter

Ordering Information

APC-2138-C15-A1R | 21.5 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black), Intel Core i3-1115G4/4GB Memory/4USB3.0/2LAN/2DP/SPK/90W Power adapter, APC-2138-C35-A1R | 21.5 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black), Intel Core i5-1135G7/4GB Memory/4USB3.0/2LAN/2DP/SPK/90W Power adapter, APC-2138-S15-A1R | 21.5 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black), Intel Core i3-1115G4E/4GB, Memory/4USB3.0/2LAN/2DP/SPK/90W Power adapter, APC-2138-S45-A1R | 21.5 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black), Intel Core i5-1145G7E/4GB, Memory/4USB3.0/2LAN/2DP/SPK/90W Power adapter, E971XAP2138002R | WIFI Kit for APC-2138, E971XAP2138000R | Camera Kit for APC-2138, E170203183DR | EU Power Cord, E1702031835R | US Power Cord, E17120318001R | JP Power Cord, E170P060370R | UK Power Cord
