Product Datasheet
20 May 2026
Panel PC / Monitor / Mobile · Industrial-Panel-PC

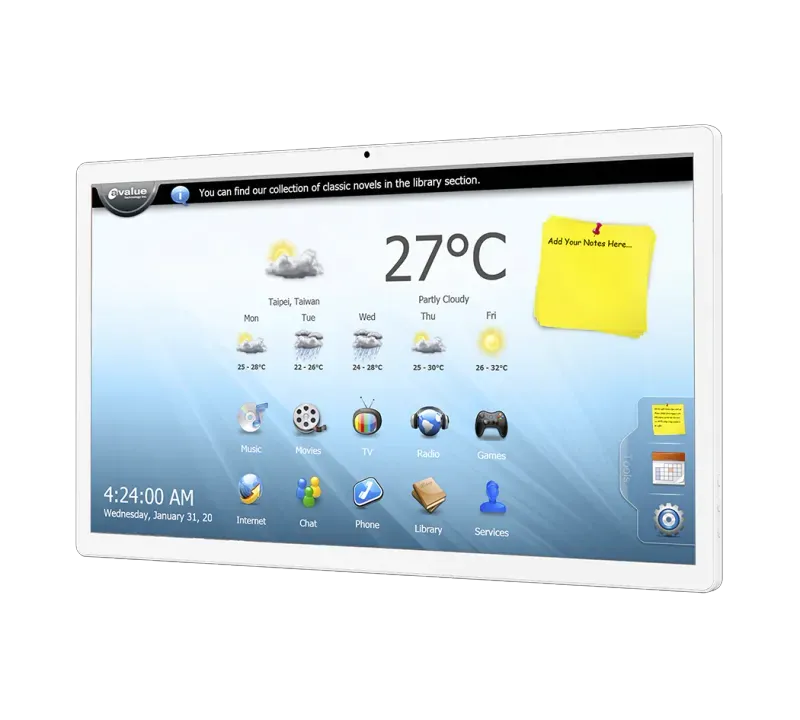

APC-21WR6
Series: APC
The Avalue APC-21WR6 is a 21.5" Full-HD ultra-slim industrial touch panel PC powered by the Rockchip RK3576S (quad-core Cortex-A53 plus quad-core Cortex-A72) ARM processor, designed as a sleek, fanless front-end for intelligent POS and digital signage. With 4GB onboard RAM, 64GB eMMC, and Android 14 with Google EDLA certification, it delivers a smooth, secure app experience in a slim plastic enclosure. The 1920x1080 IPS PCAP 10-point multi-touch panel pairs with a Mali-G52 MC3 GPU, an 8.0MP MIPI camera, NFC, quad-microphone array, and dual 5W speakers. Connectivity includes Gigabit LAN with Powered-LAN (802.3bt) support, HDMI-in, USB 3.0/2.0, a full-function USB Type-C port, and optional Wi-Fi 6/BT 5.4. A 12V DC input and fanless 0~40°C operation make the APC-21WR6 an attractive, low-maintenance interactive display.
Key Features
- 21.5" Full-HD (1920x1080) IPS PCAP 10-point multi-touch ultra-slim panel PC, fanless
- Rockchip RK3576S quad-core Cortex-A53 + quad-core Cortex-A72
- Onboard 4GB RAM, 64GB eMMC
- Mali-G52 MC3 GPU (OpenGL ES 3.2, Vulkan 1.2, OpenCL 2.1)
- Android 14 with Google EDLA
- Gigabit LAN with Powered-LAN (802.3bt) support
- HDMI-in, USB 3.0, USB 2.0, full-function USB Type-C
- 8.0MP MIPI camera, NFC, quad microphone, optional Wi-Fi 6 / BT 5.4
- DC 12V input, fanless 0~40°C
Technical Specifications
System Information
| Processor | Rockchip RK3576S Quad core cortex A53+Quad core cortex A72 |
|---|---|
| System Memory | Onboard 4GB RAM |
Storage
| Storage | Onboard 64GB eMMC |
|---|
Display
| Graphic Chipset | Mali-G52 MC3 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.2, OpenCL 2.1 |
|---|
Audio
| Audio Interface | Standard Quad Microphone , Support noise reduction and echo cancellation |
|---|---|
| Speaker Output | 2 x 4Ω 5W |
Ethernet
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
|---|
Power Requirement
| DC Input | +12V |
|---|---|
| DC Input Connector | DC Jack |
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz, Output: 36W (12V@3A) AC-DC adapter |
Software Support
| OS | Android 14 |
|---|
Panel
| LCD Size | 21.5" |
|---|---|
| LCD Panel | IPS |
| Resolution | 1920 x 1080 |
| Luminance | 350 cd/m2 |
| Contrast ratio | 3000 |
| Viewing angle | 89 (U), 89 (D), 89 (L), 89 (R) |
| Response time | 18ms |
| Backlight | ELED |
| Touch Type | Projective capacitive multi-touch up to 10 points |
External I/O
| USB Port | 1 x USB 3.0, 1 x USB 2.0, 1 x USB Type C (Full Function, Except for charging and DP function) |
|---|---|
| LAN Port | 1 x RJ45 |
| HDMI | 1 x HDMI-in |
| DC input | 1 x DC Jack |
System Control
| Control Buttons | Power/Vol+/Vol- Button |
|---|
Data Collection
| NFC | Suppout 13.56MHz，ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693,JIS X 6319-4 & MIFARE |
|---|---|
| Camera | 1 x MIPI 8.0MP Camera |
Wireless Communication
| WLAN | Optional Wi-Fi 802.11b/g/n/a/ac/ax |
|---|---|
| Bluetooth | Optional BT 5.4 |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 20~80%RH |
| Dimension (W x L x H) | 506.9 x 305.4 x 32.2mm |
| Weight | 3.5kg |
| Mounting Kit | Wall mount bracket |
| VESA | 75 x 75mm |
| Power Requirement | DC 12V/Powered LAN (802.3bt) |
| Power Mode | AT/ATX (AT is default) |
| System Fan | Fanless |
| Construction | Plastic ABS |
Packing List
| Packing List | 1 x APC-21WR6, 1 x AC/DC 36W Adapter 12V/3A, 1 x Power Cord, 1 x USB Cable (Type-A to Type-C), 1 x Wall mount bracket, 5 x KA4.0*3mm Screws with Wall plug, 2 x M4.0*46mm Screws, 4 x EVA Cotton, 1 x Spirit Level |
|---|
