ARC-15W32

Series: ARC

Manufactured byAvalue

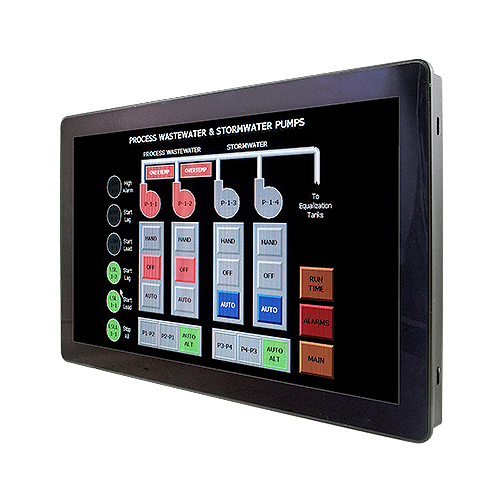

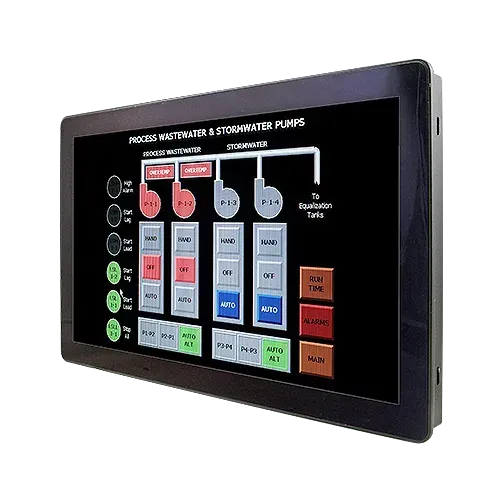

The Avalue ARC-15W32 is a 15.6" industrial touch panel PC powered by a 6th Generation Intel® Core™ i3/i5/i7 processor. It features a fanless design, projected capacitive multi-touch screen, dual Gigabit LAN, multiple USB and COM ports, HDMI support, and wide voltage input. The panel is IP65 rated at the front and IP41 at the rear, making it suitable for rugged environments with flexible mounting options and a wide operating temperature range.

Key Features

Onboard 6th Gen Intel® Core™ i5 6300U 2.40GHz BGA Processor
Full Flat Front Panel with Projected Capacitive Touch Supports Multi Touch
One SODIMM sockets supports up to 16GB DDR4 2133 SDRAM
4 USB3, 2 COM
Dual Intel GigabitLAN
Wide Voltage +12V ~ +26V Input, ErP Power
Available Expansion for Audio, USB, COM, HDMI, MPCIe, GPIO CAN Bus
IP65 Compliant Front Panel, IP41 Rear Box
With Panel
Mount kits included
TPM 1.2 Function (Optional)

Technical Specifications

System Information

Processor	6th Gen Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor, i3 and i7
System Memory	1 x 260-Pin DDR4 2133MHz SO-DIMM up to 16 GB
I/O Chipset	EC ITE IT8528E
Watchdog Timer	H/W Reset, 1sec. ~ 65535min. and 1sec. or 1min./step
H/W Status Monitor	Monitoring CPU & System Temperature and Voltage
SBC	ARC-SKLU
CPU Cooler (Type)	Fanless heatsink
Other	3 x Knockouts for antenna mounting

Panel

LCD Size	15.6", 16:9
Display Type	WXGA
Resolution	1366 x 768
Pixel pitch	0.252mm(H) x 0.252mm(V)
Luminance	300 cd/m²
Contrast ratio	500
Viewing angle	80 (U), 80 (D), 80 (L), 80 (R)
Response time	8 ms
Backlight	LED
Touch Type	Projective Capacitive Multi-Touch up to 10 points
Touch Light Transmission	88 %
Touch Controller	USB touch (EETI)

Expansion

Expansion	1 x Mini PCIe Support mSATA, 1 x 80-pin IET interface

Storage

Storage	1 x 2.5" Drive Bay (7mm HDD Restricted)

External and Internal I/O

USB Port	4 x USB3 3.0
COM Port	1 x RS-232/422/485, 1 x RS-232
SATA	1 x SATA III
LAN Port	2 x RJ-45

Display

Graphic Chipset	Intel® Skylake SoC integrated Graphics, Supports optional dual display
Spec. & Resolution	HDMI: Max. resolution 4096x2160 @ 24Hz (Optional by IET module)

Audio

Audio Codec	Realtek ALC888S
Speaker Output	2 x 2W

Ethernet

LAN Chipset	1 x Intel® I211AT, 1 x Intel® I219LM
Ethernet Interface	10/100/1000 Base-Tx GbE compatible

Certifications

Certification Information	CE/FCC Class B

Software Support

OS Information	Windows 7/ 10 / Linux

Power Requirement

DC Input	+12V ~ +26V
DC Input Connector	Lockable DC Jack (default), Optional for phoenix connector
Adapter	Input: 100 ~ 240Vac/ 50 ~ 60Hz, Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter
ACPI	Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Mechanical & Environmental

Operating Temperature	-10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	0% ~ 90% Relative Humidity, Non-condensing
Dimension (W x L x H)	391.2 x 239.2 x 57.5 mm
Weight	3.7Kgs
Vibration Test	With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Test	Operating with SSD/CFast/mSATA : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G
IP Rating	Front IP65, Rear IP41
Mounting Kit	Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm, Panel Mount with mounting kits
Power Requirement	DC +12V ~ +26V, wide voltage single power input, TVS component for surge protection, Reverse current/voltage protection
Power Mode	AT/ATX (ATX is default setting)
System Fan	Fanless
Construction - Front	Die Casting with Cover lens
Construction - Rear	Black Die Casting
Relative Humidity	0~90% Relative Humidity, Non-condensing
Fanless	Yes
Drop Test	ISTA 2A, IEC-60068-2-32 Test:Ed

Ordering Information

ARC-15W32-630-B2R, 15.6" 1366x768 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch, 6th Gen Intel Core i5 6300U 2.4GHz CPU/2GLAN/2COM/4USB/SPK/12~26V input/12V Adapter, Optional IET Module list:, ACC-ARC-USB-1R, 4 x USB 3.0 Kit for ARC Series, ACC-ARC-AUDIO-1R, HDMI + 5.1 CH Audio Kit for ARC Series, ACC-ARC-MPCIE-1R, HDMI + MPCIE w/SIM Kit for ARC Series, ACC-ARC-COM-1R, 2 x Isolated RS-232 Kit for ARC Series, ACC-ARC-COM-2R, 3 x RS-232 Kit for ARC Series, ACC-ARC-COM-3R, 2 x RS-232 + USB Kit for ARC Series, ACC-ARC-COM-4R, 2 x RS-232 + LAN Kit for ARC Series, ACC-ARC-GPIO-1R, 12-bit GPIO + 2-pin CAN Bus Kit for ARC Series, ACC-ARC-OBDII-1R, OBDII - CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle), ACC-ARC-OBDII-2R, OBDII - CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle), ACC-ARC-OBDII-3R, OBDII - CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle)

Certifications

FCCCertified

CECertified

UKCACertified

RoHSCompliant
