Avalue · Panel PC / Monitor / Mobile

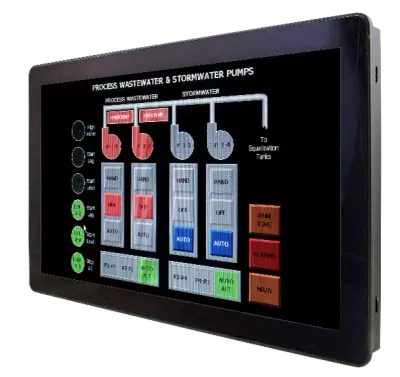

ARC-15W42

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

15.6" Full HD (1920x1080) PCAP 10-point multi-touch, fanless
13th Gen Intel Raptor Lake-PS Core 3/5/7 (LGA1700, HID-2340 SBC)
1 x DDR5 4800MHz SO-DIMM, up to 32GB
Onboard TPM 2.0 (NuvoTon NPCT754)
Dual 2.5GbE: Intel I225LM + Intel I226LM
M.2 Key-B (4G/5G/capture) + Key-E (Wi-Fi) + Key-M NVMe + 80-pin IET
USB 3.2 + USB-C; RS-232/422/485; 2 x 2W speakers
Wide +12V ~ +24V input
CE / FCC Class A / VCCI; Windows / Linux

Product Description

The Avalue ARC-15W42 is a 15.6" Full HD widescreen fanless industrial touch panel PC powered by 13th Gen Intel Raptor Lake-PS Core 3/5/7 processors (LGA1700), delivering high performance up to 5.20 GHz in a compact widescreen format.

A single DDR5 4800MHz SO-DIMM supports up to 32GB, with onboard TPM 2.0 on the HID-2340 SBC.

The 1920x1080 panel offers 350 cd/m² brightness and 10-point projected-capacitive touch (EETI).

Connectivity includes dual 2.5GbE (Intel I225LM + I226LM), USB 3.2 (with USB-C), RS-232/422/485, an M.2 Key-B for 4G/5G or capture cards, M.2 Key-E for Wi-Fi, an M.2 Key-M NVMe slot, and an 80-pin IET expansion interface.

A wide +12~24V input and CE/FCC/VCCI certification make it well suited to compact machine-side HMI and visualization on Windows or Linux.

Technical Specifications

Processor

Intel® 13th Gen Raptor Lake-PS Core™ 3/5/7 Processor

(LGA1700 Socket Type)

Intel® Core™ 3 processor 100UL (10M Cache, up to 4.50 GHz)

Intel® Core™ 5 processor 120UL (12M Cache, up to 4.60 GHz)

Intel® Core™ 7 processor 160UL (12M Cache, up to 5.20 GHz)

System Memory

1 x 262-pin SODIMM socket max. up to 32GB DDR5 4800MHz

I/O Chipset

EC ITE IT5782VG

Watchdog Timer

H/W reset, 1sec. ~ 65535min. and 1sec. or 1min./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

TPM

Onboard NuvoTon NPCT754AABYX support TPM 2.0

SBC

HID-2340 SBC

CPU Cooler (Type)

Fanless heatsink

Other

7 x Knockouts for antenna mounting

*5 from rear cover + 2 from IET bracket

Expansion

1 x M.2 Key B 3042/3052/2280 (PCIe, USB3, SATA) for

4G/5G/Capture Card

1 x M.2 Key E 2230 (PCIex1, USB2.0) for WIFI

1 x M.2 Key M 2280 (PCI-e x4) slot for storage

1 x 80-pin IET interface

Storage

1 x M.2 Key M 2280 (PCI-e x4) slot for storage)

Graphic Chipset

Intel® Raptor Lake-PS integrated graphics

Spec. & Resolution

HDMI: Max. Resolution 4096x2160 @ 24Hz (optional by IET module)

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

LAN Chipset

1 x Intel® I225LM 2.5 Gigabit Ethernet

1 x Intel® I226LM 2.5 Gigabit Ethernet

Ethernet Interface

Intel® I225LM: 10/100/1000/2.5G Base-Tx GbE compatible

Intel® I226LM: 10/100/1000/2.5G Base-Tx GbE compatible

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack (default)

Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win10 / Win11 / Linux

Certification Information

CE / FCC Class A / VCCI

LCD Size

15.6", 16:9

Display Type

FHD

Resolution

1920 x 1080

Pixel pitch

0.17925mm(H) x 0.17925mm(V)

Luminance

350 cd/m2

Contrast ratio

800

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

11 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

88%

Touch Controller

EETI

USB Port

3 x USB3.2, 1 x USB2.0, 1 x USB Type C

LAN Port

2 x RJ-45

COM Port

1 x RS-232/422/485

LED Indicator

HDD LED, power LED

Operating Temp.

-10°C ~ 50°C (14°F ~ 122°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

391.21 x 293.21 x 61 mm

Weight

3.7 Kg

Vibration Test

With SSD/M.2 SSD : 2Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30mins/axis

Shock Test

Operating with SSD/M.2 : MIL-STD-810G, method 516.6, procedure I, functional shock=20G

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65

Back cover IP41(except I/O)

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel mount with mounting kits

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Die casting with cover lens

Construction - Rear

Black die casting

Adapter

Input: 100-240V~,2.0A, 50-60Hz

Output: 120W adapter (AC/DC adapter 24V/5A 120W, Screw Type)

Ordering Information

ARC-15W42-100-B1R | 15.6" 1920x1080 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch(ALC888S), 13th Gen Core™ 3 processor 100UL (10M Cache, up to 4.50 GHz)/2GLAN/1COM/4USB/TypeC/SPK/12~24V input/12V Adapter

ARC-15W42-120-B1R | 15.6" 1920x1080 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch(ALC888S), 13th Gen Core™ 5 processor 120UL (12M Cache, up to 4.60 GHz)/2GLAN/1COM/4USB/TypeC/SPK/12~24V input/12V Adapter

ARC-15W42-160-B1R | 15.6" 1920x1080 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch(ALC888S), 13th Gen Core™ 7 processor 160UL (12M Cache, up to 5.20 GHz)/2GLAN/1COM/4USB/TypeC/SPK/12~24V input/12V Adapter, Optional IET Module list:

ACC-ARC-USB-01R | 4 x USB 3.0 IET module for ARC-1535/38

ACC-ARC-AUDIO-01R | HDMI + 5.1 CH audio IET module for ARC-1535/38

ACC-ARC-MPCIE-02R | HDMI + MPCIE w/SIM IET module for ARC-1535/38

ACC-ARC-COM-01R | 2 x Isolated RS-232 IET module for ARC-1535/38

ACC-ARC-COM-02R | 3 x RS-232 IET module for ARC-1535/38

ACC-ARC-COM-03R | 2 x RS-232 + USB IET module for ARC-1535/38

ACC-ARC-COM-04R | 2 x RS-232 + LAN IET module for ARC-1535/38

ACC-ARC-GPIO-01R | 12-bit GPIO + 2-pin CAN bus IET module for ARC-1535/38

ACC-ARC-OBDII-01R | OBDII - CAN bus IET module for ARC-1535/38 (OBDII/EOBD for small vehicle)

ACC-ARC-OBDII-02R | OBDII - CAN bus IET module for ARC-1535/38 (J1939J1708 for large vehicle)

ACC-ARC-OBDII-03R | OBDII - CAN bus IET module for ARC-1535/38 (ISO15765-4 for special large vehicle)

E1702031833R | USA Power Cord

E1702031000R | EU Power Cord

E1702031834R | Japan Power Cord

E1702031830R | UK Power Cord

E1702031831R | Australia Power Cord
