BFC-15W9
BFC-15W9
*Price on request. Contact us for a quote.
Manufacturer: Avalue
- Intel® Celeron® Processor J1900
- Full flat front panel with projected capacitive touch supports multi touch
- Intel® 1211AT Gigabit Ethernet, 5.1-CH audio
- 1 HDMI, 1 COM, 1 CF slot, 2 USB
- Fanless system & VESA compliance
- Wide voltage +12V ~ +26V input, ErP power
- Timer-power-on
- Front side IP65 dust and water proof
- Optional mini PCIe 3G with SIM slot and WiFi module

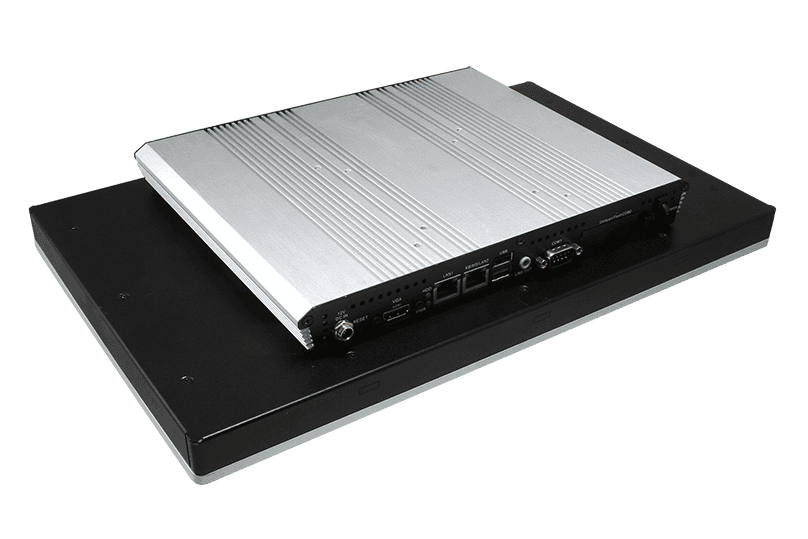

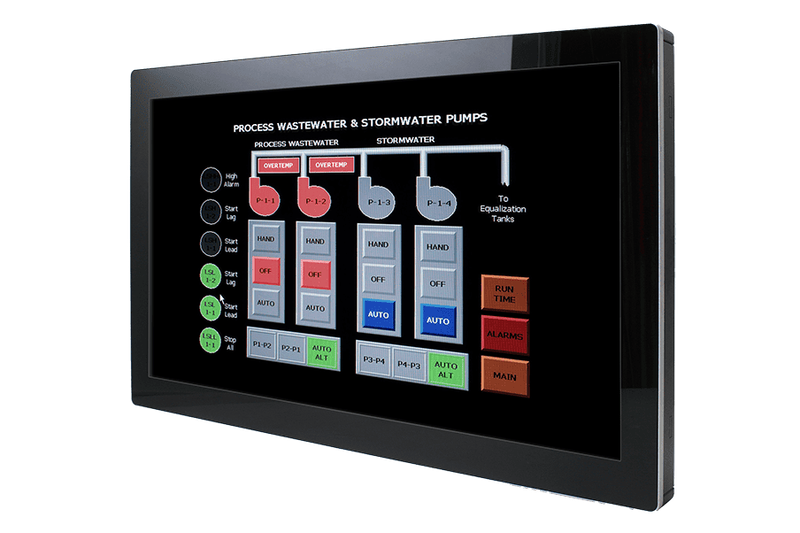

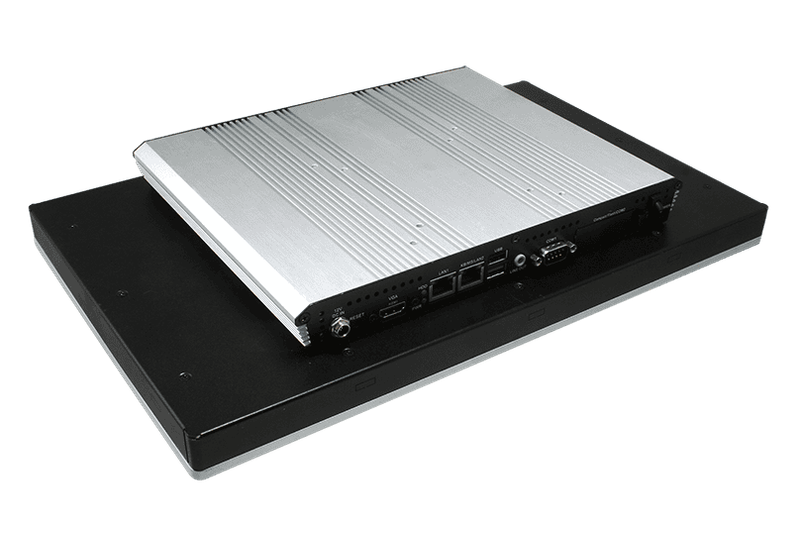

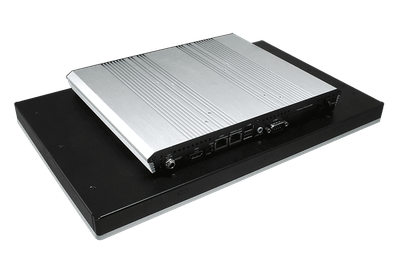

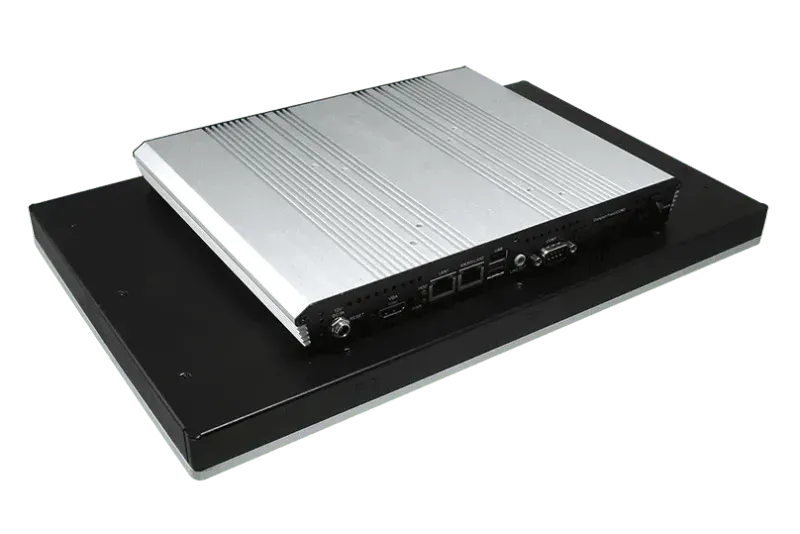

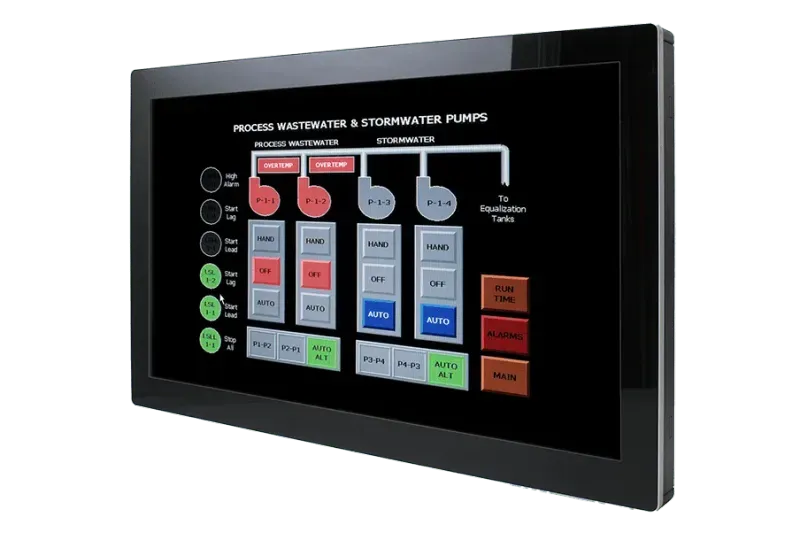

The Avalue BFC-15W9 is a 15.6" industrial touch panel PC featuring an Intel® Celeron® Processor J1900. It offers a fanless design, projected capacitive multi-touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support. The panel is IP65 front and IP41 rear rated, suitable for rugged environments. It supports wide voltage input and operates in temperatures from 0°C to 40°C.
Processor
Intel® Celeron® Processor J1900, 2M Cache, up to 2.0 GHz
Platform Controller Hub
Intel® Valleyview SoC
System Memory
1 x 204-pin DDR3L 1066/1333MHz SO-DIMM up to 8 GB
I/O Chipset
EC ITE IT8528E
Watchdog Timer
H/W reset: 1sec.~255min. and 1sec. or 1min./step
H/W Status Monitor
Monitoring CPU & System Temperature and Voltage
SBC
ECM-BYT
CPU Cooler (Type)
Fanless Heatsink
LCD Size
15.6" 4:3
Display Type
WXGA
Resolution
1366 x 768
Pixel pitch
0.252mm (H) x 0.252mm (V)
Luminance
300 cd/m²
Contrast ratio
500
Viewing angle
80 (U), 80 (D), 80 (L), 80 ( R)
Response time
8 ms
Backlight
LED
Touch Type
Projective capacitive multi-touch up to 10 points
Touch Light Transmission
88 %
Touch Controller
USB touch (EETI)
Expansion
1 x Mini PCIe
1 x Mini PCIe support mSATA
Storage
1 x CompactFlash type I/II socket
1 x 2.5 drive bay
USB Port
1 x USB 3.0
3 x USB 2.0
COM Port
1 x RS-232/422/485
LAN Port
2 x RJ-45
Audio Codec
Realtek ALC888S
Audio Interface
Line-out
Graphic Chipset
Intel® Valleyview SoC integrated graphics
supports dual display
Spec. & Resolution
HDMI:Max. Resolution 1920x1200@ 60Hz
LVDS:Max. Resolution 1920x1200@ 60Hz
Certification Information
CE / FCC Class B
LAN Chipset
2 x Intel® I211AT
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
DC Input
+12V ~ +26V
DC Input Connector
Lockable DC Jack
Optional for phoenix connector
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter
ACPI
Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant
OS Information
Win 7 / Win 8 / Win 10 / Linux
LED Indicator
HDD LED, power LED
Operating Temperature
0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature
-10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity
0% ~ 90% Relative humidity, non-condensing
Vibration Test
With SSD/mSATA : 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30 mins/axis
Shock Test
With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
IP Rating
Front IP65
Mounting Kit
Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Panel Mount with mounting kits
Power Mode
AT/ATX (ATX is default setting)
System Fan
Fanless
Construction - Front
Silver aluminum
Construction - Rear
Silver alloy
Dimension
385.3 x 240.3 x 55.5mm
Ordering Information
BFC-15W9-190-A4R
Intel® Celeron® SoC J1900 2.0GHz D1 CPU/2G DDR3L/COM/2LAN/2USB/12~26V Input/12V Adapto
E1702031833R
USA Power Cord
E1702031000R
EU Power Cord
E1702031834R
Japan Power Cord
E1702031830R
UK Power Cord
E1702031831R
Australia Power Cord
Frequently Asked Questions
The BFC-15W9 is a 15.6" widescreen bezel-free industrial panel PC featuring Intel processors, capacitive multi-touch interface, sleek edge-to-edge glass design, multiple I/O ports, fanless thermal management, IP65 front protection, and 16:9 aspect ratio. It's designed for modern industrial applications requiring a sophisticated widescreen interface that provides more horizontal workspace for control applications and process visualization.
The BFC-15W9's 15.6" widescreen format provides an efficient 16:9 aspect ratio that's ideal for modern HMI applications, maximizing horizontal space for timeline data, process flows, and widescreen content display. The wide format is particularly beneficial for applications requiring side-by-side information display, multiple control panels, or visualization of extended process sequences in a single view.
The BFC-15W9's projected capacitive multi-touch technology provides responsive and intuitive interaction supporting modern gesture control like pinch-to-zoom, swipe, and multi-finger operations. This technology offers superior optical clarity compared to resistive alternatives, better durability without wear patterns, and compatibility with thin industrial gloves while enabling more sophisticated HMI applications with natural-feeling touch response.
The BFC-15W9 combines sophisticated aesthetics with industrial durability through its bezel-free edge-to-edge glass design, IP65 front protection against dust and water, fanless thermal management for reliability in contaminated environments, high-brightness display with wide viewing angles, and multi-touch capability for intuitive operator interaction. This makes it ideal for applications where both appearance and industrial resilience are important considerations.
An Industrial Panel PC is a robust computing device designed for industrial environments, featuring a touchscreen display integrated with a computer. These systems are built to withstand harsh conditions including dust, moisture, temperature extremes, and vibration, while providing reliable operation for factory automation, control systems, and HMI applications.
Industrial grade Panel PCs feature rugged construction with IP65/IP66 front panel protection, extended temperature operation, shock and vibration resistance, fanless cooling for reliability, wide voltage input tolerance, and long product lifecycles designed for 24/7 operation in challenging environments.
While both provide operator interface functionality, a Panel PC is a full-featured computer running a standard operating system (Windows, Linux) that can host any software application. An HMI is typically a simpler device with an embedded operating system designed specifically for machine/process control with limited functionality beyond its control software.
Panel PCs typically offer multiple mounting options including panel mount (cutout installation in cabinets/enclosures), VESA mount (standard bracket mounting to walls or arms), and sometimes desktop stands. Some specialized models may offer additional mounting options for specific industries.
Most industrial Panel PCs support Windows 10 IoT Enterprise, Windows 11 Pro, and various Linux distributions like Ubuntu. The specific OS support depends on the hardware configuration, with some models offering pre-installed options or being compatible with multiple operating systems.
IP65/IP66 protection ratings indicate dust-tight (6) protection and resistance to water jets (5/6). This is essential for industrial Panel PCs that may be exposed to harsh factory environments with dust, splashes, or washdown procedures, ensuring reliable operation and longevity in challenging conditions.
Fanless designs eliminate moving parts that could fail, prevent dust and contaminant ingress through ventilation openings, reduce maintenance requirements, increase reliability in high-vibration environments, and allow sealed enclosures for protection against harsh industrial conditions.
Resistive touchscreens work with any input device (finger, gloved hand, stylus) and are more suitable for harsh environments, but offer less optical clarity and typically support single-touch. Capacitive touchscreens provide better optical clarity and multi-touch capability but require bare finger or special stylus input and are more sensitive to environmental conditions.
A watchdog timer is a hardware-based timer that triggers a system reset if the software becomes unresponsive. This is crucial for industrial systems requiring high reliability and 24/7 operation, as it automatically recovers from software crashes or freezes without human intervention.
A wide voltage input range (typically 9-36VDC) allows Panel PCs to operate reliably in industrial environments with fluctuating power conditions. This provides flexibility in power source options and protection against voltage spikes and drops common in factory settings.
TPM (Trusted Platform Module) is a security chip that provides hardware-based encryption capabilities and secure storage for authentication credentials. In industrial settings, it helps protect sensitive data, secure communication channels, and ensure the integrity of control systems against unauthorized access.
Panel PCs are typically installed using panel mount (where the unit is fitted into a cutout in a control cabinet with mounting clips or screws), VESA mount (attached to arms or wall mounts using standardized mounting patterns), or sometimes with custom mounting solutions for specific applications.
Cutout dimensions vary by model and screen size. It's essential to refer to the specific Panel PC's installation guide for precise measurements. Most manufacturers provide detailed dimensional drawings showing the exact cutout size and mounting hole positions required.
Consider operating temperature range, humidity levels, exposure to dust or liquids, vibration/shock conditions, available power supply stability, electromagnetic interference sources, and ambient light conditions that might affect screen visibility when installing Panel PCs.
Most industrial Panel PCs are designed with fanless cooling systems that dissipate heat through the chassis. While they typically don't require additional cooling, it's important to ensure adequate air circulation around the unit and to avoid installing them in locations that exceed their specified operating temperature range.
Consider voltage requirements (typically 9-36VDC), current/power consumption specifications, power supply stability, surge protection needs, and whether battery backup or uninterruptible power supply (UPS) is necessary for critical applications to prevent data loss during power interruptions.
First, try restarting the Panel PC. If the issue persists, check if the touch driver is installed and functioning properly, verify the touchscreen cable connection, ensure the operating environment is within specifications (especially for capacitive screens in high humidity), and check for physical damage to the screen surface.
To address overheating: ensure the Panel PC is installed with adequate clearance for passive cooling, check that the ambient temperature is within specified operating range, clean dust buildup on cooling fins/chassis, verify that CPU-intensive applications aren't causing excessive load, and consider adding external cooling to the enclosure if necessary.
Unexpected restarts can be caused by unstable power supply, overheating, hardware failures, software issues, or watchdog timer activations due to system hangs. Check power stability, environmental conditions, system logs for error messages, and consider disabling the watchdog timer temporarily for diagnostic purposes.
To improve visibility in bright environments, adjust the screen brightness to maximum, install an anti-glare shield or hood, position the Panel PC to avoid direct light sources, consider a higher-brightness model (500+ cd/m²) for new installations, or apply an anti-reflective film designed for industrial displays.
If Windows fails to boot, try booting in Safe Mode, use System Restore to revert to a working state, run startup repair from recovery options, check for hardware issues (particularly storage drives), verify BIOS/UEFI settings are correct, or restore from a system image backup if available.
