Nexcom · Panel PC / Monitor / Mobile

IPPC 1040P

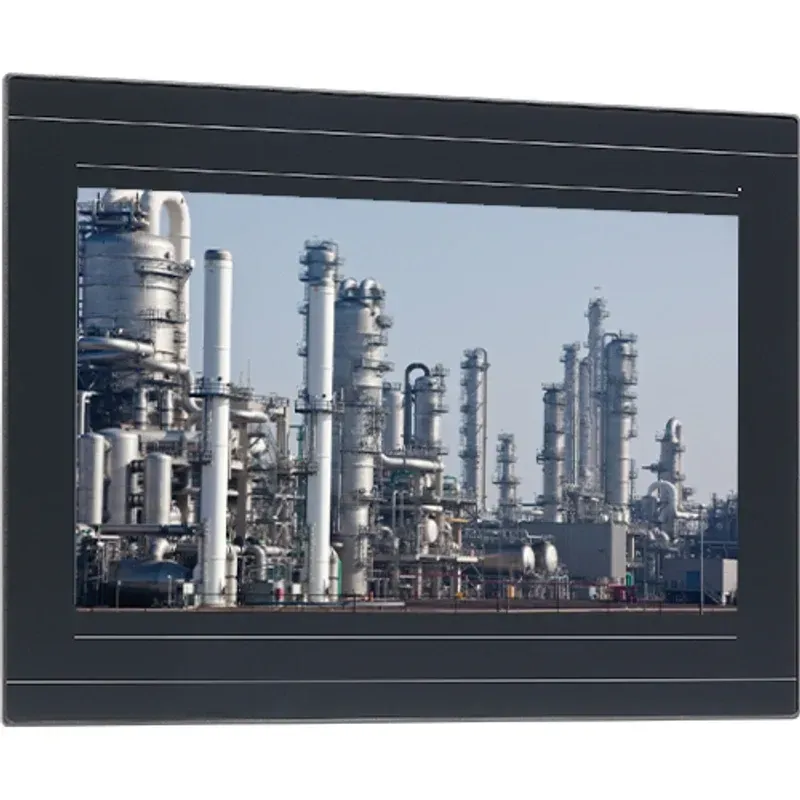

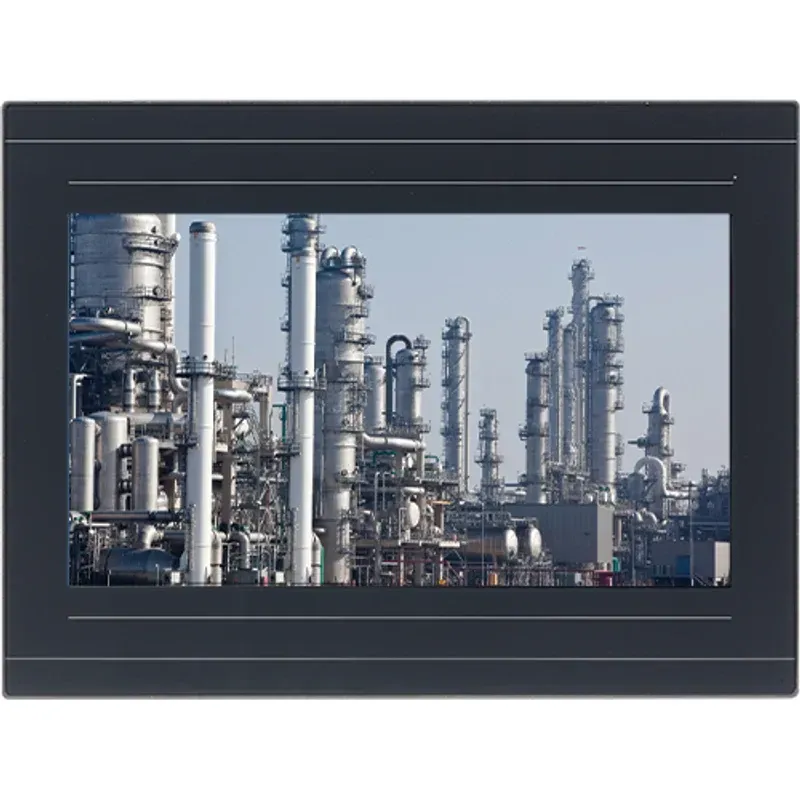

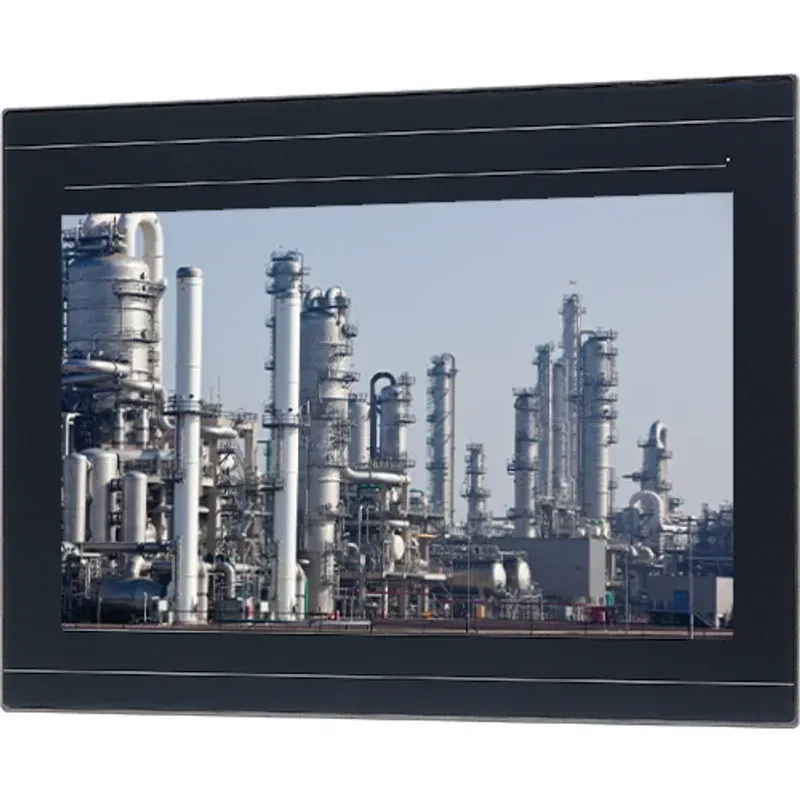

Nexcom IPPC 1040P 10.1" IP66 Heavy Industrial Panel PC — Front ViewNexcom IPPC 1040P 10.1" IP66 Heavy Industrial Panel PC — Front ViewNexcom IPPC 1040P 10.1" IP66 Heavy Industrial Panel PC — Front ViewNexcom IPPC 1040P 10.1" IP66 Heavy Industrial Panel PC — Front ViewNexcom IPPC 1040P 10.1" IP66 Heavy Industrial Panel PC — Front View

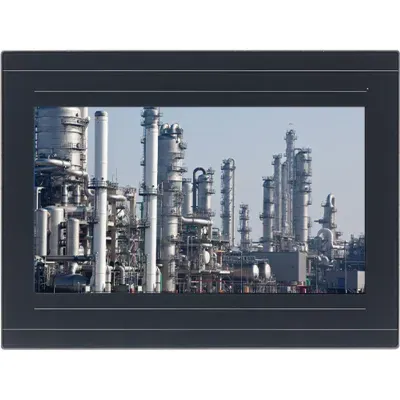

IPPC 1040P, Image 1IPPC 1040P, Image 2IPPC 1040P, Image 3IPPC 1040P, Image 4IPPC 1040P, Image 5
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Nexcom

Highlights

  • 10.1" 16:9 WXGA (1280 x 800) heavy-industrial fanless panel PC, 300 cd/m², 1300:1 contrast, 85° viewing
  • 10-point P-Cap multi-touch with 90% light transmission and 7H anti-scratch surface, USB touch
  • IP66 aluminium zero-bezel flush front in a metal chassis — for refineries, wind farms, chemical/pharma plants
  • Intel Celeron Quad-Core J1900 SoC (2.0 GHz base, up to 2.42 GHz turbo), 2 MB L2, fanless thermal design
  • 2 x 204-pin DDR3L SO-DIMM — 4 GB DDR3L default, up to 8 GB DDR3L-1066/1333 (non-ECC unbuffered)
  • 1 x external locked CFast socket + 1 x 2.5" SATA HDD bay (or SATA DOM)
  • Dual Intel I210 Gigabit Ethernet (10/100/1000 Base-Tx)
  • 2 x isolated RS-232/422/485 COM ports (2.5 kV isolation)
  • 1 x VGA 2nd display, 2 x USB 2.0 + 1 x USB 3.0, Line-out audio (Realtek ALC888S-VD2)
  • 2 x internal mini-PCIe sockets (optional Wi-Fi / 3.5G) + 1 x SIM card holder
  • Wide 12–30 V DC input; optional 12 V / 60 W AC-DC adapter (P/N 7400060062X00)
  • Mounting: panel / wall / stand / VESA 100 x 100 mm; -10°C to 60°C operating; CE + FCC Class A
  • Dimensions 308 x 223 x 60.7 mm; weight 3.7 kg; cutout 294 x 209 mm (T = 12 mm max)
  • OS support: Windows 10 64-bit; Windows 7 32-bit / 64-bit

Product Description

The Nexcom IPPC 1040P is a 10.1" 16:9 WXGA (1280 x 800) heavy-industrial fanless panel PC built around the Intel Celeron J1900 quad-core SoC (up to 2.42 GHz with turbo) with 4 GB DDR3L by default (upgradable to 8 GB via two SO-DIMM sockets), an external locked CFast slot and an internal 2.5" SATA HDD or SATA DOM bay.

The 300 cd/m² LED-backlit panel sits behind a 10-point projected-capacitive (P-Cap) multi-touch glass with 90% light transmission and a 7H anti-scratch surface, mounted into a metal chassis with a robust aluminium zero-bezel flush front rated IP66 for refineries, wind farms, chemical and pharmaceutical plants and similar harsh environments.

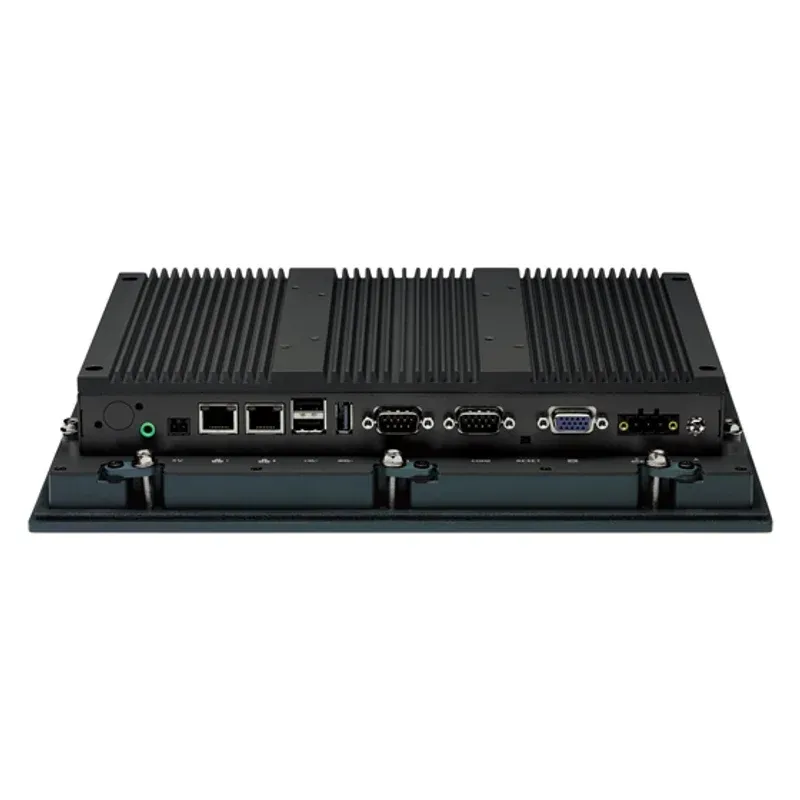

Rear I/O includes dual Intel I210 Gigabit Ethernet, 2 x isolated RS-232/422/485 COM ports (2.5 kV isolation), one VGA secondary display, 2 x USB 2.0 + 1 x USB 3.0, Line-out audio (Realtek ALC888S-VD2), reset and power switches and a 2-pin remote power on/off.

Two internal mini-PCIe sockets plus a SIM card slot accept optional Wi-Fi or 3.5G modules. Power is wide-range 12–30 V DC with an optional 12 V / 60 W AC-DC adapter (P/N 7400060062X00).

The chassis is rated -10°C to 60°C operating, 10–90% RH non-condensing, mounts panel / wall / stand / VESA 100 x 100 mm and is CE-marked (EN 61000-6-2 / -6-4) plus FCC Class A. OS support: Windows 7 32/64-bit and Windows 10 64-bit. TSL Automation supplies the Nexcom IPPC 1040P worldwide.

Technical Specifications

Processor

On-board Intel Celeron Quad-Core J1900, 2.0 GHz base / 2.42 GHz turbo, 2 MB L2 cache

BIOS

AMI BIOS

System Memory

2 x 204-pin DDR3L SO-DIMM, 4 GB DDR3L default, up to 8 GB DDR3L 1066/1333, non-ECC unbuffered

Watchdog Timer

Software-programmable 1–255 s and 1–255 min (±15% tolerance at 25°C)

H/W Status Monitor

System temperature and voltage

CPU Cooler

Passive (Fanless)

Status LED

Front LED indicator for operating status

CFast

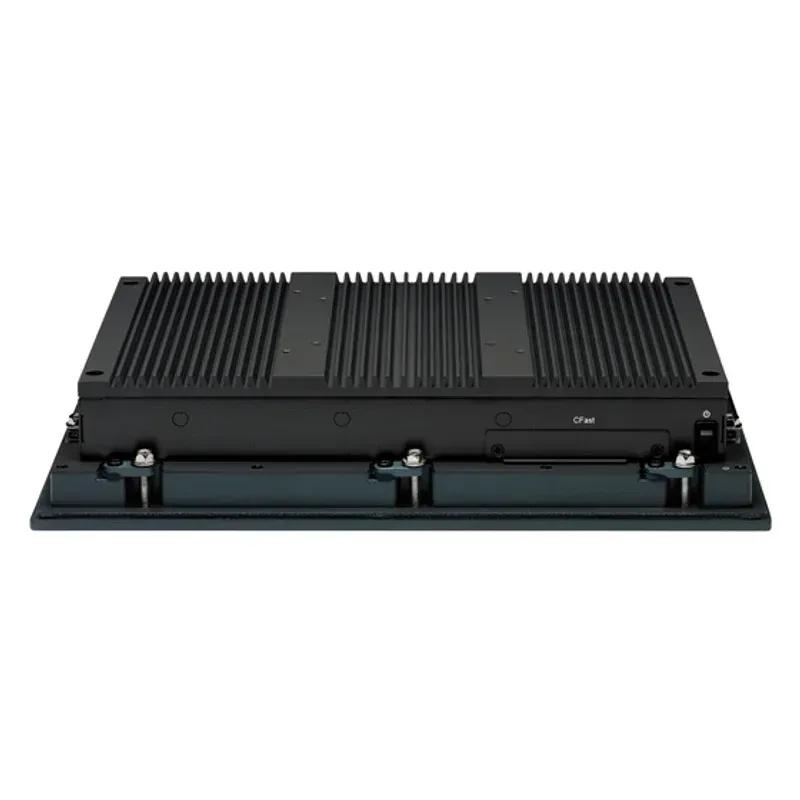

1 x external locked CFast socket

HDD Bay

1 x 2.5" SATA HDD or 1 x SATA DOM (optional)

LCD Size

10.1"

Aspect Ratio

16:9

Resolution

WXGA 1280 x 800

Luminance

300 cd/m²

Contrast Ratio

1300:1

LCD Colour

262K

Viewing Angle

85 (U), 85 (D), 85 (L), 85 (R)

Backlight

LED

Touch Type

10-point projected-capacitive (P-Cap) multi-touch

Touch Light Transmission

90%

Anti-Scratch Surface

7H hardness

Touch Interface

USB

Mini-PCIe

2 x mini-PCIe sockets (optional Wi-Fi / 3.5G module)

SIM

1 x SIM card holder

Ethernet

2 x RJ45 (dual Intel I210 Gigabit)

2nd Display

1 x VGA (DB-15)

Audio

1 x Line-out (Realtek ALC888S-VD2)

USB

2 x USB 2.0

1 x USB 3.0

Serial

COM #1: RS-232/422/485 w/ 2.5 kV isolation

COM #2: RS-232/422/485 w/ 2.5 kV isolation

Switches

Power switch

Reset button

2-pin remote power on/off switch

DC Input

12–30 V DC

Power Adapter (Optional)

12 V / 60 W AC-DC adapter w/o power cord (P/N 7400060062X00)

OS

Windows 10 64-bit

Windows 7 32-bit / 64-bit

Certification Information

CE — EN 61000-6-2

CE — EN 61000-6-4

FCC Class A

Colour

Pantone 432C / RAL 70 24 front bezel

Construction

Metal housing with aluminium zero-bezel flush front

IP Rating

IP66 (front)

Mounting

Panel / Wall / Stand / VESA 100 x 100 mm (system ships with panel mounting kit, no panel mounting hole)

Outline (W x H x D)

308 x 223 x 60.7 mm

Panel Cutout

294 ± 1 x 209 ± 1 mm (T = 12 mm max)

Weight

3.7 kg

Operating Temp.

-10°C to 60°C

Storage Temp.

-20°C to 75°C

Operating Humidity

10–90% RH, non-condensing

Vibration

IEC 68 2-64 (with HDD)

1 Grms sine, 5–500 Hz, 1 hr/axis (HDD operating)

2 Grms sine, 5–500 Hz, 1 hr/axis (CFast operating)

2.2 Grms random, 5–500 Hz, 0.5 hr/axis (non-operating)

Shock

IEC 68 2-27

HDD: 20 G wall mount, half sine, 11 ms

Barebone

IPPC 1040P-B (P/N: 10II1040P05X0) — 10.1" WXGA touch panel PC, Intel Celeron J1900 up to 2.42 GHz, 4 GB DDR3L, 2 x RS-232/422/485, Intel I210-IT Gigabit LAN

IPPC 1040P-B0 (P/N: 10II1040P09X0) — same configuration with Intel I210-AT Gigabit LAN

Options

12 V / 60 W AC-DC power adapter w/o power cord (P/N 7400060062X00)

What is IPPC 1040P?

The IPPC 1040P is a panel pc / monitor / mobile manufactured by Nexcom, designed specifically for industrial-panel-pc applications. It features processor of On-board Intel Celeron Quad-Core J1900, 2.0 GHz base / 2.42 GHz turbo, 2 MB L2 cache, display of 10.1" and touch of 10-point projected-capacitive (P-Cap) multi-touch. The Nexcom IPPC 1040P is a 10.1" 16:9 WXGA (1280 x 800) heavy-industrial fanless panel PC built around the Intel Celeron J1900 quad-core SoC (up to 2.42 GHz with turbo) with 4 GB DDR3L by default (upgradable to 8 GB via two SO-DIMM sockets), an external locked CFast slot and an internal 2.5" SATA HDD or SATA DOM bay. The 300 cd/m² LED-backlit panel sits behind a 10-point projected-capacitive (P-Cap) multi-touch glass with 90% light transmission and a 7H anti-scratch surface, mounted into a metal chassis with a robust aluminium zero-bezel flush front rated IP66 for refineries, wind farms, chemical and pharmaceutical plants and similar harsh environments. Rear I/O includes dual Intel I210 Gigabit Ethernet, 2 x isolated RS-232/422/485 COM ports (2.5 kV isolation), one VGA secondary display, 2 x USB 2.0 + 1 x USB 3.0, Line-out audio (Realtek ALC888S-VD2), reset and power switches and a 2-pin remote power on/off. Two internal mini-PCIe sockets plus a SIM card slot accept optional Wi-Fi or 3.5G modules. Power is wide-range 12–30 V DC with an optional 12 V / 60 W AC-DC adapter (P/N 7400060062X00). The chassis is rated -10°C to 60°C operating, 10–90% RH non-condensing, mounts panel / wall / stand / VESA 100 x 100 mm and is CE-marked (EN 61000-6-2 / -6-4) plus FCC Class A. OS support: Windows 7 32/64-bit and Windows 10 64-bit. TSL Automation supplies the Nexcom IPPC 1040P worldwide.

Key Features & Benefits

  • 10.1" 16:9 WXGA (1280 x 800) heavy-industrial fanless panel PC, 300 cd/m², 1300:1 contrast, 85° viewing
  • 10-point P-Cap multi-touch with 90% light transmission and 7H anti-scratch surface, USB touch
  • IP66 aluminium zero-bezel flush front in a metal chassis — for refineries, wind farms, chemical/pharma plants
  • Intel Celeron Quad-Core J1900 SoC (2.0 GHz base, up to 2.42 GHz turbo), 2 MB L2, fanless thermal design
  • 2 x 204-pin DDR3L SO-DIMM — 4 GB DDR3L default, up to 8 GB DDR3L-1066/1333 (non-ECC unbuffered)
  • 1 x external locked CFast socket + 1 x 2.5" SATA HDD bay (or SATA DOM)
  • Dual Intel I210 Gigabit Ethernet (10/100/1000 Base-Tx)
  • 2 x isolated RS-232/422/485 COM ports (2.5 kV isolation)
  • 1 x VGA 2nd display, 2 x USB 2.0 + 1 x USB 3.0, Line-out audio (Realtek ALC888S-VD2)
  • 2 x internal mini-PCIe sockets (optional Wi-Fi / 3.5G) + 1 x SIM card holder
  • Wide 12–30 V DC input; optional 12 V / 60 W AC-DC adapter (P/N 7400060062X00)
  • Mounting: panel / wall / stand / VESA 100 x 100 mm; -10°C to 60°C operating; CE + FCC Class A
  • Dimensions 308 x 223 x 60.7 mm; weight 3.7 kg; cutout 294 x 209 mm (T = 12 mm max)
  • OS support: Windows 10 64-bit; Windows 7 32-bit / 64-bit

Applications & Use Cases

The IPPC 1040P is ideal for various industrial automation applications:

  • Dust-sensitive environments and silent operation requirements
  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • Wireless connectivity and remote monitoring applications
  • Legacy equipment integration and serial communication
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Interactive control interfaces and operator panels
