Panel PC / Monitor / Mobile · Industrial-Panel-PC
LPC-1509
Series: LPC

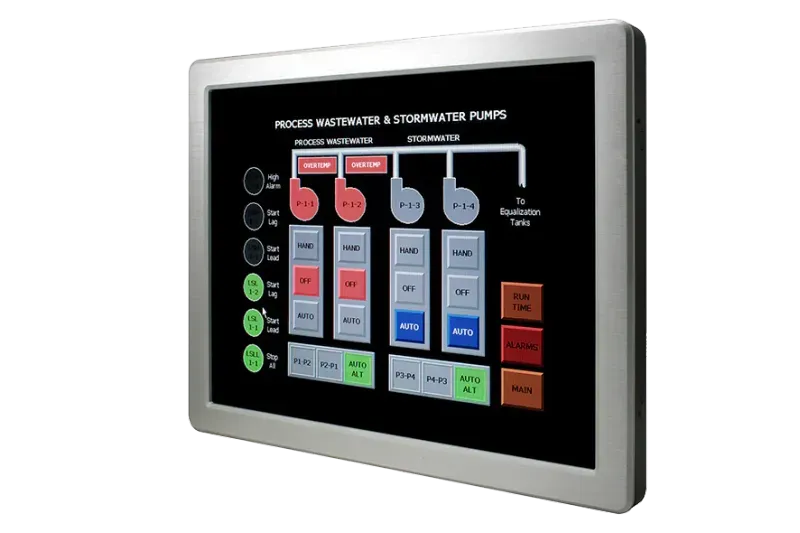

The Avalue LPC-1509 is a 15" XGA fanless industrial touch panel PC built on the low-power Intel Atom E3845 (Bay Trail) processor, designed for cost-effective, long-lifecycle HMI in industrial environments. A single DDR3L SO-DIMM socket supports up to 8GB, on the EBM-BYT SBC, with a high-contrast 500 cd/m² 4:3 panel and durable 5-wire resistive touch. The 1024x768 display (2500:1 contrast) and a wide -20°C to 60°C operating range make it dependable for harsh deployments. Connectivity includes dual Intel I210IT Gigabit Ethernet, USB 3.0/2.0, HDMI (up to 1920x1200), RS-232/422/485, dual Mini-PCIe (mSATA + SIM), a CompactFlash socket and a 2.5" drive bay. A wide +12~26V input makes the LPC-1509 well suited to legacy-compatible machine control and field HMI on Windows or Linux.
Key Features
- 15" XGA (1024x768) 500-nit, 2500:1 contrast, 5-wire resistive touch, fanless
- Intel Atom E3845 (Bay Trail), EBM-BYT SBC
- 1 x DDR3L 1333MHz SO-DIMM, up to 8GB
- Dual Intel I210IT Gigabit Ethernet
- Dual Mini-PCIe (mSATA + SIM) + CompactFlash + 2.5" drive bay
- USB 3.0 / USB 2.0; HDMI up to 1920x1200; RS-232/422/485
- Wide +12V ~ +26V input
- Wide -20°C ~ 60°C operating range
- CE / FCC Class B; Windows / Linux
Technical Specifications
System Information
| Processor | Intel Atom® Processor E3845, 2M Cache, 1.91 GHz |
|---|---|
| Platform Controller Hub | Intel® Valleyview SoC |
| System Memory | 1 x 204-pin DDR3L 1333MHz SO-DIMM up to 8 GB |
| I/O Chipset | EC ITE IT8528E |
| Watchdog Timer | H/W reset, 1sec. ~ 65535sec./1sec.step |
| H/W Status Monitor | Monitoring CPU & system temperature and voltage |
| SBC | EBM-BYT |
| CPU Cooler (Type) | Fanless heatsink |
| Other | 1 x HDMI, 1 xKnockouts for antenna mounting |
Expansion
| Expansion | 1 x Mini PCIe support mSATA, 1 x Mini PCIe supports SIM card |
|---|
Storage
| Storage | 1 x CompactFlash type I/II socket, 1 x 2.5 drive bay |
|---|
Display
| Graphic Chipset | Intel® Valleyview SoC integrated graphics, supports dual display |
|---|---|
| Spec. & Resolution | HDMI:Max. Resolution 1920x1200@ 60Hz |
Audio
| Audio Codec | Realtek ALC888S |
|---|---|
| Audio Interface | Line-out |
| Speaker Output | 2 x 1W |
Ethernet
| LAN Chipset | 2 x Intel® I210IT |
|---|---|
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
Power Requirement
| DC Input | +12V ~ +26V |
|---|---|
| DC Input Connector | Lockable DC Jack (default), Optional for phoenix connector |
| ACPI | Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant |
Software Support
| OS | Win 7 / Win 8 / Linux |
|---|
Certification
| Certification Information | CE / FCC Class B |
|---|
Panel
| LCD Size | 15", 4:3 |
|---|---|
| Display Type | XGA |
| Resolution | 1024 x 768 |
| Pixel pitch | 0.297mm(H) x 0.297mm(V) |
| Luminance | 500 cd/m2 |
| Contrast ratio | 2500 |
| Viewing angle | 88 (U), 88 (D), 88 (L), 88 (R) |
| Response time | 16 ms |
| Backlight | LED |
| Touch Type | 5 wires resistive |
| Touch Light Transmission | 80% |
| Touch Controller | Onboard USB touch (EETI) |
External I/O
| USB Port | 1 x USB 3.0, 1 x USB 2.0 |
|---|---|
| LAN Port | 2 x RJ-45 |
| COM Port | 1 x RS-232/422/485 (BIOS) |
Internal I/O
| SATA | 1 x SATA II |
|---|
System Control
| LED Indicator | HDD LED, power LED |
|---|
Mechanical & Environmental
| Operating Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
|---|---|
| Storage Temp. | -30°C ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 0% ~ 90% Relative humidity, non-condensing |
| Dimension (W x L x H) | 350 x 273.9 x 53.1mm |
| Weight | 4.2 Kg |
| Vibration Test | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis |
| Shock Test | With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test:Ed |
| IP Rating | Front panel IP65 |
| Mounting Kit | Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm |
| Power Mode | AT/ATX (ATX is default) |
| System Fan | Fanless |
| Construction - Front | Silver aluminum |
| Construction - Rear | Silver alloy |
Component
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz, Output: 60W adapter (12V @ 5A adapter) |
|---|
Ordering Information
| Ordering Information | LPC-1509-384-A4R | Intel Atom E3845 1.91GHz CPU/4G DDR3L/2GLAN/COM/12~26V input/12V Adaptor, LPC-1509-WMB-A4R | Intel Atom E3845 1.91GHz CPU/4G DDR3L/2GLAN/COM/ Back Panel Mount/ 12~26V input/12V Adaptor, ACC-LPC-WIFI-01R | MPCIE WIFI-Kit for LPC Series(half-card) Antenna/Cable/BT4.0/802.11a/b/g/n/ac, ACC-ARM-D1R | VESA STAND, 75mm & 100 mm, ACC-ARM-D19R | VESA STAND, 75mm & 100 mm, ACC-LPC-15-PMT-01R | Front Panel Mount Kit for LPC-15 Series, w/o IP-65, ACC-LPC-15-PMT-02R | Back Panel Mount Kit for LPC-15 Series, w/IP-65, E1702031833R | USA Power Cord, E1702031000R | EU Power Cord, E1702031834R | Japan Power Cord, E1702031830R | UK Power Cord, E1702031831R | Australia Power Cord |
|---|
