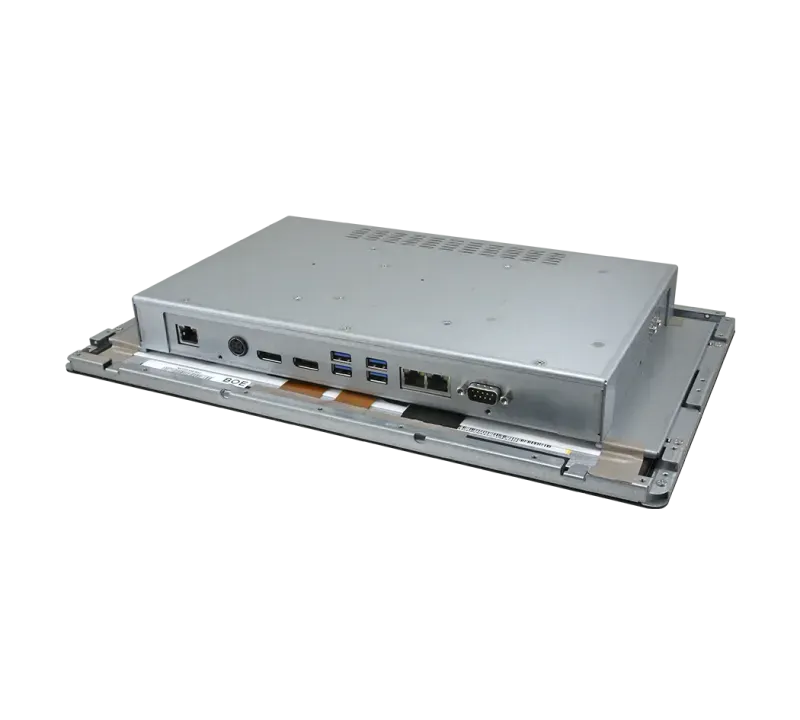

OFP-15W38-O1

Series: OFP

Manufactured byAvalue

The Avalue OFP-15W38-O1 is a 15.6" Full HD open-frame industrial touch panel PC powered by 11th Generation Intel Core i3/i5/i7 (Tiger Lake) processors, designed for integration into kiosks, machines, and OEM enclosures. Built on the EMX-TGLP SBC with onboard TPM 2.0 and an Out-Of-Band (OOB) recovery module, it offers remote serviceability for unattended deployments. The 1920x1080 16:9 panel features projected-capacitive multi-touch. Memory is default 4GB DDR4 (expandable to 64GB via SO-DIMM), with a default 60GB Apacer CoreSnapshot 2.5" SSD for OOB recovery and optional M.2 SATA/NVMe storage. Dual display via two DP++ (1920x1080), Intel I219LM Gigabit plus I225LM 2.5GbE, a 2x6W Class-D audio amplifier, and a wide +12~24V input make the OFP-15W38-O1 a flexible open-frame compute engine for embedded and kiosk applications on Windows or Linux.

Key Features

15.6" Full HD (1920x1080) open-frame, PCAP multi-touch
11th Gen Intel Core i3/i5/i7 (Tiger Lake, EMX-TGLP SBC)
Default 4GB DDR4, expandable to 64GB DDR4 3200 SO-DIMM
Onboard TPM 2.0 + Out-Of-Band (OOB) recovery module
Default 60GB Apacer CoreSnapshot 2.5" SSD (OOB recovery)
Dual DP++ display (1920x1080); M.2 Key-E (Wi-Fi)
Intel I219LM GbE + Intel I225LM 2.5GbE
2 x 6W Class-D audio amplifier; wide +12~24V input
CE / FCC Class A; Windows / Linux

Technical Specifications

System Information

Processor	11th Generation Intel® Core™ i3/i5/i7 Processors, Intel® Core™ i3-1115G4E Processor, 6M Cache, up to 3.00 GHz, Intel® Core™ i5-1145G7E Processor, 8M Cache, up to 2.60 GHz, Intel® Core™ i7-1185G7E Processor, 12M Cache, up to 2.80 GHz
System Memory	Default with 4GB DDR4 memory, option supports up to 64GB DDR4 3200MHz SO-DIMM
I/O Chipset	EC iTE IT8528
Watchdog Timer	H/W reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
BIOS	AMI uEFI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor	Monitoring system temperature and voltage with auto throttling control
TPM	TPM 2.0
SBC	EMX-TGLP
CPU Cooler (Type)	Fanless heatsink
Other	With OOB (Out-Of-Band) module, 6 x Antenna mounting with dust cover (reserve)

Expansion

Expansion	1 x M.2 (2230) E-Key support WiFi module

Storage

Storage	Default with 60GB Apacer CoreSnapshop 2.5" SSD for OOB recovery function
Other Storage Device	1 x M.2 type B 3042/3052/2242/2260/2280 SSD (SATA/NVMe) (by option)

Display

Graphic Chipset	Intel® 12th Generation CPU integrated
Spec. & Resolution	2 x DP++: 1920 x 1080@60 Hz

Audio

Audio Codec	Realtek ALC888S
Audio Interface	Mic-in, Line-out
Audio Amplifier	2 x Stereo Class-D 6W audio amplifier

Ethernet

LAN Chipset	1 x Intel® I219LM Gigabit Ethernet PHY (LAN1), 1 x Intel® I225LM 2.5 Gigabit Ethernet (LAN2)
Ethernet Interface	Intel® I219LM : 10/100/1000 Base-Tx GbE compatible, Intel® I225LM: 10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

DC Input	+12V ~ +24V
ACPI	Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

OS	Win10 / Win11 / Linux

Certification

Certification Information	CE / FCC Class A

Panel

LCD Size	15.6", 16:9
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	179.25um(H) x 179.25um(V)
Luminance	220 cd/m2
Contrast ratio	800
Viewing angle	85 (U), 85 (D), 85 (L), 85 (R)
Response time	30 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Touch Light Transmission	89%
Touch Controller	EETI

External I/O

USB Port	4 x USB 3.0, 2 x USB 2.0 (option)
LAN Port	2 x RJ-45, 1 x RJ-45 for OOB connectivity
COM Port	1 x RS232(default)/RS422/485, 3 x RS232(for option)

Internal I/O

GPIO	16bit GPIO (for option)

System Control

LED Indicator	HDD LED, power LED

Mechanical & Environmental

Operating Temp.	0°C ~ 45°C (32°F ~ 113°F)
Storage Temp.	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	40°C @ 95% Relative humidity, non-condensing
Dimension (W x L x H)	387 x 235 x 48mm
Weight	4.9 Kg
Vibration Test	With M.2 SATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 0.5hr/axis
Shock Test	Operating with M.2 SATA : IEC 60068-2-27 testing procedures, 10G for operation mode
Drop Test	ISTA 2A, IEC-60068-2-32 Test:Ed
Mounting Kit	Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Power Mode	Default AT mode.
System Fan	Fanless

Ordering Information

OFP-15W38-630-O1R | 15.6 Full-HD Multi Touch Open Frame Panel PC / Intel Celeron 6305E, 4GR, 60GB 2.5" SSD, 4xUSB3,COM, 1xLAN for OOB Module, 2xLAN, 2xDP++, without adapter, OFP-15W38-111-O1R | 15.6 Full-HD Multi Touch Open Frame Panel PC / Intel Core i3, 4GR, 60GB 2.5" SSD, 4xUSB3,COM, 1xLAN for OOB Module, 2xLAN, 2xDP++, without adapter, OFP-15W38-114-O1R | 15.6 Full-HD Multi Touch Open Frame Panel PC / Intel Core i5, 4GR, 60GB 2.5" SSD, 4xUSB3,COM, 1xLAN for OOB Module, 2xLAN, 2xDP++, without adapter, OFP-15W38-118-O1R | 15.6 Full-HD Multi Touch Open Frame Panel PC / Intel Core i7, 4GR, 60GB 2.5" SSD, 4xUSB3,COM, 1xLAN for OOB Module, 2xLAN, 2xDP++, without adapter, ACC-ADP-090N-06R | AC/DC adapter 24V/3.75A PWR DIN Plug, E1702031835R | USA Power Cord, E170203183DR | EU Power Cord, E170203183BR | Japan Power Cord, E170P060370R | UK Power Cord, E170P060392R | Australia Power Cord
