OFP-15W38

Series: OFP

Manufactured byAvalue

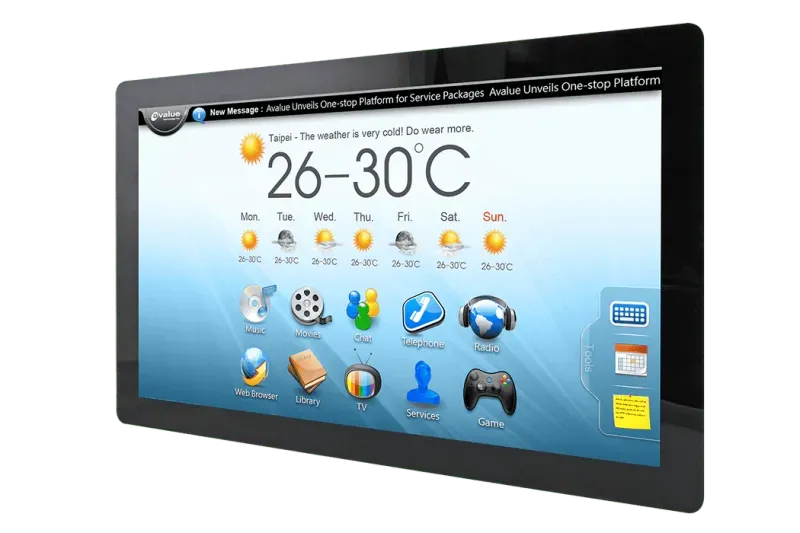

The Avalue OFP-15W38 is a 15.6" Full-HD fanless open-frame industrial panel PC powered by 11th Generation Intel Core i3/i5/i7 processors on the EMX-TGLP SBC, engineered as a slim, integration-ready compute-and-display module for kiosks, machines, and OEM enclosures. With dual DDR4 3200MHz SO-DIMM sockets supporting up to 64GB and onboard TPM 2.0, it delivers desktop-class performance in a compact bezel-free package. The 1920x1080 PCAP 10-point multi-touch panel pairs with 2x GbE LAN (Intel I219LM + I225LM 2.5G), 4x USB 3.0, dual DP++, line-out/mic-in, and a configurable RS-232/422/485 COM port. An M.2 Type-B 3042/3052 slot (PCIe/SATA, SIM, WWAN+GNSS or NVMe SSD) and an M.2 E-Key for optional Wi-Fi/BT add expansion. A wide +12~24V DC input and fanless 0~45°C operation make the OFP-15W38 a rugged, embeddable touch front-end for industrial HMI and signage.

Key Features

15.6" Full-HD (1920x1080) PCAP 10-point multi-touch open-frame panel PC, fanless
11th Generation Intel Core i3/i5/i7 processors (EMX-TGLP)
2 x 260-pin DDR4 3200MHz SO-DIMM, up to 64GB
M.2 Type-B 3042/3052/2242/2260/2280 (PCIe/SATA, SIM, WWAN+GNSS or NVMe SSD)
M.2 (2230) E-Key for optional Wi-Fi/BT
2x GbE LAN (Intel I219LM + I225LM 2.5G), 4x USB 3.0
Dual DP++, line-out, mic-in, configurable COM port
Onboard TPM 2.0, 16-bit GPIO
Wide +12 ~ +24V DC input, fanless 0~45°C; CE / FCC Class A

Technical Specifications

System Information

Processor	11th Generation Intel® Core™ i3/i5/i7 Processors, Intel® Core™ i3-1115G4E Processor, 6M Cache, up to 3.00 GHz, Intel® Core™ i5-1145G7E Processor, 8M Cache, up to 2.60 GHz, Intel® Core™ i7-1185G7E Processor, 12M Cache, up to 2.80 GHz
System Memory	Default with 4GB DDR4 memory, option supports up to 64GB DDR4 3200MHz SO-DIMM
I/O Chipset	EC iTE IT8528
Watchdog Timer	H/W reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
BIOS	AMI uEFI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor	Monitoring system temperature and voltage with auto throttling control
SBC	EMX-TGLP
CPU Cooler (Type)	Fanless heatsink
Other	6 x Antenna mounting with dust cover (reserve)

Expansion

Expansion	1 x M.2 (2230) E-Key support WiFi module

Storage

Storage	Default with 128GB M.2 SATA, reserve space for 1 x 2.5 SSD (by option)
Other Storage Device	Reserve space for 1 x 2.5 SSD (by option)

Display

Graphic Chipset	Intel® HD graphics 500
Spec. & Resolution	2 x DP++: 1920 x 1080@60 Hz

Audio

Audio Codec	Realtek ALC897
Audio Interface	Mic-in, Line-out
Audio Amplifier	2 x Stereo class-D 3W audio amplifier

Ethernet

LAN Chipset	1 x Intel® I219LM Gigabit Ethernet PHY (LAN1), 1 x Intel® I225LM 2.5 Gigabit Ethernet (LAN2)
Ethernet Interface	Intel® I219LM : 10/100/1000 Base-Tx GbE compatible, Intel® I225LM: 10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

DC Input	+12V ~ +24V
ACPI	Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

OS	Win10 / Linux

Certification

Certification Information	CE / FCC Class A

Panel

LCD Size	15.6", 16:9
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	179.25um(H) x 179.25um(V)
Luminance	220 cd/m2
Contrast ratio	800
Viewing angle	85 (U), 85 (D), 85 (L), 85 (R)
Response time	30 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Touch Light Transmission	89%
Touch Controller	EETI

External I/O

USB Port	4 x USB 3.0, 2 x USB 2.0 (option)
LAN Port	2 x RJ-45
COM Port	1 x RS232(default)/RS422/485, 4 x RS232(option, pin9 without power)

Internal I/O

GPIO	16bit GPIO

System Control

LED Indicator	HDD LED, power LED

Mechanical & Environmental

Operating Temp.	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	0% ~ 90% Relative humidity, non-condensing
Dimension (W x L x H)	387 x 235 x 48mm
Weight	4.9 Kg
Vibration Test	With M.2 SATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 0.5hr/axis
Shock Test	Operating with M.2 SATA : IEC 60068-2-27 testing procedures, 10G for operation mode
Drop Test	ISTA 2A, IEC-60068-2-32 Test:Ed
Mounting Kit	Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Power Mode	AT/ATX (ATX is default)
System Fan	Fanless

Ordering Information

OFP-15W38-630-A1R | 15.6 Full-HD Multi Touch Open Frame Panel PC / Intel Celeron 6305E, 4GR,128GB M.2 SATA,4xUSB3,COM,2xLAN,2xDP++ without adapter, OFP-15W38-111-A1R | 15.6 Full-HD Multi Touch Open Frame Panel PC / Intel Core i3, 4GR, 128GB mSATA,4xUSB3,COM,2xLAN,2xDP++ without adapter, OFP-15W38-114-A1R | 15.6 Full-HD Multi Touch Open Frame Panel PC / Intel Core i5, 4GR, 128GB mSATA,4xUSB3,COM,2xLAN,2xDP++ without adapter, OFP-15W38-118-A1R | 15.6 Full-HD Multi Touch Open Frame Panel PC / Intel Core i7, 4GR, 128GB mSATA,4xUSB3,COM,2xLAN,2xDP++ without adapter, ACC-ADP-090N-06R | AC/DC adapter 24V/3.75A PWR DIN Plug, E1702031835R | USA Power Cord, E170203183DR | EU Power Cord, E170203183BR | Japan Power Cord, E170P060370R | UK Power Cord, E170P060392R | Australia Power Cord
