Product Datasheet
20 May 2026
Panel PC / Monitor / Mobile · Industrial-Panel-PC
SID-10WAD
Series: SID

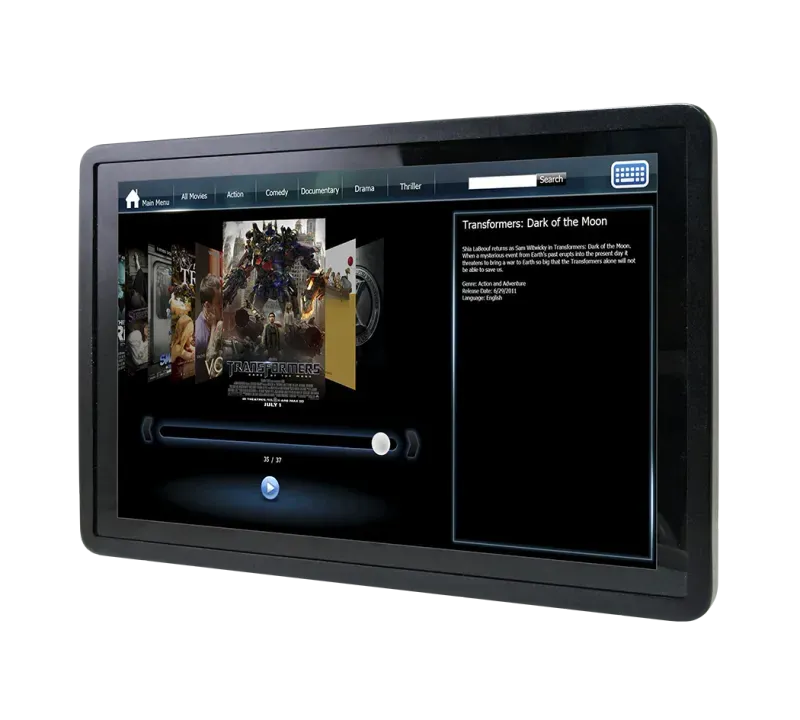

The Avalue SID-10WAD is a 10.1" semi-industrial touch panel PC powered by the Intel Processor N50 (6M cache, up to 3.4 GHz), designed as a compact, fanless x86 front-end for self-service kiosks and digital signage. With 8GB LPDDR5, 64GB eMMC, and Windows 10/11 or Ubuntu 24.04 support, it delivers responsive x86 performance in a slim package. The 1280x800 PCAP 10-point multi-touch panel offers a bright 350 cd/m² display with wide 87.5° viewing angles. Connectivity includes Realtek Gigabit LAN, 2x USB 3.0, a TRS audio jack, an RS-232/RS-485 COM port, HDMI 2.0 out, Wi-Fi 6, and optional BT 5.2. A 12V lockable DC input and fanless 0~40°C operation make the SID-10WAD a durable, low-maintenance interactive display.
Key Features
- 10.1" (1280x800) PCAP 10-point multi-touch semi-industrial panel PC, fanless
- Intel Processor N50, 6M Cache, up to 3.4 GHz
- 8GB LPDDR5, 64GB eMMC
- Windows 10/11, Ubuntu 24.04
- Realtek RTL8111I-CG Gigabit LAN
- 2x USB 3.0, TRS audio jack, RS-232/RS-485 COM, HDMI 2.0 out
- Wi-Fi 6 (802.11ax), optional BT 5.2
- 12V lockable DC input, fanless 0~40°C; CE / FCC Class B
Technical Specifications
System Information
| Processor | Intel® Processor N50, 6M Cache, up to 3.4 GHz |
|---|---|
| System Memory | 8GB LPDDR5 |
| CPU Cooler (Type) | Fanless |
Storage
| Storage | 64GB eMMC |
|---|
Audio
| Speaker Output | 2 x 4Ω 2.0W (Optional) |
|---|
Ethernet
| LAN Chipset | Realtek RTL8111I-CG |
|---|---|
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
Power Requirement
| DC Input | +12V |
|---|---|
| DC Input Connector | Lockable DC Jack |
Software Support
| OS | Windows 10/11, ubuntu 24.04 |
|---|
Certification
| Certification Information | CE, FCC Class B |
|---|
Panel
| LCD Size | 10.1" |
|---|---|
| Resolution | 1280 x 800 |
| Luminance | 350 cd/n2 |
| Viewing angle | 87.5 (U), 87.5 (D), 87.5 (L), 87.5 (R) |
| Touch Type | Projective capacitive multi-touch up to 10 points |
External I/O
| USB Port | 2 x USB 3.0 |
|---|---|
| Audio Port | 1 x Audio Jack TRS |
| LAN Port | 1 x RJ45 |
| COM Port | 1 x COM (RS-232/RS-485) |
| HDMI | 1 x HDMI 2.0 Out |
| DC input | 1 x DC Jack |
| Other | 1 x Power button w/ LED |
Wireless Communication
| WLAN | Wi-Fi 802.11a/b/g/n/ac/ax |
|---|---|
| Bluetooth | Optional BT 5.2 |
DC In / Out Characteristics
| Input Voltage Range | DC +12 V |
|---|---|
| Power Type | AT |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Dimension (W x L x H) | 255 x 169 x 42 mm |
