Product Datasheet
20 May 2026
Panel PC / Monitor / Mobile · Industrial-Panel-PC

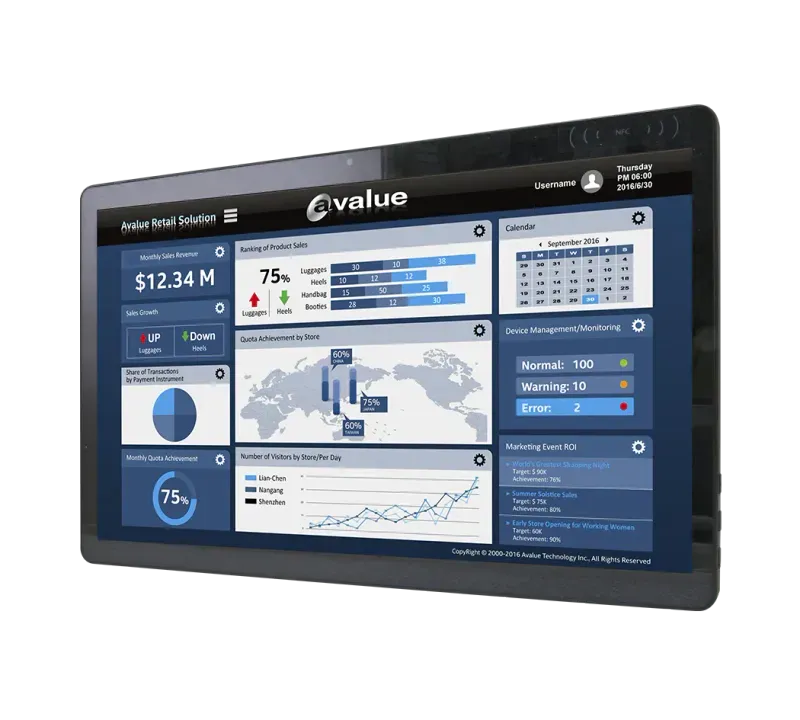

SID-15WR2
Series: SID
The Avalue SID-15WR2 is a 15.6" Full-HD slim industrial touch panel PC powered by the Rockchip RK3568 (quad-core Arm Cortex-A55 up to 2.0GHz) processor, designed as a sleek, fanless front-end for self-service kiosks and digital signage. With 4GB LPDDR4, 64GB eMMC, and Android 14, it delivers a smooth, responsive app experience in a slim plastic enclosure. The 1920x1080 IPS PCAP 10-point multi-touch panel pairs with a Mali-G52 GPU, a 5.0MP MIPI camera, NFC, dual-microphone array, and dual 3W speakers. Connectivity includes Gigabit LAN with Powered-LAN (802.3at) support, HDMI-in, USB 3.0/2.0, a full-function USB Type-C port, and optional Wi-Fi/BT 5.4. A 12V DC input and fanless 0~40°C operation make the SID-15WR2 an attractive, low-maintenance interactive display.
Key Features
- 15.6" Full-HD (1920x1080) IPS PCAP 10-point multi-touch slim panel PC, fanless
- Rockchip RK3568 Arm quad-core Cortex-A55, up to 2.0GHz
- 4GB LPDDR4, 64GB eMMC
- Mali-G52 GPU (OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.0)
- Android 14
- Gigabit LAN with Powered-LAN (802.3at) support
- HDMI-in, USB 3.0, USB 2.0, full-function USB Type-C
- 5.0MP MIPI camera, NFC, dual microphone, optional Wi-Fi / BT 5.4
- DC 12V input, fanless 0~40°C; CE / FCC Class B
Technical Specifications
System Information
| Processor | Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz |
|---|---|
| System Memory | 4GB LPDDR4 |
Storage
| Storage | 64GB eMMC |
|---|
Display
| Graphic Chipset | Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 |
|---|
Audio
| Speaker Output | 2 x 4Ω 3W |
|---|
Ethernet
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
|---|
Power Requirement
| DC Input | +12V |
|---|---|
| DC Input Connector | DC Jack |
| Adapter | Input: 100~240 Vac/50~60 Hz Output: 24W Adapter (12V @ 2A Adapter) |
Software Support
| OS | Android 14 |
|---|
Certification
| Certification Information | CE, FCC Class B |
|---|
Panel
| LCD Size | 15.6" |
|---|---|
| LCD Panel | IPS |
| Resolution | 1920 x 1080 |
| Pixel pitch | 0.17925 (H) x 0.17925 (V) mm |
| Luminance | 250 cd/m² |
| Contrast ratio | 700 |
| Viewing angle | 85 (U), 85 (D), 85 (L), 85 (R) |
| Response time | 30 ms |
| Backlight | ELED |
| Touch Type | Projective capacitive multi-touch up to 10 points |
| Touch Light Transmission | 86% |
External I/O
| USB Port | 1 x USB 2.0, 1 x USB 3.0, 1 x USB Type-C (Full Function, except for charging and DP) |
|---|---|
| LAN Port | 1 x RJ45 |
| HDMI | 1 x HDMI-in |
| DC input | 1 x DC Jack |
| Other | Power/Vol+/Vol- Button |
Data Collection
| NFC | Suppout 13.56MHz，ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693,JIS X 6319-4 & MIFARE |
|---|---|
| Camera | 1 x MIPI 5.0MP Camera |
Wireless Communication
| WLAN | Optional Wi-Fi 802.11ac/a/b/g/n |
|---|---|
| Bluetooth | Optional BT 5.4 |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 20~80%RH |
| Dimension (W x L x H) | 370 x 228 x 23.5 mm |
| Weight | 2.1 kg |
| VESA | 75 x 75 |
| Power Requirement | DC 12V/Powered LAN (802.3at) |
| Power Mode | AT/ATX (AT is default) |
| System Fan | Fanless |
| Color | Black/white |
| Construction | Plastic ABS |
Component
| Microphone | 1 x Standard Dual Microphone |
|---|
Packing List
| Packing List | 1 x AC/DC 24W Adapter 12V/2A, 1 x USB Cable (Type-A to Type-C), 1 x Wall mount bracket, 5 x KA4.0*3mm Screws with Wall plug, 2 x PM4.0*13mm Screws, 1 x Bubble Level, 4 x Self-Adhesive Rubber Feet |
|---|
